Start by identifying the activation line in your vehicle’s electrical system–this critical path usually runs from the pedal sensor to the rear signal module. Use a multimeter set to continuity mode to trace the live wire from the control module to the connector under the dashboard. Most late-model vehicles use a 5V reference signal that drops to 0.5V or lower when the pedal is pressed. Failure to maintain consistent resistance readings across this path often causes intermittent faults.
Locate the pinout designation for terminal 45 or C-115 in manufacturer schematics–this terminal carries the switched voltage output when the pedal engages. Cross-reference with a wiring color code chart: typically, the active line is yellow with a thin black stripe, while the ground circuit is solid black with a 0.5 mm² cross-section. Avoid splicing taps directly–use crimp connectors rated for 30A current with heat-shrink insulating sleeves to prevent oxidation.
When routing wires behind interior panels, secure every 15 cm with nylon cable ties to prevent vibration-induced chafing. Attach the main feed line directly to the central signal distribution box using a micro relay harness instead of piggybacking existing fuse circuits–this ensures precise voltage regulation. Always connect the ground circuit first then verify continuity before completing the positive connection to prevent damaging voltage spikes.
Test operation through a diagnostic sequence: depress the pedal fully while observing voltage drop across all junctions with a scope meter. The voltage should transition from 4.8V to below 0.8V within 50 ms. If readings deviate, inspect for cold solder joints at plug terminals–resolder with 60/40 alloy flux-cored wire. Replace any connectors showing signs of thermal discoloration immediately.
Ensure final checks include verifying reverse polarity protection by momentarily swapping leads. Modern systems integrate fail-safe logic that triggers emergency signals if sensing simultaneous positive and ground feeds, so observe warning lights for fault codes during cross-circuit testing. Seal all connections with dielectric grease to extend lifespan in under-hood conditions where temperature cycles exceed 85°C.

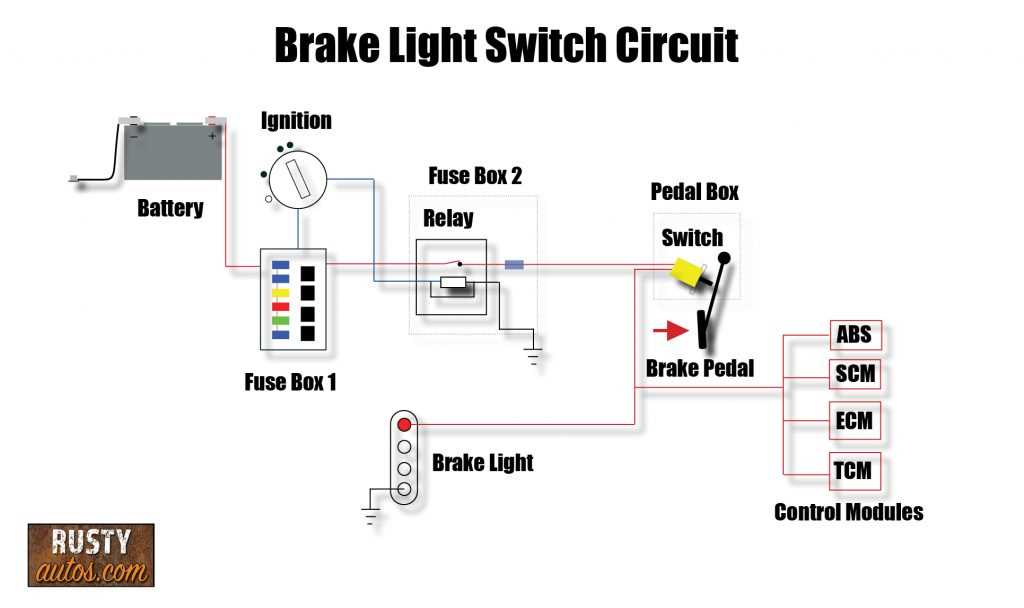

How to Connect Your Vehicle’s Stop Signal Circuit
Locate the activation mechanism near the pedal assembly–typically mounted on the firewall or pedal bracket. Verify the power source using a multimeter: terminals should show 12V when depressed and 0V at rest. If readings differ, inspect the fuse (usually 10A-20A) and relay for continuity.
Most modern systems use a single-pole configuration with three contacts: power in, power out, and ground. Connect the input to the fused ignition circuit and output to the tail lamp circuit. Older models may require a dual-pole design–wire both paths separately to prevent feedback.
Ensure the ground connection terminates to the chassis with a clean, corrosion-free mounting point. Use a #14 AWG wire for signal paths and #12 AWG for high-current sections. Secure all splices with heat-shrink tubing–electrical tape degrades under heat and vibration.
Test the circuit under load: engage the pedal while monitoring voltage at the lamp socket. If bulbs flicker, the issue lies in the contact points–adjust tension or replace the mechanism entirely. For vehicles with cruise control, confirm the secondary output disengages the system when activated.
Label every connection with wire markers–miswiring can trigger false diagnostics or disable safety features. After installation, scan for fault codes; most ECUs detect interrupted circuits within 50ms. If persistent errors occur, check for corroded pins in the harness plug.
For towed trailers, integrate a fail-safe diode to prevent reverse current from damaging the primary circuit. Use a 40A relay if additional load exceeds 10A. Document the entire setup–future troubleshooting will take half the time.
Understanding Pedal Actuator Connector Points and Roles
Locate the primary activation terminal–typically marked with a bold “+” or “C” symbol–where the power feed attaches. This point energizes the circuit when the pedal is depressed, closing the circuit to signal the vehicle’s control module. Verify voltage here with a multimeter; expect 12V in most systems.
Identify the grounded terminal–often labeled “GND,” “E,” or left blank–connected directly to the chassis or a dedicated negative lead. A flawed ground here mimics failure symptoms: erratic signals or no response. Clean corrosion from this connection if readings deviate from 0 ohms.
Check the output terminal–visible as “S,” “SW,” or “NC”–which sends the signal to external components like tail lamps or transmission solenoids. This point should toggle between high and low states as the pedal moves. Probe this line while actuating the mechanism to confirm clean switching.
Examine the adjustment screw on mechanical variants; turning it alters the engagement point. Clockwise rotation delays activation, counterclockwise advances it. Use matchmarks before modification to restore original settings if needed.
Inspect resistors or diodes integrated into some designs–they suppress voltage spikes and prevent false triggers. Replace damaged components with identical values; a 1N4007 diode is common. Misaligned or incorrect replacements risk damaging downstream electronics.
Step-by-Step Connector Color Standards for Popular Makes
Begin by disconnecting the negative terminal of the battery to prevent short circuits while handling circuit paths. For Ford F-150 (2015–2023), the stop signal transmitter uses a 3-pin harness: White/Red (power), Black/White (ground), and Green/Yellow (output). Verify continuity with a multimeter–resistance should drop to near zero when the pedal is depressed. If readings exceed 5Ω, inspect for corrosion at the fuse box connector (pin 30, 15A fuse).
| Model | Primary Circuit | Return Path | Signal Path |
|---|---|---|---|
| Toyota Camry (2018–2023) | Pink (+12V) | Black (ground) | White/Blue (output) |
| Chevrolet Silverado (2020–2024) | Red (power) | Black (ground) | Dark Green (signal) |
| Honda Civic (2016–2022) | Yellow/Black (+) | Black (–) | Blue/Black (trigger) |
On 2017–2021 Jeep Wrangler, the sender unit’s harness includes Gray (input), Brown (ground), and Orange/Dark Blue (output). Clip the TIPM connector (C1) and probe socket 14–voltage should toggle between 0V and 12V during pedal engagement. Replace the sender if voltage stalls at 6V or spikes above 14V. For splices, use soldered connections sealed with adhesive-lined heat shrink to prevent moisture ingress.
Testing Nissan Rogue (2019–2023) requires back-probing the BCM connector (M36): Light Green (power, pin 4), Black (ground, pin 12), and Yellow/Red (signal, pin 30). Set the multimeter to DC voltage–expected readings are 0V (rest) and 10–12V (active). If the signal floats at 5V, check the BCM ground at chassis location G301. Nissan’s service manual specifies a max loop resistance of 1Ω between the sender and BCM; exceedance mandates harness replacement.
For Tesla Model 3 (2020–2024), the pedal position sensor circuit differs. Disconnect the rear motor controller (MCU): Green/Black (+5V reference), Black (ground), and White/Black (analog output). Use a scope to verify a linear voltage ramp from 0.5V to 4.5V during pedal travel. A jagged waveform indicates sensor failure–replace the pedal assembly. Always clear DTCs after repairs via the service screen (Software > Vehicle > Pedal Calibration).
Integrating the Pedal Sensor into the Rear Signal Loop
Locate the vehicle’s central power distribution panel–typically found under the dashboard or near the steering column–and identify the terminal dedicated to the rear illumination relay. Most modern configurations use a 12V single-pole output with a spade connector (4.8mm), though some European models may require a bullet terminal (6.3mm). Verify the pin assignment in the manufacturer’s technical bulletin; incorrect attachment risks fusing the circuit or damaging the control module.
Trace the existing conduit from the pedal sensor to its junction with the main harness. Cut the insulation 15mm back to expose the copper strands, then strip 5-7mm of shielding. Twist the strands tightly and slide a heat-shrink sleeve (3:1 ratio) over the wire before crimping. Use a crimp connector (blue for 1.5mm², red for 2.5mm²) matching the harness gauge. Avoid soldering near plastic components–heat can warp adjacent casings.
Route the newly exposed lead to the rear signal lamp assembly through the existing cable pathway. Secure it with zip ties (4.7mm width) every 200mm to prevent chafing against sharp edges beneath the chassis. If the pathway includes a firewall grommet, coat the wire with dielectric grease before threading to prevent moisture ingress–corrosion thrives in untreated junctions, leading to intermittent failures.
Attach the crimped end to the corresponding stop lamp circuit using a male/female quick-disconnect (0.250″ pitch). Confirm polarity with a multimeter set to DC 20V–probe the female terminal while pressing the pedal; readings should spike from 0V to 12-14V. If values fluctuate below 10.5V, inspect the alternator output and ground connections at the chassis rail near the rear axle.
Test the setup by cycling the pedal five times under load. Listen for relay clicks and observe lamp behavior; dimming or slow response indicates resistance in the circuit. Split the harness near suspected problem segments and measure voltage drop–values above 0.3V warrant replacing the entire segment. Seal all connections with self-fusing silicone tape and secure loom ends with spiral wrap (19mm diameter) for long-term durability.
