Begin by identifying the primary hydraulic circuit in any vehicle deceleration layout. The master cylinder must always connect directly to the front and rear calipers via dedicated fluid lines, with the proportioning valve positioned between the master cylinder and rear actuators to regulate pressure distribution. Failure to verify this baseline configuration leads to uneven force application, compromising stopping performance.
Trace the electrical signal paths for antilock control modules when analyzing ABS-enabled designs. The wheel speed sensors feed data into the control unit, which modulates solenoid valves in the hydraulic modulator. Verify that sensor wiring harnesses maintain proper grounding–resistance values should not exceed 2 ohms between sensor leads and chassis ground. Excess resistance distorts readings and triggers false ABS interventions.
For mechanical retarding systems, focus on the pedal pivot ratio. A typical passenger vehicle uses a 5:1 leverage ratio; deviations beyond ±0.5:1 from this standard require recalibration of pushrod length or vacuum booster input rod. Incorrect ratios alter pedal feel and reduce modulation precision. Measure free play at the pedal pad–ideal range: 6–10 mm–before any adjustments to avoid overtravel or premature friction material contact.

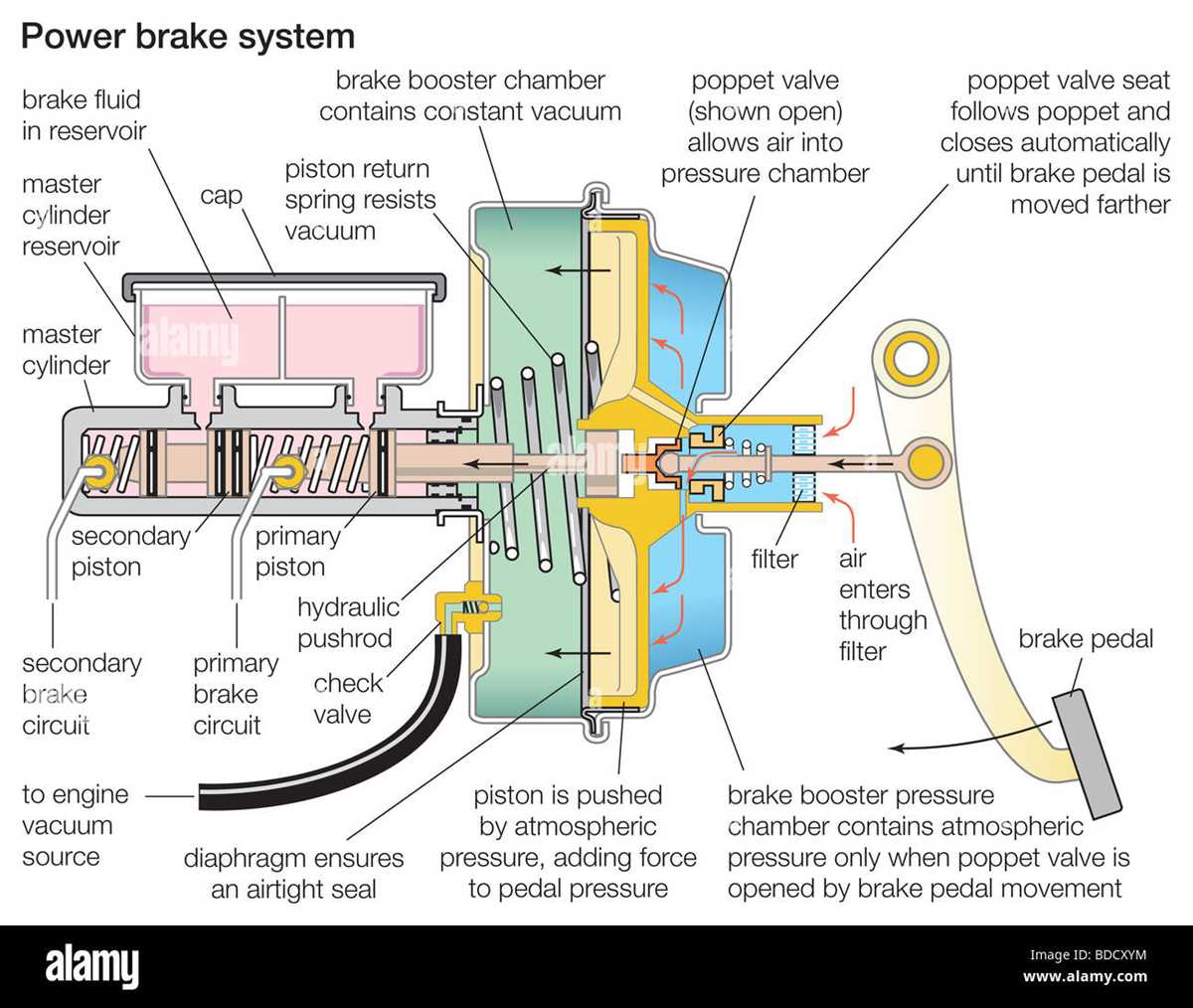

Inspect the vacuum assist assembly for integrity. The booster diaphragm should hold a steady vacuum of 18–22 inHg during engine idle. Check the one-way valve with a vacuum gauge; if readings fluctuate by more than 2 inHg, replace the valve to prevent loss of assist under heavy loads. Any hesitation in pedal response directly correlates to vacuum loss.
Document fluid routing sequences in dual-circuit layouts. Front-wheel-drive vehicles typically split circuits diagonally (left front/right rear and vice versa), while rear-wheel-drive platforms often use a parallel split. Cross-reference the layout with OEM specifications–incorrect routing risks complete circuit failure if a single line ruptures. Label all junctions with fluid type (DOT 3/4/5.1) and pressure ratings (maximum 2,500 psi for standard systems).
Understanding Hydraulic Stopping System Blueprints
Begin by identifying key components in the stopping system layout: master cylinder, calipers, wheel cylinders, and hydraulic lines. Label each section with precise annotations–use color-coding for different fluid pathways (e.g., red for primary circuits, blue for secondary). This visual distinction prevents misinterpretation during assembly or troubleshooting, especially in dual-circuit designs where redundancy is critical. For ABS-equipped systems, highlight solenoid valves and accumulators with dashed lines to differentiate them from standard hydraulic routes.
Critical Inspection Points
- Check pressure regulators at junction points–faulty valves lead to uneven pad wear or complete failure.
- Verify brake booster connection integrity–vacuum leaks reduce pedal responsiveness by 30-40%.
- Trace lines from the pedal to the master cylinder to ensure no kinks or corrosion exist in steel or rubber hoses.
- Compare proportioning valve settings against manufacturer specs–incorrect ratios cause premature rear lockup.
For electronic stability programs, superimpose sensor locations (wheel speed, yaw, steering angle) directly onto the fluid flow illustration. Use arrows to indicate signal direction and note wire gauge specifications–20-18 AWG for most passenger vehicles. Include a legend detailing symbols: squares for actuators, triangles for sensors, and circles for connectors. Update this reference with every modification, as even minor changes (e.g., switching brake pad compounds) alter hydraulic behavior.
Key Parts Highlighted in Vehicle Stopping Mechanism Illustrations
Begin by locating the master cylinder–the core pressure generator in hydraulic setups. Check for dual-chambered designs in modern vehicles, ensuring they match OEM specifications. Single-chamber variants require immediate scrutiny for potential cross-contamination risks between circuits. Verify fluid type compatibility (DOT 3/4/5.1) and replace if contamination is detected, as degraded fluid compromises pedal feel and response time.

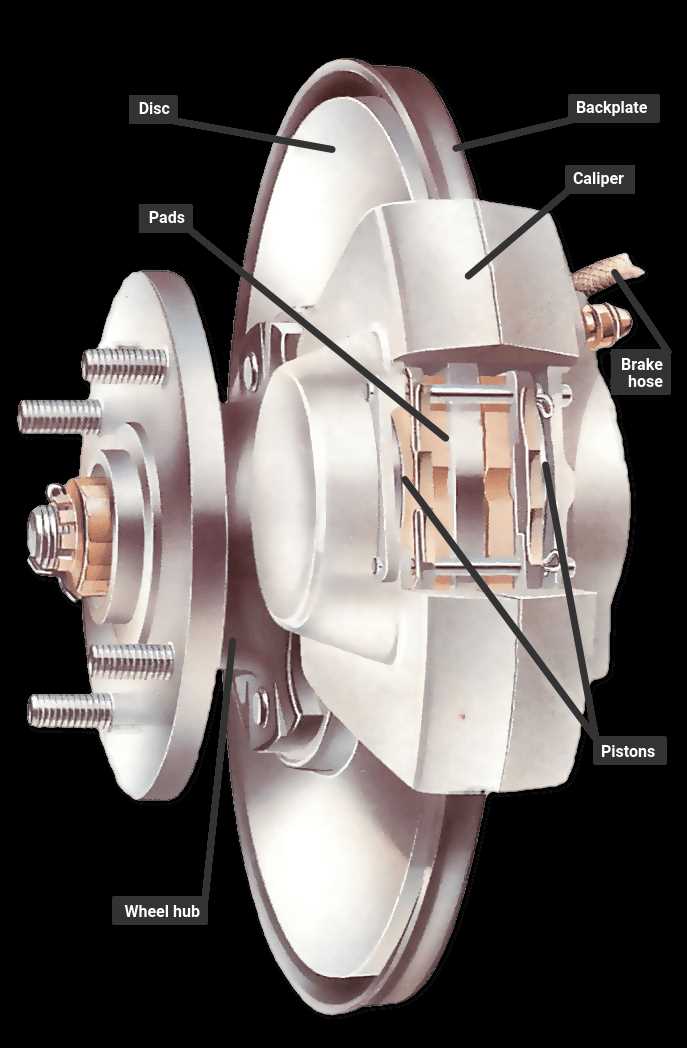

Calipers, whether floating or fixed, must show uniform pad wear and smooth piston retraction. Inspect dust boots for tears, as debris ingress accelerates corrosion. Fixed calipers with multiple pistons demand precise torque settings (typically 25-35 Nm for M10 bolts) to prevent uneven clamping force. Note that aluminum calipers require lighter lubrication than cast iron to avoid thread galling.
Hydraulic and Friction Essentials
Hoses should be replaced every 5 years or at the first sign of bulging/abrasion. Opt for braided stainless steel lines for high-performance applications, but ensure they meet FMVSS 106 standards. Rubber hoses degrade internally–check for spongy pedal feel as an early warning sign. Rotors must maintain minimum thickness (stamped on the hub) to prevent thermal cracks; resurface only if lateral runout is below 0.05mm.
Pads require material-specific bedding procedures. Ceramic compounds need gradual heat cycles (10-20 moderate stops from 60-30 mph), while metallic blends demand higher temperatures (80+ mph threshold for optimal performance). Inspect shims for delamination, as missing or damaged shims increase noise and vibration. Uneven wear patterns (e.g., taper wear) typically indicate caliper slide pin issues–clean and lubricate pins with silicone-based grease every 12 months.
Electronic and Mechanical Safeguards
ABS sensors must maintain precise air gaps (0.5-1.0mm) and be free of ferrous debris. Test sensor resistance (800-1400 ohms typical) and signal voltage (100-500 mV AC at wheel rotation) during diagnostics. Parking mechanisms (drum-in-hat or dedicated shoes) require frequent adjustment–listen for drag noises as an indicator of misalignment. Rear shoes with integrated parking systems often wear faster; prioritize high-friction linings (µ ≥ 0.35) for reliable hold.
How to Interpret Hydraulic Stopping System Blueprints Step-by-Step

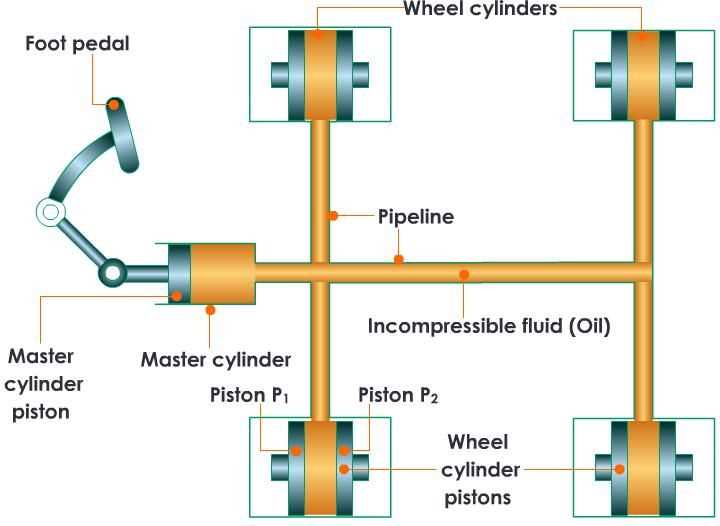

Identify the master cylinder first–it’s the primary pressure source, typically drawn as a rectangle or oval with inlet and outlet ports. Note the fluid reservoir above or beside it; this component ensures constant hydraulic supply during pedal travel. Check for labeled lines connecting to the wheel units–solid lines indicate pressure hoses, dashed lines often represent return or compensation paths. Measure the bore size if specified; a 23.8 mm master cylinder, for example, generates different force ratios than a 19.05 mm model for identical pedal inputs.
Trace the hydraulic path to each caliper or drum actuator. Look for proportional valves, shuttle valves, or metering devices–these regulate force distribution between front and rear axles. A “G” valve, common in RWD layouts, delays rear pressure buildup to prevent premature lockup. Locate bleed screws at high points; their placement reveals air pocket risks during servicing. If the layout includes an ABS modulator, note its position–usually between the master unit and wheel actuators–along with solenoid symbols marking control channels.
Verify line diameters and materials. A 3/16″ stainless steel pipe handles higher psi than a 1/4″ rubber hose, critical for fade resistance in high-temperature environments. Cross-reference the legend for symbols–arrows denote fluid direction, triangles signal check valves, and “X” marks fluid junctions. Compare front-to-rear pressure ratios directly on the chart; a 60:40 split is standard, while 70:30 favors stability under heavy loads. If dual-circuit design exists (common in diagonal split systems), confirm cross-connections and residual pressure valves to isolate failures.
Key Symbols in Vehicle Stopping System Circuit Illustrations
Master reading technical layouts by memorizing these core graphical elements first–confusion often arises from misidentifying reservoir tanks versus fluid accumulators. A circular shape with a diagonal line through the center always denotes a pump, while dashed rectangles indicate valves; solid rectangles represent cylinders. Prioritize distinguishing pressure relief valves (marked by an arrow inside a rectangle) from directional control valves (rectangles with multiple ports), as errors here derail entire system diagnoses.
Study the table below for rapid reference–each symbol’s function directly impacts troubleshooting speed:
| Symbol | Component | Critical Notes |
|---|---|---|
| △ (triangle) | Hydraulic line | Check for interrupted flow paths–dotted lines denote pilot signals. |
| ▯▮ (broken rectangle) | Master cylinder | Locate near pedal linkage; trace lines to calipers or wheel units. |
| ◊ (diamond) | Brake fluid reservoir | Measure fluid levels relative to MAX/MIN markings before assuming leaks. |
| ←| (rectangle with inward arrow) | Check valve | Ensure unidirectional flow; failures mimic pedal fade symptoms. |
| ⚡ (zigzag) | Electric actuator | Test voltage drop across terminals–abnormal readings suggest ABS module faults. |
Practice isolating symbols in real layouts–begin with a single caliper circuit, then expand to tandem systems. Note that spring-loaded elements (depicted by coiled lines inside rectangles) demand higher cracking pressures; misinterpreting these as standard valves leads to incorrect system pressure adjustments. Always correlate pressure values annotated beside symbols–usually in psi or bar–with actual gauge readings during diagnostics.
Adopt color-coding as a visual aid: red for high-pressure circuits, blue for low-pressure return lines, and green for signal paths. This reduces miswiring risks during repairs or modifications. For electronic stability control modules–often shown as rectangles with embedded logic gates–verify 12V power inputs and CAN bus continuity before assuming sensor failures.
Keep a laminated reference card of these symbols in your toolkit; field repairs require quick, accurate recognition. When analyzing anti-lock modulation units (typified by interlocking rectangles with pulse-wave icons), focus on waveform patterns–erratic spikes indicate wheel speed sensor degradation, while flat lines suggest open circuits or severed wiring harnesses.
For pneumatic systems, adapt hydration symbols: air compressors use circular icons with internal fans, while desiccant dryers appear as rectangles with a wavy internal line. Pressure regulators (broken rectangles with tapered arrows) must be matched to manufacturer-specified tolerances–deviations cause premature lining wear. Always cross-reference symbols with ISO 1219-1 standards to avoid regional interpretation discrepancies.
Validate hydraulic layouts by pressure-testing: attach gauges at designated test points (usually marked by triangles with a dot). If readings diverge from annotated values by more than 5%, trace adjacent valves–even minor symbol misreading cascades into system-wide failures.
