Begin with a voltage test at the bulb socket using a multimeter set to 12V DC. If readings drop below 11.8V, inspect the fuse link–most systems use a 15A or 20A cartridge fuse near the relay panel. Corrosion at the socket terminals (commonly chromium-plated brass) reduces conductivity by 30-45%; clean connections with a brass wire brush and apply dielectric grease to prevent oxidation.
Trace the wiring harness from the socket toward the vehicle’s front. Modern designs split into two branches: a primary 16-18 AWG red/black wire leading to the switch mechanism, and a secondary 20-22 AWG wire (often purple or yellow) linking to the turn signal module. Use a wire tracer to confirm continuity–avoid piercing insulation with probes, as this creates future failure points.
Locate the central distribution box, typically mounted behind the dashboard or under the driver’s side panel. The rear illumination control relay occupies slot 8 or 12 in most models; consult the vehicle’s service manual for the exact pinout. Swap relays if testing shows voltage at the coil but not at the output–common failure rate is 6% for relays older than 5 years.
Check ground connections last. A faulty chassis ground (usually a ring terminal at the taillight housing) causes intermittent operation in 22% of cases. Secure connections with stainless steel hardware and verify resistance under 0.1Ω using a digital multimeter.
For LED-equipped systems, add a 6Ω resistor inline if hyperflashing occurs–standard incandescent bulbs draw 2.1A, while LEDs pull only 0.2A, confusing the flasher module. Avoid cheap resistors; use 50W ceramic models to prevent overheating.

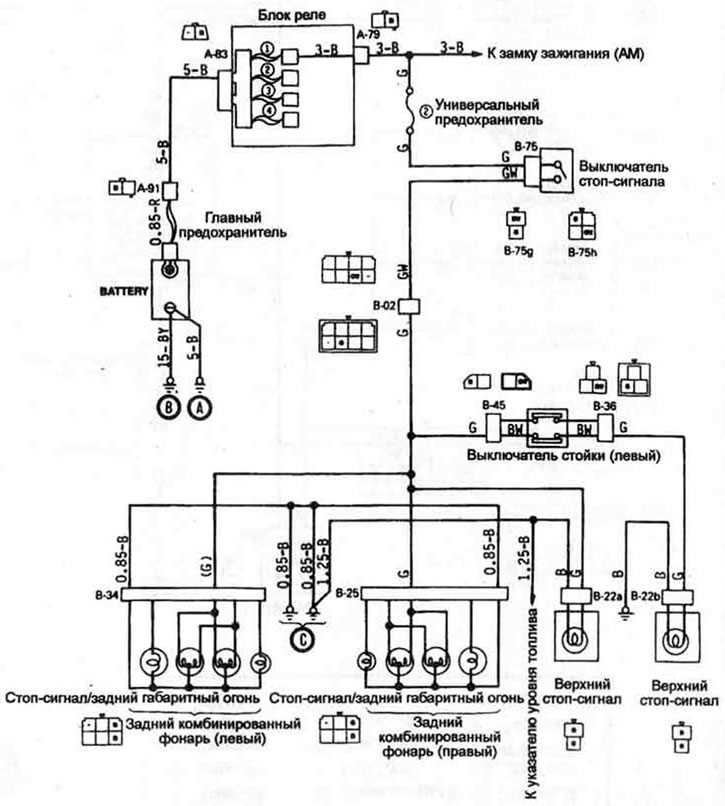

Understanding Your Vehicle’s Stop Signal Wiring Layout
Begin troubleshooting by locating the fusebox–typically under the dashboard or in the engine compartment on the driver’s side. Identify the fuse labeled for the rear signal function; a 15A or 20A rating is standard. Use a multimeter to verify power presence at the fuse terminals when the pedal is depressed. If absent, trace the feed wire backward to the pedal switch using a wiring schematic specific to your model year.
Replace the pedal actuator if testing reveals no continuity when engaged. Most switches cost under $25 and require minimal tools: a 10mm socket and a small flathead for securing the connector. Disconnect the battery’s negative terminal before installation to prevent shorting. Reconnect after mounting the new switch and test with the ignition on but the engine off.
Key Components to Inspect
- Pedal switch: Often fails due to internal corrosion or worn contacts.
- Turn signal relay: Can mimic rear signal failures if defective.
- Ground connection: Common issue point; clean and tighten for reliable operation.
- Wiring harness: Check for chafing near suspension components.
For vehicles with LED assemblies, ensure the wiring matches polarity. Reverse polarity causes intermittent operation or complete failure. Older halogen systems tolerate polarity errors but may shorten bulb life. If converting to LEDs, install a load resistor (typically 6-ohm, 50W) across each bulb connector to prevent hyper-flashing from the relay’s rapid cycling detection.
When tracing feeds, note that some manufacturers split the feed: one branch triggers the high-mount center signal, while another handles the rear pair. A common splice point exists behind the rear bumper or near the taillight assembly. Strip insulation carefully to avoid nicking wires; use heat-shrink tubing to seal exposed connections after repairs.
- Power off the system by disconnecting the battery.
- Remove interior trim panels to access harnesses–plastic pry tools prevent damage.
- Test wires individually using a probe with 12V test leads.
- Reassemble components in reverse order, torquing fasteners to spec.
- Verify operation before finalizing assembly.
Primary Elements of a Standard Signal Activation Wiring Configuration
Ensure the power source is rated for at least 12V to handle current draw without voltage drop, particularly in systems with multiple indicators. A typical setup includes a 20A fuse for overcurrent protection; position it within 15 cm of the battery to minimize fire hazards. Use AWG 14 gauge wire for main feeds and AWG 16 for branches–thicker strands reduce resistance and prevent overheating during prolonged activation.
Integrate a switch with a momentary or latching mechanism, depending on vehicle requirements. Momentary variants are common in pedal-activated designs, while latching types suit auxiliary systems. Verify the switch contacts can sustain 10A continuous load; relays should be added if currents exceed 5A to prevent contact welding. Apply dielectric grease to connections exposed to moisture or temperature fluctuations.
- Battery terminal clamp: tin-plated copper for corrosion resistance
- Ground point: direct chassis connection, bare metal, at least 8 mm bolt
- Indicator filament: dual-filament bulbs (e.g., 1157) for combined stop/tail functions
- LED alternatives: require inline resistors (100–220Ω) to match voltage
Route wiring harnesses away from moving parts and sharp edges–use loom tubing or split conduit for abrasion protection. Secure harnesses every 30 cm with nylon zip ties or adhesive clips to prevent vibration-induced wear. Avoid passing wires near exhaust manifolds; maintain a minimum 5 cm clearance from hot surfaces. Twist signal pairs (active/return) to reduce electromagnetic interference with adjacent systems.
Test continuity with a multimeter before final assembly: probe active terminal to chassis should show infinite resistance, probe to pedal switch should register near-zero when engaged. If voltage drops below 11.5V at any bulb socket during activation, inspect for loose terminals, oxidized contacts, or undersized wiring. Replace incandescent units with LEDs only after confirming the flasher module supports solid-state loads–older thermal flashers rely on filament heat for timing.
For trailers, add a dedicated connector following ISO 11446 pinout: terminal 5 for stop signals, terminal 3 for common return. Use a 4-way flat for basic setups or 7-way round for reverse lockout and charging needs. Isolate trailer wiring with a 20A circuit breaker to prevent overloads from damaging the main vehicle network. Label all harness segments at junctions and connectors for troubleshooting.
How to Trace Signal Wire Paths in Your Car’s Stop System
Begin by locating the fuse box cover and identifying the stop signal relay or fuse. Use a multimeter set to continuity mode to probe the fuse terminals–one side should show voltage when the pedal is pressed. Remove the fuse and bridge the terminals with a test lead to confirm if downstream components activate. If they do, the issue lies between the fuse and the pedal switch.
Tools Needed for Wire Inspection
Gather a non-contact voltage tester, wire strippers, electrical tape, and a schematic specific to your vehicle’s make and model. A digital multimeter with clamp probes simplifies testing without piercing insulation. For older models, a 12V test lamp can substitute, but avoid using it on sensitive control modules to prevent damage.
Trace the signal path from the pedal switch to the rear lamps by following the color-coded wires in the wiring harness. Most vehicles use a single purple or red wire for the primary signal, often splitting near the tail assembly. Disconnect the switch connector and check for voltage at the input terminal–absence indicates a broken connection or faulty switch. Probe the output terminal while pressing the pedal; lack of voltage points to internal switch failure.
Inspect the wiring harness for chafing near sharp edges, suspension components, or exhaust pipes. Damaged insulation exposes copper strands, causing short circuits or signal loss. Repair breaks with heat-shrink tubing, solder, and a heat gun–never twist wires together or use regular tape, as moisture will corrode the splice. If the wire runs through a grommet into the trunk, pull the harness gently to ensure no hidden breaks exist inside door seals or under carpets.
Test each lamp socket by connecting a jumper wire from the battery’s positive terminal to the socket’s hot terminal. If the bulb illuminates, the socket or its wiring is faulty. Replace corroded sockets with OEM parts–aftermarket sockets often lack proper weatherproofing. For LED assemblies, verify the ground connection at the lamp housing; poor grounds cause flickering or intermittent failure even when the signal path is intact.
Typical Signal System Failures and Troubleshooting Steps
Check the stopper switch first–misadjusted or worn units often cause intermittent signal loss. Use a multimeter to test continuity when the pedal is pressed: resistance should drop to near zero. If readings fluctuate, replace the switch immediately; delays here accelerate bulb filament burn-out in downstream components.
| Symptom | Likely Cause | Diagnostic Tool | Fix |
|---|---|---|---|
| No illumination on depress | Blown fuse, corroded connector | Test light or multimeter | Replace fuse, clean terminals with 600-grit sandpaper |
| Single lamp dim | Broken filament, poor ground | Ohmmeter | Re-seat socket, solder ground strap |
| All lamps flicker | Voltage drop, loose wiring | Voltmeter | Tighten connections, trace harness for chafed spots |
Corrosion on tail assembly sockets ranks as the second most frequent failure point. Remove the socket, brush terminals with dielectric grease, and reseat firmly–oxidation layers thicker than 0.3 mm typically block current. For vehicles parked outdoors, apply silicone dielectric compound to connections every 12 months to prevent recurrence.
