Begin by identifying the stator and rotor layouts–these dictate performance limits. A typical 200mm impeller model operates on a shaded-pole configuration, requiring a 120V AC input with current draw between 0.3–0.5A. Locate the coil windings (usually 400–600 turns of 28–32 AWG wire) and verify their connection to the start/run capacitor (typically 2–4µF, 250V). Missing this step risks phase imbalance, reducing torque by 30–40%.
Trace the thermal fuse (rated 125–130°C) integrated into the winding circuit–its placement near the coil center prevents overheating. For reversible models, confirm the dual-speed switch wiring: high setting links directly to the main coil, while low splits voltage via a resistor or secondary winding (resistance: 50–150Ω). Omitting this check leads to erratic operation or failure under load.
Check the impeller hub assembly for sintered bronze bearings (lubricated with SAE 20–30 oil)–dry bearings increase friction by 15–25%. The shaft alignment must match the housing tolerances (±0.05mm); misalignment accelerates wear, cutting lifespan from 5,000 to 2,000 hours. Include a varistor (MOV, 275V AC) across the power leads to suppress voltage spikes.
Label each connection with color-coded markers: black (hot), white (neutral), green (ground). For aftermarket repairs, use 18 AWG stranded copper wire–solid core degrades under vibration. Test continuity with a multimeter: coil resistance should read 20–60Ω; values outside this range indicate shorted or open windings. Prioritize the capacitor discharge step–using insulated tools, short the terminals before handling to avoid 5–10J stored energy release.
Understanding Air Circulator Drive Circuit Layouts

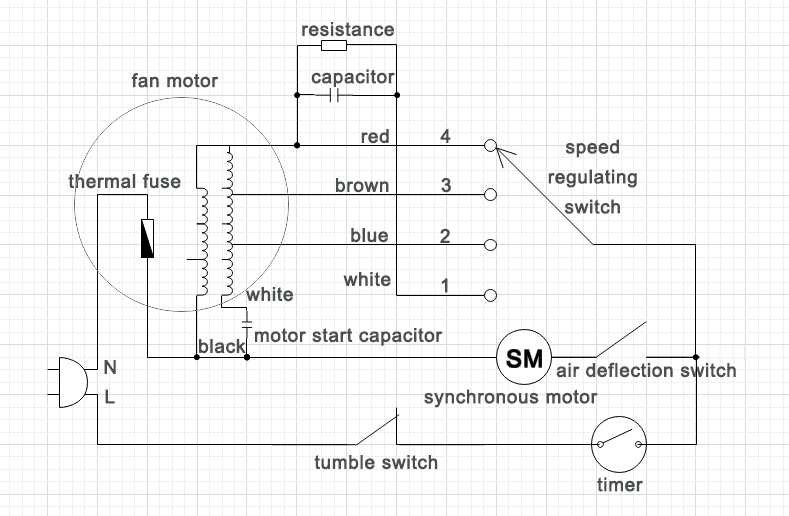

Start by identifying the capacitor’s position on the wiring map–it typically bridges the auxiliary winding and the start relay or centrifugal switch. For single-speed models, locate the main and auxiliary coils; the former connects directly to the power input, while the latter links through the capacitor. Multi-speed variants introduce an additional selector switch, often a rotary type, that alters voltage across the auxiliary winding via tapped resistors or inductive reactances.
Trace the power feed from the mains connector to the thermal overload protector, a bimetallic strip or PTC resistor that interrupts current at 125–150°C. If absent, expect heat-related failures within 400–600 operation hours. Check the shaft brackets for shaded pole arrangements–these use copper rings embedded in the stator to induce a phase shift, eliminating the need for separate start mechanisms but limiting torque to 0.2–0.4 Nm.
Critical Component Values
Permanent split capacitor (PSC) designs demand exact capacitance: 4–8 µF for 120V/60Hz units, 10–20 µF for 230V/50Hz. Tolerances beyond ±5% cause startup delays or stalling. Verify winding resistance–main coil: 20–40 Ω, auxiliary: 50–120 Ω. A reading above 200 Ω signals shorted turns, requiring stator replacement. Rotor inspection should confirm aluminum or copper bars; cracked bars reduce efficiency by 30–45%, detectable via growling noises at 50% load.
Replace carbon brushes if wear exceeds 3 mm–1.5 mm thresholds are standard. For brushless DC (BLDC) variants, note the three-phase inverter layout: six MOSFETs or IGBTs arranged in H-bridge topology, controlled by a hall-effect sensor cluster spaced at 120° intervals. PWM signals from the microcontroller typically operate at 20–50 kHz, insufficient filtering yields audible whine; add 100 nF ceramic capacitors across each MOSFET’s gate-source to suppress ringing.
Fault Isolation Workflow
When diagnosing hum without rotation, disconnect power and measure back-EMF using an oscilloscope. Expect 5–15 mVac per 100 RPM–values below 1 mVac indicate demagnetized rotor. For single-phase designs, jump the centrifugal switch momentarily to verify operation; persistent failure confirms faulty switch or open auxiliary winding. Shielded cable is mandatory for hall sensor lines–ungrounded loops induce false commutation pulses, tripping over-current protection.
Thermal grease reuse is prohibited–remove old compound with isopropyl alcohol (99% purity) and apply 0.1–0.2 g of Arctic MX-6 between bearing housing and baseplate. Overtightening the impeller nut by 0.1 Nm misaligns shrouds, increasing drag by 12–18%. Use a torque wrench calibrated to 1.4–1.7 Nm. For variable speed models, potentiometer values above 5 kΩ cause erratic speed control; replace with 10-turn precision trimmers if voltage droop at low RPM exceeds 8%.
Key Components of an Air Circulator Drive Circuit
Begin by identifying the stator winding configuration–most compact airflow devices rely on a single-phase induction arrangement with main and auxiliary coils. Measure resistance between terminals: typical readings range from 50–150 ohms for the main coil and 150–400 ohms for the starting winding. Values outside these ranges indicate degraded insulation or shorted turns, which will cause overheating and reduced torque. Replace the entire assembly if readings drop below 30 ohms or exceed 500 ohms.
The capacitor plays a critical role in phase shifting–verify its value matches the label (usually 2–6 µF for compact units). Use a multimeter with capacitance mode to test: a good capacitor will briefly show charging voltage then drop to near-zero. If it reads consistently above 5% of the rated value or fails to charge, replace it immediately–malfunctioning capacitors create noisy operation and prevent proper startup torque. Always discharge the component before handling to avoid shock or damage.
Inspect the centrifugal switch if the design includes one–this mechanism disengages the auxiliary winding once reaching 70–80% of operational speed. Check for wear on the contacts or misalignment, which leads to premature failure. Lubricate pivot points sparingly with silicone grease; over-application attracts dust and causes sticking. For units without a switch (capacitor-run types), ensure the capacitor remains connected during operation to maintain proper phase displacement.
A thermal fuse or overload protector typically clips to the stator housing–its rating should be 5–10°C above normal operating temperature (usually 125–145°C). Test continuity: an open fuse indicates overheating, often caused by blocked airflow or excessive voltage fluctuations. Replace with an exact match; undersized fuses trip unnecessarily, while oversized versions fail to protect against thermal runaway. Confirm the replacement’s response time aligns with the original (typically 3–5 seconds at 20% overload).
Step-by-Step Wiring Guide for Single-Speed Airflow Unit Assemblies
Connect the live wire (typically black or red) to the main winding terminal marked *M* or *L*. Ensure the wire is stripped to 6–8 mm of bare copper and secured with a crimp connector or terminal screw rated for 10A. Misalignment here risks overheating the coil or intermittent operation.
- For 120V models, pair this with the neutral (white) wire to the *N* terminal–verify polarity with a multimeter set to AC voltage (expect ~120V when energized).
- 220V units require an additional phase wire (blue or brown) to the secondary winding; consult the rating plate for exact color codes.
- Ground the green/yellow wire to the chassis lug–non-compliance voids UL/CSA certification.
Bridge the run capacitor (typically 2–5 µF) between the *M* terminal and the *start winding* (*S*) using 18 AWG tinned copper wire. Capacitor polarity isn’t critical, but reverse its leads during testing if the impeller fails to spin (
Test the circuit with a non-contact voltage detector before restoring the rear grille. Energize the setup at the lowest fuse rating (e.g., 3A slow-blow) and observe:
- Impeller rotation direction (correct: counterclockwise facing intake).
- Current draw (amperage
- Capacitor case temperature (
Adjust blade pitch if noise exceeds 55 dB at 1m.
Seal unused terminals with dielectric grease and Mylar tape. For reversible models, add a DPST switch between the *M* and *S* terminals–wire gauge must match the primary circuit (minimum 16 AWG for 1HP units). Document all deviations from OEM wiring in a service log, noting torque specs for terminal screws (typically 0.8–1.2 Nm).
Key Failure Points in Cooling Unit Drive Circuits
Check the capacitor first–most airflow device failures trace back to degraded or bulging electrolytic components. Use a multimeter to measure capacitance against the labeled value (typically ±10% tolerance). Replace if readings drop below 80% of rated capacity or if physical deformation is visible.
Inspect brushes on universal drivetrains for excessive wear or carbon buildup. Brush lengths below 3mm indicate imminent failure. Clean commutator surfaces with 400-grit sandpaper if blackened; ensure no grooves deeper than 0.2mm exist. Brush spring tension should measure 150-200g–replace springs outside this range to prevent arcing.
| Component | Failure Sign | Test Method | Threshold |
|---|---|---|---|
| Thermal fuse | Open circuit | Continuity test | Infinite resistance |
| Speed selector | Intermittent contact | Voltage drop across terminals | ≥0.5V |
| Stator winding | Short to ground | Insulation resistance test | <1MΩ |
Examine the start/run winding ratio on shaded-pole assemblies. A start winding resistance exceeding 50% of the run winding points to coil degradation. For PSC configurations, verify the auxiliary winding resistance matches the primary within ±5Ω–discrepancies indicate burn spots.
Lubrication failures manifest as high-pitched whining or seized bearings. Apply SAE 20 non-detergent oil to bronze sleeve bearings at six-month intervals; sealed ball variants require replacement when radial play exceeds 0.1mm. Avoid lithium grease–it accelerates bearing wear under axial loads.
Trace PCB solder joints on speed control circuits with a magnifying glass. Cold solder joints, indicated by dull gray rings around terminals, cause erratic operation. Reflow with 60/40 rosin-core solder at 350°C–ensure flux residues are removed with isopropyl alcohol to prevent tracking.
Verify line voltage at the input terminals during operation. Drop below 115VAC (for 120V units) forces the drive to draw excessive current, overheating windings. Use a true-RMS meter to measure; transient spikes above 135VAC damage insulation–install a 15A MOV suppressor if frequent surges occur.
