Start by locating the primary power module beneath the vehicle’s hood–typically near the fuse box. Identify the red 8-gauge wire (main power feed) and verify its connection to the solenoid or battery post, ensuring a secure crimp and no corrosion at terminals. A failing connection here disrupts the entire setup, causing intermittent power loss to the lift, angle, and lighting circuits.
Trace the white control harness along the frame rail toward the front mounting plate. Secure the 7-pin adapter to the vehicle’s side, matching pins as follows: pin A (red) for continuous power, pin D (brown) for ground, and pins E/F (blue/yellow) for angled operation. Swap damaged wires immediately–chafing against sharp edges leads to short circuits and unpredictable blade behavior under load.

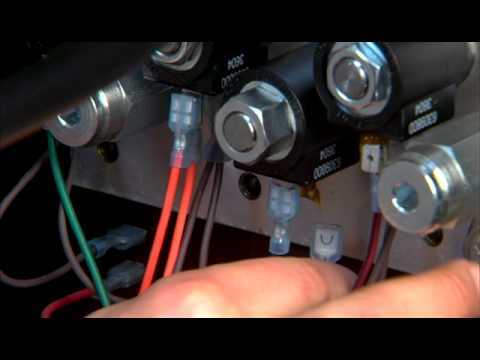

Use a multimeter to test voltage at the solenoid plug before engaging the attachment. Expect 12-14V at the solenoid’s trigger terminal (thin purple wire) when activating the controller. If readings fluctuate, inspect the inline fuse holder–replace blown 15A fuses with identical amperage ratings, never exceeding manufacturer specs. Heat-shrink all splices to prevent moisture ingress, especially near the pivot joint where movement accelerates wear.
Mount the return-to-center sensor above the blade’s pivot axis, aligning magnets precisely per installation guide. Misalignment causes erratic blade drift or failure to lock during transport. Secure wiring with zip ties spaced every 12 inches, avoiding tight bends that fatigue copper strands. Test all functions–lift, angle, and float–with the attachment lowered before road use, as improper calibration damages hydraulics.
Snow Equipment Electrical Hookup Reference for RT3 V-Blade System
Begin by identifying the control module’s primary power input–typically a red cable with a 30-amp fuse inline, connected directly to the vehicle’s battery positive terminal. Ensure the fuse rating matches the manufacturer’s specifications (usually 30A for standard setups) to prevent overheating or circuit failure during operation. Avoid tapping into existing vehicle circuits; instead, run a dedicated 10-gauge wire from the battery to the module, bypassing any accessory switches that may introduce voltage drop.
Connect the vehicle-side harness to the blade’s motor solenoid using color-coded wires: white for ground, yellow for raise/lower, and blue for angle left/right. Verify wire gauge–minimum 12 AWG for motor feeds–to handle peak currents of up to 50A under heavy loads. Secure all connections with heat-shrink tubing or dielectric grease to prevent corrosion, especially in regions with road salt exposure.
Test the angle and lift functions sequentially before mounting the blade. Activate the controller momentarily while observing the solenoid clicks and motor movement. If the blade moves erratically, check for loose terminals or reversed polarity on the angle control circuit (blue wires). For vehicles with diesel engines, ensure the system operates within the 12-14.5V range at idle; voltage below 11.8V may cause solenoid chatter or incomplete blade engagement.
The light bar harness integrates separately: amber marker lights (white/black striped) connect to the vehicle’s daytime running lights, while work lamps (red) require a dedicated 7-way trailer plug or a relay triggered by the vehicle’s high beams. Use waterproof connectors rated for sub-zero temperatures (e.g., Deutsch DT series) and route cables away from sharp edges or moving suspension components.
Finalize the setup with a full diagnostic scan: measure voltage at the solenoid when actuating each function, ensuring no more than 0.5V drop from the battery to the motor. For extended durability, apply anti-seize compound to the blade’s pivot points and inspect electrical connections every 50 operating hours, focusing on wire insulation integrity and terminal tightness. Replace any frayed or discolored wires immediately–resistance in a single conductor can cascade into system-wide failure under load.
Pinpointing Critical Elements in Your Snow Equipment Harness Assembly
Trace the motor solenoid wires first–these terminate in 4 mm bullet connectors and link directly to the blade’s left and right actuators. Verify continuity with a multimeter set to 200 ohms; any reading above 5 ohms indicates corrosion in the contact surfaces or compromised crimps. Replace terminals if resistance fluctuates during flexing.
Terminal Block Breakdown
Locate the central junction box beneath the vehicle’s grille. The harness splits into six color-coded leads: red (constant 12V), white (ignition-switched), yellow (control module feed), green (ground circuit), blue (left motor activation), and black/white (right motor activation). Use a needle probe to test each terminal for 12.6V ±0.2V; deviations suggest faulty fuses or chafed insulation where bundles pass through the chassis.
Disconnect the modular connector labeled “PWR” before servicing–it houses both motor relay triggers and LED feedback loops. Each pin assignment follows ISO 11748-3: pin 1 (motor +), pin 2 (motor -), pin 3 (solenoid trigger), pins 4-6 (auxiliary lights). Label every wire with heat-shrink tubing before reinstalling; mismatches cause erratic blade movement or reverse polarity damage.
Inspect the in-line fuse holder mounted aft of the battery tray–the 30A fuse protects both actuator circuits and the joystick interface. Measure voltage drop across fuse clips during operation; drops exceeding 0.3V signal corroded holders requiring silver-plating or replacement with a marine-grade unit rated for sub-zero flex cycles.
Step-by-Step Guide to Connecting Your Snow Removal Controller System
Disconnect the vehicle’s battery before beginning any electrical work to prevent short circuits or accidental activation. Use a 10mm wrench to remove the negative terminal first, followed by the positive. Store the terminals in a secure location away from metal surfaces.
Locate the pre-installed harness behind the vehicle’s grille or under the hood, depending on the model. Identify the color-coded wires: red (power), black (ground), blue (solenoid trigger), yellow (headlight relay), and green (auxiliary function). Use a multimeter to verify voltage on the red wire–it should read 12V when the ignition is on.
Component Mating Order
| Wire Color | Terminal Type | Connection Point | Torque/Secure Method |
|---|---|---|---|
| Red | Ring terminal (10-12 AWG) | Battery positive or fuse box output | Crimp + solder; 10 lb-in torque |
| Black | Ring terminal (8 AWG) | Chassis ground (bare metal) | Star washer + 12 lb-in torque |
| Blue | Spade connector (female) | Solenoid control post | Push-fit, then secure with zip tie |
Route the harness through the firewall using an existing grommet or drill a ½-inch hole if necessary. Seal the entry point with silicone to prevent moisture ingress. Avoid sharp edges; use conduit or loom tubing for protection where the bundle passes near moving parts or exhaust components.
Attach the control module to a clean, vibration-resistant surface inside the cabin, such as the underside of the dashboard. Use the provided mounting hardware–self-tapping screws for metal or toggle bolts for plastic panels. Connect the module’s harness to the vehicle’s bundle using the labeled connectors; align the tabs before pressing firmly until an audible click confirms engagement.
Reconnect the battery, starting with the positive terminal. Test each function sequentially: activate the ignition and press the controller’s toggle–listen for the solenoid’s click when engaging the motor. Check headlight synchrony by flipping the vehicle’s switch; verify auxiliary outputs like marker lights if equipped. If any function fails, recheck connections against the wire chart or probe with a test light for continuity.
Common Electrical Problems and Fixes for Attachment Systems
Check grounding connections first–corrosion or loose bolts on the frame mount often mimic controller failures. Use a multimeter to verify continuity between the vehicle chassis and the terminal block; readings above 0.5 ohms indicate compromised contact. Sand the surface with 120-grit emery cloth and apply dielectric grease to prevent future oxidation.
Inspect solenoid wiring for chafing near sharp edges or rotating parts. Replace damaged leads with 10-gauge marine-grade cable, securing them every 6 inches with UV-resistant zip ties. Avoid sharp bends (minimum 3-inch radius) to prevent conductor breakage inside the insulation. Test each circuit with a load tester at 50% rated current to detect intermittent failures.
Verify voltage drops across connectors during operation–any loss exceeding 0.3V per connection suggests poor crimping or terminal fatigue. Disassemble each connector, clean pins with contact cleaner, then reassemble with fresh heat-shrink tubing. For sealed plugs, ensure O-rings are intact; replace damaged seals with ones matching the original durometer rating.
- Fused circuits: Test each fuse under load by substituting with a known-good spare–never assume continuity from a visual check.
- Light inconsistencies: Confirm all bulbs match the rated voltage; mixed 12V and 24V units cause cascading failures.
- Controller lag: Recalibrate by holding down both direction buttons for 10 seconds until the display flashes twice.
Heat-shrink tubing must fully encapsulate splices–partial coverage allows moisture ingress. Use adhesive-lined tubing for outdoor connections; standard polyolefin fails within months under snowplow duty cycles. Apply heat evenly with a heat gun (350°F–400°F) until the adhesive beads at both ends.
Retractable arms may jam if internal gears lack lubrication. Disassemble the housing, clean with isopropyl alcohol, then apply molybdenum disulfide grease (NLGI 2) sparingly to gear teeth–excess attracts debris. Test under no-load conditions before reinstalling; abnormal whining indicates misalignment requiring shim adjustment.
For intermittent power loss during blade movement, replace the coiled cord with a shielded cable designed for dynamic flexing. Secure the new cable with strain-relief clamps at both ends, using a 90-degree bend at the vehicle mount to prevent fatigue. Route away from exhaust components–temperatures above 176°F degrade insulation rapidly.
