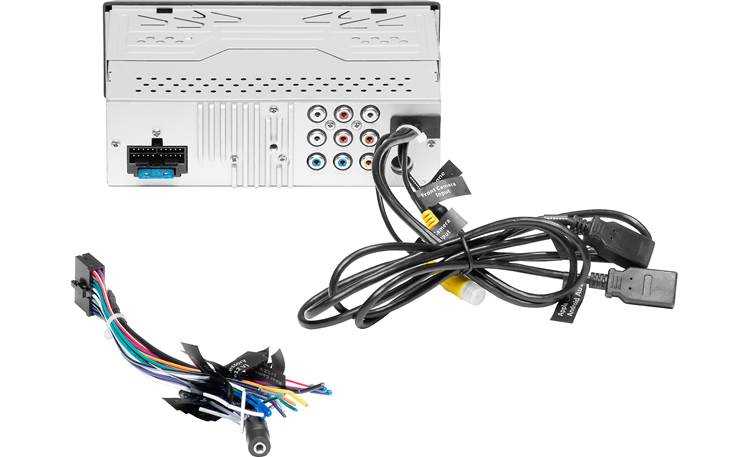

Start by identifying the power terminals on the rear panel–marked + and –. Secure a 12V power source directly to these points using 12-gauge wire, avoiding splices within 12 inches of the device. Ground must connect to the chassis at a single point to prevent hum; use a bolt stripped of paint for a clean contact. Signal cables require shielded RCA lines with no twists or sharp bends; route them away from power wires to minimize interference.
Speaker outputs default to 8 ohms. Verify impedance ratings on all connected drivers before engaging power. The remote turn-on lead–typically blue–activates with a 200mA trigger. Install a 1-amp fuse inline between the battery and power terminal to guard against shorts. For installations in non-factory configurations, isolate inputs with a noise filter capacitor (0.1µF) across the RCA terminals.
For troubleshooting: confirm all connections at the harness side; loose crimps cause intermittent failure. Test for continuity before finalizing cable runs. Voltage across power terminals should read within 0.2V of the battery when active. Never bypass the fuse–even briefly–to test connectivity.
Schematics show a switched auxiliary output; use this for subwoofer control if equipped, drawing no more than 300mA. Never splice power feeds through accessory circuits; dedicated wiring preserves signal integrity. Label every wire before disconnection to avoid misplacement. Store all diagrams with the unit for quick reference during service.
Connecting the BE-7AC Remote Switch: Step-by-Step Guide
Use 22-gauge shielded cable for all pedal connections to minimize interference, especially in setups with multiple effects or long cable runs. Cut three segments: one 6-inch section for ground, another 8-inch for tip (signal), and a 10-inch for ring (remote control). Strip 5mm of insulation from each end, then twist and tin the exposed copper strands to prevent fraying during installation. Secure strands with heat-shrink tubing before soldering to maintain strain relief.
Identify the 3.5mm TRS jack on the pedal side first–focus on the center pin for signal output, the outer sleeve for ground, and the ring (middle) contact for the remote switch. Follow this pinout strictly:
- Ring → Remote switch terminal (normally open)
- Tip → Guitar output/input or loop send (depending on mode)
- Sleeve → Ground bus (star-ground setup recommended)
For dual-switch configurations, add a second TRS jack wired in parallel to the ring and sleeve, leaving the tip disconnected. Test continuity with a multimeter before powering the pedal–resistance between ring and ground should read infinity when the switch is off and near zero when engaged.
Common Pitfalls and Fixes
- Popping noises: Add a 1MΩ resistor between the ring and ground on the jack to bleed voltage slowly. Alternative–use an optical switch (e.g., H11F1 optocoupler) for silent operation.
- False triggering: Short the ring to ground with a 1kΩ resistor to stabilize the circuit if environmental noise causes erratic switching.
- No remote function: Verify the pedal’s internal jumper settings–some units require solder bridge adjustments to enable external switch control.
For buffered bypass setups, replace the standard TRS jack with a stereo Neutrik NP2X-BAG to maintain signal integrity over 30-foot cable runs. If integrating with a MIDI controller, wire the ring to a 5V-tolerant GPIO pin (e.g., Arduino Digital 2) via a 470Ω current-limiting resistor. Always shield cables in braided mesh and ground at a single point to avoid ground loops.
Finding the Audio System Harness Connector Pinout
Begin by identifying the main integration module behind the vehicle’s dashboard, typically secured near the fuse box or infotainment unit. The connector you need will have 12 to 16 pins arranged in two rows–smaller configurations may omit unused contacts. Pin 1 is almost always marked by a notch, raised indicator, or colored stripe on the housing; count sequentially from this reference point to avoid misalignment.
Critical pins serve distinct functions:
- Power supply (constant +12V): Often labeled as “B+” or “Memory,” this pin maintains settings when the ignition is off. Test for steady voltage with a multimeter–fluctuations suggest a faulty fuse or corroded cable.
- Switched power (accessory +12V): Activates only with the ignition on. Look for labels like “ACC” or “Ignition”; this line powers active components.
- Ground: Usually a thicker wire or multiple pins; verify continuity to the chassis. Poor grounding causes noise, signal drops, or intermittent failures.
- Speaker outputs: Pairs of wires per channel–front left/right, rear left/right–often color-coded (white/gray, green/blue, etc.). Check impedance against the manual to prevent amplifier overload.
- Remote turn-on: A single wire (frequently blue) that triggers aftermarket amplifiers. Confirm +12V presence when the system activates; no voltage here disables external devices.
- Mute/parking brake wire: Some installations use this (commonly purple) to suppress audio during unsafe conditions. Improper connection leads to constant muting.
Use a wiring guide specific to the vehicle make/model year–generic pinouts vary even between trim levels. Printed color codes on the connector’s backside or a service manual’s exploded view provide the most reliable reference. If labels are absent, trace wires back to their source using a circuit tester or tone generator to isolate signals.
For vehicles with factory amplification, locate the amplifier module (often under seats or behind trim panels) before proceeding. Its connector may mirror the main harness pinout but include additional low-level or twisted-pair RCA-equivalent outputs. Measure voltage at the amplifier’s input pins to rule out OEM signal processing interference.
Troubleshooting Pin Connections
If audio cuts out or behaves erratically:
- Disconnect the battery’s negative terminal before probing–shorts can damage onboard computers.
- Visually inspect each pin for bent contacts, oxidation, or debris; clean with electrical spray or a fiberglass brush.
- Check for tension–loose pins cause intermittent failures. Gently realign with a small screwdriver if needed.
- Test continuity between the connector and radio/stereo unit by back-probing with needle probes while powered on.
- Look for shared grounds–dedicated ground wires (black/braided) should measure under 0.5Ω to the chassis. Higher resistance indicates corrosion.
Avoiding Common Mistakes
Never assume symmetry between symmetrical connectors–left-side pins may serve entirely different functions than right-side counterparts. Cross-referencing with a pinout tool or manufacturer documentation is critical. If splicing is necessary, use solder-seal connectors or crimp terminals rated for automotive current; regular wire nuts fail under vibration. Finally, confirm the absence of CAN bus or serial data lines (common in models post-2010)–these require specialized interfaces and cannot be tapped directly.
Step-by-Step Wire Color Coding for Remote Start Module Integration
Begin by identifying the ignition input connection, typically marked by a yellow or yellow/black strip. This lead must interface directly with the vehicle’s ignition switch output–the point where power activates when the key turns to the “ON” position. Use a multimeter set to DC voltage (20V range) to confirm a steady 12V signal here before proceeding; fluctuating readings indicate an unreliable source, risking module malfunction.
Locate the starter motor input, often a white or white/black wire. This connection requires splicing into the starter solenoid trigger line–verify the wire using the same multimeter method. A brief 12V pulse during cranking confirms accuracy. Avoid tapping into battery-positive or accessory circuits, as this risks damaging the control unit or draining the battery during prolonged crank cycles.
| Function | Standard Color | Alternate Colors | Verification Method |
|---|---|---|---|
| Ignition Input | Yellow | Yellow/Black | 12V steady when key ON |
| Starter Output | White | White/Black | 12V pulse during crank |
| Accessory Output | Red | Red/White | 12V when key ACC or ON |
| Ground | Black | Brown | Continuity to chassis |
| Tach Signal | Blue | Blue/White | AC voltage at RPM |
The accessory input, usually red or red/white, connects to the ACC wire in the ignition harness. Test for voltage only when the key is in the ACC or ON position–not during cranking. For vehicles with automatic transmissions, ensure the neutral safety switch circuit (purple or purple/white) is interfaced correctly to prevent activation while engaged.
Critical Safety Wiring
Ground the black or brown lead to a clean, bare-metal chassis point near the module’s location. Use a star washer or solder a ring terminal for secure contact. Poor grounding causes erratic behavior, including false triggers or failure to engage. For tachometric feedback (blue or blue/white), splice into the ignition coil’s negative terminal or ECU RPM output. Measure AC voltage while the engine runs–typically 1-10V AC at idle–to confirm signal integrity.
Final Connections and Testing
Route all wires away from hot surfaces, moving parts, or sharp edges. Secure with nylon ties every 6-8 inches, avoiding excessive tension. Recheck each connection with the multimeter: ignition, accessory, and starter inputs should show expected voltages, while ground and tach leads must read continuity and signal respectively. Program the module per manufacturer guidelines–failing to do so may result in compatibility issues or complete non-operation.
