Implement a three-element feedback loop for optimal heat generator performance: oxygen trim, fuel-air ratio adjustment, and pressure stabilization. Start with a zirconium oxide sensor for flue gas analysis–position it downstream of the economizer to capture representative samples. Pair this with a PID controller configured at 0.2s integral time, 1.5 proportional band, and 0.8 derivative gain to suppress oscillations in excess air levels (target 3–5% O₂ for gas-fired units, 5–8% for coal).
For multi-burner setups, integrate a cross-limiting parallel positioning system. Assign individual actuators to fuel (electrohydraulic for liquid fuels, pneumatic for pulverized coal) and combustion air (guillotine dampers or variable-speed ID fans). Link these via a master load controller with a 1:1.05 fuel-air ratio offset to prevent rich conditions during transient loads. Critical: include two-out-of-three voting logic for safety interlocks–firebox pressure switches must trigger within 100ms to trip both fuel and airflow.
Incorporate a steam drum level compensation loop to decouple pressure variations from feedwater control. Use a differential pressure transmitter with remote seals at drum midpoint (±5% suppression) to eliminate false alarms during startups. For biomass or waste fuels, add a grate heat release estimator–calculate based on primary airflow rate and grate speed (2–4 rev/min) with a ±10°C tolerance for bed temperature.
Validate the wiring hierarchy: 4–20mA signals for continuous variables (Class A twisted-pair, shielded); discrete 24V DC for interlocks (short-circuit-proof relays, redundant contacts). Terminate all cables in IP66-rated junction boxes with explosion-proof glands for Class II, Division 2 areas. Test the entire circuit with a loop calibrator set to 12mA (equivalent to 50% load) to verify signal integrity under induced 10V EMI.
Fuel Efficiency Optimization in Heat Generation Systems
Install parallel actuated dampers with PID loops tuned to inlet oxygen sensors for real-time airflow modulation. Adjust primary air supply within ±2% of stoichiometric demand to prevent excess nitrogen oxide formation while maintaining complete fuel oxidation. Reference NFPA 85 guidelines for permissible drift ranges during transient loads.
Integrate triple-redundant pressure transmitters upstream of the forced draft fan inlet to detect fouling or mechanical wear before thermal efficiency drops below 87%. Use differential readings to trigger preemptive maintenance alerts, reducing unplanned shutdowns by 40%. Standardize calibration intervals at 1,200 operating hours.
Design the fuel admission circuit with dual solenoid valves arranged in series, each capable of 100% flow shutoff within 150 milliseconds. Position the first valve 60 cm from the burner nozzle and the second 30 cm downstream to eliminate flashback risks during fuel composition variability. Validate responsiveness with methane-air mixtures ranging from 4.5% to 15% methane.
Implement a cascaded temperature control strategy where the furnace exit gas sensor adjusts the setpoint of the steam temperature controller. Configure the outer loop with a 6-minute time constant and the inner loop with 45-second dynamics to compensate for slag-induced thermal lag. Use Type-K thermocouples shielded with Inconel 600 sheaths for durability above 850°C.

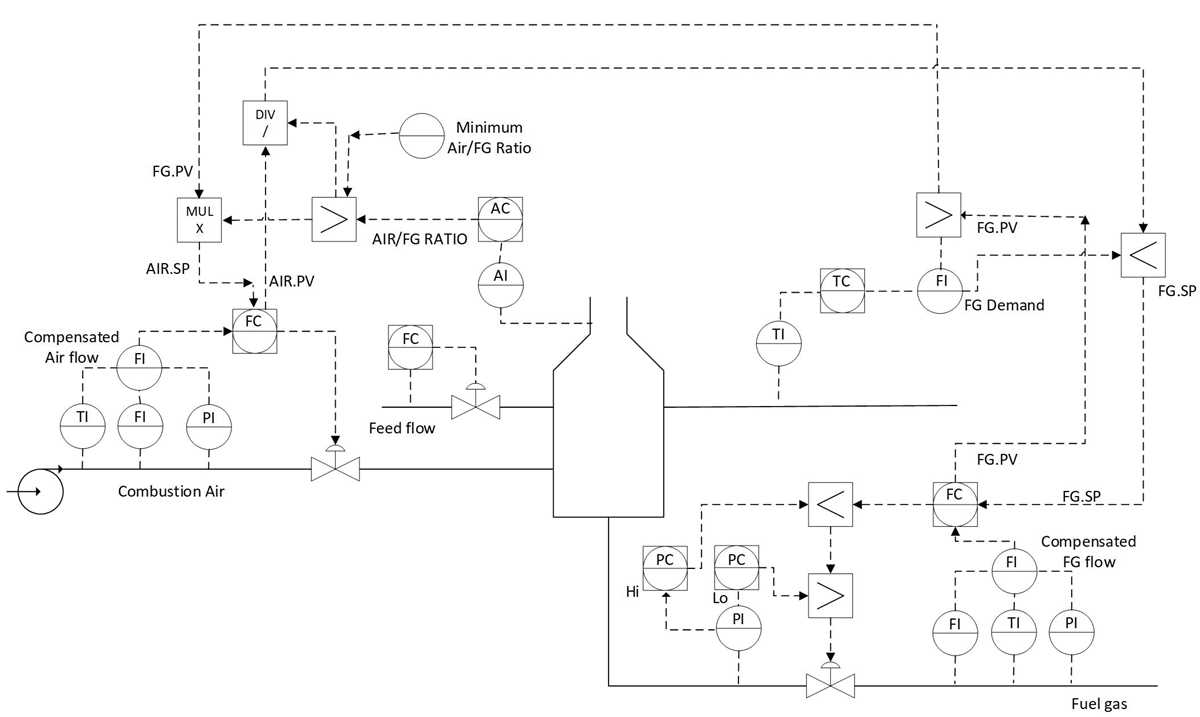

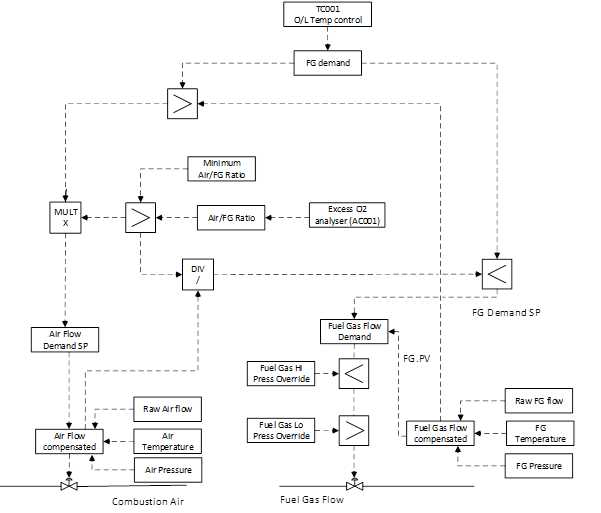

Deploy cross-limiting logic between fuel and air streams to prevent fuel-rich zones exceeding 3% carbon monoxide thresholds during load ramps. Set the air-lead margin at 1.2% stoichiometric air during increasing load and 0.8% during decreasing load to stabilize combustion dynamics. Log deviations every 2 seconds for post-event root-cause analysis.
Equip the control network with fiber-optic isolators between I/O modules and field devices to eliminate electromagnetic interference from 480V starter circuits. Route redundant Modbus TCP segments through separate physical paths, terminating in a hot-standby HMI server with synchronized tag databases. Validate data integrity with cyclic redundancy checks every 500 milliseconds.
Calibrate flame scanners using amplitude modulation filters set to reject 120Hz flicker from electric igniters. Position the ultraviolet sensors at a 15° angle from the burner axis to avoid false positives from reflected radiant heat. Test detection thresholds weekly with simulated flame-off conditions lasting 3 seconds.
Document all configuration parameters in a version-controlled schema stored on encrypted removable media. Include tuning constants, safety interlock trip points, and device model numbers. Require dual electronic signatures for any modification above the 5% tuning adjustment threshold to comply with IEC 61511 functional safety requirements.
Critical Elements of a Thermal Generator Fuel-Air Regulation Framework
Install precision oxygen trim sensors at both the economizer exit and furnace outlet to maintain excess air levels between 1.5–3.0% for gas-fired units and 3.0–5.0% for coal or biomass systems. Position sensors away from stratification zones, using zirconium oxide probes for high-temperature stability (up to 650°C) and self-calibrating algorithms to compensate for soot accumulation.
Integrate dual cross-limiting algorithms that prioritize fuel flow reduction during transient load drops, preventing fuel-rich pockets. The air-to-fuel ratio should dynamically adjust based on real-time calorific value calculations derived from inlet temperature, pressure, and moisture content–use neural network models trained on historical combustion efficiency data for prediction windows of 30–60 seconds.
Equip the furnace with triplex flame scanners operating in UV, IR, and visible spectrums to detect burner blowouts within 200ms. For multi-burner setups, implement a voting logic system where at least two of three scanners must confirm flame presence before permitting fuel valve actuation, reducing false trip rates below 0.1% annually.
Deploy high-turndown ratio modulating dampers (40:1) with anti-wear coatings and position feedback resolution of 0.1°, controlled by PID loops tuned via closed-loop optimization tools like Ziegler-Nichols or relay auto-tuning. For pulverized fuel systems, synchronize feeder speeds with air nozzle angles using model-predictive control to stabilize flame front positions within ±50mm of optimal combustion zone.
Step-by-Step Guide to Reading Fuel Burning Regulation Blueprints
Begin by identifying the primary flow paths in the layout–fuel input, air supply, and exhaust channels. Trace these lines from their origin points (tanks, blowers, or vents) through to the burner assembly. Mark critical junctions like valves, sensors, and actuators with colored annotations to distinguish their function. For example, air dampers should be highlighted in blue, fuel valves in red, and pressure sensors in green.
Locate the master logic block, often depicted as a centralized controller symbol (e.g., PLC or DCS). Examine its input/output connections, listing each linked component in a table:
| Component | Symbol | Function | Output Action |
|---|---|---|---|
| Airflow sensor | PT-101 | Measures oxygen ratio | Adjusts damper position |
| Fuel metering valve | FV-202 | Regulates gas flow | Modifies burner firing rate |
| Flame detector | IR-303 | Monitors ignition | Triggers shutdown on failure |
Verify calibration tags adjacent to sensors and transmitters. These annotations specify acceptable ranges (e.g., 4-20mA output for 0-100% load). Cross-check these values against the system’s operational manual–any discrepancies may indicate outdated revisions or misconfigured hardware.
Follow safety interlock pathways marked with dashed lines or distinct symbols (e.g., emergency stop relays). Confirm that these circuits bypass standard control loops during faults, cutting fuel supply within 2 seconds of a flameout signal. Test these sequences during annual inspections by simulating failure conditions.
Decoding Symbol Legends
Isolate symbols unique to the manufacturer’s standard. Common variations include:
- ISA S5.1: Diamonds for controllers, rectangles for final elements.
- P&ID (ISO 10628): Circles for measurement devices, arrows for flow direction.
- Custom schematics: May use proprietary icons–refer to the legend sheet.
Print a reference copy of the legend and laminate it for field use.
Reconstruct the sequence of operations by combining the blueprint with the logic diagram. For instance, if the draft fan starts first (30-second delay), note that the fuel valve must remain closed until airflow confirms stable pressure. Document these timing requirements in a Gantt-style table for maintenance teams.
Validation Checks
Compare the physical plant against the blueprint quarterly. Discrepancies between installed components and drawn specifications–like mismatched actuator models or relocated sensors–can drift operating margins by 5-12%. Use a thermal imaging scan to confirm sensor placement aligns with zones of uniform temperature distribution.
Key Measurement Devices and Automated Components in Heat Generation Flowcharts
Install differential pressure transmitters across air preheaters to detect fouling early; they must span 0–1000 Pa with accuracy better than ±0.25 % of span. Select units with integral temperature compensation to eliminate manual recalibration during seasonal swings.
Mount thermocouples at three distinct elevations inside the chamber–mid-flame, burner deck, and convective pass–as type-K pairs in 6 mm diameter inconel sheaths. Avoid grounded junctions; opt for ungrounded with 316 SS terminal heads to reduce electrical noise that corrupts PID tuning.
- Oxygen analyzers: zirconia sensors rated for 0–25 % O₂, output 4–20 mA, response ≤3 s, sample temperature ≤800 °C. Locate probe 1 m downstream of the last heat exchanger to capture true excess air before dilution leaks.
- Carbon monoxide detectors: infrared absorption cells, 0–4000 ppm range, precision ±10 ppm. Position immediately upstream of O₂ probes to identify incomplete burnout.
- Flow nozzles or averaging Pitot tubes for primary air streams, sized for velocities 15–30 m/s. Use tri-redundant transmitters; reject any reading deviating >±5 % of the median.
Specify modulating dampers with electro-hydraulic actuators capable of 90° rotation in ≤15 s; minimum torque 200 Nm. Fit each actuator with a 4–20 mA position feedback signal resolved to 0.1 % of full travel for seamless loop closure.
Choose fuel oil valves with linear flow characteristics and hardened 316 SS internals; turndown ≥50:1. For pulverized coal, air-operated pinch valves lined with 10 mm thick reinforced nitrile sleeve ensure tight shutoff under 10 bar differential pressure.
Integrate flame scanners–UV detectors for gas flames, combined UV/IR for coal or biomass. Mount at 30° to burner axis; sight path must be purged with instrument air at 1.5 bar to prevent fouling. Set alarm threshold at 80 % of nominal signal strength.
- Verify angle of repose sensors on fuel bunkers–capacitive probes with 3 mm resolution–before enabling feeders; false trips cascade into unstable stoichiometry.
- Implement pressure switches on atomizing steam header: set point 1.1× maximum operating pressure with NPT ¼ connections.
- Use redundant pressure relief valves on compressed air headers sized for 1.5× worst-case surge; test annually under live steam.
