For 12-volt marine systems, use 18 AWG tinned copper wire as the minimum recommended gauge. Anything thinner risks voltage drop beyond 3% over runs exceeding 15 feet–measure resistance with a multimeter before finalizing connections. Avoid PVC insulation near exhaust manifolds; opt for cross-linked polyethylene (XLPE) for temperatures above 85°C. Connect the sender unit’s ground to the engine block, not the battery negative, to prevent stray current corrosion in anodic metals like aluminum.
Suspended float sensors require a dedicated 20-amp fuse within 7 inches of the power source. Verify the sender’s resistance curve matches the indicator: most analog meters expect 0–90 ohms (empty to full), while digital dash units may need 240–33 ohms. Calibration errors often trace back to reversed polarity–label wires during disassembly. For ethanol-blended fuels, use corrosion-resistant terminals like gold-plated spade connectors instead of standard tin.
Install a 10k-ohm pull-up resistor between the sender’s signal wire and the 12V line if the gauge reads erratically during ignition. Temporarily bypass the ignition switch to test the circuit–if readings stabilize, add a delay-on relay to prevent false low readings during cranking. Programmable indicators (e.g., Garmin GMI 20) demand a clean 12V reference; tap into the main bus, not accessory circuits with inductive loads. Always seal connections with marine-grade heat-shrink tubing containing adhesive liners–regular viscosity epoxy resins degrade under vibration.
Pre-wire all components on a workbench using a 9V battery to simulate engine voltage. Check for linearity across the sender’s entire sweep by immersing it in incremental liquid depths (e.g., 25%, 50%). If values drift by more than ±2 ohms, recalibrate or replace the sender. For CAN bus systems, ensure the termination resistor values (typically 120 ohms) match the network’s specifications–most outboards use two resistors, one at each end of the bus.
Marine Tank Indicator Electrical Connection Guide
Start by identifying the sender unit resistance range–most marine tanks use 0-90 ohms or 240-33 ohms for proper signal transmission. Connect the sender’s ground wire directly to the vessel’s common earth point, avoiding shared circuits with high-current devices like bilge pumps to prevent voltage fluctuations.
Use tinned copper wire (16-18 AWG) for all connections to resist corrosion. Route wires through sealed conduits if passing below deck, securing them every 18 inches with nylon clips to prevent chafing. Avoid bundling signal wires with power cables carrying more than 10 amperes to minimize electromagnetic interference.
The following table summarizes compatible indicator-sender pairings:
| Indicator Type | Sender Resistance (Ohms) | Signal Voltage (VDC) | Wire Gauge |
|---|---|---|---|
| Analog dial (mechanical) | 0-90 | 12 | 18 AWG |
| Digital display (LED) | 240-33 | 12/24 | 16 AWG |
| Remote monitoring (bluetooth) | 0-180 | 5 | 20 AWG |
Test sender resistance with a multimeter before installation. Submerge the unit in a test container filled to 10%, 50%, and 90% capacity, recording readings at each level. Deviations exceeding ±5% indicate a faulty sender requiring replacement. Calibrate the dashboard readout accordingly.
Install a 1-amp fuse within 7 inches of the battery connection on the positive wire to protect the circuit. Use a waterproof junction box with marine-grade terminals for any splices. Seal all connections with adhesive-lined heat shrink tubing or dielectric grease to prevent moisture intrusion.
For dual-tank systems, install a two-way switch to toggle between port and starboard units. Label all wires with heat-shrink sleeves, including polarity and function. Verify connections by cycling the ignition three times, observing consistent readings at each power-up.
After installation, log baseline readings at empty and full tank levels. Recheck these values annually or after any electrical work on adjacent systems. Replace the sender every 5-7 years regardless of performance, as internal corrosion degrades accuracy over time.
Essential Equipment and Supplies for Installing a Liquid Level Indicator
Begin with a multimeter (minimum 10MΩ impedance) to verify circuit integrity before connecting any components. Select a marine-grade model with waterproof housing to prevent corrosion from humidity or splashes. Check AC/DC voltage ranges up to 600V for compatibility with both 12V and 24V systems.
Use tinned copper wire (16–14 AWG) for all connections–untinned strands corrode rapidly in saline environments. Pre-cut lengths to 15–20% longer than estimated runs to account for routing obstacles. Secure strands with heat-shrink tubing (polyolefin, 3:1 shrink ratio) instead of electrical tape, which degrades under UV exposure.
Soldering requires a 30–60W temperature-controlled iron (600–700°F) and rosin-core solder (63/37 Sn-Pb or lead-free 96.5/3.5 Sn-Ag). Avoid acid-core solder, which accelerates oxidation. Include crimping tools for terminals–choose butt connectors (insulated, 16–14 AWG) for inline splices and ring terminals for threaded studs.
A wire stripper with built-in cutter (Klein or Ideal models) ensures clean, nick-free conductor exposure. For panel mounting, use M4 stainless steel screws and shakeproof washers to prevent loosening from vibration. Grease terminals with dielectric compound to block moisture ingress.
Verify compatibility with your vessel’s power distribution using a circuit tester–probe for stray currents before energizing. Keep a non-contact voltage detector on hand for quick safety checks. Store spare fuses (5A–10A, slow-blow) and spade connectors (male/female pairs) for troubleshooting.
Precise Installation of Marine Tank Indicators: A Practical Guide

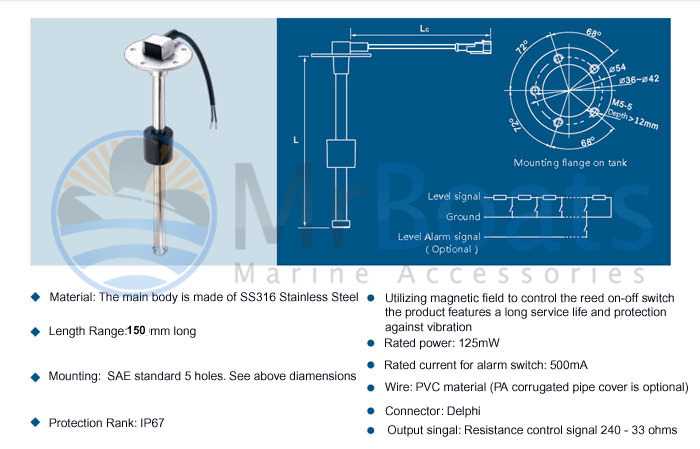

Begin by identifying the sender unit mounted on the vessel’s reservoir–the component that reads liquid levels. Disconnect the power source to prevent short circuits during installation. Most senders operate on a variable resistance principle, typically ranging from 240 ohms (empty) to 33 ohms (full). Verify this range in the manufacturer’s specifications before proceeding, as incorrect values will distort readings.

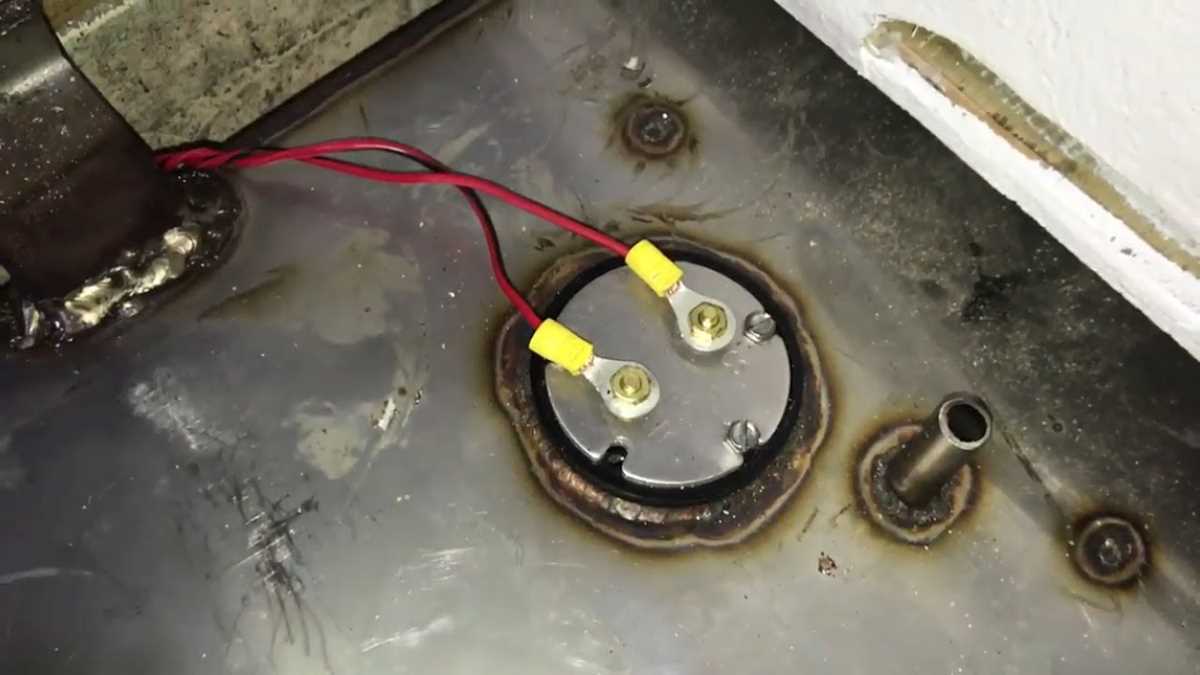

Connect the sender’s wire (usually a single brown or black conductor) to the corresponding terminal on the indicator panel. Use marine-grade crimp connectors and heat-shrink tubing to ensure corrosion resistance. Soldering is optional but recommended for high-vibration environments to prevent loosening over time. The second terminal on the sender should link to a reliable ground–preferably the engine block or a dedicated grounding bus.
Avoid running signal wires parallel to high-current cables, such as starter motor or alternator leads, as electromagnetic interference can cause erratic fluctuations. If separation isn’t feasible, use shielded wiring with the braid grounded at one end only. Maintain a minimum distance of 6 inches between sensitive circuits and power-carrying lines.

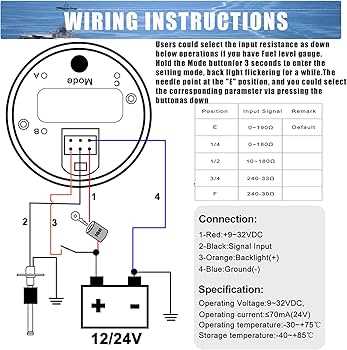

For analog meters, polarity matters: the sender’s signal wire connects to the indicator’s positive input, while the negative terminal links to the vessel’s ground. Some systems include an ignition-switched power feed to illuminate the dial–ensure this uses a fuse no larger than 5 amps. Test the circuit with a multimeter before finalizing connections: with the reservoir empty, resistance should match the sender’s “empty” value; as liquid rises, resistance drops proportionally.
If the gauge reads backward (full when empty), reverse the sender’s connections at the indicator. For dual-reservoir setups, wire each sender independently but confirm compatibility with the panel’s design–some meters share a ground or require isolation relays. Calibration may involve adjusting a trimmer potentiometer behind the dial; follow the manufacturer’s instructions to fine-tune accuracy.
Seal all connections with dielectric grease to prevent moisture ingress, a common failure point in marine environments. After reconnecting power, monitor the display for 24 hours to ensure stability. If readings drift, recheck grounds and sender integrity–corrosion or loose fittings often cause intermittent issues. Store spare fuses, connectors, and a spare sender to minimize downtime during repairs.
Solving Malfunctions in Instrumentation Voltage Loops
Check the sender unit resistance first–most tanks use a variable resistor tied to a float arm. At an empty reading, resistance typically ranges from 0–10 ohms for analog systems, while full tanks often spike to 100–200 ohms. If readings skew outside these bands, corrosion or debris may alter the rheostat’s surface. Clean contacts with electrical contact cleaner and a brass brush; avoid sandpaper, which can embed contaminants and worsen oxidation. For digital modules, verify impedance hasn’t drifted beyond ±5% of factory specs–deviation hints at faulty analog-to-digital converters.
- Inspect the twisted pair linking the tank sensor to the dashboard–loose strands create voltage drops mimicking erratic signals.
- Examine grounding continuity with a multimeter set to continuity mode; a reading above 0.2 ohms signals poor chassis connections.
- Test intermittent failures by lightly tapping the sender housing–momentary spikes confirm loose internal components.
Replace damaged wires with tinned copper marine-grade conductors (minimum 16 AWG) to prevent galvanic corrosion in humid environments.
Voltage stabilizers and surge protectors often degrade under saltwater exposure. Measure input and output voltages on the power conditioning board–fluctuations exceeding ±0.3V indicate failing regulators. Swap suspect components with 12V transient-voltage-suppression diodes rated for 400W or higher. For systems using pulse-width modulation, ensure the frequency doesn’t deviate beyond 1kHz–deviation distorts readings, especially at low fluid levels.
