Start with a 555 timer IC in astable mode for reliable oscillation–its frequency dictates the rate of activation. Use a 1kΩ resistor between pins 7 and 8, a 47μF capacitor from pin 2 to ground, and a 10kΩ resistor between pins 2 and 6 to set the timing interval at roughly 1 Hz. This ensures a smooth, consistent pulse without additional components. For power, a 9V battery works, but regulate voltage with a 1N4007 diode if sourcing from unstable supplies.
A bipolar junction transistor like the 2N2222 amplifies the signal to drive the load–connect the base to the timer’s output via a 470Ω resistor to avoid overcurrent. The emitter goes to ground; the collector attaches to the indicator’s cathode. For the indicator itself, select a low-current model (20mA max) to prevent transistor saturation. If brightness varies, adjust the timing capacitor: 22μF halves the rate, while 100μF doubles it.
Polystyrene capacitors reduce drift over temperature cycles–ideal for outdoor applications. For prototyping, solderless breadboards introduce parasitic capacitance (up to 5pF per junction), which can shift frequency by ~10%. Verify precision on a PCB with dedicated traces for the timer and transistor stages. Add a flyback diode (1N4148) across the indicator if inductive loads share the circuit to suppress voltage spikes.
Test the assembly with an oscilloscope: probe the timer’s output (pin 3) for a clean square wave. Noise or uneven duty cycles suggest improper grounding–relocate the capacitor’s negative terminal directly to the power supply’s ground plane. For portable setups, swap the 9V alkaline for a Li-ion cell with a 5V buck converter to extend runtime while maintaining stable output.
Designing a Pulsing Semiconductor Beacon: Key Schematics
Use a 555 timer IC in astable mode for precise, adjustable flashes. Configure resistors R1, R2, and capacitor C to determine the pulse rate with the formula: frequency = 1.44 / ((R1 + 2*R2) * C). Typical values for visible flicker: R1 = 10kΩ, R2 = 100kΩ, C = 10μF (≈0.68Hz). Ensure R2 is at least ten times larger than R1 for stable oscillations. Avoid electrolytic capacitors below 1μF–they leak current and distort timing.
A switching transistor (e.g., 2N2222) amplifies the output to drive high-current emitters without overloading the timer. Connect the collector to the diode’s anode via a current-limiting resistor (100–330Ω for 5V supply). The base links to the timer’s output pin (3) with a 1kΩ resistor. Ground the cathode. For higher efficiency, replace the BJT with a MOSFET (IRFZ44N) when driving multiple emitters or using voltages above 12V.
Component Selection for Variable Pulse Widths
| Pulse Duration (ms) | Resistor R2 (kΩ) | Capacitor C (μF) | Typical Use Case |
|---|---|---|---|
| 50 | 10 | 1 | Emergency beacons |
| 500 | 100 | 10 | Status indicators |
| 2000 | 470 | 47 | Decorative installations |
Power stability dictates performance. Use a dedicated 7805 regulator for 5V rails–batteries (e.g., 9V PP3) degrade faster under load without regulation. For portable designs, add a Schottky diode (1N5817) between the battery and circuit to prevent reverse polarity damage. A 100nF ceramic capacitor across the timer’s power pins eliminates noise spikes that reset the timing cycle. Test across 0–50°C; electrolytic capacitors drift significantly below freezing.
Core Elements for a Flashing Indicator Setup
Start with a current-limiting resistor rated between 220Ω and 1kΩ to protect the semiconductor from overheating. Lower values increase brightness but reduce lifespan; standard 330Ω works for most 5V sources. For 3.3V systems, drop to 150Ω to maintain visibility.
A timing capacitor in the 1–100µF range dictates flash rate; 10µF yields roughly 1Hz pulses. Electrolytic types work but ceramic or film capacitors avoid leakage current issues in long-term builds. Polarity matters–connect the negative terminal to ground.
Transistor Selection
Use an NPN bipolar junction transistor like the 2N3904 or PN2222 for switching. These handle up to 200mA collector current–more than enough for small emitters. MOSFETs (e.g., 2N7000) offer faster switching but require higher gate voltages, complicating low-power designs. Base resistors (1–10kΩ) prevent excessive current draw from the control signal.
For microcontroller-driven projects, include a flyback diode (1N4001) across inductive loads like relays to clamp voltage spikes. Omitting this risks damaging the transistor. Schottky diodes (1N5817) react faster but handle less current.

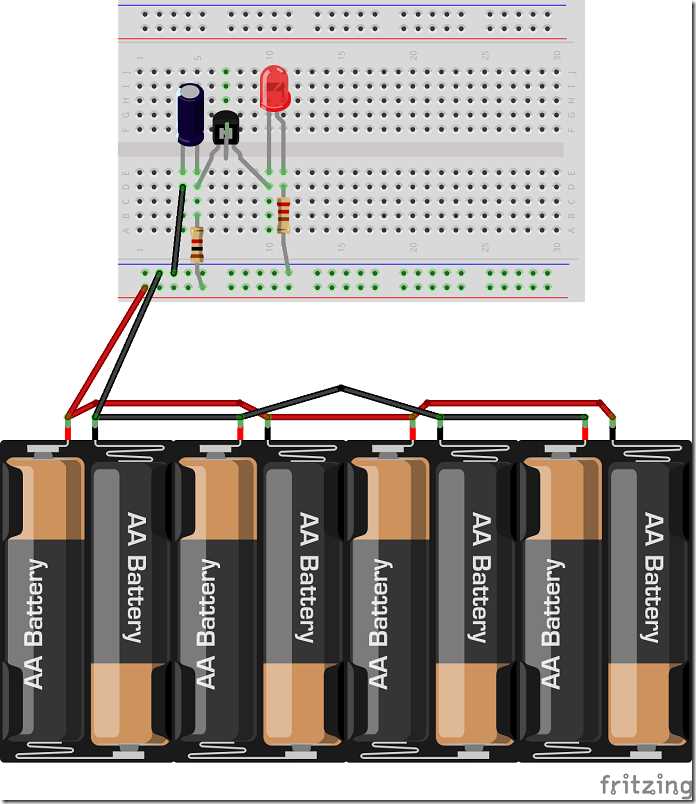

Breadboards or stripboards simplify prototyping; avoid jumper wires longer than 10cm to minimize noise. For permanent setups, use soldered connections or PCB traces with at least 1oz copper thickness for current paths. Add a 0.1µF decoupling capacitor near the power input to filter voltage irregularities.
Power Supply Considerations
Battery-operated designs should prioritize efficiency: alkaline AA cells provide 1.5V each–series-stack four for 6V, then step down with a linear regulator (LM7805) for stable 5V. Lithium coin cells (CR2032) work for low-power apps but sag under 20mA loads. For USB-powered builds, tap the 5V rail directly, bypassing the regulator.
Test connections with a multimeter in continuity mode before applying power. Measure resistor values first–misplaced decimal points burn semiconductors faster than overheating. If the flash rate is erratic, suspect capacitor leakage; replace with a higher-quality unit or reduce the capacitance value.
Step-by-Step Wiring Guide Using a 555 Timer IC
Begin by gathering components: a 555 timer chip, two resistors (4.7kΩ and 1kΩ recommended), one 10µF electrolytic capacitor, a 0.1µF ceramic capacitor, a power supply (5V DC), and a signal emitter (3mm or 5mm). Verify pin assignments on the 555 IC–pin 1 (ground), pin 2 (trigger), pin 3 (output), pin 4 (reset), pin 5 (control voltage), pin 6 (threshold), pin 7 (discharge), and pin 8 (Vcc). Incorrect connections will prevent oscillation.
Connect the 4.7kΩ resistor between pin 7 (discharge) and pin 8 (Vcc). This resistor, paired with the capacitor, dictates the timing interval. For a slower flash rate, increase resistance; for faster pulses, reduce it. Ensure the resistor’s wattage (¼W) is sufficient–exceeding this risks component failure. Double-check polarity if using non-carbon-film resistors.
Wire the 1kΩ resistor from pin 6 (threshold) to pin 7 (discharge). This forms the second half of the timing network. Misplacing this resistor alters the duty cycle, causing irregular on/off durations. If precision matters, substitute fixed resistors with a 10kΩ potentiometer to fine-tune intervals without rewiring.
Attach the 10µF electrolytic capacitor between pin 2 (trigger) and ground, observing polarity (negative lead to ground). This capacitor charges through the resistors, creating the delay before signal emission. Reverse polarity will damage the capacitor, leading to leakage or failure. For longer delays, increase capacitance (e.g., 47µF), but avoid exceeding 100µF to prevent erratic behavior.
Critical Connections and Troubleshooting
- Power Supply: Connect pin 8 (Vcc) to 5V DC, using a regulated source (e.g., USB adapter). Voltage fluctuations above 15V fry the IC; below 4.5V, pulses become unstable. Add a 0.1µF ceramic capacitor between Vcc and ground near the IC to filter noise.
- Output Signal: Link pin 3 (output) to the emitter’s anode (positive terminal). The cathode (negative) connects to ground through a 220Ω–470Ω current-limiting resistor. Omitting this resistor burns the emitter within seconds.
- Reset Pin: Tie pin 4 (reset) directly to Vcc to enable continuous operation. Floating this pin resets the IC unpredictably, causing sporadic flashes. For manual control, use a momentary switch between pin 4 and ground.
Test the configuration by powering the setup. The emitter should alternate states at a rate determined by the resistors and capacitor. If it remains static, check for:
- Incorrect resistor values (swap with known-good ones).
- Capacitor polarity (replace if bulging or leaking).
- Loose connections (reflow solder joints or retighten breadboard links).
For adjustable timing, replace the fixed resistors with a dual-gang potentiometer (e.g., 10kΩ). Connect one section between pin 7 and Vcc, the other between pins 6 and 7. Rotate to vary the interval symmetrically. Calibrate using an oscilloscope–without one, rely on a multimeter in frequency mode to verify changes.
Safety and Optimization
Avoid exceeding the IC’s 200mA output current. For higher loads, add an NPN transistor (e.g., 2N2222) between pin 3 and the emitter. Connect the transistor’s base to pin 3 via a 1kΩ resistor, the collector to the emitter’s anode, and the emitter to ground. This isolates the IC from inductive loads, prolonging its lifespan.
Minimize wire lengths to reduce electromagnetic interference. Twist paired wires (signal and ground) to cancel noise. For permanent assemblies, solder components onto a perfboard, using a ground plane to stabilize the reference voltage. Label all connections to simplify future modifications–miswire correction during retrofits wastes time.
Modifying Flash Frequency with Passive Components
Replace the 470Ω resistor with a 1kΩ unit to halve the pulse speed in a 555 timer astable configuration. For finer adjustments, use a 10kΩ potentiometer in series with a fixed 1kΩ resistor to vary the interval between 0.5Hz and 10Hz while maintaining stable oscillations. Ensure the capacitor paired with these resistors remains between 10µF and 100µF–values outside this range risk unreliable triggering or excessive current draw.
To extend the pulse duration without altering the resistor, swap the timing capacitor for a larger electrolytic type: a 470µF capacitor in place of 100µF will stretch the cycle length by a factor of 4.7, but verify polarity and voltage rating (minimum 16V) to prevent leakage or failure. For precise timing, combine a 22µF tantalum capacitor with a 2.2kΩ resistor to achieve a consistent 1Hz rate–ideal for low-power applications where drift must stay below 5%.
