Start with a minimum 4 AWG conductor between the primary power source and auxiliary supply. This reduces voltage drop under high-load scenarios–critical for winches, compressors, or inverters exceeding 1 kW. Connect directly to the starter solenoid post, bypassing factory fuse links that can’t handle sustained currents above 150A.
Use an isolated solenoid relay rated for 200A continuous duty. Trigger it via a momentary switch that activates only when the main engine is running. This prevents unintended drain on the secondary storage unit during stationary operation. Place the relay within 18 inches of both power sources to minimize resistive losses.
Incorporate a 30A circuit breaker on the auxiliary unit’s positive lead, positioned no farther than 7 inches from the terminal. Select a breaker with a manual reset to avoid nuisance trips during transient spikes–common in recovery or air-suspension pump cycles. Avoid relying solely on post-mounted fuses; they lack the precision needed for dynamic loads.
Ground the secondary source to the chassis via 2/0 AWG cable, terminating at a dedicated body point free of paint or corrosion. Verify resistance across all grounding points remains below 0.1 ohms–higher values introduce parasitic losses that degrade performance. For aluminum-chassis vehicles, use tin-plated lugs and anti-seize compound at connection points.
Insert a bidirectional battery monitor into the auxiliary circuit to track charge/discharge rates in real time. Choose a model with 1% accuracy at currents above 50A. Log data over 24-hour cycles to identify patterns–prolonged discharge below 12.2V accelerates sulfation, reducing lifespan by up to 40%.
Optimizing Vehicle Electrical Infrastructure with Enhanced Three-Path Integration

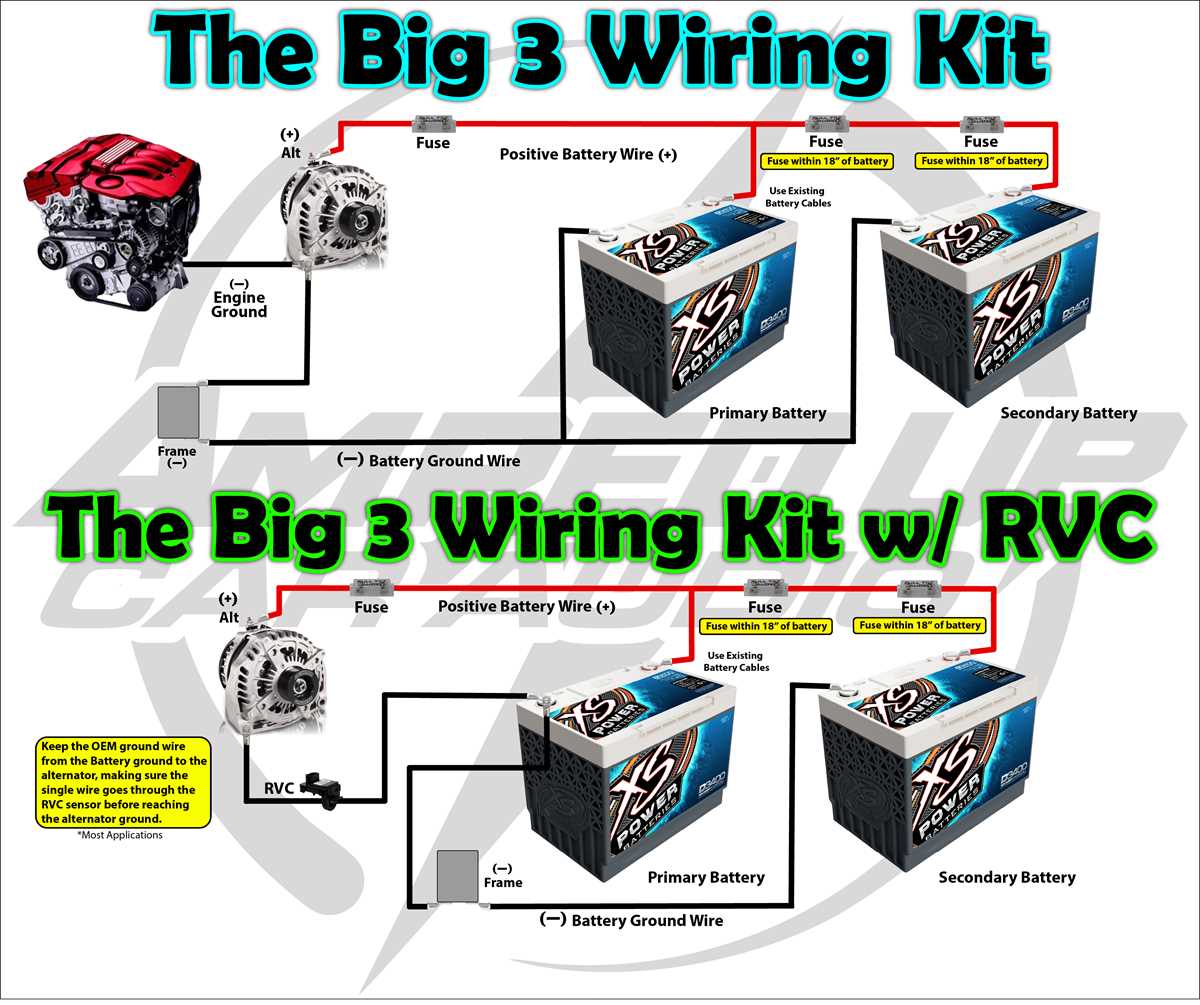

Install 1/0 AWG cables for the alternator-to-primary accumulator connection, starter-to-alternator link, and ground strap from frame to engine block. Use tinned copper for corrosion resistance in high-current paths–avoid aluminum due to thermal expansion mismatch. Crimp terminals with hydraulic tools and solder for additional mechanical strength, then seal with adhesive-lined heat shrink. Maintain at least 30mm clearance from exhaust manifolds and moving components; route cables along existing factory harness channels where possible to prevent chafing.
Load Distribution and Fuse Protection
Integrate ANL fuses rated at 250A within 15cm of each accumulator’s positive terminal. Split auxiliary circuits into three categories: high-draw (winch, compressors–2/0 AWG), medium-draw (lighting, audio–4 AWG), and low-draw (USB, sensors–8 AWG). Use a 12-circuit ATO blade fuse panel for secondary loads, with each circuit protected at 125% of continuous current rating. For isolator installations, select a solenoid with 300A surge capacity and voltage sensing cutoff set to 13.2V to prevent parasitic drain.
Test voltage drop across each path with a multimeter under load–acceptable limits are 0.2V for starter cables and 0.5V for accessory runs. Verify ground potential between frame and engine block does not exceed 0.1Ω; clean contact surfaces with a wire wheel and apply dielectric grease. Label all connections with laser-etched polyester sleeves for quick diagnosis, and document paths in a schematic using IEC 60617 symbols for clarity.
Key Electrical Elements in a Parallel Power Supply Configuration
Start by selecting cables with a minimum 1/0 AWG cross-section for the primary high-current paths. Smaller gauges risk voltage drop under heavy loads, especially when running multiple accessories or high-output alternators exceeding 150 amps. If your charging source generates 200+ amps, upgrade to 2/0 AWG for the alternator-starter linkage to maintain efficiency during cold starts or sustained high-demand scenarios.
Install a high-amperage solenoid or isolator between the primary and secondary power sources. A continuous-duty 600-amp relay prevents parasitic drain while allowing instant power transfer when the engine runs. Avoid cheaper 200-amp solenoids–they fail under sustained 300+ amp loads, leading to melted contacts or premature battery depletion. Mount the relay within 18 inches of the starter motor to minimize resistance in the ground path.
Use tin-plated copper lugs rated for 300+ amps on all terminal connections. Standard lead-acid terminals corrode under vibration and heat, increasing resistance over time. Crimp lugs with a hydraulic press, then solder the joint for maximum conductivity. Apply dielectric grease to seal terminal blocks, especially in off-road or marine environments where moisture accelerates oxidation.
The ground path from the auxiliary energy storage to the chassis must match the positive cable’s gauge. A weak ground creates a bottleneck, forcing current through unintended paths like starter motor bearings or thin factory grounds, causing premature wear or intermittent electrical faults. Verify ground integrity with a 12V load test at 200+ amps–voltage drop should not exceed 0.2 volts across the entire circuit.
Fuse Selection for Overcurrent Protection
Place a Class T fuse (rated 250–400 amps) within 7 inches of the secondary power source’s positive terminal. This fuse protects against catastrophic shorts in the charging loop. MEGA fuses work for budget setups but lack the Class T’s ability to interrupt 10,000+ amp short circuits without exploding. Never substitute a circuit breaker–thermal trips fail during engine cranking, where 1,000+ amp spikes occur for milliseconds.
If integrating a DC-DC charger, wire it with separate 6 AWG cables from the primary energy cell. Even compact 20-amp chargers generate heat, and undersized conductors reduce charging efficiency by 20–30%. Route cables away from exhaust manifolds or turbochargers–operating temperatures above 85°C degrade insulation and increase fire risk. Audit connections every 6,000 miles or 200 engine hours, retightening lugs to 18 ft-lbs to prevent loosening from thermal cycling.
Step-by-Step Guide to Creating a Custom Triple-Core Electrical Schematic
Start with a 1:1 scale hand-drawn sketch on graph paper–minimum 10 squares per inch. Mark every connection point with precise labeling: use B+ (main feed), GND (ground bus), and AUX (secondary supply) tags for clarity. Avoid color-coding at this stage; rely on single-digit notation (e.g., 1, 2, 3) for wires.
Map the primary distribution block first. Position it 12 inches from the starter relay and 6 inches below the alternator. Draw two parallel 4/0 AWG conductors connecting to the main power stud–each line must include a 250A ANL fuse within 4 inches of the block. Label fuses with alphanumeric IDs (e.g., F1, F2).
Key Component Placement Rules
- Alternator: Route OFC (oxygen-free copper) cable in a 45° upward angle to prevent sag. Maintain 3-inch clearance from exhaust manifolds.
- Ground Straps: Use braided 1/0 AWG straps for chassis bonds. Terminate to bare metal (no paint, rust, or undercoating).
- Isolator Relay: Mount 8 inches from the primary cell. Ensure coil voltage matches vehicle ignition voltage (12V/24V)–verify with a multimeter.
Calculate voltage drop per run using Vdrop = (Length × Current) / (K × Cross-Section), where K = 12.9 for copper. For a 14-foot run at 150A, target ≤0.5V drop. Adjust gauge if exceeding threshold–switch to 3/0 AWG for runs over 10 feet. Record values directly on the schematic in permanent ink.
Validate connections with a continuity tester before finalizing. Probe each terminal pair (e.g., B+ to GND, AUX to relay) for . Highlight failed paths in red and annotate corrections (e.g., “Solder splice at J4”). Include a legend box in the bottom-right corner listing:
- Wire gauge (AWG)
- Fuse ratings (A)
- Terminal types (e.g., M8 ring, 3/8″ stud)
- Connector IDs (e.g., Deutsch DT series)
Finalization Checklist
Scan the sketch at 600 DPI and trace in vector software (Inkscape, Adobe Illustrator). Export as PDF with layers:
- Layer 1: Schematic lines (0.5pt stroke)
- Layer 2: Labels (Helvetica 8pt, bold)
- Layer 3: Instructions (e.g., “Torque M8 nuts to 15 ft-lb”)
Print two laminated copies–one for the workshop, one for the glove compartment. Store digital backup on two separate drives + cloud (AES-256 encrypted).
Optimal Cable Thickness for High-Current Electrical Enhancements in Parallel Power Setups
For 240A continuous draw in a secondary power configuration, use 4/0 AWG (107 mm²) tinned copper wire with a minimum 2% voltage drop over a 3-meter run. This spec balances resistance (0.16 mΩ/m) and thermal capacity (230°C insulation rating), avoiding energy loss exceeding 0.5V at peak loads. Compare alternatives:
| Gauge (AWG) | Cross-Section (mm²) | Max Current (A) | Resistance (mΩ/m) | 3m Voltage Drop (V) @240A |
|---|---|---|---|---|
| 4/0 | 107 | 302 | 0.16 | 0.38 |
| 2/0 | 67 | 235 | 0.26 | 0.62 |
| 1/0 | 53 | 195 | 0.33 | 0.79 |
Stranded wire with 19+ conductors (Class I) prevents work-hardening failure under vibration. Marine-grade heat-shrink terminals (8mm crimp area) reduce corrosion resistance to ≤1.5 mΩ per connection. For 12V auxiliary circuits powering 120W LED arrays, 8 AWG (8.4 mm²) suffices–dropping only 0.1V across 5 meters. Always derate wire capacity by 15% for ambient temperatures above 30°C; in engine bays, use 6 AWG (13.3 mm²) for 60A circuits instead of 8 AWG to account for thermal saturation.
Critical Errors in High-Current Electrical Enhancements for Twin Power Sources
Undersizing conductors ranks as the most frequent yet destructive misstep. A 4-gauge cable, while seemingly adequate for modest loads, collapses under sustained 150A demand; voltage drop exceeds 0.3V over just 3 meters, robbing accessories of critical power and accelerating heat buildup. Replace all primary connections with 1/0 AWG or thicker–no exceptions for “short runs” or “low-draw” circuits. Use crimped lugs rated for 300% of expected current, then solder *and* heat-shrink each joint to prevent oxidation.
Ground paths demand equal rigor: connecting both alternator and auxiliary power cell directly to the chassis at a single point prevents parasitic loops, yet amateurs often chain grounds through multiple components, creating milliohm resistances that spark intermittent faults. Mount a dedicated 1/0 AWG bus bar within 12 inches of the factory engine block ground, torquing all connections to 18 ft-lbs with dielectric grease. Skip fuse protection on ground cables only after verifying zero-voltage potential with a 1MΩ multimeter–never assume continuity.
