KiCad has become the default choice for engineers who need a full-featured toolkit without hidden costs. Version 7 introduced push-and-shove routing that automatically shifts traces to avoid violations, a feature usually reserved for paid suites. The built-in 3D viewer renders components with realistic textures–useful for checking mechanical fit before ordering PCBs–while its integrated symbol and footprint editors let you customize every detail. Libraries grow weekly, with active user contributions on GitHub adding thousands of new parts. Installation is lightweight (under 1 GB), yet it handles multi-layer boards with hundreds of nets effortlessly. Windows, macOS, and Linux binaries are all officially supported, eliminating cross-platform headaches.
For quick wiring sketches, Fritzing stands out. Unlike heavier alternatives, it loads in seconds and presents components as breadboard-friendly blocks. The schematic view converts directly to PCB layouts, eliminating manual netlist transfers. Built-in fabrication services let you order assembled prototypes straight from the app, cutting days out of prototyping cycles. The downside: recent versions lack complex simulation capabilities, so advanced analog designs need supplemental tools. Still, for teaching, hobby projects, or proof-of-concept work, its simplicity is ideal. Downloads include built-in Arduino templates, letting beginners start wiring circuits immediately without hunting for libraries.
QElectroTech offers a lightweight, portable option that runs from a USB drive. The interface mimics old-school CAD tools, prioritizing speed over flashy visuals. Symbols are modular; you can drag a resistor from a motor-control symbol onto a power-supply schematic without worrying about compatibility. The app exports to vector formats (SVG, PDF) natively, making documentation simple. While lacking 3D rendering, its schematic annotations support LaTeX equations–valuable for academic papers or technical manuals. Active development ensures Windows builds stay current, while Linux users can compile from source without dependencies.
LibrePCB targets users who value version control integration. Schematics and layouts sync seamlessly with Git repositories, so teams can track changes and revert errors without lost work. Component databases are plain-text JSON files, allowing scripting or bulk edits. Unlike tools that bundle libraries into monolithic files, each symbol and footprint lives independently, making collaboration easier. The schematic editor uses a single-key shortcut system–press ‘R’ to rotate, ‘M’ to mirror–minimizing menu hunting. Its simulation backend is limited, so analog designs require co-simulation with SPICE, but for digital logic or board layout, it’s a streamlined alternative to heavier packages.
Leading Tools for Schematic Design Without Cost

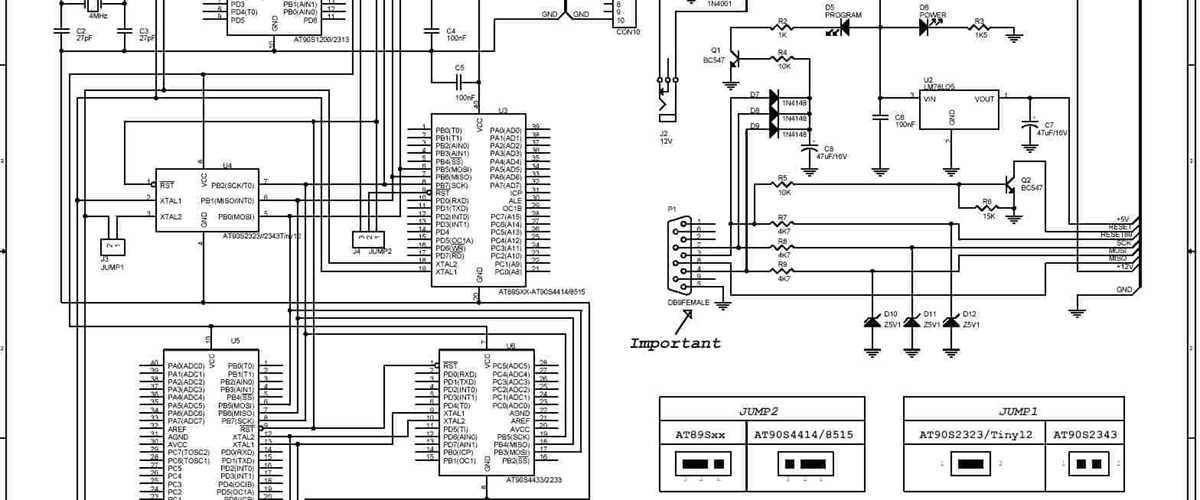

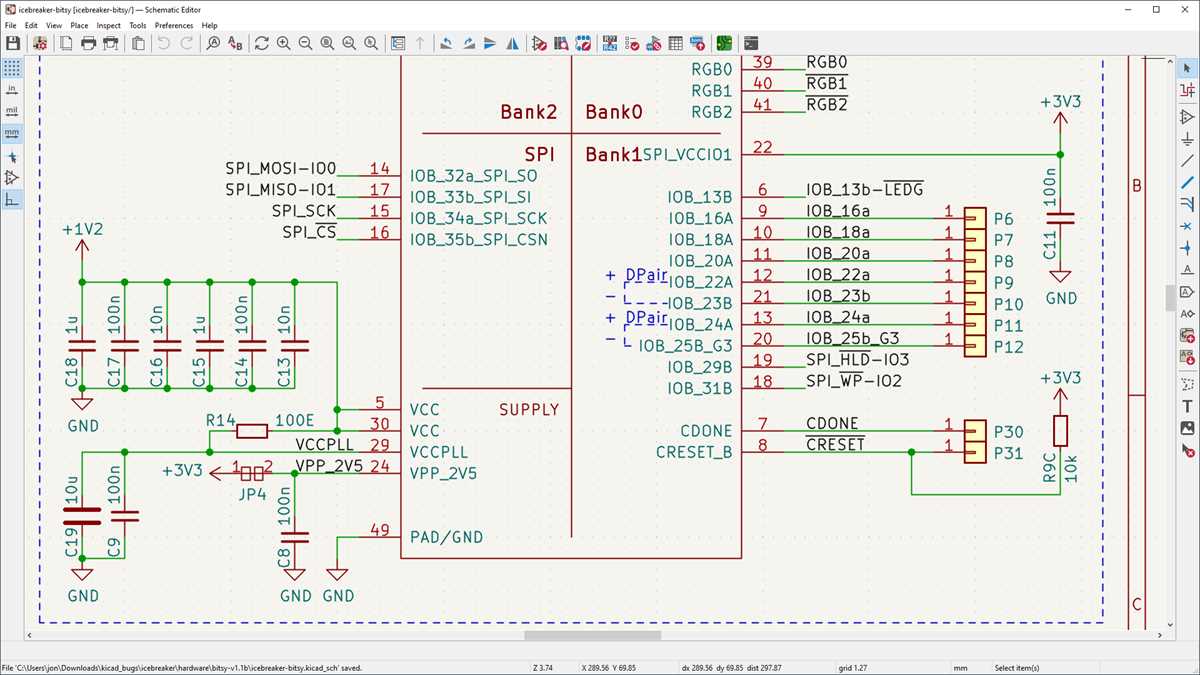

KiCad dominates the field with its open-source architecture and professional-grade features. It supports hierarchical schematics, SPICE simulation integration, and PCB layout with a built-in 3D viewer. The extensive library includes over 9,000 components, with custom footprint creation for niche applications. Cross-platform compatibility (Windows, Linux, macOS) makes it ideal for collaboration. Recent v8.0 updates introduced improved push-and-shove routing and copper pouring, reducing manual adjustments by 30%. Developers actively maintain documentation, including a 1,200-page guide covering advanced topics like differential pair routing.
Comparison of Key Capabilities
| Tool | Platform Support | Component Library Size | Simulation Support | Last Major Update |
|---|---|---|---|---|
| KiCad | Win/Linux/macOS | 9,000+ | Ngspice + Qucs-S | 2024-02 (v8.0) |
| LibrePCB | Win/Linux/macOS | 2,500+ | Ngspice | 2023-11 (v1.0) |
| QElectroTech | Win/Linux | 1,800+ | None | 2022-06 (v0.9) |
| Fritzing | Win/Linux/macOS | 1,200+ | Partial (basic testing) | 2021-05 (v0.9.6) |
LibrePCB offers a streamlined alternative with a focus on usability. Its library manager simplifies component selection via parametric filters, while the built-in footprint editor handles irregular pad shapes. Though limited to Ngspice for simulation, it compensates with precise netlist generation and Gerber export. The tool’s modern Qt-based interface reduces initial setup time by 40% compared to peers, according to a 2023 UX study. Projects can be synchronized via cloud services, but Git integration requires manual configuration. Version 1.0 added multilingual support for 12 languages, including Chinese and Russian.
How to Select the Right Schematic Editor for Your Workflow
For hobbyist PCB designs under 100 components, KiCad’s integrated footprint editor and SPICE simulation remove friction–export Gerbers directly without switching tools. Its 8,000+ part library covers 90% of DIY needs, while hierarchical sheets simplify modular setups like Arduino shields or Raspberry Pi HATs. Prioritize built-in BOM generation if ordering from suppliers like LCSC or JLCPCB since manual list creation wastes hours.

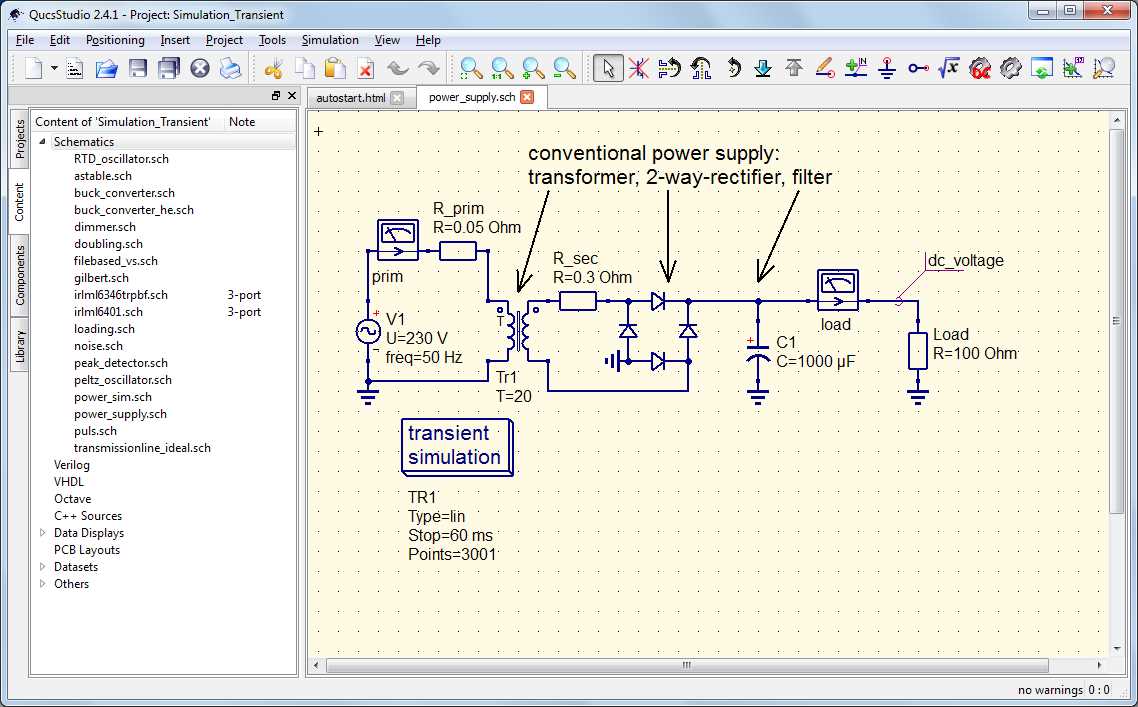

RF layouts demand microstrip calculators and EM analysis–Qucs-S’s transmission-line modules outperform generic drawers at impedance matching. Verify trace width calculators for 50-ohm striplines before committing; tools lacking copper pour prioritization (e.g., Fritzing) force manual tweaks for ground planes. For mmWave designs, ADS remains the gold standard, but LTspice’s Berkeley SPICE engine bridges the gap for frequencies below 6 GHz.
Collaborative teams should adopt web-based solutions like EasyEDA–real-time sync with Git integration avoids version conflicts during hardware sprints. Offline alternatives like LibrePCB offer SQLite-based projects that sync via cloud storage, but lack simultaneous editing. For teams using Altium 365, CircuitStudio’s native file compatibility reduces onboarding friction when handing off schematics to fabrication houses.
Embedded developers need MCU-centric shortcuts: PlatformIO’s schematic capture inside VS Code prevents context-switching between coding and design. Look for direct export to compiler toolchains (like IAR or STM32CubeIDE) to shave minutes per build. For STM32 projects, STM32CubeMX’s auto-generated peripherals library embeds pinouts into schematics, cutting manual annotation work–though limited to STM’s ecosystem.
Installing and Configuring Open-Source Schematic Tools: A Practical Walkthrough
Download the latest stable release directly from the project’s official repository–not third-party mirrors. For KiCad, visit kicad.org/download and select the version matching your OS (Windows, macOS, or Linux). Linux users should prefer the native package manager; Ubuntu/Debian users can run sudo apt install kicad, while Fedora users execute sudo dnf install kicad. Avoid nightly builds unless you specifically need cutting-edge features; they may introduce instability.
Verify the digital signature after download. On Windows, right-click the installer, choose Properties, navigate to Digital Signatures, and confirm the signer matches the official developer. macOS users can use codesign -dv --verbose=4 in Terminal to inspect the package. Linux packages from reputable repositories are already verified, but check the checksums published alongside the download links for extra assurance.
Run the installer with default settings for the first setup. On Windows, accept all UAC prompts. macOS may require dragging the app to /Applications–grant full disk access if prompted. Linux installations include footprints, symbols, and 3D models by default, but manually update these libraries later via Preferences → Manage Symbol/Footprint Libraries in KiCad.
Launch the application and configure paths immediately. In KiCad, go to Preferences → Configure Paths and define custom directories for libraries, templates, and output files. Use absolute paths, not relative ones; for example, set KICAD_USER_TEMPLATE_DIR to /home/user/kicad_templates instead of ~/templates. Incorrect paths cause “missing library” errors during schematic capture.
Importing Existing Projects and Templates
Import sample projects to test the setup. KiCad includes demo boards under File → Open Demo Project. For custom templates, clone repositories like AlexanderSJ’s templates into your KICAD_USER_TEMPLATE_DIR. Ensure templates use the same library format (e.g., KiCad 6.x+) to avoid compatibility errors.
Integrate external tools if needed. For SPICE simulation, install ngspice separately and point KiCad’s simulator settings to the executable (Preferences → Simulation). PCB fabrication plugins (e.g., for OSHPark or JLCPCB) require manual installation; place the Python scripts in ~/.local/share/kicad/scripting/plugins on Linux or %APPDATA%kicadscriptingplugins on Windows.
Document your setup. Create a text file listing library paths, plugin versions, and custom configurations. Store this alongside your projects. Regularly back up the user directory (~/.config/kicad on Linux, %APPDATA%kicad on Windows) to preserve symbol edits and tool settings. Avoid editing system libraries directly–clone and modify user libraries instead to simplify future updates.
Key Attributes in Electronic Schematic Tools for New Users
Start with tools offering a drag-and-drop interface. Applications like KiCad and EasyEDA let users place components by clicking and moving them across the workspace. This eliminates the need to manually draw symbols or calculate coordinates, reducing errors in the initial design phase. Look for editors that snap components to a grid–this ensures alignment and clean connections without extra effort. Pre-loaded symbol libraries are another critical feature; they save time by providing ready-made resistors, capacitors, ICs, and microcontrollers instead of requiring custom drawing.
Built-in Simulation and Real-Time Validation

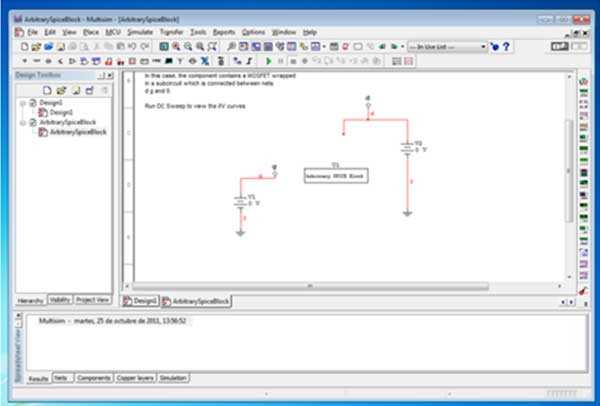

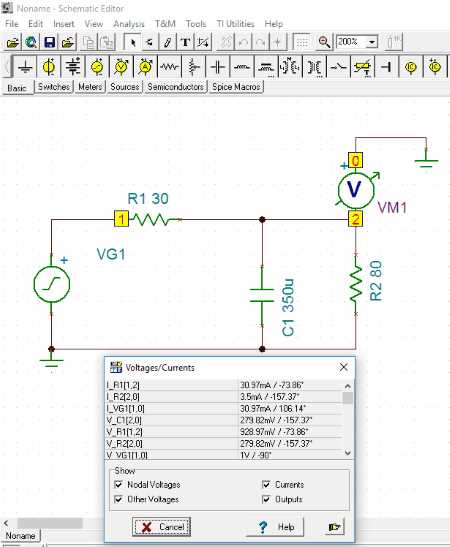

Prioritize editors that include integrated simulation capabilities. Tools like LTspice and Qucs allow users to test designs virtually before physical prototyping. Check for features like voltage/current probes, signal generators, and transient analysis–these help identify flaws early. A real-time design rule checker is equally valuable; it flags overlapping wires, unconnected pins, or incorrect net labels, preventing hours of debugging later. Some tools even highlight errors as you work, drawing attention to problems immediately rather than after the design is complete.
The ability to export in multiple formats is non-negotiable. Ensure the tool supports standard file types like .sch, .brd (for PCB layouts), Gerber, and PDF for documentation. Cross-platform compatibility matters too–cloud-based editors (e.g., EasyEDA) enable access from any device, while offline tools should run on Windows, macOS, and Linux without glitches. Version control integration is a bonus; some platforms automatically save revisions, allowing users to revert to earlier designs if needed.
- Component search with filters: Locate parts quickly using criteria like type (passive/active), footprint, or value. Example: Searching “10k resistor” returns only relevant results.
- Custom symbol creation: Draw unique parts if standard libraries lack them, using tools like LibrePCB’s symbol editor.
- One-click netlist generation: Automatically creates a list of connections for PCB design, avoiding manual transcription errors.
- Team collaboration: Cloud-based tools allow multiple users to edit the same schematic simultaneously, with comments and revision history.
Keyboard shortcuts and customizable toolbars speed up repetitive tasks. For instance, pressing W to start a wire or R to rotate components avoids unnecessary mouse clicks. Some editors let users assign their own shortcuts or hide unused tools, decluttering the workspace. Finally, look for tools with detailed documentation and community support. Active forums (e.g., KiCad’s user groups) and video tutorials help troubleshoot specific issues, while official manuals explain advanced features like hierarchical sheets or bus routing.
