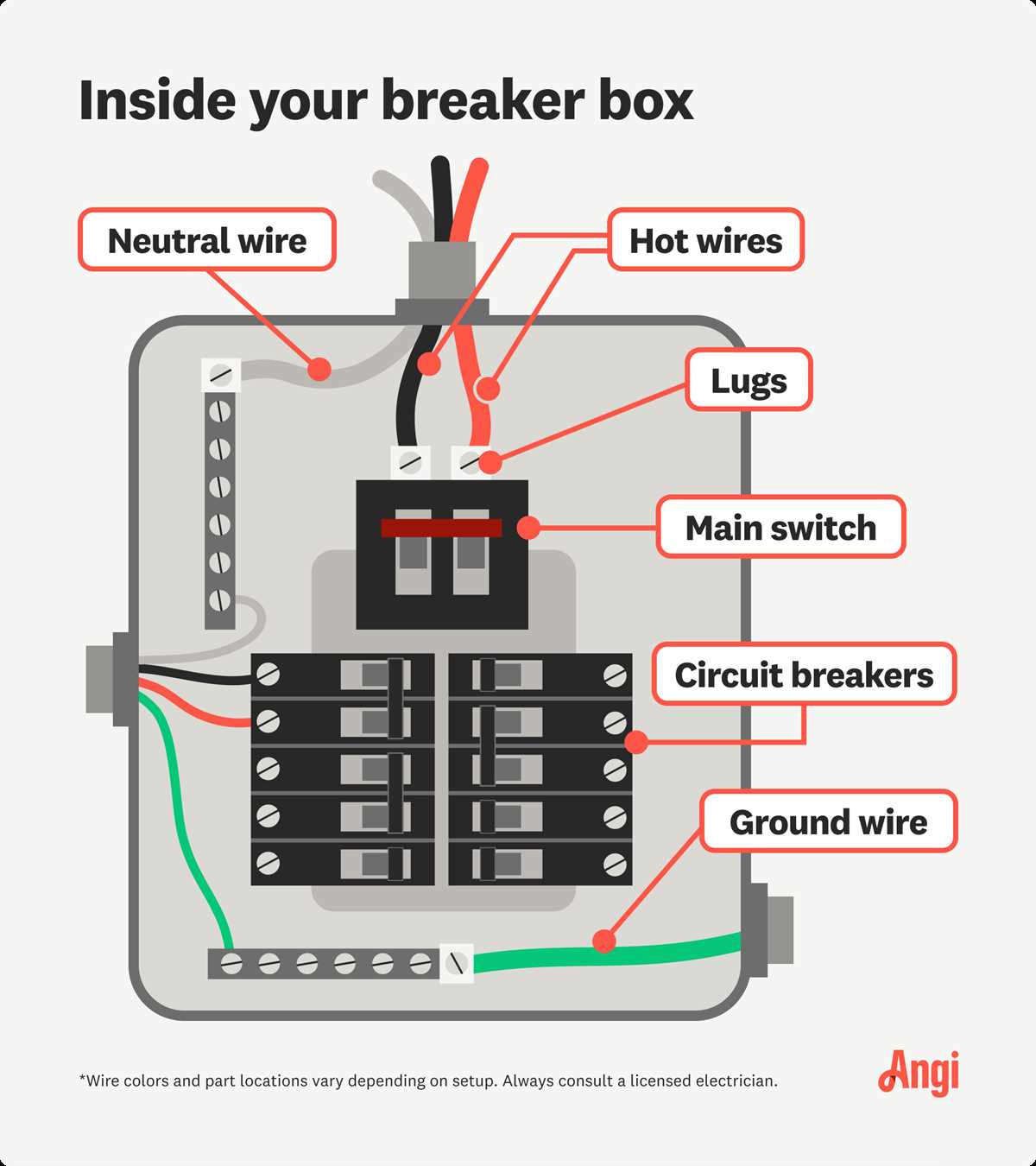

Before touching any wires, shut off power at the circuit breaker for the targeted junction box. Verify with a non-contact voltage tester–press it against exposed conductors to confirm no live current remains. Mistakes here risk severe shock or arcing.
Gather these tools: wire strippers (14-16 AWG gauge), needle-nose pliers, a screwdriver (flat or Phillips, matching terminal screws), and a roll of electrical tape. Use copper conductors only–aluminum wiring requires special connectors not covered here. Remove the outlet cover plate first; it reveals the mounting screws securing the device to the box.

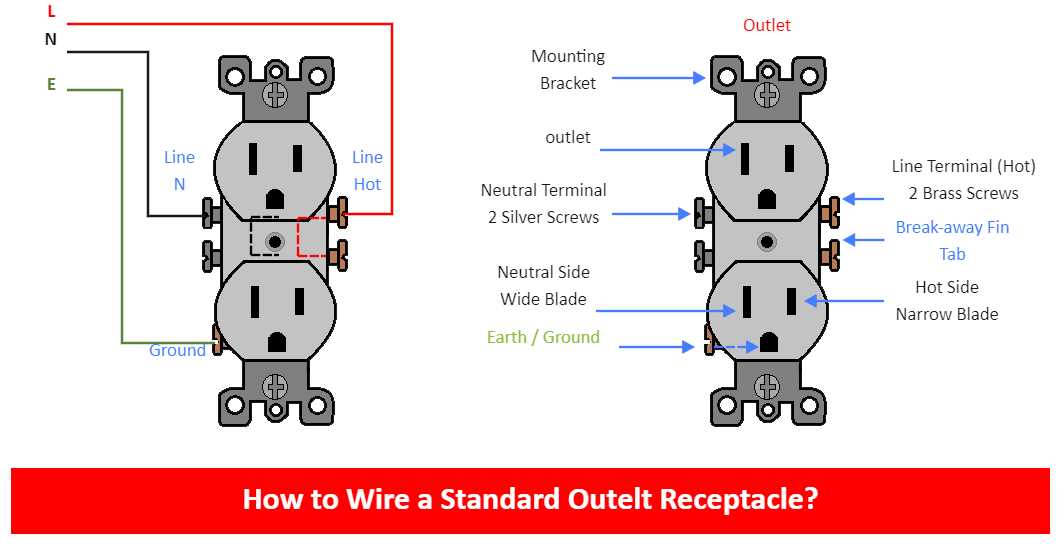

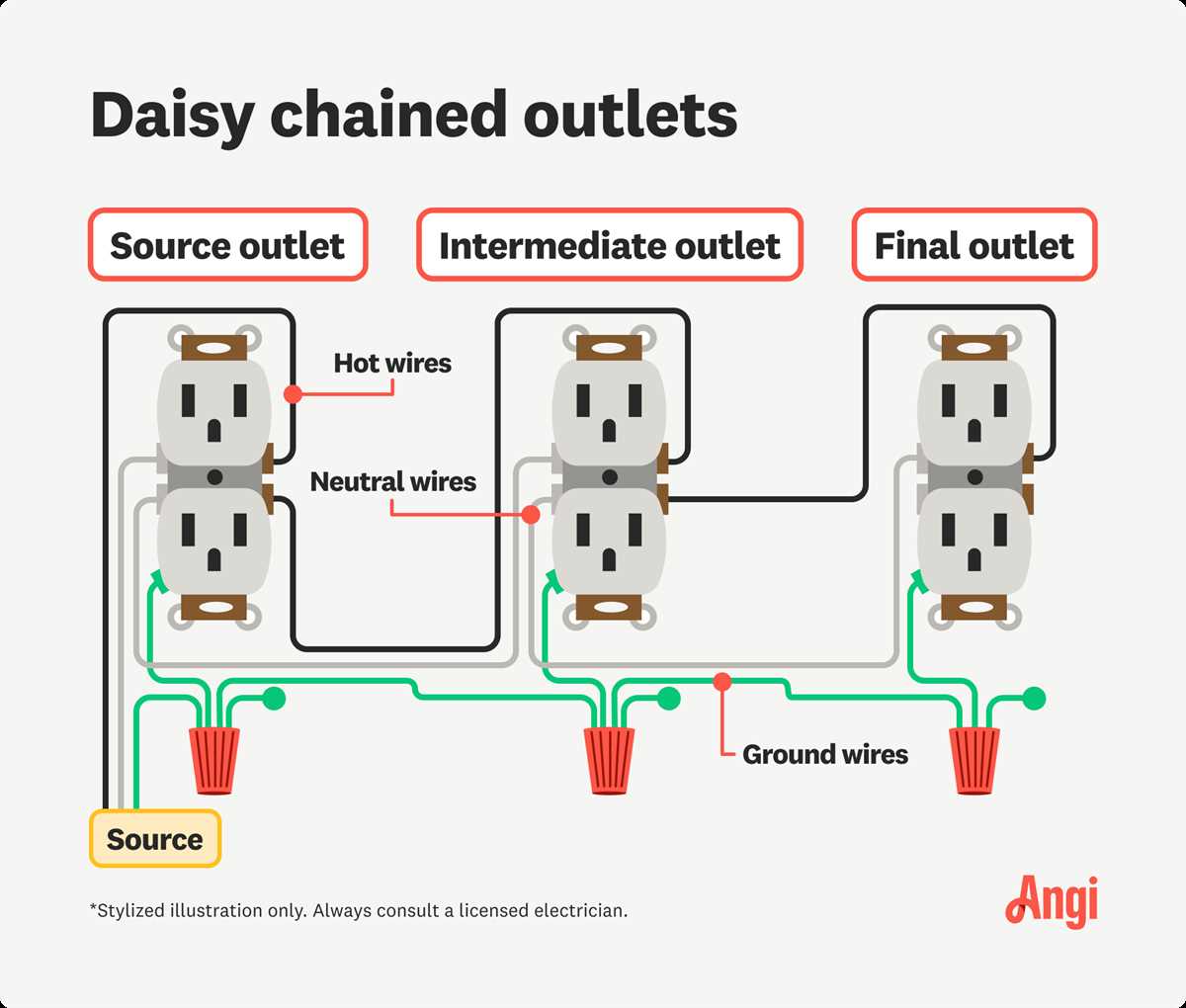

Identify the color-coded leads: black (hot, carries current), white (neutral, returns current), and bare or green (ground, safety path). If the box contains multiple cables, twist matching colors together before securing under terminal screws. For outlets near endpoints, the black connects to the brass screw, white to silver, and ground to the green screw.
Bend hooks clockwise around terminal screws to tighten connections when reinserting wires; this prevents them from slipping when the screw is turned. Tug gently on each lead–they should hold firm. If using backstabs (push-in connectors), strip ½ inch of insulation and insert fully until it clicks. These are less secure; prefer screw terminals for permanent setups.
Fold wires neatly into the box, then align the socket’s mounting tabs with the box slots. Secure it with screws–tighten until snug but avoid over-torquing, which can crack the plastic. Reattach the cover plate. Turn the breaker back on and test with a plug-in device. If it doesn’t power on, retrace steps to check for loose connections.

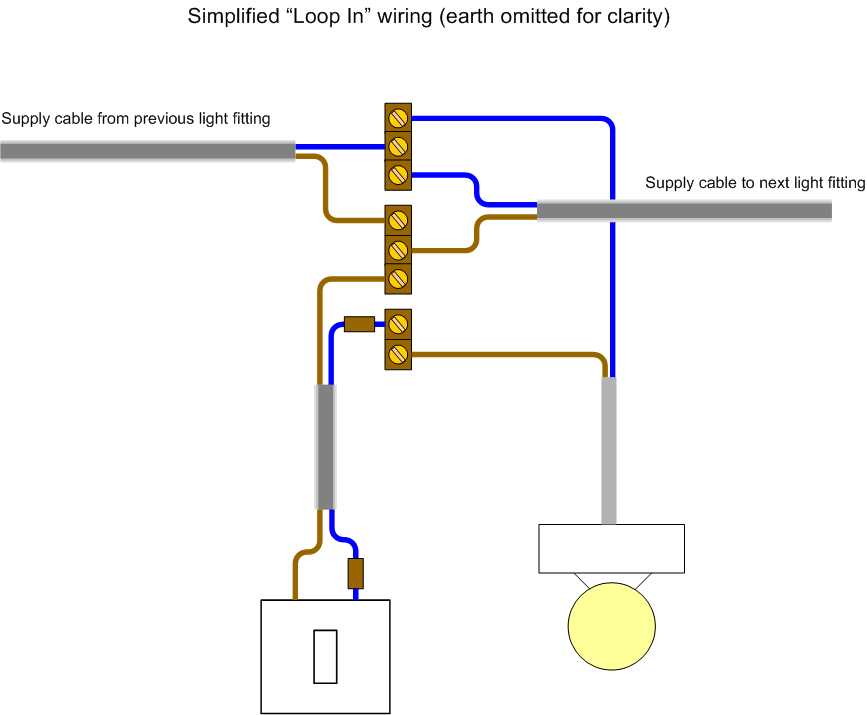

For split-circuit sockets (half-hot), break off the brass tab linking the two brass screws. This lets the upper and lower outlets be controlled separately. Connect one brass screw to a constant hot wire, and the other to a switch-switched wire–useful for lamps.
How to Safely Connect a Home Socket: A Practical Guide
Start by switching off the circuit breaker for the target area before touching any wires. Verify power is off using a non-contact voltage tester–hold the probe near each conductor to confirm no current remains. If the device emits a beep or lights up, the circuit is still live; do not proceed until power is fully cut.
Remove the socket faceplate by unscrewing the single center screw. Gently pull the unit away from the wall to expose the connected wires. Note their positions: brass screws for live (hot) wires, silver for neutral, and green or bare for ground. Use pliers to loosen each terminal screw before detaching the wires to avoid damaging the conductors.
Inspect the wires for signs of wear, brittleness, or corrosion. If any wire insulation appears cracked or ends are frayed, trim back to clean copper using wire strippers. For solid core wires, strip approximately 12mm of insulation; for stranded, 16mm ensures secure connection without loose strands. Twist stranded ends clockwise to prevent unraveling during installation.
Match the wires to their designated terminals:
- Black or red wire → brass (live) terminal
- White wire → silver (neutral) terminal
- Green/bare wire → green grounding screw
Insert each wire fully under its terminal screw, ensuring no insulation is clamped beneath. Tighten screws firmly with a screwdriver–loose connections can cause overheating or arcing. For back-wired sockets, insert straight wire ends into the holes until they click, then tug gently to confirm they’re locked in place.
For GFCI-protected sockets, locate the “Line” and “Load” markings on the back. Connect the incoming power source wires (usually originating from the breaker) to the “Line” terminals. If protecting downstream sockets, attach those wires to the “Load” terminals–mix-ups will prevent the GFCI from tripping correctly. Double-check that ground wires are continuous throughout the circuit.
Carefully tuck the wired socket back into the junction box, ensuring no wires are pinched or exposed. Secure the unit with the mounting screws, keeping the faceplate aligned with the wall. Tighten just enough to hold the socket snugly–over-tightening can crack plastic housing.
Restore power at the circuit breaker and test the socket with a multimeter or plug-in device. For GFCI sockets, press the “Test” button to verify the reset mechanism engages (power should cut off). If the socket fails this check, reopen the circuit breaker and reexamine all connections–common issues include reversed wires or loose grounds.
Label the circuit breaker with the socket’s location for future reference. For added safety, consider installing a tamper-resistant socket if children are present–these require simultaneous pressure on both slots to activate, reducing accidental contact risk. Store any extra wire inside the box with a wire nut cap, leaving no exposed copper.
Essential Gear for Socket Installation
Start with a voltage tester–non-contact models like the Klein NCVT-3 detect live circuits at a safe distance and cost under $25. Pair it with a multimeter (Fluke 17B or similar) to verify precise voltage levels before cutting power; test between hot and neutral screws to confirm zero reading. A 12-gauge cable stripper (Irwin Vise-Grip 2078300) removes jacket and conductor insulation in one motion, reducing wire damage risk by 30% compared to knives.
Use UL-listed 14/2 NM-B Romex for 15-amp circuits and 12/2 for 20-amp–check local codes for exceptions. Toggle a 15-amp breaker for standard sockets, upgrading to 20-amp only if appliances draw >12A continuously. A torque screwdriver (Wera 564 003 SB) tightens terminal screws to NEC-specified 12–15 lb-in, preventing loosening from thermal cycling.
Secure boxes with #10-24 machine screws for metal and 1/4″ coarse screws for plastic–avoid drywall anchors for heavy fixtures. Use 1/2″ rigid metal conduit connectors if running through unfinished spaces; flex conduit requires liquid-tight fittings for outdoor exposure. Grab a magnetic level (Swanson Tool S0101) to align sockets vertically–avoid bubble levels, which require manual checking.
Keep wire nuts (Ideal 73B red for 2–4 #14 wires) and push-in connectors (Wago 221-412 for quick splices) on hand, but crimp-on butt splices (3M 314) for solid #12 connections. Label everything with Brother P-touch PTM95 stickers–circuit numbers on breakers, wire function on conductors. Store leftovers in a grounded metal box with silica gel packs to prevent corrosion.
Step-by-Step Single Receptacle Installation Walkthrough
Shut off power at the circuit breaker panel before handling any connections. Use a non-contact voltage tester to confirm live wires are dead–hold the probe near terminals for at least three seconds. Label the breaker with the room location to prevent accidental reactivation while working.
Remove the faceplate by unscrewing the center screw, then unscrew the mounting screws holding the device in the box. Gently pull the fixture out–avoid tugging wires, as insulation may be brittle. If the box contains multiple cables, identify the source cable by checking which one connects to the breaker panel (typically the cable with hot and neutral wires entering from the back).
- Neutral wire: white (or gray) sheath–connect to the silver terminal.
- Hot wire: black (or red) sheath–attach to the brass terminal.
- Ground wire: bare copper or green sheath–fasten to the green grounding screw.
Strip 5/8 inch of insulation from each conductor using lineman’s pliers–the cutting edges should face away from the wire to avoid nicking strands. Twist strands clockwise to keep them tight, then loop each under its corresponding screw terminal, wrapping direction matching the screw rotation. Torque terminal screws to 12–15 in-lbs using a torque screwdriver–overtightening can strip threads.
Fold wires neatly into the box, ensuring no insulation is pinched between the back of the receptacle and the box edges. Secure the device with mounting screws, shimming with flat washers if the faceplate doesn’t sit flush. Replace the faceplate, then restore power at the breaker. Test polarity with a receptacle analyzer–correct readings show hot on the narrow slot, neutral on the wide slot, and ground isolated. If the tester flashes red, swap hot and neutral connections.
For split-circuit setups, break the brass tab between the upper and lower brass terminals using needle-nose pliers–this allows independent control of each half. Attach the constant-hot wire (black) to one brass terminal and the switched-hot wire (red) to the other. Neutrals remain joined–never remove the silver tab. Grounding remains unchanged.
How to Configure a Divided Socket for Independent Circuits
Cut the metal link on the hot side of the receptacle to isolate the top and bottom halves. Use needle-nose pliers to bend the tab until it snaps cleanly–leave the neutral tab intact. Confirm continuity with a multimeter: probe the brass screws on each half; readings above 0.5 Ω indicate the link remains, while open circuit (OL) means the split is complete.
| Circuit Pair | Wire Gauge | Breaker Rating (A) | Recommended Load (W) |
|---|---|---|---|
| 12 AWG / 12 AWG | 2.05 mm² | 20 | 1920 |
| 14 AWG / 12 AWG | 1.63 / 2.05 mm² | 15 / 20 | 1440 / 1920 |
| 14 AWG / 14 AWG | 1.63 mm² | 15 | 1440 |
Attach the incoming feeds to separate brass screws: red to the top, black to the bottom. Secure ground to the green screw using a loop formed by a 10 AWG pigtail; torque all terminals to 12–14 lb-in with a calibrated screwdriver. Label the cover plate “Split Circuit” and test each half with a plug-in load tester–two distinct clicks should be audible when verifying breaker trips.
