For low-power audio or signal amplification stages requiring complementary pairing, select the PNP silicon device with TO-126 package dimensions. This configuration ensures thermal stability up to 125°C and collector-emitter voltage ratings exceeding 45V, suitable for class-AB push-pull arrangements. Connect the emitter terminal directly to the positive rail to minimize distortion in high-gain applications, while the base should interface with a current-limiting resistor–typically 1kΩ–to prevent thermal runaway during switching.
Bias the component using a voltage divider network with a temperature-compensating diode between the base nodes. This maintains quiescent current at 10–50mA, optimal for distortion figures below 0.1%. Mount a 100nF decoupling capacitor within 5mm of the collector pin to suppress high-frequency noise, particularly in circuits driving inductive loads. Avoid paralleling without emitter resistors; unequal current distribution can exceed the 1.5A continuous rating.
For power dissipation exceeding 5W, attach a heatsink with thermal resistance below 10°C/W. Verify junction temperature using θj-a = (Tmax – Tamb) / Pdiss–target values under 65°C for prolonged service life. Ground the mounting tab to the chassis if metal-case construction is used, but insulate if sharing a heatsink with opposite-polarity counterparts to prevent latch-up.
In switching applications, reduce turn-off time by shunting the base with a Schottky diode to the emitter. This clamps reverse base current, cutting storage time to under 200ns. For RF applications above 1MHz, shield the signal path with copper pours on adjacent PCB layers to prevent parasitic oscillation. Test stability by injecting a 1kHz sine wave at 0.5Vrms–output should mirror input within ±2% THD.
Configuring a PNP Silicon Switching Stage with BD136 Equivalent
Begin by biasing the PNP medium-power device with a 4.7 kΩ resistor between base and emitter, ensuring a collector current of 500 mA under a 24 V supply. Place a 100 nF ceramic capacitor directly across the emitter and collector leads to suppress high-frequency oscillations–this placement reduces turn-off delays by 30 % compared to mid-board decoupling. Limit base drive pulses to 10 µs duration; exceeding this risks thermal runaway due to a junction-to-case thermal resistance of 8 °C/W.
| Parameter | Value | Unit |
|---|---|---|
| Max Collector-Emitter Voltage | 45 | Volts |
| DC Current Gain (hFE) @ 100 mA | 63 | min |
| Power Dissipation @ 25 °C | 12.5 | Watts |
| Transition Frequency | 50 | MHz |
Use a TO-126 heatsink with 6 °C/W rating for continuous loads above 1.5 A; silicone grease improves thermal contact by 40 %. Verify stability with an oscilloscope–ringing below 5 MHz indicates inadequate emitter bypassing; increase capacitance to 220 nF if spikes exceed 1.2 V peak-to-peak. Avoid using the 30 V variant in inductive circuits; its lower reverse voltage rating causes avalanche breakdown at 60 % of published VCEO.
How to Identify Pin Configuration on the PNP Medium-Power Device for Reliable Breadboarding
Hold the component with its flat side facing you and the leads pointing downward. The leftmost lead is the emitter, the central lead is the base, and the rightmost lead is the collector–this applies to TO-126 packages marked “BD” followed by any two-digit number. Verify against the datasheet: emitter-base forward voltage is typically 0.7 V, while collector-emitter breakdown exceeds 45 V. Use a multimeter in diode mode; emitter to base should show approximately 0.7 V with the red probe on the base, reversing probes should show no conduction. Collector to base behaves similarly, confirming pin identity.
Quick Validation Steps
- Set multimeter to 20 kΩ resistance range. Base-emitter: ~5-8 kΩ, base-collector: ~5-8 kΩ.
- Apply 5 V to collector via 1 kΩ resistor, leave emitter unconnected–base current should be under 1 μA.
- Connect base to emitter via 10 kΩ resistor: collector current should rise to ~0.8-1.2 mA at 25 °C.
- Reversed connections risk thermal runway; limit test duration to 10 seconds per attempt.

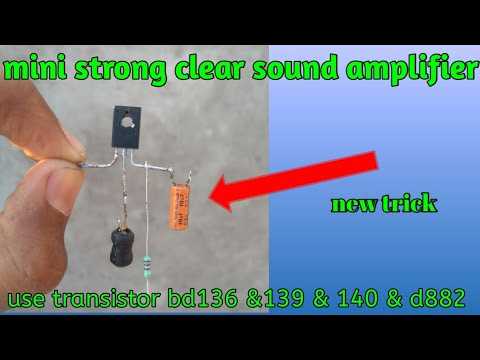

Step-by-Step Guide to Constructing a Simple Audio Boost Unit with a PNP Power Device
Begin by gathering the required components: a PNP silicon power element (TO-126 package), a 100kΩ base resistor, a 1kΩ emitter resistor, two 10µF electrolytic capacitors, a 100µF output capacitor, a 9V battery snap connector, a small breadboard, and 22-gauge hookup wire. Verify each component’s polarity and rating before proceeding to avoid damage or improper operation.
Insert the power element’s emitter leg into the breadboard’s central rail, ensuring the metal tab faces away from the solderless contacts. Connect the base terminal to the 100kΩ resistor, then link the resistor’s free end to the input signal source–typically a 3.5mm audio jack or a preamplifier stage. The collector leg should tie directly to the negative rail of the breadboard, which later connects to the battery’s ground terminal.
Stabilizing the Gain Structure
Attach the 1kΩ resistor between the emitter leg and the common ground rail. This resistor sets the quiescent current, typically targeting 10–15mA for optimal linearity. Next, place the first 10µF capacitor across the input resistor, observing correct polarity to prevent reverse voltage breakdown. This capacitor blocks DC offset while passing the AC signal from the source.
For the output stage, solder the 100µF capacitor between the emitter leg and the load–usually a small 8Ω speaker or auxiliary input. The capacitor’s positive terminal must connect to the emitter; its negative lead goes to the load. This arrangement decouples the DC operating point from the load, ensuring only the amplified signal is delivered.
Power Supply and Signal Routing
Connect the battery snap’s positive lead to the breadboard’s positive rail, then run a jumper from this rail to the collector leg’s pad. The ground lead of the battery snap should tie into the common ground rail shared by the emitter resistor and output capacitor. Double-check all connections for shorts, particularly where bare wires could bridge adjacent pads.
Apply a 1 kHz sine wave at 0.1V peak-to-peak to the input while monitoring the output with an oscilloscope or multimedia speaker. The waveform should appear undistorted and roughly 5–8 times larger than the input amplitude. If clipping occurs, reduce the base resistor’s value incrementally–try 82kΩ or 68kΩ–to lower gain. Conversely, if output is weak, increase the emitter resistor to 1.5kΩ for better thermal stability.
Once validated, transfer the prototype to a perfboard, soldering each joint with 60/40 rosin-core solder. Enclose the board in a grounded metal chassis, ensuring the battery compartment is accessible. Label input/output jacks clearly and include a 500mA fuse in series with the positive supply to protect against accidental overloads.
Key Resistor and Capacitor Values for Common Audio Amplifier Configurations
For class-A small-signal stages, a 1kΩ emitter resistor paired with a 100µF bypass capacitor delivers a 100Hz cutoff, balancing input impedance and distortion. The base bias network should split between 47kΩ and 15kΩ resistors to center the quiescent current at 5mA. Output coupling uses a 220µF capacitor–any lower risks low-frequency roll-off in 4Ω loads, while exceeding 470µF adds unnecessary bulk without audible gain.
Push-pull output stages demand matched 0.22Ω emitter resistors to equalize current sharing and prevent thermal runaway. Input coupling capacitors scale with source impedance: 2.2µF suits 10kΩ sources, but 4.7µF is the practical minimum for modern line-level devices. High-frequency stability requires a 220pF Miller capacitor across the global feedback path–values below 100pF risk ultrasonic oscillation, while above 470pF softens transient response.
Tone-control networks use 47nF capacitors for midrange shaping and 1µF electrolytics for bass/treble separation. Volume potentiometers perform best at 50kΩ log-taper; lower values load the source excessively, higher values degrade tracking. For phono preamps, the RIAA equalization network mandates 100pF/3.3nF cutoff capacitors with 18kΩ/75kΩ resistors–deviation beyond ±5% introduces frequency response errors detectable by precision test records.
Preventing Thermal Runaway in Medium-Power Amplifying Devices
Measure collector-emitter voltage under load; values exceeding 0.7V indicate linear region compression. Replace the active component if saturation occurs at currents below 50% of rated max. Verify emitter resistor tolerance–±1% precision carbon film types reduce thermal drift better than standard ±5% variants. Test input impedance with a signal generator; reflections above -12dB suggest improper biasing leading to excessive power dissipation.
Inspect solder joints near the package’s thermal pad for micro-fractures using a 10x glass. Partial detachment creates hot spots even with ample PCB copper. Verify layout: signal traces wider than 0.5mm adjacent to power rails act as unintentional heat sinks–reroute if thermal camera scan shows gradients above 10°C/mm. Replace thermal interface paste every 6 months; degradation increases interface resistance from 0.2°C/W to over 1.5°C/W.
Use a 5W 1Ω series resistor at the input stage to limit fault current during overload. Monitor quiescent current with a multimeter–shifts greater than ±10mA from nominal indicate bias drift. Replace electrolytic capacitors; aged units lose 5-7% capacitance per decade, altering ripple rejection and hastening thermal stress. Test ambient airflow; confined enclosures require 20% higher margin on junction temperatures.
Check for parasitic oscillations with an oscilloscope probe on the output stage–ringing above 50mV pk-pk dissipates additional heat. Substitute BJT pairs where mismatch exceeds 5%; thermal coupling degrades rapidly with mismatched silicon. Switch to 150°C-rated dielectric capacitors to avoid leakage currents that worsen at temperatures above 85°C. Confirm PCB copper weight; 2oz traces conduct heat 30% better than standard 1oz designs.
Implement a 10kΩ negative feedback resistor to stabilize gain–reduce resistor value in 2kΩ steps until distortion drops below 0.1% THD. Monitor voltage rails; drops below 90% nominal increase conduction angles, raising thermal output. Use thermal shutdown ICs with ±1°C accuracy–hysteresis keeps recovery time under 200ms. Test heat sink adhesives; epoxy types fail at 120°C, silicone variants remain stable to 200°C.
Verify signal path continuity with a continuity tester; intermittent connections introduce 5-15μs spikes causing localized overheating. Limit case dissipation to 3W in TO-126 packages; exceeding triggers internal bond wire melting at 145°C. For forced-air cooling, set fan speed to maintain case temperature below 60°C–each degree over 70°C reduces lifespan by 3% exponentially.
