For reliable 4-bit binary to 10-digit conversion, use a 74LS47 decoder IC paired with common-anode LED modules. Ensure pull-up resistors (220Ω) on each output pin–CC, CA labels often confuse, so verify pinouts with a datasheet before soldering. Reverse polarity on a single display leg can destroy the entire array.
Skip multiplexing if simultaneous illumination is critical–direct drive from the IC consumes under 200mA per digit, well within the 74LS47 15V rating. Connect unused binary inputs (pin 2, 3) to ground; floating pins induce erratic flickering. For current-limited designs, swap resistors for a ULN2003 Darlington array to sink 500mA spikes.
Layout traces with thick copper (2oz) to prevent voltage drops across longer segments. Avoid routing high-current paths near clock signals–inductive coupling creates ghost digits. Debug with a logic analyzer set to 5V TTL thresholds; scope triggers on A0 toggles will isolate stuck-binary errors.
CAUTION: Static-sensitive components like CD4511 latch-ups from ESD. Wear conductive wristbands and store ICs in anti-static foam. Replace segments incrementally during testing–full replacements mask intermittent faults.
For dynamic brightness control, PWM the common anode at 1kHz. Above this frequency, human persistence-of-vision artifacts appear, while below 100Hz flicker becomes visible. Calibrate duty cycles using a photodiode–linear response breaks below 30% PWM.
Thermal shutdown occurs at 125°C; mount ICs on aluminum heatsinks with thermal paste for 5W dissipation. Verify ground planes–single-point grounding prevents ground loops that skew display values by ±1 LSB.
Designing a Decimal-to-Display Decoder Layout
Begin with a 4-bit binary input representing values 0–9. Map each combination to the corresponding LED bar outputs (a–g) using a logic array. For simplest implementation, use a 74LS47 IC–its built-in truth table eliminates manual gate synthesis. The IC directly drives common-anode displays; invert outputs if using common-cathode variants.

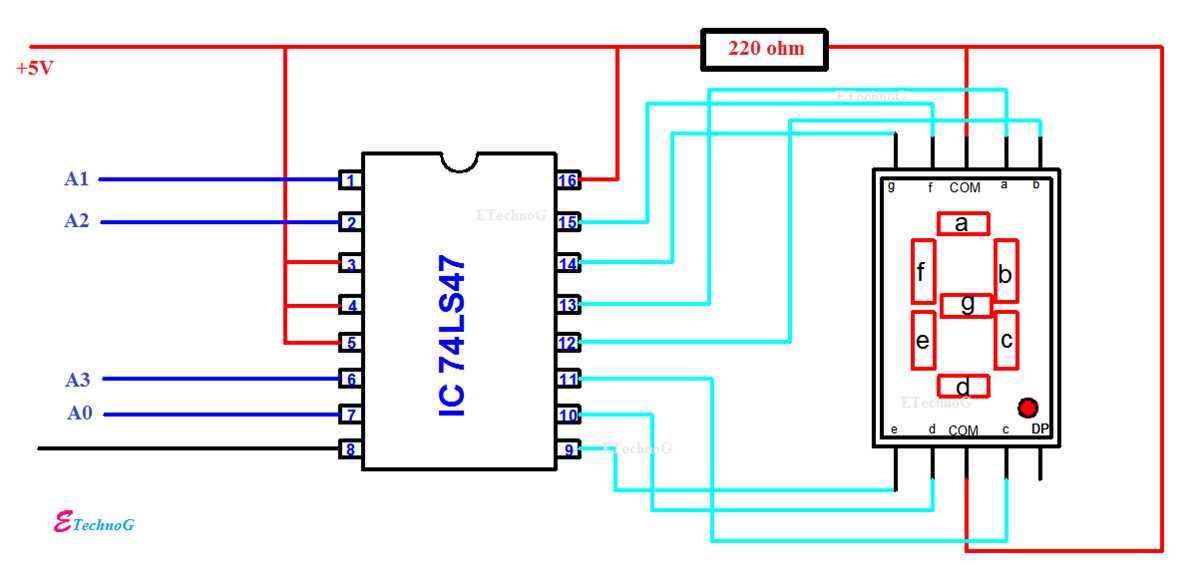

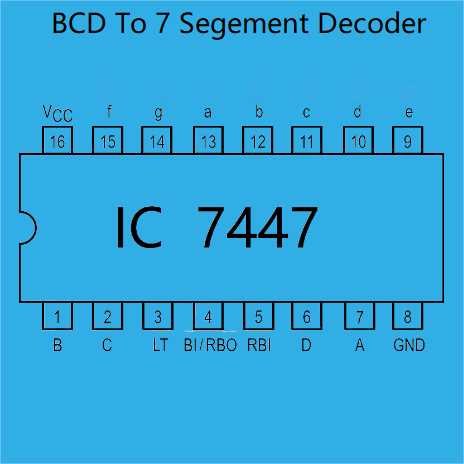

Wire each input line (D, C, B, A) to the 74LS47 pins 6, 2, 1, 7 respectively. Connect outputs (a–g) from pins 13, 12, 11, 10, 9, 14, 15 to the display’s segments. A 330 Ω current-limiting resistor between each IC output and LED bar ensures 5 mA per segment at 5 V supply, preventing burnout while maintaining visibility.
| Binary Input | Decimal Value | Active LED Bars |
|---|---|---|
| 0000 | 0 | a, b, c, d, e, f |
| 0001 | 1 | b, c |
| 0010 | 2 | a, b, g, e, d |
| 0011 | 3 | a, b, g, c, d |
| 0100 | 4 | f, g, b, c |
| 0101 | 5 | a, f, g, c, d |
| 0110 | 6 | a, f, g, c, d, e |
| 0111 | 7 | a, b, c |
| 1000 | 8 | a, b, c, d, e, f, g |
| 1001 | 9 | a, b, c, d, f, g |
Add a pushbutton or slide switch to the Lamp Test input (pin 3) for instant verification–asserting this pin illuminates all bars regardless of input. For error handling, connect blanking input (pin 4) to ground; floating or logic high suppresses invalid digits (10–15) by disabling all bars.
Power the arrangement with regulated 5 V from a USB or bench supply. Avoid higher voltages–7-segment displays typically tolerate 2–6 V; exceeding this risks permanent damage. For portable applications, use a 9 V battery with an LM7805 voltage regulator to maintain stable output.
Minimize signal noise by routing ground wires directly to a common star point. Twist input cables if extending beyond 10 cm to reduce electromagnetic interference. For multi-digit setups, cascade 74LS47 ICs and share segment lines, multiplexing digits with transistors on the common anode/cathode lines.
Validate functionality using a logic probe or oscilloscope. Toggle each input bit while observing the display–discrepancies point to miswired IC pins or damaged LEDs. Replace any dim segments promptly; weak illumination indicates partial short circuits or degraded resistors.
Selecting the Optimal Decoder Chip for Numerical Displays
For most 4-bit encoded numerical readouts, the CD4511 stands as the default choice due to its built-in latch and direct drive capability for common-cathode LEDs. It handles input codes from 0000 to 1001, lighting the corresponding patterns while blanking invalid combinations. Power consumption remains below 10 mA per output pin, making it suitable for battery-powered designs where efficiency matters. Check the datasheet for VDD range–typically 3V to 15V–to match your voltage supply without extra regulation.
The 74LS47 excels in high-speed applications requiring open-collector outputs to drive larger current loads, up to 24 mA per segment. It includes automatic blanking for zero suppression, beneficial in multi-digit setups to eliminate leading zeros. However, its narrow voltage tolerance–only 4.75V to 5.25V–demands precise regulation. Pair it with pull-up resistors if interfacing with displays needing higher voltage swings. Avoid frequent switching at maximum ratings to prevent thermal runaway in dense layouts.
For niche cases where space is critical, the MC14495 integrates a hexadecimal encoder with latch and constant-current outputs, eliminating the need for external resistors. It operates down to 2V, ideal for low-power embedded systems, but requires careful layout due to sensitive analog circuitry. Verify signal integrity at higher frequencies; its maximum toggle rate caps at 4 MHz. Keep traces short between the chip and lighting elements to avoid voltage drops distorting intensity.
Step-by-Step Wiring Guide for Common Cathode 7-Segment Indicators
Begin by connecting the ground pin of the LED numeral to the negative rail of your breadboard. For most common cathode modules, this will be pin 3 or 8–verify the datasheet for precise pinouts. Use a 220Ω current-limiting resistor between each anode and the microcontroller output to prevent burnout while maintaining optimal brightness. Label each resistor with its corresponding segment (A-G) to streamline troubleshooting.
Assign microcontroller pins sequentially for segments A through G, starting at digital pin 2. For example:
– A: Pin 2
– B: Pin 3
– C: Pin 4
– D: Pin 5
– E: Pin 6
– F: Pin 7
– G: Pin 8
This arrangement simplifies code mapping and reduces wiring congestion. Include a separate pin (e.g., Pin 9) for the decimal point if required.
Wire the cathodes of all digits in a multi-digit array to a single common ground via an NPN transistor (e.g., 2N2222) for each numeral. Connect the transistor base to a dedicated microcontroller pin through a 1KΩ resistor to enable multiplexing. This configuration allows driving up to 8 digits without exceeding GPIO current limits while maintaining uniform illumination.
Testing and Calibration
Upload baseline test code to verify all anodes illuminate individually. Use a logic probe or multimeter to confirm 3.3V/5V signals reach each segment resistor. If a segment remains dark, measure voltage drop across the resistor–values below 100mV indicate a wiring fault or defective LED. Replace the numeral if forward voltage exceeds 2.2V (red) or 3.3V (blue/white).
For multiplexed operation, implement a 5-10ms display refresh rate in firmware. Higher frequencies cause visible flicker, while lower rates reduce brightness. Fine-tune resistor values based on ambient light conditions: increase to 330Ω for daylight visibility or decrease to 150Ω for dim environments. Document final values for consistent performance across projects.
Secure all connections with 24AWG solid-core wire and heat-shrink tubing to prevent shorts from vibration. Group wires by function (anodes, cathodes, transistors) and route them away from high-current traces to minimize interference. For permanent installations, transition to soldered joints on perfboard, using 0.1″ headers for modular replacements.
Resistor Selection and Calculation for LED Current Limiting
Use a resistor value between 220Ω and 470Ω for standard 5mm LEDs operating at 5V. For 3.3V logic, drop to 150Ω–330Ω to maintain 10–20mA forward current. Calculate exact resistance using Ohm’s law: R = (Vsupply – Vled) / Iled. Red LEDs (1.8V–2.2V) demand less resistance than blue/white (3.0V–3.5V) at identical supply voltages.
Select resistors with 5% or tighter tolerance for consistent brightness across multiple indicators. 1/4W resistors suffice for single-LED loads; increase to 1/2W for arrays drawing over 30mA total. For pulsed operation, derate power dissipation by 20–30% to prevent thermal stress during brief peaks.
Practical Example for 12V Supply
Pair a 3.2V white LED with a 12V source: (12V – 3.2V) / 0.015A = 586Ω. Round down to the nearest standard value (560Ω) for slightly higher current (15.7mA), well within LED limits. Verify voltage drop with a multimeter–expect ~8.8V across the resistor. Adjust value if measured current deviates by >10%.
For multiplexed displays with shared cathodes/anodes, calculate combined forward voltages of series-connected LEDs. Three red (2V each) in series on 12V: R = (12V – 6V) / 0.015A = 400Ω. Use 390Ω for marginal brightness consistency. Parallel branches require individual resistors to prevent current hogging from Vf mismatches.
Thermal Considerations and Component Longevity
Avoid exceeding 70% of the resistor’s rated power to extend lifespan. For high-brightness LEDs (>30mA), use 1W resistors or switch to constant-current drivers. Ambient temperatures above 50°C necessitate derating resistor power by 15–25%. Carbon film resistors offer cost-effective bulk solutions, while metal film types provide tighter tolerances (±1%) for critical applications.
