To construct a robust charging and discharge controller, begin with a two-stage voltage monitoring arrangement. The primary stage should employ a precision comparator (LM393 or similar) set to trigger at 3.0V per cell for low-voltage cutoff. The secondary stage requires a dual-threshold window detector (MAX9015) to halt charging at 4.2V ±0.05V. Use low-tolerance resistors (1% metal film) in a 100kΩ/10kΩ divider network to minimize drift errors. Include hysteresis of at least 150mV to prevent oscillation near threshold points.
Current flow must be regulated through a bidirectional MOSFET array (SiR872DP for 10A applications, IXFH120N20T for 30A+). Gate drivers (LM5106) should operate with a 12V supply, isolated via a dedicated charge pump if the main supply exceeds 5V. Implement active balancing with a switched-capacitor topology (LTC3300-1) for cell-to-cell variance below 50mV. Ensure the balancing current is at least 10% of the maximum charge rate to maintain thermal stability.
For safety, integrate redundant protection layers: a hardware-based shutdown triggered by excessive temperature (NTC thermistor + comparator) and overcurrent (shunt resistor + op-amp). The control logic should reside on a separate microcontroller (STM32G071) with independent power domain, isolating it from load-side faults. Use galvanic isolation (ADuM1400) for all communication lines between the regulator and monitoring sections.
Grounding is critical–split the ground plane into analog, digital, and power sections, connected via a single point near the main storage unit’s negative terminal. PCB traces for high-current paths should be at least 2oz copper with a minimum width of 3mm/A for 10A flows. Apply conformal coating to exposed traces in environments with humidity or conductive debris.

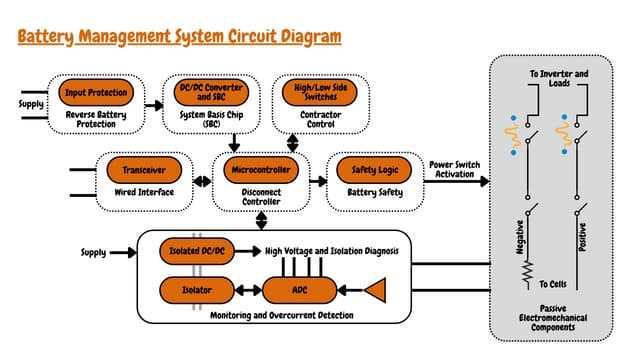

Designing a Robust Energy Supervisor Schematic
Start with a microcontroller unit (MCU) supporting at least 12-bit ADC resolution–such as the STM32G4 or Texas Instruments C2000 series–paired with isolated delta-sigma converters like the ADS1256 for precise cell voltage sampling. Ensure the MCU operates on a separate power rail, sourced from an isolated DC-DC converter (e.g., RECOM RS6-0505S) with reinforced insulation rated for 5 kV. Ground loops between sensing and control paths must be avoided by employing star grounding topology, where the negative terminal of each cell block connects to a single reference point near the MCU’s analog ground.
Key Components and Their Placement
- Balancing resistors: Use low-temperature-coefficient (0.1% tolerance) 2512 package resistors rated for 1 W continuous dissipation; pair with MOSFETs like the Vishay SQJ936EL (30 V, 15 mΩ RDS(on)) for passive discharge. Position resistors *directly* on the cell interconnect board (CIB) to minimize trace inductance.
- Current sense: Deploy a Hall-effect sensor (Allegro ACS773) or a shunt-based amplifier (TI INA240) with
- Isolation: Implement digital isolators (Silicon Labs SI864x) with 50 Mbps data rate and 5 kVRMS reinforced isolation between the MCU and any high-voltage domain (e.g., charger or load). Route isolated traces with ≥8 mm creepage distance on a 4-layer PCB, using cutouts under high-voltage components.
- Protection layers: Integrate redundant over-voltage comparators (TI TLV3012) with hysteresis set to 10 mV for each cell group, triggering a hardware latch (e.g., a TI SN74AHC1G02) to disable charge/discharge FETs within 10 µs of fault detection.
For the main power stage, use dual n-channel MOSFETs (Infineon BSC014N04LS) in a back-to-back configuration for bidirectional current control, each driven by dedicated gate drivers (Analog Devices LTC7001) with 10 A) with 2 oz copper thickness and serpentine stitching vias every 10 mm to reduce loop inductance. Test the schematic against ISO 26262 ASIL C by simulating short-circuit conditions at 1.5× the maximum pack voltage; verify that all protection mechanisms trigger within the required 20 µs window before proceeding to layout.

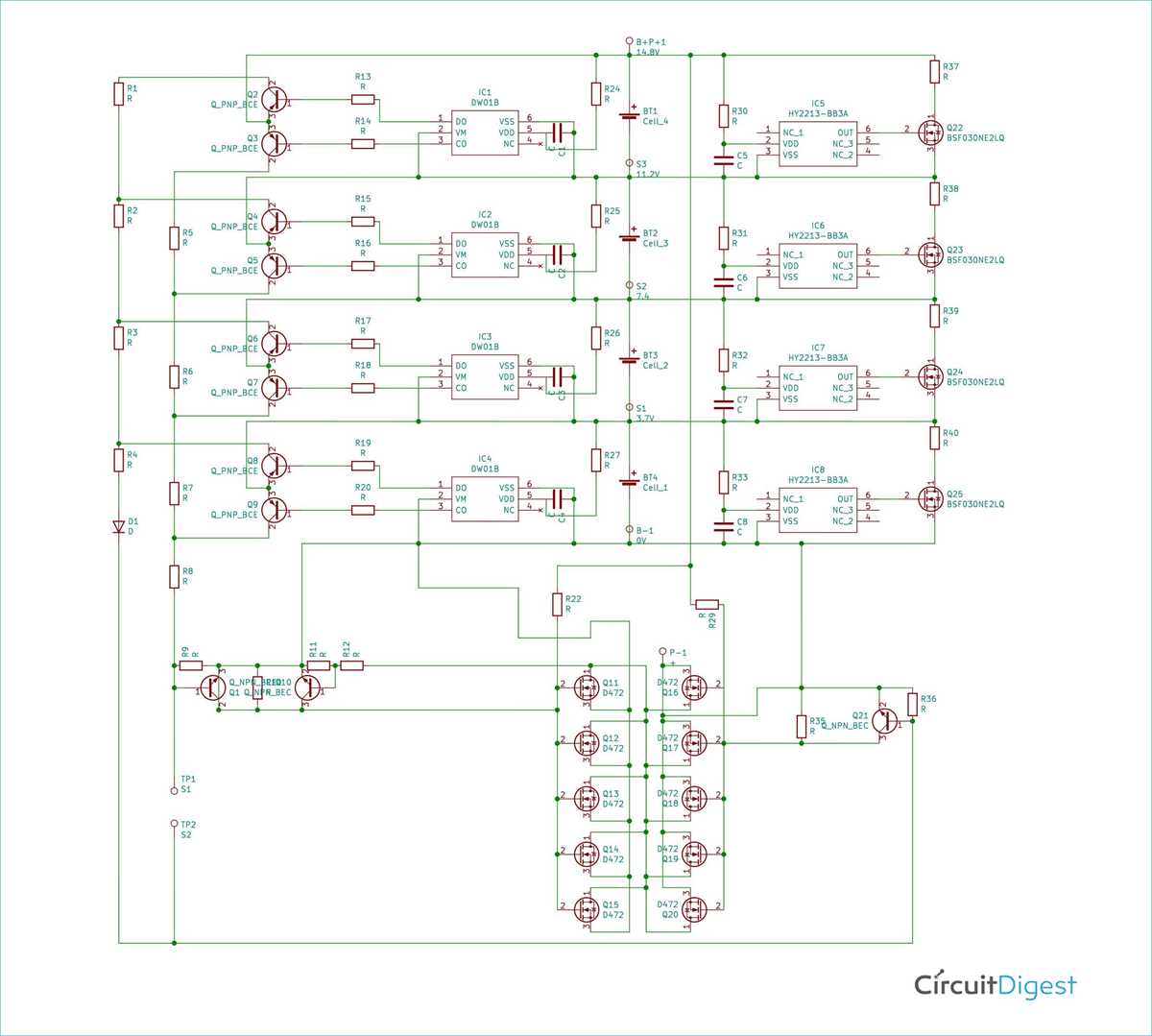

Core Elements of a Power Control Schematic
Prioritize the cell monitoring network above all else–integrate high-precision voltage sensors (e.g., AD7294 or LTC6811) with a maximum deviation of ±0.5 mV per cluster. Ensure each sensor IC interfaces directly with a dedicated signal isolation barrier (optocouplers or digital isolators like ISO7741) to eliminate ground noise propagation. For stacks exceeding 12 series units, distribute monitoring nodes across multiple isolators to prevent cascading failure.
- Current shunt placement: Position a manganin or zeranin shunt (≤100 µΩ) on the low-side return path to minimize thermal drift; avoid high-side placement unless paired with a precision amplifier (INA240).
- Balancing resistors: Use thick-film SMD resistors (1%, 1206 package) rated for 3x peak discharge pulses; arrange in a star topology to prevent thermal coupling between adjacent cells.
- Gate drivers: Isolate MOSFET gate drivers (UCC21520 or Si823x series) with 5 kV reinforced insulation, placing RC snubbers (10 Ω / 100 pF) directly across drain-source terminals.
The microcontroller hierarchy dictates response latency–pair a primary 32-bit MCU (STM32H7 or NXP RT1170) with a redundant 16-bit safety monitor (TI MSP430FR2355) running identical firmware. Dedicate a separate SPI bus for onboard EEPROM (CAT25512) to log fault codes without interrupting real-time sampling. Implement a hardware watchdog (TPS3820) with a 100 ms timeout to force a power cycle if the primary MCU stalls.
Wiring Schemes for Cell Voltage Monitoring
Use a daisy-chain configuration for packs exceeding 16 cells to minimize wiring complexity. Place the measurement module adjacent to the first cell, then route a single twisted pair per segment between adjacent modules. Ensure each segment carries no more than 200 mm of untwisted leads at either end to prevent noise coupling. This arrangement cuts ADC input channels by 50% compared to full-parallel wiring, while maintaining ±2 mV accuracy across a 48-cell string.
For high-power stacks, deploy a star topology when safety isolators preclude daisy-chaining. Run individual 24 AWG shielded cables from each cell terminal to a central hub adjacent to the controller. Terminate shields solely at the hub side to eliminate ground loops. Table 1 lists recommended cable types versus stack length:
| Stack length (mm) | Cable type | Shield coverage (%) | Max loop resistance (Ω) |
|---|---|---|---|
| < 300 | PVC 24 AWG | 0 | 0.3 |
| 300–800 | TPE 24 AWG shielded | 90 | 0.8 |
| > 800 | Teflon 22 AWG double shield | 100 | 1.1 |
Label each conductor at both ends with a heat-shrink sleeve printed with the cell number and polarity. Avoid inkjet labels; use laser-etched polyimide sleeves rated to 150 °C. Pre-tin all terminations with Sn96.5Ag3Cu0.5 solder to prevent whiskers. Daisy-chain grounds last, attaching each module’s local analog ground plane to the chassis at a single point 10 mm from the ADC to suppress common-mode transients.
On prismatic stacks exceeding 100 Ah, fit a Kelvin bridge across every cell’s positive terminal. Run voltage-sense wires in 8 mm nylon conduits alongside, but separate from, the power busbars. Secure conduits with clamps every 120 mm; offset clamps for adjacent conduits by 60 mm to prevent vibration rubbing. Route conduits away from coolant hoses by at least 30 mm to avoid inductive cross-talk.
Implement a 1.5 mm pitch 20-pin connector per module if swapping modules during maintenance is required; specify gold-plated contacts rated for 5 A continuous. Insert a 1 kΩ fusible resistor in series with each sense wire at the connector housing to limit fault currents below 10 mA. Validate connectors at 500 mating cycles prior to final assembly.
Redundant Path Planning
For applications demanding >99.99% uptime, deploy dual independent wiring paths. Mirror the primary daisy-chain with a second, identical chain positioned 180° opposite around the pack perimeter. Terminate each path to separate isolation amplifiers whose outputs feed a pair of microcontrollers via isolated 1 Mbit/s SPI buses. Configure controllers as primary/backup with watchdog heartbeat; switch paths in <10 ms upon loss of sync pulses. Reserve one spare ADC channel per path for ambient temperature sensing; locate thermistors mid-stack to detect uneven thermal gradients.
Integrating Overcurrent and Short-Circuit Safeguards into Power Control Layouts
Use a combination of resettable fuses (PTCs) and dedicated protection ICs like the Texas Instruments TPS25940 or Analog Devices LTC4364 for primary current limiting. Position the PTC in series with the main power path, adjacent to the energy storage cells, to react within microseconds to fault conditions. The IC should monitor voltage drops across a low-value shunt resistor (e.g., 1mΩ) and trigger a MOSFET gate drive within 2µs when current exceeds 120% of the rated capacity.
Select MOSFETs with RDS(on) below 2mΩ and a breakdown voltage at least 1.5× the maximum expected stack voltage to handle transient spikes. For lithium-ion assemblies operating at 48V, a 100V-rated N-channel MOSFET (e.g., Infineon BSC010N10NS5) ensures headroom for inductive kickback. Place the MOSFET on a dedicated heat sink or copper pour with thermal vias to dissipate up to 5W during prolonged overloads.
Implement dual-layer detection: an analog comparator with a 10µV/°C temperature coefficient for immediate response, paired with a microcontroller sampling at 1kHz for nuanced decision-making. Configure the comparator to trip at 130% of the continuous current rating, while the MCU flags patterns lasting longer than 50ms–distinguishing brief transients from actual faults. Log fault timestamps via EEPROM for post-event diagnosis.
Route all high-current traces with 2oz copper and at least 3mm width per ampere of nominal load. Isolate protection components on a dedicated layer, away from signal traces, to minimize EMI-induced false triggers. Use a star-ground topology, converging all ground returns at a single point near the shunt resistor to prevent ground loops. For multi-cell configurations, a separate protection layer for each parallel branch prevents cascading failures.
Incorporate a crowbar circuit using a thyristor (e.g., Littelfuse Q6015L5) for extreme scenarios. The thyristor should be triggered by a secondary comparator when the shunt voltage exceeds 1.5× the PTC’s trip point, shunting current to a dummy load or sacrificial trace. Ensure the dummy load can handle 10× the nominal current for 100ms to safely dissipate stored energy without arcing.
Test safeguards under pulse loads mimicking real-world abuse: 10µs spikes at 3× rated current, followed by sustained overloads at 1.2× for 5s. Measure response times, MOSFET temperatures, and trace temperatures using K-Type thermocouples. For avionics-grade reliability, verify operation at -40°C and 85°C, ensuring PTC resistance remains within 20% of room-temperature values. Replace any component that drifts beyond datasheet tolerances after 1,000 cycles.
Document all thresholds, test waveforms, and component derating in a revision-controlled schematic. Include a test-point matrix for production-line verification, using a bed-of-nails fixture to validate each safeguard’s trip point within ±5%. For certification compliance (e.g., UL 2595 or ISO 16750), archive raw oscilloscope captures of fault events demonstrating full recovery within 500ms.
