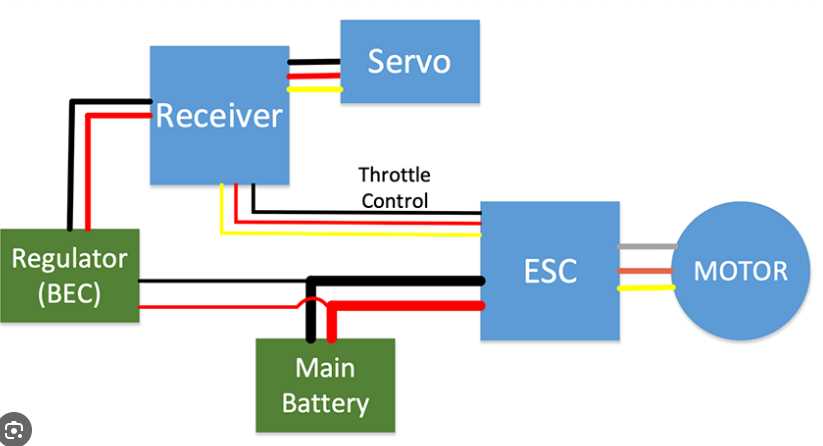

Replace disposable power cells with a fixed-voltage substitute using a 78XX series regulator. For a 5V output, pair a 7805 IC with a 220µF input capacitor and a 100µF output capacitor–values critical for smoothing ripple under load. Ensure the transformer delivers at least 8V AC (post-rectification) to avoid dropout. Use a 1N4007 diode bridge for rectification; adding a 1µF capacitor across the AC input reduces high-frequency noise.
Adjust output voltage by swapping the 7805 for LM317, configuring it with two resistors: R1=240Ω and R2=5kΩ (potentiometer) for a 1.25–37V range. Include a 10µF tantalum capacitor at the LM317’s output to prevent oscillation under dynamic loads. For current demands above 1.5A, mount the IC on a TO-220 heatsink with thermal paste–overheating degrades efficiency by 20% per 50°C rise.
Isolate primary and secondary sides with a pc817 optocoupler when safety requires galvanic separation. For low-dropout applications, replace the 78XX with an AP1117 (1.3V dropout at 1A) or MIC2941 (0.4V dropout). Always calculate trace width–1oz copper traces wider than 2.5mm handle 3A without overheating; narrower traces require solder reinforcement.
Test under real load using a 1kΩ resistor and DMM. Voltage should stabilize within 50ms of power-on; slower response indicates insufficient capacitance or excessive ESR. For battery-powered device compatibility, clamp output with a Zener diode (e.g., BZX84C5V1) and fuse the input–fault currents above 5A risk trace vaporization.

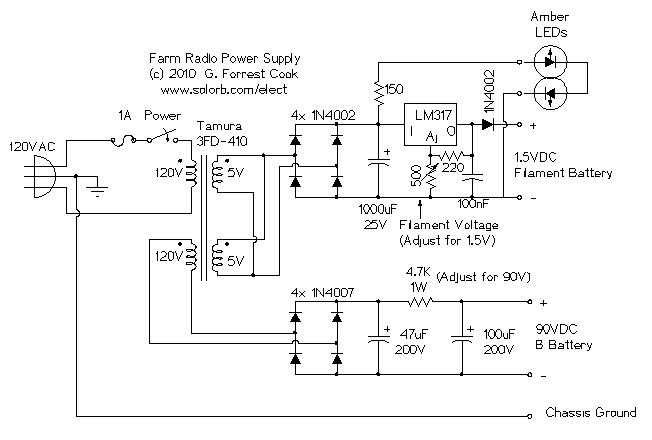

Power Supply Adapter Schematics for Direct Device Feeding
Use a linear voltage regulator like LM7805 for stable 5V output when replacing disposable cells in low-power gadgets. Connect a 9V AC/DC wall adapter to the input, then add a 100µF smoothing capacitor to reduce ripple. Keep trace lengths under 3cm between the regulator and the device’s power terminals to minimize voltage drop. For precision tools (e.g., multimeters), incorporate a 1N4007 diode in series to prevent reverse polarity damage–critical when testing with bench power sources.
For microcontroller projects, combine a buck converter (e.g., MP2307) with a 22µH inductor and 33µF output capacitor to achieve 3.3V at 600mA. Ensure the PCB layout places the input capacitor within 2mm of the converter’s Vin pin to suppress high-frequency noise. Add a 0.1µF ceramic capacitor across the output if the load exceeds 100mA–this prevents oscillations that skew sensor readings. Test with an oscilloscope at 20MHz bandwidth to confirm
Key Components and Wiring Steps
- Transformer/Adapter: Select a center-tapped 12V-0-12V unit for dual-rail designs (e.g., op-amp circuits). Verify current rating exceeds device’s peak draw by 30%.
- Protection: Fuse the input at 2x nominal current (e.g., 500mA for a 250mA device). For sensitive electronics, add a resettable PPTC fuse (e.g., Littelfuse 1210L).
- Heat Management: Mount regulators on a 25cm² aluminum heatsink if dissipation exceeds 0.5W. Avoid thermal paste–use a pre-cut mica insulator instead to prevent short circuits.
- Grounding: Route all ground returns to a single star point near the power entry to eliminate ground loops. Use 22AWG wire for currents
Replace alkaline packs in 12V LED strips with a 1A SMPS module, but add a 10kΩ bleeder resistor across the output to discharge electrolytic capacitors within 1 second–preventing residual voltage hazards during maintenance. For LED drivers with PWM dimming, add a 100nF snubber capacitor across the FET to suppress transients that degrade LED lifespan. Validate with a 10kHz PWM signal at 50% duty cycle; the scope should show
Troubleshooting Guide
- Excessive Heat: Verify input voltage isn’t >15% above rating (e.g., 6V adapter for a 5V regulator). Check for shorted Schottky diodes (common in reverse polarity setups).
- Output Voltage Drift: Measure ESR of output capacitors–replace if >0.5Ω. For buck converters, inspect inductor saturation by monitoring current with a DC clamp meter under load.
- Noise Interference: Replace ceramic capacitors with X7R dielectric if EMI affects RF modules (e.g., Bluetooth). Add a 10Ω series resistor to feedback paths if oscillation persists.
Choosing Components for a Linear DC Replacement
Select a transformer with a secondary voltage 2–3V above the target output to compensate for rectifier drops and regulation headroom. For 5V@1A output, a 7.5VAC/1.2A toroidal unit minimizes leakage flux and weighs ~200g–preferred over EI-core types, which typically add 50–100g for the same rating. Ensure the VA rating exceeds the load by 30–40%; undersizing causes saturation and audible hum at 100–120Hz under full load.
Match the smoothing capacitor to the ripple tolerance: 2 200μF/25V low-ESR electrolytics paralleled for 5V@1A reduce ripple to
| Output Voltage | Capacitance (min) | Recommended ESR | Ripple Target |
|---|---|---|---|
| 3.3V | 1000μF | <0.2Ω | <15mV |
| 5V | 2200μF | <0.1Ω | <20mV |
| 12V | 470μF | <0.3Ω | <50mV |
Pick a linear regulator with a dropout voltage ≤1.5V; LDL1117 for 5V handles 1A with 1V dropout, while LD1085 drops 1.3V but adds thermal shutdown above 125°C. Mount regulators on a 2oz copper PCB pad or a 1.5°C/W TO-220 heatsink; omit heatsinks only below 50% load and ambient ≤40°C.
Rectifier Selection
Bridge rectifiers rated ≥2× the DC load current prevent forward-voltage drop issues: a GBPC1004 (4A) for 1A output adds only 1V drop per diode versus 1.8V for discrete 1N4007s. For 3.3V outputs, Schottky bridges (MB10S) slash the drop to 0.5V, improving efficiency by 8–12% over standard silicon.
Constructing a 12V Power Supply Replacement: A Practical Guide
Begin by selecting a 230V AC to 15V AC transformer with at least 1A current rating–this ensures adequate headroom for stable output. Connect the transformer’s primary side to mains power via a fuse holder containing a 250mA quick-blow fuse to protect against overloads. On the secondary side, attach a full-wave bridge rectifier (e.g., W10M or equivalent) to convert AC to pulsating DC. Avoid cheaper half-wave alternatives; they introduce ripple exceeding 500mV, degrading performance.
Solder a 1000µF/25V electrolytic capacitor directly across the rectifier’s output to smooth the DC waveform. Position it within 2cm of the bridge to minimize inductance. Follow this with a linear voltage regulator like the LM7812–mount it on a heatsink (thermal resistance ≤ 10°C/W) even for light loads, as its dropout voltage (2V) generates heat. Bypass the regulator’s input and output with 0.1µF ceramic capacitors to suppress high-frequency noise.
For load stability, add a 470µF/16V capacitor at the output terminals, along with a 1N4007 diode in reverse across the regulator’s output. This clamps back-voltage spikes if the load includes inductive components (e.g., relays). Test the setup with a 10Ω/10W resistor as a dummy load–output should remain within ±5% of 12V under varying input voltages (200V–240V AC).
To improve transient response, insert a 10µF tantalum capacitor in parallel with the output capacitor. Tantalum’s low ESR (0.3Ω) handles sudden load changes better than aluminum electrolytics. For short-circuit protection, add a resettable polyfuse (e.g., PTC 1.5A) in series with the output–it trips within 2 seconds at 2A but resets after cooling. Verify performance with an oscilloscope; ripple should not exceed 20mVpp at full load.
Final assembly requires a ventilated enclosure to dissipate heat. Route high-current traces (2mm wide for 1A) on a PCB or use 18AWG wire for point-to-point wiring. Label output terminals clearly: +12V and GND. Before connecting to sensitive equipment (e.g., radios, amplifiers), verify absence of DC offset with a multimeter–any drift beyond ±100mV indicates regulator instability or poor grounding.
Calculating Transformer and Diode Ratings for Different Loads
Start with a load current measurement. For a 5V, 1A output, ensure the transformer’s secondary delivers at least 12V AC (RMS) to account for diode drops and regulation headroom. Multiply the rated load current by 1.4 to cover transient demands–e.g., 1A × 1.4 = 1.4A minimum secondary current.
Select diodes with a forward current rating exceeding the calculated secondary current. A 2A diode handles 1.4A comfortably, but for inductive loads, double the margin (3A or higher). Ensure the peak inverse voltage (PIV) is at least 2.8× the transformer’s secondary RMS–e.g., 12V × 2.8 = 34V PIV minimum. 1N4007 (1000V PIV) is overkill but safe; 1N5408 (3A, 1000V PIV) suits most cases.
For resistive loads like LEDs or heaters, RMS calculations suffice. Measure the load’s actual current draw–no universal factor applies. A 10Ω heater at 12V demands 1.2A; the transformer’s secondary must supply this plus 20% for efficiency losses (1.2A × 1.2 = 1.44A).
Capacitive loads demand attention to surge currents. A 1000µF smoothing capacitor draws 10A+ peaks during initial charging. Diode ratings must exceed these surges. Use formulas: Isurge = C × (Vpeak – Vinitial) / t, where t is the charging interval. For Vpeak = 17V (12V RMS × √2) and t = 1ms, Isurge ≈ 17A. Choose diodes with a 30A peak rating if possible.
Inductive loads (e.g., relays, motors) require flyback diodes. The transformer’s secondary must handle the load’s steady-state current plus transient spikes. A 1A motor may draw 3A during startup; the secondary should support 4A continuous. Diode PIV must surpass the load’s back EMF–e.g., a 24V motor needs 60V PIV diodes (2× nominal voltage + margin).
For variable loads, size the transformer’s secondary voltage to the highest expected draw. A 5V/3.3V dual-output supply needs a 12V secondary if the 5V load dominates, but a 9V secondary if the 3.3V load is primary. Measuring actual voltage sag under load prevents undersizing; use an oscilloscope to spot ripple and drop.
Diode selection also depends on reverse recovery time for high-frequency switching. Standard recovery diodes (e.g., 1N400x) work below 1kHz, but fast recovery types (trr (reverse recovery time) and forward voltage drop–lower drop improves efficiency.
Test under worst-case conditions. A transformer rated for 60Hz may overheat at 50Hz unless derated by 10%. Verify thermal performance: if the core reaches 60°C at full load, reduce current by 15% or improve cooling. Diode derating follows similar rules–operate at 80% of maximum ratings for reliability.
