Start with a low-dropout linear regulator or a synchronous buck converter for precise voltage control, depending on thermal constraints. For lithium-ion packs, integrate a three-stage management protocol: bulk (constant current), absorption (constant voltage), and float (maintenance). Ensure the feedback loop includes a precision shunt resistor (typical values: 0.01–0.1Ω) paired with a differential amplifier (e.g., INA138) for accurate current sensing.
Use a PWM-driven MOSFET (e.g., IRFZ44N) or dedicated IC (e.g., LT3652) with adjustable switching frequency (50–500 kHz) to balance efficiency and thermal dissipation. Include overvoltage protection (6.8V Zener diode for 5V systems) and undervoltage cutoff (e.g., TPS3823) to prevent deep discharge. For solar applications, add a MPPT algorithm (e.g., PIC16F1778) to optimize panel output.
Isolate charging paths with Schottky diodes (e.g., SB560) to block reverse current, but note their forward voltage drop (0.3–0.5V) may reduce efficiency. For lead-acid systems, incorporate a temperature-compensated reference (e.g., TL431) to adjust absorption voltage by –3 mV/°C above 25°C. Terminate charging with a hysteretic comparator (e.g., LM393) set to 50–100 mA cutoff to avoid false triggers.
Minimize ripple with a 10–100 µF ceramic capacitor on the output and a ferrite bead on the input to suppress high-frequency noise. For multi-cell configurations, use a balancing resistor network (e.g., 100Ω/1W resistors) or active balancing IC (e.g., BQ76930) to equalize cell voltages. Validate thermal performance with a 30–50°C/W heatsink on power components; derate MOSFET current by 30% if ambient exceeds 40°C.
Firmware implementations should prioritize fault logging (EEPROM flag for overcurrent events) and fault recovery (watchdog timer for hanging states). For off-grid setups, add a load disconnect relay (e.g., G5LE) triggered by low-voltage cutoff to preserve system integrity. Test transient response with a 50% step load; voltage sag should not exceed 10% of nominal for >1 ms.

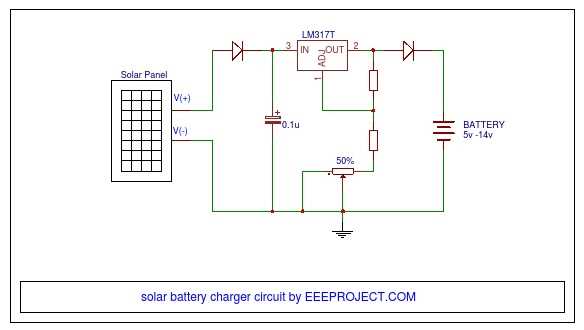

Power Regulation Schematic for Energy Storage Units
Use a PWM-based regulator with a TL494 IC for precise voltage output control. Configure feedback from the storage unit via a voltage divider (e.g., 10kΩ + 2.2kΩ resistors) to maintain a 14.2V float threshold for lead-acid cells. Include a schottky diode (e.g., 1N5822) in series with the output to prevent reverse current flow during low-light conditions. For overvoltage protection, integrate a crowbar circuit using a thyristor (MCR100-6) triggered at 15.5V via a zener diode (1N4744A).
Optimize thermal dissipation by mounting the MOSFET (IRFZ44N) on a heatsink with a thermal resistance below 1.5°C/W. Place a 100nF ceramic capacitor across the input terminals to filter high-frequency noise from solar panels. Add a 10µF electrolytic capacitor at the storage unit terminals to smooth voltage fluctuations. Configure hysteresis in the comparator stage (LM393) to prevent rapid switching by using a 1MΩ resistor between the output and inverting input.
Test the layout with a 1Ω/10W power resistor as a dummy load before connecting the storage unit. Ensure trace widths on the PCB handle at least 5A current (minimum 2.5mm for copper thickness of 35µm). Isolate control and power grounds via a ferrite bead (BLM21PG121SN1) to minimize interference. Log performance data using an ATmega328 microcontroller sampling voltage at 1Hz with a 10-bit ADC resolution.
Key Components for Building Your Own Energy Regulation System
Begin with a low-dropout regulator (LDO) or a switching converter–the core of your setup. An LDO like the AP2112K suits low-power applications, while a buck converter (e.g., LM2596) handles higher loads efficiently. Match the input voltage range to your power source and ensure the output aligns with your storage device’s specifications. Prioritize components with built-in thermal protection to prevent overheating.
A microcontroller unit (MCU) such as the ATtiny85 or STM32F103 orchestrates monitoring and adjustments. Program it to track voltage thresholds, toggle charging modes, and respond to faults. Include analog-to-digital converters (ADC) with at least 10-bit resolution for accurate measurements. Opt for MCUs with low standby current if power efficiency is critical.
Use shunt resistors or Hall-effect sensors (ACS712) to gauge current flow without significant power loss. Pair them with precision amplifiers (LM358) to scale readings for the MCU. Calibrate the system with known loads to ensure ±1% accuracy. High-side current sensing avoids grounding complications but requires compatible circuitry.
Implement power MOSFETs (IRFZ44N) or solid-state relays to control energy pathways. Choose N-channel devices for efficiency, but account for gate drive voltage requirements. Add flyback diodes (1N4007) to protect against inductive spikes from motors or solenoids. For bidirectional flow, consider half-bridge drivers (DRV8871).
Incorporate supervisory ICs (TL7705) to detect undervoltage or overvoltage events, triggering fail-safe shutdowns. For multi-stage systems, include comparators (LM393) to switch between bulk, absorption, and float states. Ensure hysteresis to prevent rapid cycling. Isolate sensitive components with optocouplers (PC817) if interfacing with high-voltage inputs.
Finalize with user interface elements: LEDs (5mm) for status indication, a 16×2 LCD for real-time data, or a rotary encoder for manual adjustments. Log data via serial output or an SD card module. Enclose critical sections in a ground plane to minimize noise. Test under load before deployment–transient response dictates reliability.

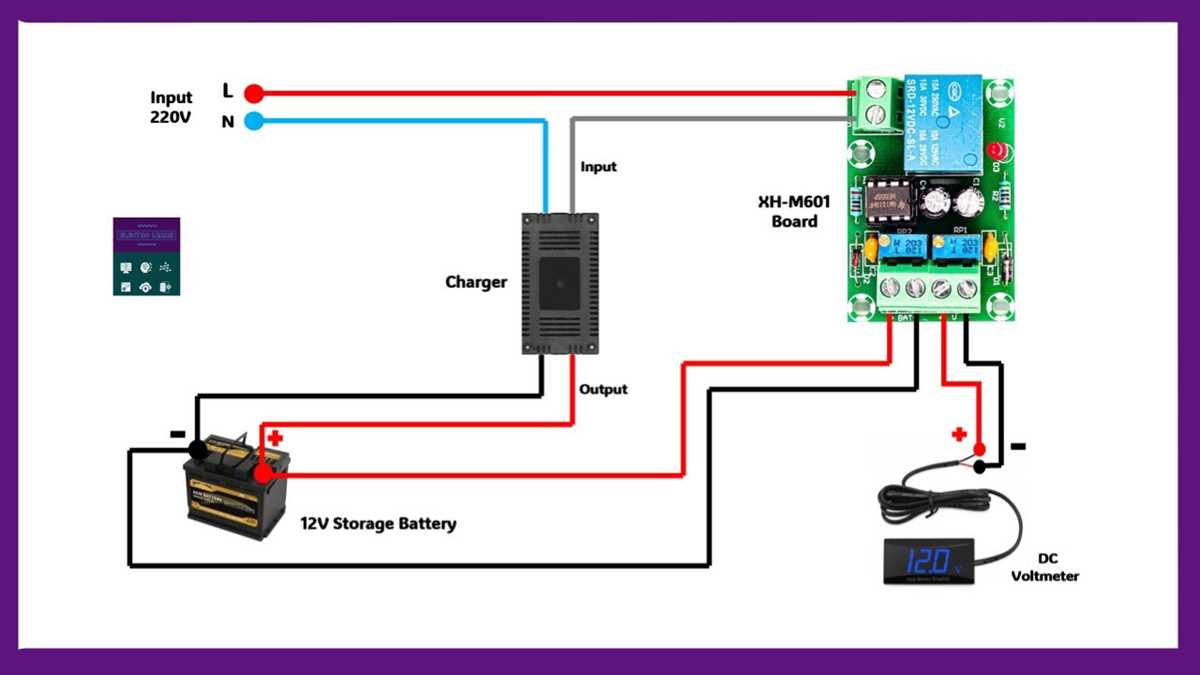

Step-by-Step Wiring for PWM Energy Regulation Modules
Begin by identifying the solar panel’s positive and negative output terminals. Trace the cables directly to the regulator input, ensuring polarity matches–a reversed connection risks damaging components. Use a multimeter to verify voltage before proceeding; typical open-circuit readings range from 18V to 22V for a 12V system. Secure connections with solder or crimp terminals to prevent corrosion.
Attach the load terminals next. Most regulators include dedicated outputs for direct device supply, bypassing storage when unnecessary. Label wires clearly–confusion between load and storage outputs can lead to unexpected disconnections. For systems with multiple appliances, calculate total current draw; exceeding the regulator’s rating (commonly 10A–30A) requires a higher-capacity unit.
Connect the storage unit terminals last. Keep cables as short as possible to minimize resistance loss–each additional meter of 4mm² wire drops ~0.4V at 20A. For gel or AGM units, maintain minimal voltage drop (
- Measure and pre-cut all wires to avoid excess slack.
- Apply dielectric grease to terminals in humid environments.
- Test each connection with a continuity check before powering on.
Integrate a fuse or circuit breaker between the panel and regulator. Place it within 20cm of the positive terminal to limit fault current. For a 20A system, use a 25A fuse–never exceed the regulator’s maximum input rating. Avoid slow-blow fuses; fast-acting types better protect semiconductors in PWM modules.
For regulators with temperature compensation, mount the sensor near the storage unit’s core–surface readings skew calibration. If unavailable, manually adjust float voltage seasonally: 14.4V in summer, 14.8V in winter for lead-acid units. PWM regulators lack MPPT precision, so overpanel by 10–20% to compensate for inefficiency.
Safety Checks Before Activation
- Re-verify all polarities with a multimeter.
- Ensure no bare conductors are exposed.
- Confirm grounding paths are intact (regulator chassis to earth).
- Gradually introduce power: connect the panel first, then storage.
Monitor the first cycle with an oscilloscope or low-cost data logger. PWM regulators produce a characteristic pulsing waveform–consistent spikes indicate healthy operation. Erratic behavior suggests poor connections or unit failure. Recheck tightness of all terminals after 24 hours; thermal expansion causes loosening.
How to Select Proper MOSFETs for Your Solar Energy Storage System
Begin by calculating the maximum continuous current your photovoltaic setup will handle during peak sunlight hours. For a 12V system with 300W panels, this translates to approximately 25A. Choose MOSFETs with a continuous drain current rating at least 1.5× higher–opt for 40A or above–to prevent thermal runaway. Pay attention to the derating curve in the datasheet, as real-world performance drops at elevated temperatures.
Evaluate the on-resistance (RDS(on)) to minimize power losses. MOSFETs with RDS(on) below 5 mΩ at 10V gate voltage are ideal for low-voltage high-current applications. For example, the Infineon IPT012N10N3G boasts 1.2 mΩ at 25°C, reducing conduction losses to under 1W at 25A. Lower RDS(on) also improves efficiency during deep discharge cycles.
Select MOSFETs with a voltage rating at least 2× the system’s open-circuit potential. A 12V array typically reaches 22V; thus, 40V-rated devices like the STW40N60M2 are safe choices. For 24V or 48V setups, use 100V or 150V MOSFETs respectively. Avoid marginal voltage ratings–transient spikes from inductive loads or panel mismatches can exceed nominal voltages.
Gate threshold voltage (VGS(th)) dictates compatibility with your driver output. Logic-level MOSFETs (VGS(th) ≤ 2V) work well with microcontrollers, while standard-level (≤ 4V) require dedicated gate drivers. For PWM frequencies above 10 kHz, prioritize MOSFETs with fast switching times (tr, tf < 50 ns) to reduce switching losses. The SiRA10DP, for instance, switches in 25 ns at 48V/5A.
Thermal management is critical–ensure junction-to-case thermal resistance (RθJC) is below 1°C/W for TO-220 packages. For surface-mount options, pick devices with exposed pads (e.g., DPAK or PowerPAK) and calculate heatsink requirements based on power dissipation (P = I2 × RDS(on)). Below is a comparison of common MOSFETs for solar applications:
| Model | VDS (V) | ID (A) | RDS(on) (mΩ) | VGS(th) (V) | Package | Switching Time (ns) |
|---|---|---|---|---|---|---|
| IRLZ44N | 55 | 47 | 22 | 1–2 | TO-220 | 60 |
| STP75NF75 | 75 | 75 | 10 | 1–3 | TO-220 | 40 |
| IPT012N10N3G | 100 | 300 | 1.2 | 1–2.5 | TO-247 | 30 |
| SiRA10DP | 100 | 10 | 35 | 2–4 | TO-252 | 25 |
For outdoor solar installations, prioritize MOSFETs with enhanced ESD protection and moisture resistance. Devices meeting AEC-Q101 standards (e.g., Vishay SQJA300E) withstand humidity and thermal cycling. Additionally, opt for MOSFETs with built-in fast reverse recovery diodes to handle freewheeling currents without external components. Verifying SOA (Safe Operating Area) curves ensures reliability during short-circuit events.
