Begin by locating the main power supply and ensuring the circuit breaker is switched off. Use a non-contact voltage tester to confirm no current flows to the existing fixture. Remove the cover plate to access the terminal box–most modern systems feature a three-wire setup: live (hot) feed, neutral, and ground. If the unit includes a separate heater or night illumination, expect additional conductors labeled for dedicated functions.
Attach the live wire (typically black or red) from the ceiling to the corresponding terminal on the new device. Secure the neutral (white) connector similarly, ensuring tight screws to prevent future voltage drop. The ground (green or bare copper) must bond to both the mounting bracket and the device’s grounding point–omit this step only in rare cases where local codes permit ungrounded installations (not recommended).
For combined exhaust and lighting assemblies, identify whether the circuit uses a shared load (single switch) or independent control (dual switches). In shared setups, splice the incoming power lead to both the motor and lamp simultaneously. For separate operation, run a second switched hot wire from the wall switch to the light fixture only, leaving the blower on the continuous circuit. Verify connections match the manufacturer’s wiring schematic–color coding varies by region and model.
Test functionality before finalizing installation: restore power, activate the switches, and check for smooth motor operation, adequate airflow, and proper illumination. If the lamp flickers or the unit hums without spinning, disconnect power immediately–loose neutral or reversed polarity likely caused the issue. Re-examine all junctions, tighten terminal screws, and ensure no exposed copper exceeds 3 mm beyond the wire nut or terminal clamp.
For humidity-sensing or automatic delay models, connect the sensor wire (often yellow or purple) to the designated control board input. Failure to do so will disable intelligent operation, rendering the unit a basic manual system. Label all wires with numbered tags or colored tape to simplify future servicing–ambiguous connections cause warranty voids and safety hazards.
Connecting Ventilation and Illumination in Wet Areas
Begin by shutting off power at the circuit breaker–never assume switches or fixtures are inactive. Use a non-contact voltage tester to confirm wires are dead before handling.
Most exhaust systems with built-in lamps require a two-wire plus ground connection: one hot lead for airflow, another for overhead glow. Check the manufacturer’s plate for exact amperage; typical setups draw 0.5A for venting and 1.5A for bulbs. Overloading can trip breakers or melt insulation.
Route cables through the electrical box knockout using a NM cable clamp to secure entry. Strip 5/8″ of sheathing, then 1/2″ of conductor insulation. Twist copper grounding wires together with a green wire nut or crimp sleeve, connecting to the box’s grounding screw or designated terminal.
- Black wire: attach to vent motor’s brass terminal.
- Red wire: link to lamp socket’s brass terminal.
- Neutral (white): join both fixture neutrals and supply neutral.
- Ground (bare/green): bond all grounds securely.
If combining both functions onto a single wall switch, splice the red and black wires together with a pigtail connected to the switch’s hot terminal. This ensures simultaneous operation. For independent control, run separate switches–each on its own dedicated breaker slot.
Mount the overhead unit flush against the ceiling joist using corrosion-resistant screws. Ensure ductwork aligns properly with existing exhaust piping–misalignment reduces airflow efficiency by up to 30%. Test pull-chain or wall-switch operation before securing the cover plate.
After restoring power, verify:
- Vent spins freely without vibration (indicates balanced installation).
- Lamp illuminates instantly without flicker (confirms proper neutral bonding).
- Current draw matches nameplate specs (use a clamp meter for accuracy).
For moisture-prone spaces, use moisture-resistant cable (type NM-B with THHN conductors) and tighten all wire nuts with lineman’s pliers–loose connections create heat and corrosion. If humidity exceeds 60%, install a damp-rated device to prevent premature failure.
Essential Equipment and Supplies for Ventilation Fixture Integration
Begin with a voltage tester to confirm circuits are dead before handling live components. Select a non-contact model with a voltage range of 12-1000V AC for reliable detection–models like Fluke 1AC-A II or Klein NCVT-3 satisfy this requirement. Include wire strippers capable of handling 14-10 AWG conductors (e.g., Klein Tools 11063), ensuring clean cuts without nicking copper strands, which can cause weak connections. A multimeter with continuity testing (Fluke 87V or similar) is mandatory for verifying resistance across switches and terminals, particularly when dealing with dual-function setups. For mounting, use a 6-foot step ladder with a tool tray (Little Giant Velocity) to keep fasteners and small parts organized.
- Screwdrivers: Insulated Phillips #2 and flat-head, 4-6″ shafts (Wera or Wiha) for secure terminal tightening without stripping.
- Cable ripper: For exposing conductors without damaging insulation (Klein Katapult).
- Fish tape: 25-foot steel tape (Gardner Bender) for pulling cables through tight joist cavities.
- Junction box: 4-inch square deep pancake box (Carlon B618R) with 20 cubic inch capacity to meet NEC 314.16(B) requirements.
- Connectors: Push-in wire nuts (Ideal Twister #76B) rated for 12-14 AWG solid/stranded copper.
- Grounding: 10-gauge green insulated copper wire (2-foot lengths) for bonding metal fixtures.
- Protection: Insulated gloves (Class 0, 1000V rating) and ANSI Z87.1 safety goggles for debris hazards.
- Fasteners: 1/4″ drywall anchors (SnapSkru) and #8-32 machine screws for mounting heavy fixtures.
Ensure all connectors are UL-listed and rated for 600V minimum. Avoid twist-on marrettes for aluminum wiring–use COPALUM crimp connectors instead.
Connecting an Exhaust Vent with Integrated Illumination: A Precise Walkthrough
Shut off power at the circuit breaker before handling any cables. Verify absence of current with a non-contact voltage tester at each conductor–electrocution risks drop drastically when live wires are confirmed inert. Remove the existing wall plate or ceiling fixture to expose the junction box, then detach any attached components by unscrewing wire nuts and separating terminals. Label each wire with masking tape (e.g., “L1,” “N,” “GND”) to prevent misidentification during reassembly; miswired connections may cause overheating.
Identify the incoming supply lines: typically, a black (hot), white (neutral), and bare or green (ground). The new unit often features a dual-function motor and bulb assembly, requiring separate feeds for each function. Split the hot wire into two branches using a pigtail connector–one branch powers the motor, the other the illumination. For most setups, attach the motor’s hot lead (usually red or another distinct color) to one branch, and the bulb’s hot lead (often black) to the other. Secure all connections with UL-listed wire nuts, twisting clockwise until resistance is felt, then tug lightly to confirm grip.
Connect the neutral wires in a single bundle: unite the incoming white conductor with both the motor’s and bulb’s neutral leads. Skip this step only if the unit’s instructions specify a shared neutral–rare in modern systems. Ground wires must form a continuous path: link the incoming bare/green wire to the unit’s grounding terminal and any exposed metal within the junction box. Failure to ground properly invites shock hazards and violates electrical codes.
Mount the unit into the opening, aligning pre-drilled holes with existing studs or joists. Tighten screws until the housing sits flush–over-torquing cracks drywall, while loose installations vibrate over time. Restore power at the breaker, then test both functions independently. If the motor hums but the bulb remains dark, inspect the neutral bundle for a loose connection; if neither works, recheck the hot wire pigtail. Once operational, reinstall the grille or cover, ensuring no wires are pinched between the housing and the finish surface.
Standard Control Schemes for Independent Exhaust and Illumination Circuits

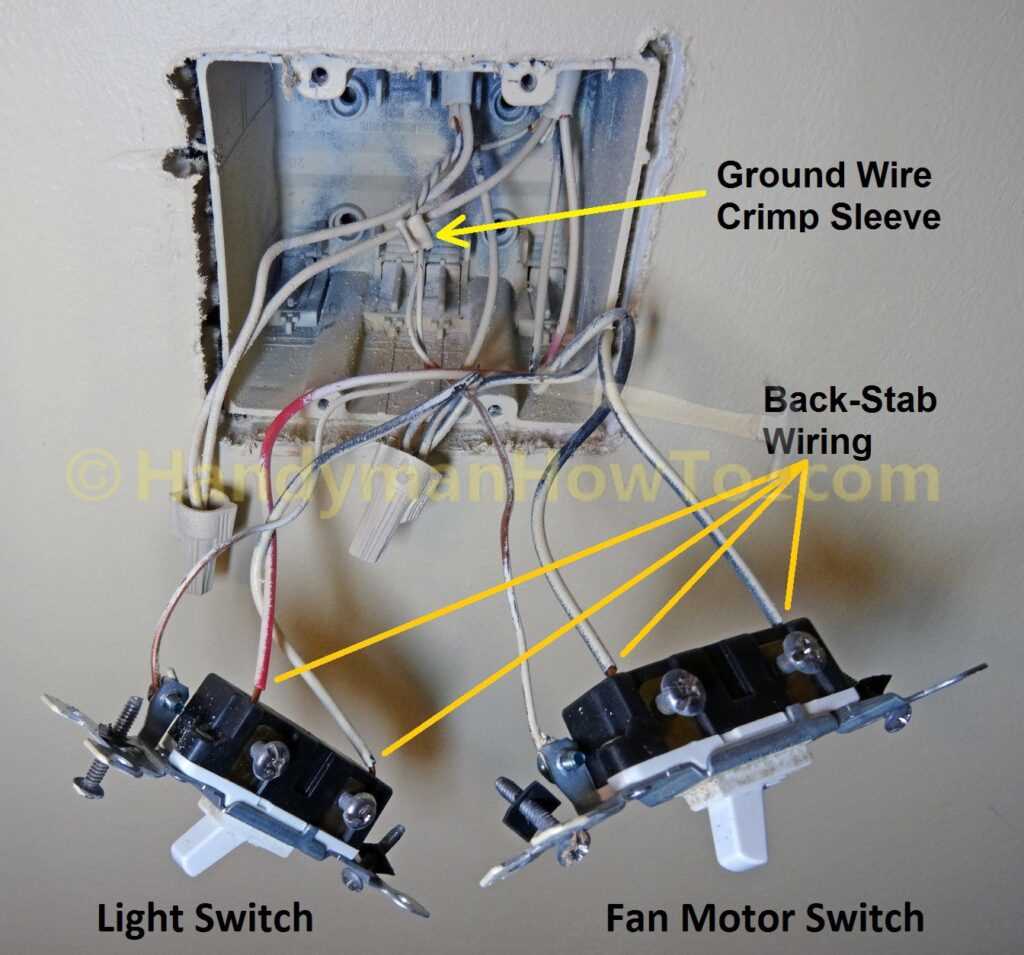

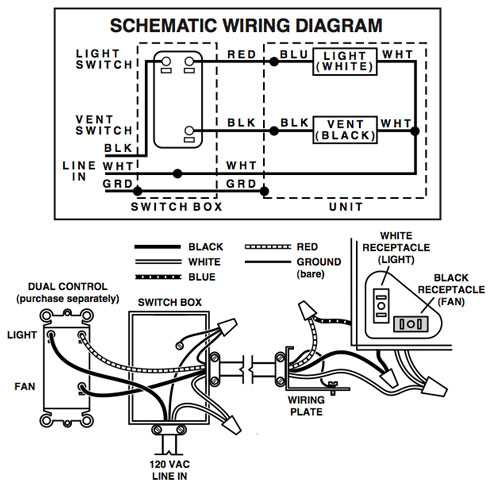

Installing dual switches to manage ventilation and lighting independently begins with sourcing a three-conductor cable from the power origin to the fixtures. Connect the black conductor to the line terminal of the first switch dedicated to airflow extraction, then link the red conductor to the second switch regulating the ceiling-mounted luminary. The white neutral wire should bypass both switches and connect directly to the compatible terminals on both devices, ensuring uninterrupted current flow.
For split circuits where the power feed originates at the luminary assembly rather than the switch box, utilize a four-conductor cable between the junction point and switches. Attach the extra conductor to carry the switched live output back to each fixture independently. Label each conductor with standardized color-coding to prevent confusion during future maintenance or troubleshooting, adhering to NEC or regional electrical standards for clarity.
In properties equipped with grounded metal conduit, omit additional grounding wires by relying on the conduit itself as the ground path. Verify continuity with a multimeter between all metallic components–switch enclosures, fixture housings, and junction boxes–to ensure a robust and safe grounding system. Non-metallic sheathed installations require separate bare or green grounding conductors bonded to each switch and fixture.
For installations in humid environments, opt for moisture-resistant devices rated IP44 or higher, securing all terminal connections with waterproof wire nuts. Apply silicone-based dielectric grease to splices to prevent oxidation and ensure long-term reliability. When routing conductors through insulated walls or ceilings, use protective loom tubing to shield cables from abrasion or compression damage during drywall installation.
If integrating smart controls, allocate a dedicated neutral conductor at the switch location for low-voltage components. Confirm compatibility between the chosen automation module and the existing circuit capacity; most require a minimum 15-amp circuit to handle both inductive loads (exhaust units) and resistive loads (illumination sources) without voltage drop issues.
During testing, isolate each circuit and verify functionality with a non-contact voltage tester before energizing. Measure load current across each switch to confirm it aligns with the fixture specifications–typical exhaust units draw 0.2–0.5 amps, while LED luminaries range from 0.1–0.3 amps. Replace any undersized conductors or overloaded breakers identified during this step.
Document the final configuration with annotated photographs and a labeled schematic stored near the breaker panel. Include details on conductor sizes, breaker ratings, and switch types to streamline future diagnostics or upgrades. Secure all junction boxes with proper covers, ensuring no exposed conductors remain accessible, and test GFCI protection if the circuit serves wet locations.
