Start with a transformer rated for 220V AC input and 12V RMS output. Ensure the core windings match the expected load: a primary with 1000–1200 turns for 50Hz mains and a secondary of ~100 turns for low-voltage needs. Over-specifying by 20% prevents saturation under transient spikes.
Bridge rectifiers using 1N4007 diodes handle up to 1A continuous current. For higher loads, parallel the diodes or switch to GBPC3510 modules, which support 35A peaks. Mount each diode with thermal paste on a heatsink (15–20°C/W rating) if dissipation exceeds 1W per device.
Smoothing capacitors should follow the “1000µF per amp” rule–e.g., 4700µF for 5A output. Place a 0.1µF polyester capacitor in parallel to filter HF noise. Use an LM7805 regulator for fixed 5V output, or an LM317 with a 240Ω resistor and 1kΩ potentiometer for adjustable ranges (1.25V–37V). Include a 10µF tantalum capacitor at the regulator’s output to prevent oscillation.

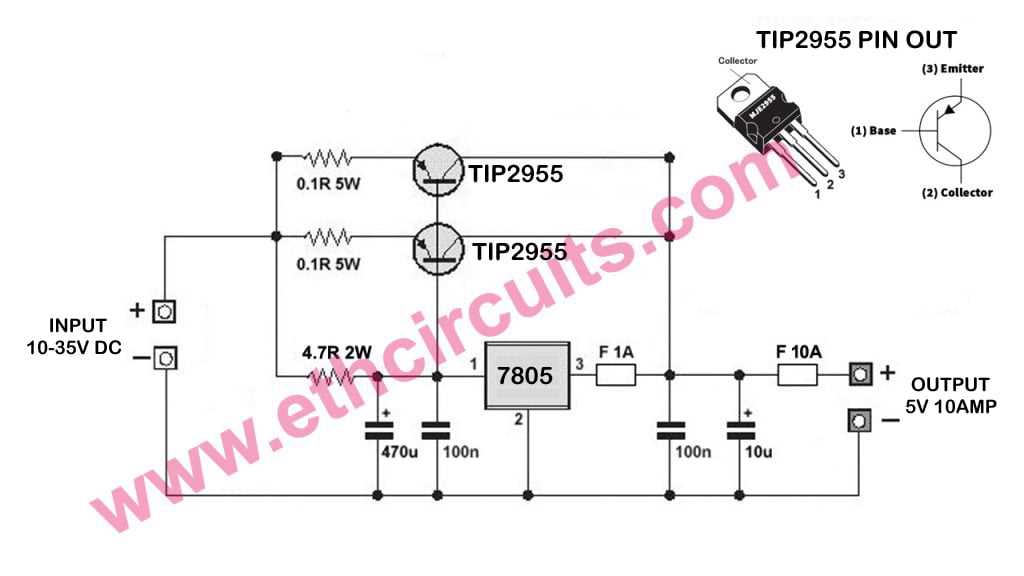

Avoid 2N2222 transistors for pass elements–opt for TIP31C (3A) or MJE13007 (8A) for currents above 0.5A. Ground the common collectors directly to the chassis via #12 AWG wire to minimize voltage drops. For standby protection, add a 1N4733A 5.1V Zener diode across the output to clamp excess voltage.
Test the layout with a 50Ω dummy load before connecting sensitive electronics. Measure ripple with an oscilloscope: at full load is acceptable for most applications. If noise persists, increase capacitance by 50% or add a ferrite bead on the input lines.
Constructing a Reliable Electrical Source Schematic
Start with a step-down transformer rated for your target voltage, typically 12V AC for most low-voltage applications. Choose a core size based on current demand: toroidal for compact designs (
Place a bridge rectifier immediately after the transformer to convert AC to pulsating DC. Use Schottky diodes (e.g., 1N5822) for currents under 3A; silicon diodes (1N4007) suffice for simple setups but introduce ~0.7V forward drop. Calculate reverse voltage rating: apply a 2x safety margin over the transformer’s peak output (e.g., 24V AC → 68V reverse voltage).
Add a filter capacitor to smooth pulsations:
- 1000µF for 1A loads
- 4700µF for 5A+ loads
- Low-ESR types (Nichicon PW) for switching regulators
Position it physically close to the rectifier to minimize trace inductance. For precision devices, add a 0.1µF ceramic capacitor in parallel to suppress high-frequency noise.
Incorporate a linear regulator (e.g., LM7805) if output stability is critical. Account for heat dissipation: use a heatsink when input-output differential exceeds 5V (P = (Vin – Vout) × Iload). For adjustable outputs, use an LM317 with two resistors (Vout = 1.25V × (1 + R2/R1)). Avoid placing sensitive components adjacent to the regulator’s output stage.
For switching converters, prioritize:
- Topology: Buck (step-down), Boost (step-up), or SEPIC (symmetric input/output)
- Inductor: 10–100µH; core saturation current >2× peak load
- Controller IC: Choose based on frequency (
- Feedback loop: 1% resistors for accuracy; Kelvin sensing for remote loads
Route high-current traces (>500mA) wide and short to reduce resistive losses (R = ρ × L/A).
Implement protection:
- Fuse: Slow-blow for transformers, fast-acting for semiconductors
- TVS diode: Clamp transients (e.g., P6KE200CA for 180V spikes)
- Thermal cutoff: Bimetallic switch (>85°C) for linear regulators
Isolate control signals from power paths using optocouplers (e.g., PC817) when galvanic separation is required. Test with a dummy load before connecting sensitive electronics.
Validate performance under real conditions:
- Oscilloscope: Measure ripple (pk-pk for analog,
- Multimeter: Verify steady-state voltage (±2% of target)
- Load testing: Step from 10% to 100% capacity while monitoring thermal rise
Document component values and test waveforms for future debugging. Replace electrolytic capacitors every 5 years under continuous operation.
Core Elements of Linear Voltage Regulation Assemblies
Choose a transformer with at least 20% higher VA rating than the load requirements. Undersized transformers overheat, degrading efficiency and lifespan. For a 5A output at 12V, select a 75VA unit minimum–primary voltage must match the mains (e.g., 230V for EU, 120V for US). Toroidal cores reduce EMI by 40% compared to EI types, critical for sensitive analog loads.
Bridge rectifiers must handle peak inverse voltage (PIV) exceeding twice the secondary RMS voltage. A 12V RMS secondary demands ≥35V PIV diodes; 1N4007 suits 1A loads, while MBR2045 handles 20A. Snubber networks (0.1µF + 100Ω) across diodes suppress transient spikes >100V, preventing junction damage.
Filter capacitors should balance ripple amplitude and inrush current. For 1% ripple at 1A output, use ≥4700µF with ≤100mΩ ESR. Low-ESR tantalums work below 10kHz, while polymer capacitors handle higher frequencies better. Pre-charge resistors (10Ω–100Ω) limit initial surge to
Linear regulators require adequate heat sinking–thermally bond TO-220 packages to a heatsink with
Avoid ground loops by segregating high-current returns from signal paths. Star grounding near the load reduces noise coupling;
Adjustable regulators demand precision resistors–1% tolerance metal films minimize ±50mV error in 12V outputs. For noise-sensitive applications, add a 10µH choke between the filter capacitor and regulator input;
Building a Stable Voltage Source: Transformer-Rectifier-Regulator Assembly
Select a toroidal or EI-core transformer with a secondary winding matching your target output. For a 5V regulator (e.g., 7805), use a 9–12V AC secondary to account for diode drop and ripple. Measure winding resistance with a multimeter–values above 1Ω indicate excessive loss; replace if necessary. Mount the transformer securely to the chassis with M4 screws, ensuring the core sits flush against the base to minimize vibration-induced hum.
Connect the transformer’s secondary leads to a full-wave bridge rectifier (e.g., KBPC3510). Insert a 1N4007 diode in series with each AC input if a packaged bridge isn’t available–observe polarity strictly. Place a 1000μF electrolytic capacitor (25V rating minimum) across the rectifier’s DC output, observing the negative terminal alignment. For high-current loads (>1A), parallel two capacitors to halve ESR. Solder joints with 18-gauge wire, using heat shrink for insulation.
Attach the voltage stabilizer (TO-220 package) to a heatsink with thermal compound–apply a 3mm bead, then clamp. For a 7805, input voltage should stay below 35V to prevent thermal shutdown; test with a variac if uncertain. Add a 0.1μF ceramic capacitor at both input and output pins, as close to the regulator as possible, to suppress high-frequency noise. Avoid tantalum capacitors here–ceramic types are more reliable under transient loads.
Use stranded copper wire (16 AWG) for all high-current paths. Twist the positive and negative leads together to reduce inductive loops, particularly between the rectifier and stabilizer. For ground integrity, run a dedicated 22 AWG wire from the regulator’s ground pin to the chassis star point–never rely on the PCB trace alone. Verify solder joints with a continuity tester; cold joints will introduce milliohm resistance and voltage sag under load.
Incorporate a 100nF polyester film capacitor across the stabilizer’s output if driving inductive loads (e.g., relays). This prevents voltage spikes from exceeding the regulator’s maximum ratings. For variable output designs (e.g., LM317), add a 5kΩ potentiometer with a 240Ω resistor to ground–this sets the feedback ratio and avoids unstable output under light loads. Always use carbon-film potentiometers; wirewound types introduce parasitic inductance.
Test the completed setup with a 10Ω, 10W resistor as a dummy load. Monitor input voltage with an oscilloscope–ripple should stay below 50mV peak-to-peak at 1A output. If excessive ripple persists, increase the filter capacitor value stepwise (e.g., 2200μF, 3300μF) until the waveform stabilizes. For critical applications, add a 10μH choke in series after the rectifier to attenuate switching noise.
Seal the assembly in a grounded metal enclosure, vented if power dissipation exceeds 5W. Label all terminals and include a fuse (e.g., 1A slow-blow) in the primary AC line. For field deployment, add a reverse-polarity protection diode (e.g., 1N5408) at the stabilizer input–this prevents catastrophic failure if input leads are misconnected. Double-check all connections against a schematic before powering on to avoid short circuits.
Common Voltage Output Configurations and Their Applications
Use fixed 5V regulators (e.g., LM7805) for microcontroller-based systems requiring stable input–ensure a minimum 7V unregulated input to account for dropout and ripple suppression. For analog sensors (e.g., load cells, RTDs), pair a 3.3V LDO (such as TLV70233) with a 1µF ceramic capacitor at the output to mitigate noise; this prevents signal corruption in precision measurements. When designing portable devices, opt for buck converters (e.g., LM2675-5.0) with 90%+ efficiency instead of linear regulators–this extends battery life by reducing thermal losses, critical for lithium-ion packs under 3Ah.
Key Configurations and Use Cases
| Output (V) | Regulator Type | Recommended Load | Critical Notes |
|---|---|---|---|
| 1.8 | LDO (e.g., ADP151) | FPGA core logic, DDR memory | Requires |
| 3.3 | Buck converter (e.g., TPS62203) | Wi-Fi/Bluetooth modules, GNSS receivers | Schottky diode mandatory for reverse-polarity protection; 4-layer PCB recommended |
| ±12 | Switching regulator (e.g., LT3580) | Audio amplifiers, op-amp power rails | Isolate grounds via star topology; use 10µF tantalum caps near load for stability |
| 24 | Flyback (e.g., LT8310) | Industrial PLCs, motor drivers | Snubber circuit (RC 47Ω + 1nF) reduces EMI above 1MHz; maintain >1mm creepage for safety |
For high-current applications (e.g., servo motors, LED strips), bypass linear solutions entirely–adopt synchronous buck converters (like MP2315) with integrated MOSFETs to handle 3A+ loads without heatsinks. Always place input/output capacitors within 20mm of the regulator to prevent oscillation, especially with ESR-sensitive designs. If paralleling regulators (e.g., 5V rails for redundant systems), insert 0.5Ω resistors in series with each output to balance current sharing and prevent thermal runaway.
