Start with a single-pole switch rated for 15 amps (or higher if required) paired with 14-gauge copper wire for standard household voltage (120V in the US, 230V in most of Europe). Cut the cable to the exact length–measure twice, strip insulation carefully (no deeper than 8 mm) to avoid exposing bare conductors beyond the terminal screws. Secure the neutral (white) wire directly to the lamp’s socket, bypassing the switch entirely; this ensures the circuit remains closed even when the fixture is off, reducing voltage stress on components.
Attach the hot (black or red) wire to the switch’s brass terminal, then run a second length from the switch’s opposite screw to the lamp’s brass terminal. Ground (green or bare) wires must connect to both the switch and fixture’s grounding screw, bonded to the metal junction box if present–never omit this step in wet or outdoor installations. For multiple fixtures on one circuit, wire them in parallel: split the hot wire at a wire nut before the first switch, then daisy-chain to subsequent switches or lamps, maintaining consistent wire gauge throughout.
Test continuity with a multimeter before energizing the circuit: probe between the hot and neutral at the switch (expected: open when off, 0 ohms when on), then between hot and ground (0 ohms). If readings differ, recheck connections for loose strands, crossed wires, or damaged insulation. For LED or CFL bulbs, use a rapid-start ballast if flickering occurs–standard incandescent setups rarely face this issue. Always shut off power at the breaker (not just the switch) before servicing; label breakers clearly to avoid confusion during future modifications.
For rooms with ceiling fans or dual-function fixtures, install a three-way switch setup: run a three-conductor cable (red, black, white) between switches, terminating the red wire at the common screw of both. The black wire carries the shared hot from the power source to the first switch, then continues to the fixture. Use screw collars on all wire nuts, twist clockwise until tight, and wrap with electrical tape to prevent slippage under thermal expansion. In older buildings, verify compatibility with knob-and-tube or aluminum wiring (replace with copper or use approved splices) before proceeding.
How to Set Up a Simple Electrical Circuit for Illumination
Begin by selecting a suitable power source: a 12V DC battery for low-voltage setups or a 120/230V AC mains supply for standard household fixtures. Ensure the voltage matches the lamp’s rating–common residential bulbs require 120V (North America) or 230V (Europe/Asia).
Use 14-gauge copper wire for circuits under 15 amps and 12-gauge for 20-amp circuits. Stranded wire resists fatigue better than solid core in frequently adjusted installations. Insulate all connections with heat-shrink tubing or electrical tape–never leave bare conductive surfaces exposed.
Install a switch at the live conductor (black/hot wire in U.S. color codes, brown in IEC standards). A single-pole toggle works for basic on/off control, while a dimmer requires compatible bulbs (e.g., LEDs with integrated drivers). Avoid placing switches on the neutral line–this violates safety codes and risks residual current.
For multi-lamp setups, connect bulbs in parallel, not series. Parallel wiring ensures consistent brightness and prevents cascade failures; a single burned-out filament won’t disable the entire chain. Calculate total wattage to prevent overloading: a 120V, 15-amp circuit supports ~1800W (15A × 120V × 0.8 safety factor).
Ground all metal fixtures with a dedicated earth wire (green/yellow in IEC, bare/green in NEC). Use a grounding screw on outlet boxes or junction points. Test continuity with a multimeter–resistance between a grounded part and the neutral should not exceed
Label junction boxes with circuit identifiers (e.g., “Kitchen Overhead”). Seal unused openings with knockout plugs to prevent dust ingress and accidental contact. For outdoor installations, use waterproof wire nuts and conduit rated for wet locations (e.g., PVC or liquid-tight flexible raceway).
Route wires through studs/joists with protective nail plates if within 1.25″ of the edge–drill holes at least 2″ deep to avoid structural compromise. Power down the circuit at the breaker before modifications; verify de-energization with a non-contact voltage tester. Record the completed layout in a sketch for future reference.
Critical Elements for a Functional Illumination System
Start by locating the power supply–typically a 120V or 230V AC source, depending on regional standards. Verify the voltage with a multimeter before proceeding; mismatched voltage risks damaging components. For low-voltage setups (e.g., 12V), ensure the transformer’s wattage rating exceeds the total load by at least 20% to prevent overheating. Overloaded transformers degrade quickly, shortening their lifespan to under two years.

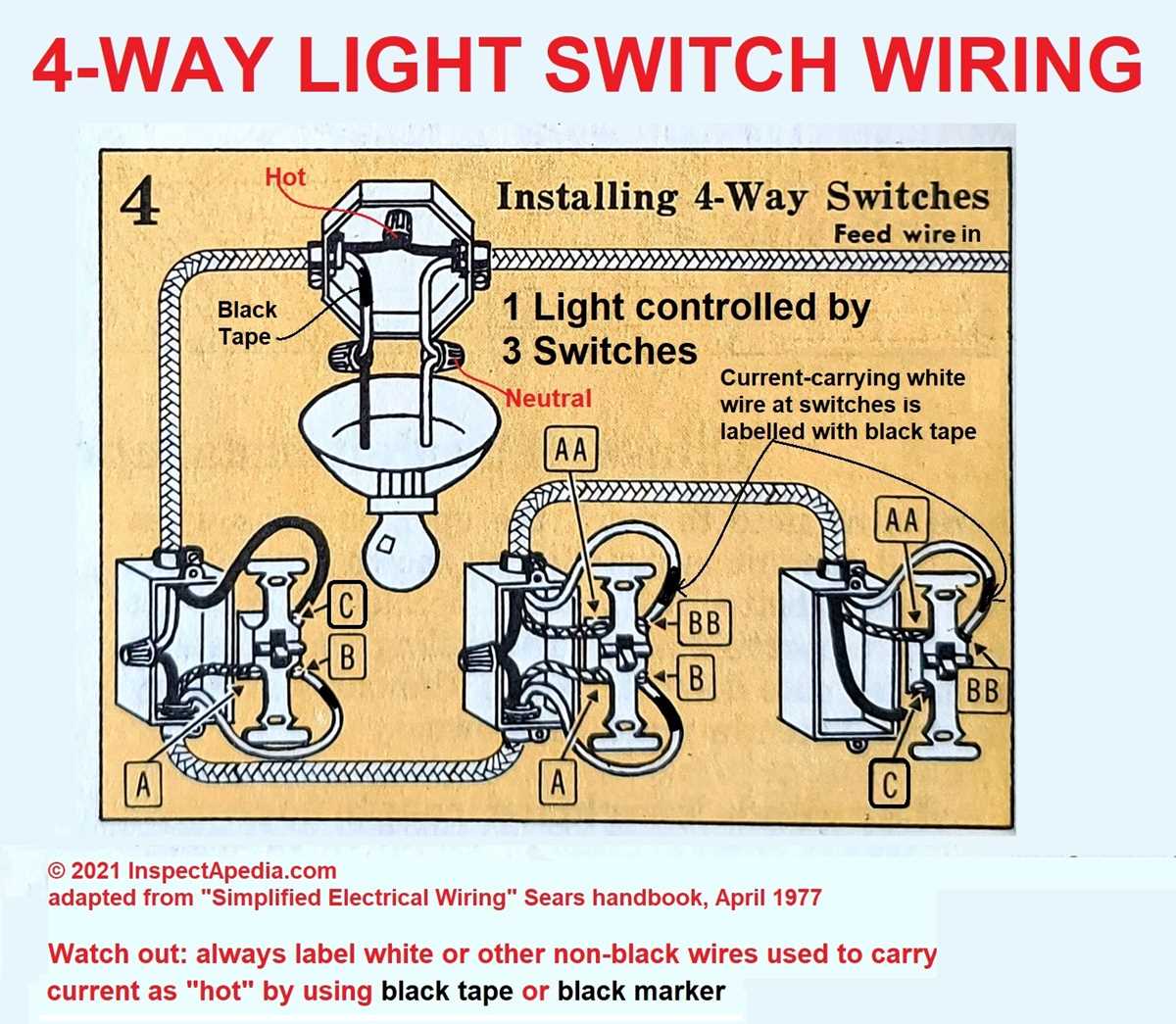

Select switches rated for the circuit’s amperage–common residential models handle 10A, while industrial variants support 15A or 20A. Avoid twist-lock or dimmer switches for high-current loads; these generate excessive heat and may fail prematurely. For multi-way configurations, use three-way or four-way switches connecting via 14-gauge (for 15A circuits) or 12-gauge (for 20A) copper wire. Aluminum wiring, though rare in modern installations, requires antioxidant paste at connections to prevent oxidation.
Conductor and Connection Essentials
- Wire gauge: 14 AWG for 15A circuits, 12 AWG for 20A. Larger gauges reduce resistance but increase cost.
- Junction boxes: Metal boxes dissipate heat better than plastic; ensure they meet NEC or IEC enclosure ratings (e.g., IP54 for damp locations).
- Connectors: Use twist-on wire nuts (rated for the wire gauge) or lever nuts for faster, tool-free installations. Crimp connectors require heat-shrink tubing for waterproofing.
Fuses or circuit breakers must match the wire gauge–15A for 14 AWG, 20A for 12 AWG. Plug-in circuit testers identify wiring faults (e.g., reversed polarity, open ground) but cannot detect neutral-ground swaps; verify these manually with a multimeter. For outdoor use, prioritize GFCI outlets or breakers; they trip at 5mA leakage, preventing shocks. Arc-fault circuit interrupters (AFCIs) are mandatory in living spaces to prevent fires from damaged conductors.
Load-Specific Considerations
- LED fixtures: Check for driver compatibility with the voltage source–some drivers fail if connected to dimmers designed for incandescent bulbs.
- Halogen or incandescent lamps: Use ceramic sockets to withstand heat; plastic deforms at temperatures above 85°C.
- Smart switches: Ensure neutral wire access if required–many older homes lack neutrals at switch locations, necessitating rewiring or alternative models.
- Safety: After installation, test insulation resistance with a megohmmeter. Readings below 1MΩ indicate compromised wire insulation, requiring replacement.

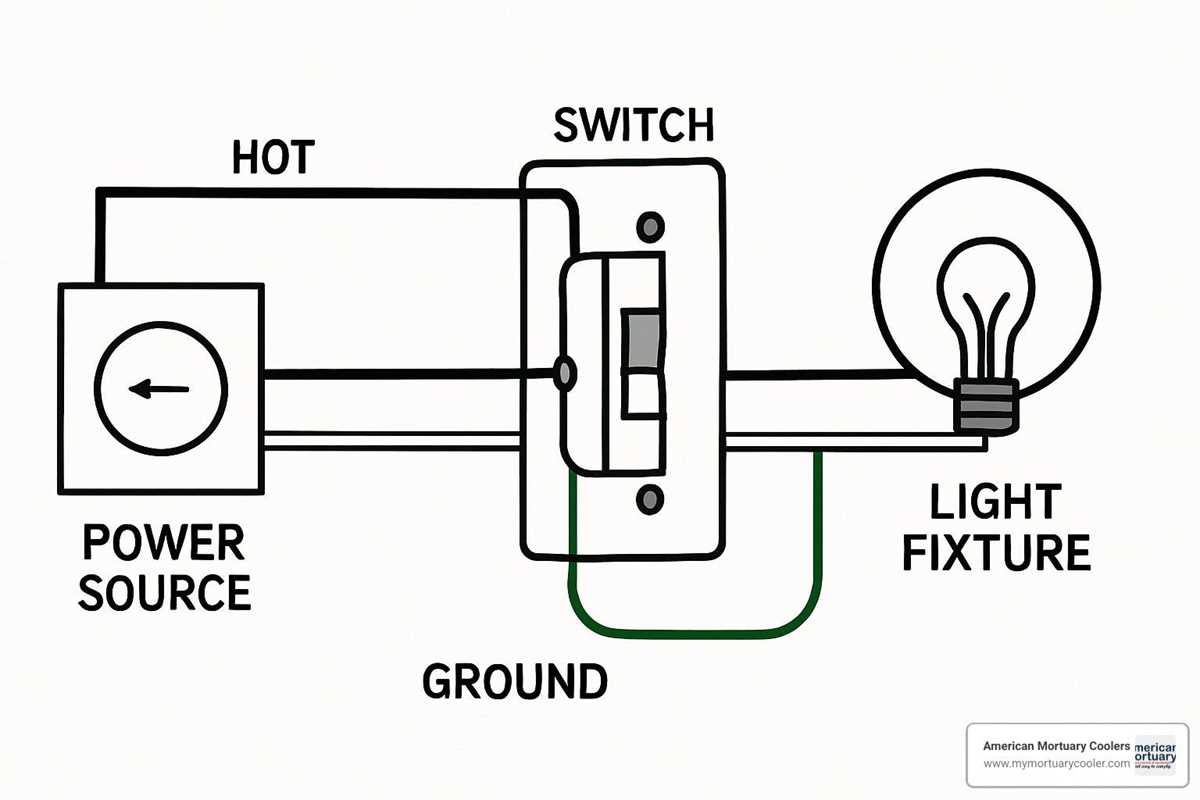

Single Switch Installation: Precise Connection Guide
Turn off the power at the circuit breaker before handling any conductors. Use a non-contact voltage tester to confirm the absence of current–place it near each wire terminal to avoid false negatives. Identify the hot conductor (typically black or red) feeding the fixture by tracing it from the supply source to the junction box. Ensure the switch is rated for the circuit’s amperage; common residential models support 15A or 20A.
Strip 3/8 inch of insulation from the hot conductor using wire strippers. If the switch has screw terminals, loop the exposed end clockwise around the terminal screw (never counterclockwise) to prevent loosening when tightened. For back-wired (push-in) connections, insert the straight, stripped end fully into the port until it clicks. Tug gently to verify the wire is secured.
| Component | Wire Color | Termination Method |
|---|---|---|
| Hot (supply) | Black/Red | Top screw or push-in port |
| Switched hot (load) | Black/Red | Bottom screw or push-in port |
| Ground | Green/Bare | Ground screw, pigtail to box |
Attach the ground conductor (bare or green) to the switch’s green grounding screw. If the box is metallic, bond the ground to the box with a pigtail. For non-metallic boxes, omit this step. Route the switched conductor (also black/red) to the fixture–ensure it terminates at the fixture’s hot terminal, not the neutral. Neutral conductors (white) should bypass the switch unless a smart switch requiring neutral is used.
Fold conductors neatly into the box, ensuring no exposed copper extends beyond the terminal. Secure the switch to the box with mounting screws, aligning it vertically (up = on). Restore power at the breaker and test operation. If the fixture fails to energize, recheck:
- Correct terminal connections (supply vs. load)
- Tightness of screws (torque to 12-15 in-lbs)
- Ground continuity (multimeter resistance test)
For dimmer or motion-sensing variants, refer to the manufacturer’s datasheet for auxiliary terminal requirements. Some models demand neutral connections for proper function. Avoid daisy-chaining multiple fixtures from a single switch unless the total wattage complies with the switch’s rating (<80% of the maximum load).
Label the circuit breaker with the switch’s location to simplify future maintenance. Snap the switch cover plate into place using a torque screwdriver (2-3 in-lbs) to prevent over-tightening, which can crack the plate or misalign the switch. Store spare conductors coiled in the box for potential upgrades.
