For safe installation, begin by shutting off power at the circuit breaker. Verify the circuit is dead using a non-contact voltage tester before handling any terminals. A standard household toggle setup involves three primary connections: the hot wire (black or red), the neutral (white), and the ground (green or bare copper). If your electrical box follows modern codes, the neutral will likely be present–older systems may lack it.
Critical steps:
Identify the incoming power source cable. This wire brings electricity from the breaker. Strip the insulation back ½ inch on each conductor, exposing the copper. If the neutral is present, twist its exposed end with the neutral wire from the fixture–secure them with a wire nut. The ground must be connected to the metal box (if metallic) or directly to the device’s grounding screw. Failure to secure this connection creates a safety hazard.
The hot wire attaches to one of the brass-colored screws on the control device. Do not confuse brass with silver–brass indicates live current attachment points. If you’re installing a new device, confirm the screw terminals face the correct direction–typically down for traditional toggles. Modern alternatives may vary, so consult the manufacturer’s documentation.
After connecting the wires, fold them neatly into the box. Excess length risks wire damage when pushing the device back into position. Secure the toggle plate with mounting screws, ensuring it sits flush against the wall. Restore power at the breaker and test operation. If the device fails to energize, recheck all connections–common mistakes include loose wire nuts or reversed hot/neutral attachments.

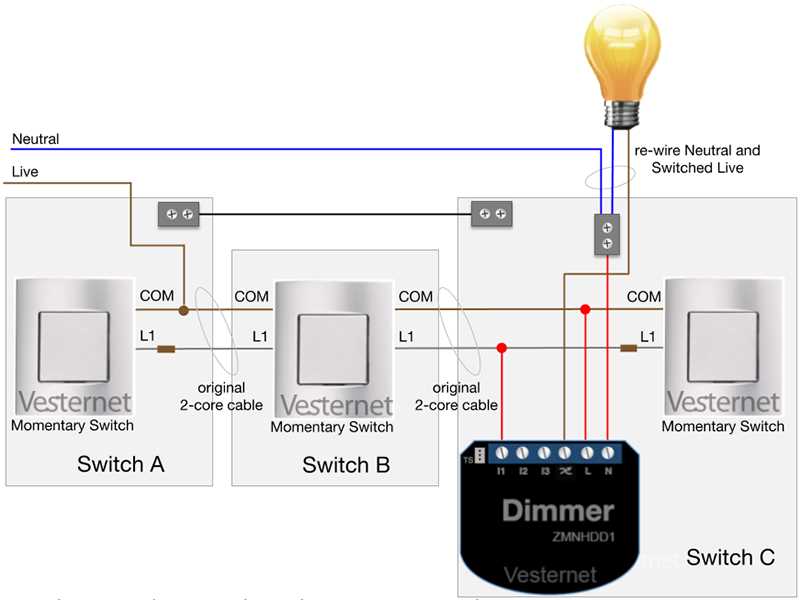

For multi-way configurations (e.g., hallways with access from multiple doors), additional travelers (red wires) become necessary. These require precise labeling–use colored tape to mark each traveler during disassembly. Miswiring here leads to inconsistent functionality, where the control works intermittently from one position but not another.
Essential Circuit Setup for Simple On/Off Controls
Start by confirming the power is fully disconnected at the breaker panel. Use a non-contact voltage tester on all wires in the junction box to ensure no live current remains–this step prevents immediate hazards before handling conductors. Neutral wires (typically white) should never carry voltage in a standard single-pole setup, but verify this as an extra precaution.
Identify the feed wire (usually black or red) entering the box. This conductor delivers electricity from the breaker to the control point. Connect it to the brass-colored screw terminal on the mechanism–this terminal is often labeled “common” or marked with a darker hue. Loosen the screw just enough to slide the stripped wire end beneath, then tighten firmly to prevent arcing.
Locate the load conductor, which runs from the control point to the fixture. Attach this wire to the remaining brass or gold terminal. If wiring includes a grounding wire (bare copper or green-insulated), secure it to the green screw on the device’s frame. Twist wires clockwise before attaching to screws to ensure a tight grip when tightened.
- Twist wire nuts clockwise over splices until resistance is felt–this ensures proper insulation and prevents loose connections.
- Push excess wire neatly into the box to avoid crowding, which can cause overheating or short circuits.
- For metal boxes, attach a pigtail grounding wire from the box’s threaded hole to the device’s ground screw.
After securing all connections, carefully fold wires into the junction box and align the mechanism flush against the wall. Secure with mounting screws, ensuring the device sits straight–misalignment can strain internal components. Restore power at the breaker and test operation immediately; if the fixture fails to activate, power down and recheck all connections for loose splices or incorrect terminal placements.
For rooms with multiple entry points, consider a three-way setup. The primary control point uses the same feed/load connections, while the secondary point replaces the single conductor with two traveler wires (typically red and black) connected to the darkest screw terminals. The common screw on the secondary device links to either the feed or load wire depending on configuration; consult a schematic specific to your model for precise terminal assignments.
- Label all wires before disconnecting any existing mechanisms to simplify reinstallation.
- Use stranded 14-gauge wire for easier bending in confined spaces, but confirm breaker amperage matches wire capacity.
- Avoid backstab connections–they loosen over time and increase failure risk.
Regularly inspect installations every six months, especially in high-traffic areas. Look for discolored walls near the box (indicating overheating) or flickering fixtures (suggesting loose terminals). Replace any device with cracked housings or brittle insulation immediately–these degrade safety protections and violate electrical codes.
Gear and Supplies for Installing a Toggle Controller
Select a non-contact voltage tester with a sensing range of 50–1000 volts AC. Models featuring audible and LED indicators simplify detection; prioritize units rated CAT III/600V for residential circuits.
Flat- and Phillips-head screwdriver sets should include sizes #1, #2, and #3 for terminal screws and cover plates. Insulated handles meeting IEC 60900 standards prevent accidental shorts when adjusting live wires in tight electrical boxes.
| Item | Specification | Example Models |
|---|---|---|
| Wire strippers | 18–10 AWG, ergonomic grip | Klein Tools 11055, Ideal T-Stripper |
| Needle-nose pliers | 6-inch, serrated jaws | Channellock 327, Knipex 02 02 160 |
| Fish tape | Steel, 25-foot coil | Southwire 55056204, Gardner Bender GST-25 |
Choose solid copper conductors in 14 AWG for 15-amp circuits or 12 AWG for 20-amp applications; avoid stranded wire for terminal connections. Use UL-listed switch units with built-in grounding clips to ensure compliance with NEC 404.9(B). Keep wire nuts sized for the conductor count–yellow for 2–3 #14 wires, red for 3–4 #12 wires. Drywall saws with carbide-tipped blades cut clean openings; measure box depth (minimum 3.0 inches) against wall thickness to accommodate cable clamps.

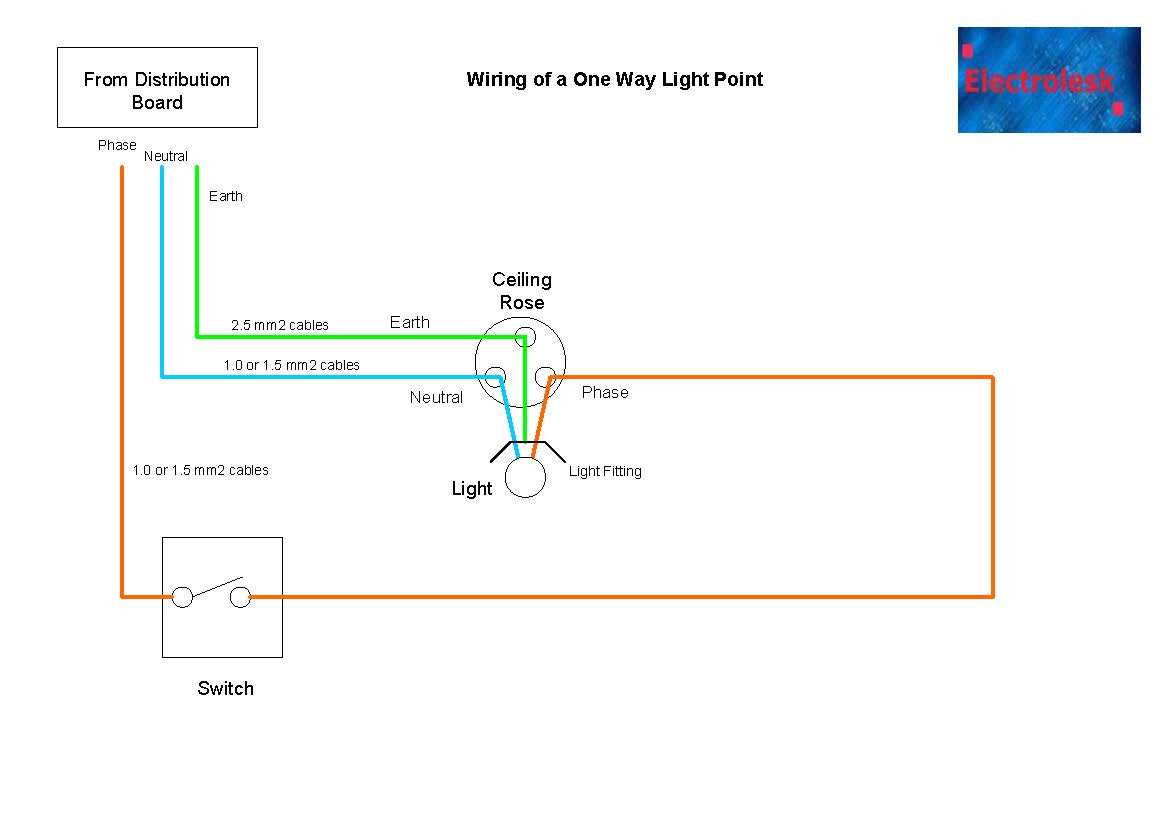

How to Install a One-Way Toggle Controller: A Practical Walkthrough
Turn off the circuit breaker for the circuit you’re working on to prevent electric shock. Use a non-contact voltage tester to confirm the power is completely dead before touching any terminals or cables.
Remove the faceplate from the existing control box by unscrewing the mounting screws. Gently pull the mechanism out from the wall, exposing the three wires: live feed (black or red), neutral (white, if present), and ground (bare copper or green).
Identify the hot wire (screw marked “common” or “line”) and attach it to the brass terminal on the new mechanism. Strip ⅜ inch of insulation from the end of the wire, form a small loop, and secure it under the screw, tightening clockwise with a screwdriver.
Connect the return wire (leading to the fixture) to the silver terminal labeled “load.” Ensure the connection is snug–loose wiring can cause arcing. If the box has a ground wire, fasten it to the green grounding screw on the mechanism.
Fold the wires neatly into the box without pinching or bending them sharply. Push the mechanism back into place, aligning the mounting holes with the box screws. Secure it firmly but avoid over-tightening, which can crack the casing.
Attach the new faceplate and restore power at the breaker. Test the installation by flipping the toggle–it should turn the connected device on and off instantly without flickering or delay. If the device doesn’t respond, cut power again and recheck all connections.
For metal boxes, ensure the ground wire is bonded to the box itself using a pigtail or grounding clip. Plastic boxes don’t require this step, but always follow local electrical codes for grounding requirements.
Avoid common mistakes: never ignore stripped wires, reversed connections, or loose terminals. If you encounter melted insulation or discolored wires, replace them immediately–these are signs of overheating and fire hazards.
How to Identify and Connect Hot, Neutral, and Ground Conductors
Begin by examining the color coding of the wires: in most residential setups, the hot conductor is black or red, the neutral is white or gray, and the ground is bare copper or green. Verify this with a non-contact voltage tester–hold it near each wire; the hot will trigger the tester’s alert. If colors deviate (common in older builds), prioritize tester confirmation over color reliance.
Check the cable sheathing for labels: modern NM cable often marks wires with “HOT,” “NEUT,” and “GND” or their abbreviations. Older cloth-wrapped wires lack this; rely on a multimeter to measure voltage. Set it to AC volts (200V range), probe the hot and neutral–the reading should match the circuit’s voltage (120V in North America). Probe hot to ground; expect the same reading. Neutral to ground should show near-zero volts.
Strip ½ inch of insulation from wire ends using wire strippers, ensuring no nicked strands. Twist copper strands clockwise to prevent fraying. For stranded wire, crimp a terminal connector if connecting to screws. Solid wire loops under screws clockwise to match tightening direction–counterclockwise loosening risks poor contact.
Hot conductor: Attach to brass-colored terminals on devices. In a loop configuration, connect to the breaker’s lug first, then run to the device. Avoid daisy-chaining sensitive electronics from the same hot wire–dedicate a separate circuit breaker for high-load devices like refrigerators.
Neutral conductor: Link to silver-colored terminals or designated neutral buses in panels. Never omit neutral connections in switched circuits–this creates a fire hazard and violates electrical codes. In split-phase systems, neutral carries imbalance current; never use ground as a substitute. For GFCI devices, neutral must connect to both line and load terminals properly.
Ground conductor: Connect to green screws or bare metal panel enclosures. In metal boxes, ensure ground wires bond to the box before branching to devices. For plastic boxes, ground wires must tie directly to device grounds. Use green wire nuts for splicing grounds. In subpanels, keep ground and neutral isolated–bonding here creates parallel return paths, risking stray currents.
Label all wires before disconnecting anything. Take photos of existing setups. Use masking tape to mark each wire’s function near termination points. For mixed-voltage systems (e.g., 120V/240V), confirm wire gauges: 14 AWG for 15A circuits, 12 AWG for 20A–undersized wires overheat. When extending circuits, match the gauge of the original wire to avoid voltage drops.
Troubleshooting Misconnections
If a device doesn’t power on, check for reversed hot and neutral–modern appliances may still operate but pose shock risks. For flickering lights, inspect loose neutral connections; a single loose neutral can affect multiple circuits. If GFCI trips continuously, verify ground isn’t touching neutral downstream. For circuits with no power, probe the breaker’s output lugs–no voltage indicates a tripped breaker or bad connection upstream.
