Begin by mapping out circuits before touching any connections. Each circuit should handle a maximum of 12-15 amps to prevent overloads, with 14-gauge wire for 15-amp circuits and 12-gauge for 20-amp branches. Label every breaker slot in the panel to correspond with room locations–this eliminates guesswork during inspections or emergencies. Ground wires must terminate at the neutral bus bar; never splice them mid-run without a junction box.
Install GFCI outlets within six feet of water sources (kitchens, bathrooms, garages) and AFCI breakers for bedroom or living area circuits. Use deep single-gang boxes (minimum 22 cubic inches) for outlets with two wires plus grounding conductors to comply with NEC 314.16(B). Run cables horizontally at least 20 inches above finished floors or within 12 inches of ceiling joists to avoid damage from nails or screws during renovations.
For lighting circuits, daisy-chain no more than eight fixtures per 15-amp breaker, ensuring each fixture has a dedicated neutral return. Avoid mixing high-load devices like refrigerators or microwaves on the same circuit as general outlets–dedicate separate 20-amp branches for these. When routing cables through studs, maintain a 1¼-inch setback from edges to prevent drywall screws from piercing insulation.
Test every connection with a multimeter before energizing. Verify polarity (hot/neutral) at outlets–reversed wiring can damage appliances or create shock hazards. For three-way switches, use 14/3 or 12/3 cable between switch boxes, connecting the red traveler wire to the brass screw terminals. Secure all splices with UL-listed wire nuts and wrap them clockwise to prevent unraveling under tension.
Document the layout with a clear, annotated sketch showing wire gauges, circuit pathways, and breaker assignments. Store this reference inside the main panel door for quick access during troubleshooting or upgrades. Replace any damaged or brittle insulation immediately–even minor cracks can lead to short circuits over time.
Understanding Electrical Circuit Layouts for Residential Spaces
Start by mapping each circuit breaker to its corresponding outlets, switches, and fixtures. Label the service panel clearly–use a permanent marker to denote which breaker controls specific areas like kitchens, bathrooms, or bedrooms. A typical 15-amp circuit supports up to 1,800 watts (80% of 15A × 120V), while a 20-amp circuit handles 2,400 watts. Exceeding these limits trips breakers; calculate loads by summing device wattages (e.g., a 1,500W microwave + 1,200W toaster = 2,700W–requires a dedicated 20-amp line). For safety, install arc-fault circuit interrupters (AFCIs) on all branch circuits, and ground-fault circuit interrupters (GFCIs) within 6 feet of sinks, outdoor outlets, or garages.
Divide circuits into three categories: lighting, general-purpose (outlets), and dedicated (appliances like refrigerators, HVAC units, or electric ranges). Lighting circuits should cover no more than 40 fixtures (60W each) per 15-amp circuit. General-purpose outlets must split across multiple circuits–avoid daisy-chaining more than 10 outlets per 15-amp line. Dedicated circuits demand heavier gauge wire: 10 AWG for 30-amp dryers (240V), 6 AWG for 50-amp ranges. Use 12 AWG for 20-amp circuits, 14 AWG for 15-amp; never mix gauges. Verify local codes–some regions mandate 20-amp circuits for kitchens, bathrooms, and garages regardless of load.
Key Components and Their Placement
Position the service panel centrally to minimize voltage drop–ideal location is within 10 feet of the meter. Run cables vertically from the panel to outlets/switches (no horizontal runs through walls) to simplify future upgrades. For three-way switches (e.g., staircases or hallways), use 14/3 or 12/3 cable between switches; neutral wires must be capped in the switch box unless using smart switches requiring constant power. Outlets should sit 12–16 inches above finished floors, switches 48 inches; mount GFCIs at standard height (12–18 inches) above countertops or wet areas. Avoid running cables above or below ceiling joists unless protected by conduit in unfinished spaces like basements.
Test every connection with a multimeter before energizing. Set the meter to AC voltage mode (200V range) and check for 120V between hot and neutral/ground at outlets. For 240V circuits, verify 240V across both hot wires, 120V between each hot and neutral/ground. If voltage reads below 115V (for 120V circuits) or 230V (for 240V), inspect for loose connections, undersized wire, or excessive length (voltage drop >3% for branch circuits, >5% for feeders). Replace any damaged insulation or nicked wires–even minor abrasions can create hotspots. After testing, secure all cables with staples every 4.5 feet and within 12 inches of boxes. Never staple cables to framing within 1.25 inches of edges (risk of drywall screws penetrating insulation).
Essential Gear and Supplies for Electrical Installation
Begin with a non-contact voltage tester (minimum CAT III 600V rating) to verify power shutdown before touching conductors. Choose models with both visual and audible alerts–for example, Fluke 1AC or Klein NCVT-3–since false negatives can occur near low-voltage DC circuits or heavily shielded cables.
Stock solid copper conductors in these gauges: 14 AWG (15A circuits), 12 AWG (20A), 10 AWG (30A). Use THHN/THWN-2 for new conduit runs and NM-B (Romex) for retrofit work; check local codes–some jurisdictions ban NM-B in damp locations regardless of jacket markings. Avoid aluminum unless pre-terminated lugs are listed for CU-AL compatibility, typically marked CO/ALR.
Circuit Protection and Termination
| Device | Amp Rating | Pole Configuration | Interrupt Rating |
|---|---|---|---|
| Single-breaker | 15–20 | 1 | 10 kAIC |
| Double-breaker | 15–60 | 2 | 22 kAIC |
| GFCI (Type A) | 15–20 | 1 | 10 kAIC |
| AFCI (Combo) | 15–20 | 1 | 10 kAIC |
Select breakers that match panel busbar slots: ½-inch for modern panels, ⅞-inch for older federal pacific or Zinsco if retaining existing gear. Install AFCI protection on all 120 V branch circuits feeding outlets and lighting, per NEC 210.12(A); GFCI is mandatory within 6 ft of sinks, outdoors, garages, and unfinished basements, per NEC 210.8(A).
Keep a clamping ammeter (minimum 400 A range) to verify neutral integrity after bond separation in subpanels; split-core models like Amprobe AC-200 are field-replaceable, avoiding downtime if jaws jam. Add a torque screwdriver (5–60 in-lbs) to comply with NEC 110.14(D)–manufacturers now specify torque values on device terminals, typically 12–15 in-lbs for #14 copper into receptacles.
Use listed staples and straps matched to cable type: ½-inch plastic staples for 14/2 NM-B, ¾-inch steel straps for ½-inch EMT with THHN. Non-metallic bushings are required inside ½-inch steel junction boxes when pulling 12 AWG or larger conductors; omit them only in plastic boxes already molded with integral cable clamps. For cut-in boxes, employ old-work braces rated for 25 lb lateral load–plastic types typically fail at drywall screws, while metal types like Arlington FB600 install with simple toggle wings.

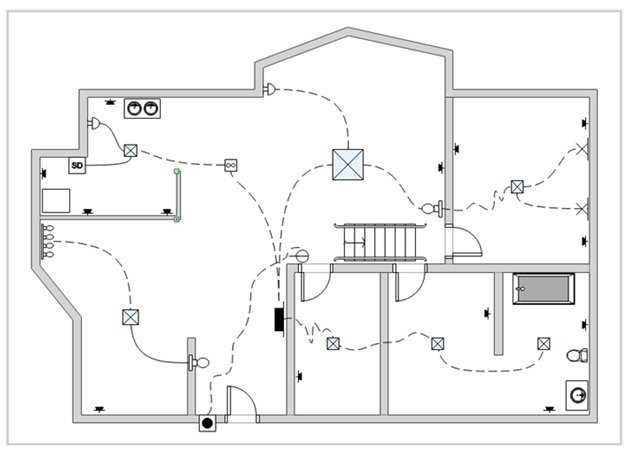

Step-by-Step Guide to Sketching a Residential Electrical Layout
Begin by listing all components: outlets, switches, light fixtures, and the main breaker panel. Assign symbols to each–standardized icons prevent misinterpretation. Use a horizontal line for neutral (white wire), vertical for hot (black/red), and a dashed line for ground (bare/green). Label them clearly near the symbol with abbreviations: “SW” for switch, “OUT” for outlet, “LF” for light fixture.
Draw the breaker panel first–place it centrally on the page. Sketch incoming power lines (two hots, neutral, ground) from the utility source at the top. Each circuit branch should start from a breaker slot, extending outward. Number each breaker (1-20 for a typical panel) and match it to the corresponding circuit on the sketch.
Create parallel paths for devices on the same circuit. For example, connect three outlets in a row: start at the breaker, run hot to the first outlet, then split to the next via pigtail wiring. Neutral and ground follow the same path but must terminate at each device. Avoid daisy-chaining grounds–bond them at the panel only.
Use straight lines for connections, avoiding diagonals unless absolutely necessary. Keep 90-degree angles for clarity; curved lines imply twisted pair cables or non-standard routing. Mark wire gauge (e.g., “14 AWG”) next to lines–standard for 15-amp circuits. Indicate splices with a dot where wires join (e.g., at a switch loop).
Test continuity visually before finalizing. Trace each path from breaker to device and back to neutral/ground. Confirm no loops exist–except for 3-way switches, where travelers require a closed path. Add legends: “Line” for incoming power, “Load” for devices, “Traveler” for 3-way setups. Highlight critical points in red, such as dedicated circuits (refrigerator, GFCI outlets).
Scan the sketch for redundant lines or orphaned devices. Simplify complex sections by breaking them into sub-diagrams. Save as a vector file (SVG) for scalability–avoid raster formats to prevent pixelation. Print a physical copy in 1:1 scale for on-site reference, or overlay it on architectural plans using software like QElectroTech or DIYLC.
Safe Installation of Electrical Receptacles, Controls, and Illumination Points
Shut off the circuit breaker or remove the fuse before handling any connection point. Use a non-contact voltage tester to confirm the absence of current–probing the wires directly risks false negatives. Even after verification, treat all conductors as live until final testing.
Match wire gauge to the circuit amperage: 14 AWG for 15-amp circuits, 12 AWG for 20 amps. Overloaded conductors generate heat, accelerating insulation breakdown. Twist copper strands tightly; frayed ends cause arcing. Secure connections with UL-listed wire nuts, twisting clockwise until resistance increases. Tug each conductor to confirm grip strength–loose connections oxidize over time.
Align screws on switches and outlets with the correct terminals: brass for hot (black or red), silver for neutral (white), green or bare for ground. Tighten to 12-14 inch-pounds–overtorquing strips threads, undertorquing creates resistance. For back-wired devices, insert stripped wires fully into clamping slots; partial insertion causes overheating.
Install ground fault circuit interrupters (GFCIs) in kitchens, bathrooms, garages, and outdoor locations. Press the “TEST” button monthly; a non-functional GFCI provides no protection. Replace any device failing to trip. For downstream protection, connect load-side terminals only to additional outlets in the same fault-prone area–avoid mixing general-purpose circuits.
Mount light fixtures weighing over 50 lbs with a listed junction box rated for the load. Ceiling fans require boxes marked “acceptable for fan support”–standard junction boxes detach under vibration. Use Romex clamps to secure cables entering boxes; sharp edges slice insulation. Leave 6 inches of slack inside boxes for future maintenance–coiled wires restrict airflow.
Use 12-gauge pigtails for neutral and ground connections when linking multiple devices in a single box. Shared neutrals on multi-wire branch circuits must be on the same leg to prevent 240V across neutral and ground. Separate pigtails reduce joint stress; soldering is unnecessary and violates NEC 110.14(B).
Label all circuits at the breaker panel with permanent markers or pre-printed tags. Include device locations (e.g., “North wall outlet – living room”). Diagram junction box contents on the panel door–future troubleshooting requires no guessing. Verify all connections with a multimeter before restoring power: confirm 120V between hot and neutral, 0V between neutral and ground, and proper polarity.
