Begin with a clearly labeled power source–use a battery symbol for DC or an AC source for mains-powered designs. Mark voltage values (e.g., 5V, 12V) directly on the symbol. Avoid generic labels like “VCC” unless the circuit requires multiple power rails; in such cases, distinguish them with suffixes (VIN, VAUX).
Connect components with straight, orthogonal lines–diagonal traces introduce ambiguity. When lines cross without connecting, use a small bridge (jump) to indicate no electrical contact. For junctions, a solid dot ensures clarity, especially in dense layouts. Omit dots only if the intent is unambiguous, such as T-intersections.
Place resistors, capacitors, and inductors with their values adjacent (e.g., 10kΩ, 100nF, 10µH). Specify tolerances (5%) and power ratings (¼W) if critical. For polarized components (diodes, electrolytic capacitors), orient the anode/cathode (+/-) correctly and verify against datasheets–misalignment causes silent failures during prototyping.
Ground symbols should converge to a single reference node unless the design requires isolated grounds. Use distinct symbols (chassis ground, signal ground) to prevent interference. Label all grounds descriptively (e.g., GNDMCU, GNDSENSOR) to simplify debugging.
Include a legend for non-standard symbols or custom footprints. Use arrows for signal flow direction in analog circuits or indicators. For digital logic, adhere to IEEE/ANSI standards (e.g., 74HC04 inverter symbol) and annotate pins with their functional descriptions (CLK, OE, RESET).
Validate the blueprint with a continuity check before finalizing. Trace each path manually–software autorouters may omit critical details like decoupling capacitors or fail to account for thermal reliefs. Print the draft at 1:1 scale and overlay it on a breadboard prototype to confirm physical feasibility.
Creating Effective Circuit Representations

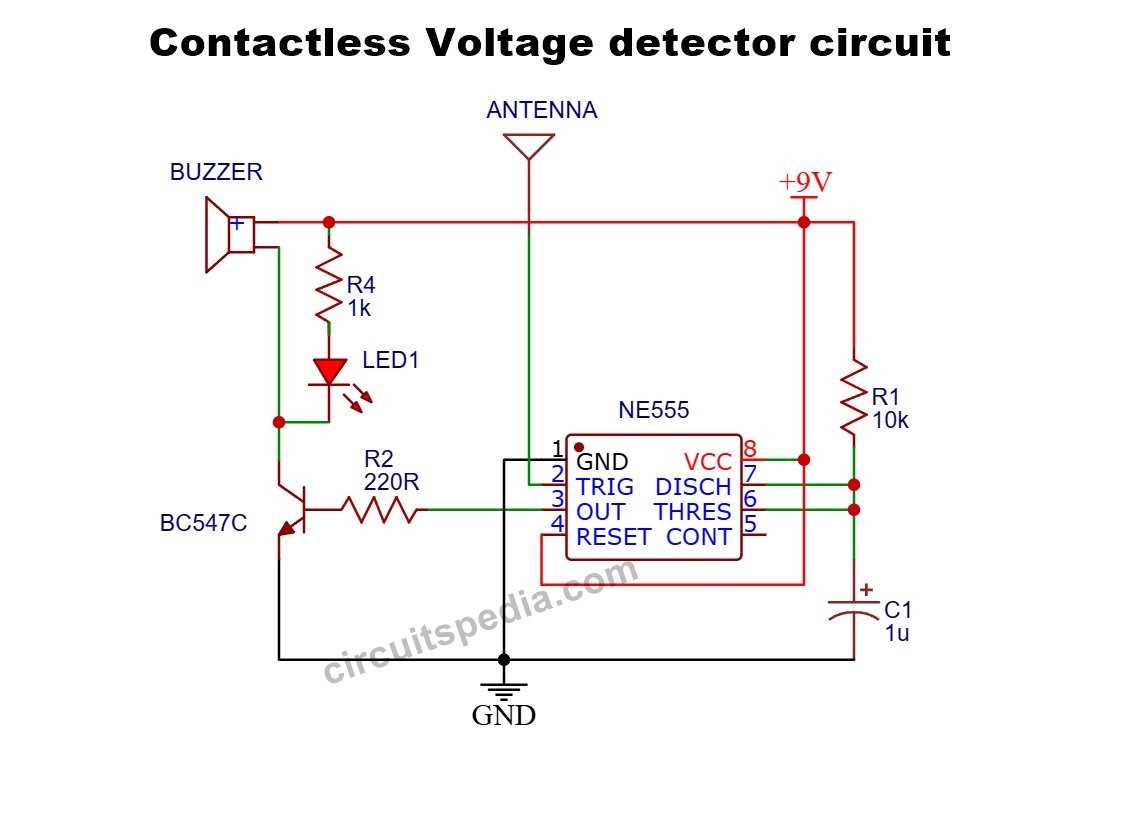

Begin with standardized symbols to ensure clarity–resistors (zigzag line), capacitors (parallel lines), and transistors (arrowed lines) must follow IEC 60617 or ANSI Y32.2 conventions. Deviations confuse collaborators and delay troubleshooting. Label every component with a unique identifier (e.g., R1, C3) and its value (e.g., 10kΩ, 0.1µF) directly on the drawing. Omit this step, and even a simple 555 timer circuit becomes unreadable.
Optimize Layout for Signal Flow
Arrange components so current flows logically from input (top-left) to output (bottom-right). Power rails should run horizontally at the top and bottom, with ground connections clearly marked. Avoid diagonal lines–they obscure the path of electrons and complicate debugging. For complex designs, group related sections (e.g., power supply, amplification stage) into modular blocks separated by dotted lines.
Use thick lines for high-current paths (1-2mm width) and thin lines for signal traces (0.3mm). This visual distinction prevents misinterpretation of circuit priority. For integrated circuits, align pin numbers clockwise from the top-left notch and leave space for handwritten annotations if prototypes evolve. Tools like KiCad or Altium enforce these rules automatically, but hand-drawn sketches demand discipline.
Document Critical Details

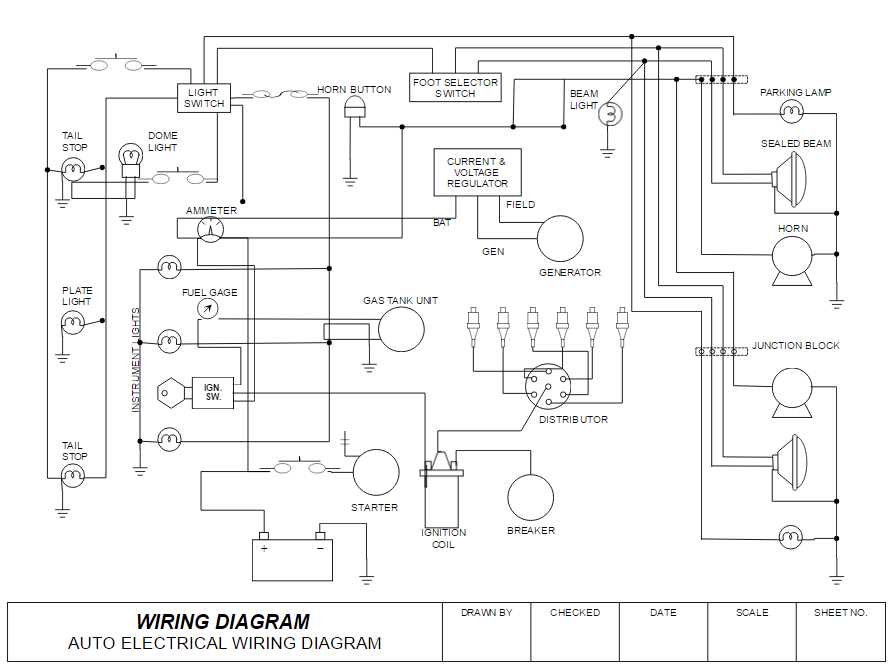

Include a title block in the lower-right corner with the circuit’s purpose, scale (if drawn to size), date, and revision number. Add a bill of materials (BOM) listing every component’s value, package type, and supplier part number. For adjustable elements (e.g., potentiometers), note the default setting (e.g., “VR1: 50kΩ, mid-position”). Failure to document these minutiae leads to hours of reverse-engineering later.
Color-code wires only if the medium supports it (e.g., red for VCC, black for GND, blue for signals). Monochrome prints require hash marks (e.g., //// for input, \\ for output) or text labels. Avoid relying solely on color–many engineers print in grayscale. For high-frequency circuits, indicate impedance-matched traces (e.g., “50Ω microstrip”) to prevent signal reflections.
Add test points (TP1, TP2) at critical nodes (e.g., amplifier output, microcontroller ADC inputs). Mark their expected voltage ranges (e.g., “TP3: 2.5V ±0.1V”) to speed up validation. For noisy environments, denote shielded cables (e.g., coaxial symbols) and ground planes. Omit these details, and testing becomes a guessing game.
Digitize sketches immediately using vector tools to preserve accuracy. Rasterized scans distort measurements–0.5mm traces become unreadable when enlarged. Export in PDF or SVG formats for scalability, and archive versions with timestamps. A single missing line or misplaced decimal in a resistor value can render an entire design non-functional.
How to Read Common Circuit Symbols for Resistors, Capacitors, and Transistors
Start by memorizing resistor symbols: a zigzag line (ANSI) or a plain rectangle (IEC). The zigzag has up to five peaks, while the rectangle often includes the value (e.g., “10k”) inside or nearby. For variable resistors, look for an arrow crossing the symbol–position indicates whether it’s a potentiometer (third terminal) or rheostat (two-terminal). Precision resistors may include a second parallel line for tolerances.
Identify capacitors by their two parallel lines (non-polarized) or a curved/straight pair (polarized). Electrolytic types show a “+” sign near one lead. Film and ceramic capacitors omit polarity markers entirely. Values are often written in picofarads (pF) or microfarads (µF), with prefixes like “n” for nanofarads. Variable capacitors display an arrow across plates, denoting adjustable capacitance.
- NPN transistors: Arrow on the emitter points outward; the collector and base are straight lines.
- PNP transistors: Arrow on the emitter points inward toward the base.
- MOSFETs: Gate terminal separated by a gap from the channel; arrows indicate N-channel (outward) or P-channel (inward).
- JFETs: Gate touches the channel with an arrow; source and drain are interchangeable.
Track component annotations: “R” precedes resistors, “C” capacitors, and “Q” or “T” transistors. Heatsinks or mounting tabs on transistors are depicted as a dashed box or extra line. Complex symbols like Darlington pairs combine two transistor symbols with shared lines–check for nested arrows or overlapping emitter lines.
Step-by-Step Guide to Drawing a Simple LED Illumination Plan
Select a resistor value matching your LED’s forward voltage and current needs. For a standard 5V supply and 20mA LED current, use Ohm’s Law: (5V – 2V) / 0.02A = 150Ω. Choose the nearest standard resistor, typically 180Ω or 220Ω, to ensure safe operation without overloading the LED.
Position components on the page with clarity in mind. Place the power source mark at the top, the LED symbol below, and the resistor between them. Align elements vertically or horizontally–never diagonally–to maintain readability. Keep spacing consistent: 10–15mm between parts avoids clutter while allowing room for labels.
Key Symbols and Their Layouts
| Component | Symbol | Placement Rule |
|---|---|---|
| Battery (DC) | Two parallel lines: long (+), short (–) | Top edge of the plan, + terminal on the right |
| Resistor | Zigzag line with labels | Between LED and power source, horizontal orientation |
| LED | Triangle with line, two arrows outward | Below the resistor, arrows pointing away from the anode (+) |
Draw connections using straight lines, avoiding crossovers. If unavoidable, use a small semicircle to show one line jumping over the other. Label each wire segment with expected voltage drops: before the resistor (5V), after the resistor (~3V), and at the LED (~2V). Double-check polarity: the LED’s anode (longer leg) connects to the positive side.
Add annotations only when necessary. Specify the resistor’s power rating (¼W minimum), LED color (if critical), and voltage tolerance. Test the plan with a simulator like LTspice or a physical breadboard before finalizing. Ensure the current path forms a single loop with no open gaps–missing a single connection will prevent the LED from lighting.
Common Mistakes to Avoid
- Skipping the resistor entirely–directly connecting an LED to 5V will burn it out.
- Reversing LED polarity–arrows must align with current flow, not against it.
- Using incorrect units–write “180Ω” not “180R” to prevent confusion.
- Overcomplicating labels–keep text minimal; excess notes reduce clarity.
Key Differences Between Sequential and Multi-Path Circuit Layouts
Use sequential connections when consistent current across all components is critical–ideal for string LED setups or fuse chains where uniform power distribution ensures predictable operation. Each element shares the same current flow, so resistance scales additively: Rtotal = R1 + R2 + … + Rn. Apply Ohm’s Law directly to the entire chain to calculate voltage drops without complex branching logic.
Multi-path arrangements divide current proportionally to each branch’s impedance, allowing independent component failure without disrupting the entire system. This is essential for home wiring or modular sensor grids where redundancy matters. Branch currents sum to the total supply (Itotal = I1 + I2 + … + In), while voltage remains identical across each path. Calculate individual resistances using 1/Rtotal = 1/R1 + 1/R2 + … + 1/Rn–common errors arise from misapplying series formulas here.
Sequential circuits require fewer conductors but escalate voltage drop risks with chain length; measure cumulative drop if powering distant loads like rural lighting. For 12V systems, each ohm of resistance dissipates ~1V per ampere–factor this early to avoid dim LEDs or stalled motors. Multi-paths need heavier gauge wiring at junctions to handle aggregated current, but distribute heat more evenly than stacked resistors.
Debugging sequential layouts is linear–probe each node in order to isolate faults. Multi-paths demand oscilloscope verification since current divides unpredictably in unbalanced networks. Use Kirchhoff’s Current Law to cross-validate branch measurements: ∑Iin = ∑Iout at any node. Incorrect readings often reveal shorted paths before catastrophic failure.
Power dissipation in sequential configurations concentrates in individual elements–manage heat sinks early. Multi-paths spread thermal load but risk cascading failures if one branch draws excessive current. Add PTC fuses to high-draw branches to prevent meltdowns during transient spikes. Calculate power per branch separately: P = I2R or P = VI, then sum for total system load.
Sequential batteries increase voltage while maintaining capacity (e.g., 3×1.5V AA = 4.5V). Multi-path batteries raise capacity but keep voltage flat (e.g., 3×1.5V AA in parallel = 1.5V, 3×capacity). Match internal resistances closely during parallel assembly to avoid imbalanced discharge–lithium cells require active monitoring for this reason.
Sequential switches must all function to complete the circuit; multi-path switches offer alternative routes. Use sequential wiring for fail-safe lock mechanisms where interruption equals shutdown. Multi-paths suit fail-operational systems like server racks where uptime outweighs single-point risks. Document all junction points in your layout to simplify future troubleshooting.
Sequential solenoids or relays trigger in set order for automation chains–power one coil, then the next. Parallel coils activate simultaneously, enabling synchronized actuators in robotics but demanding higher instantaneous current capacity. Test stall currents for motors in both configurations–sequential motors see compounded torque loss under load, while parallel motors share the load but require robust drivers.
