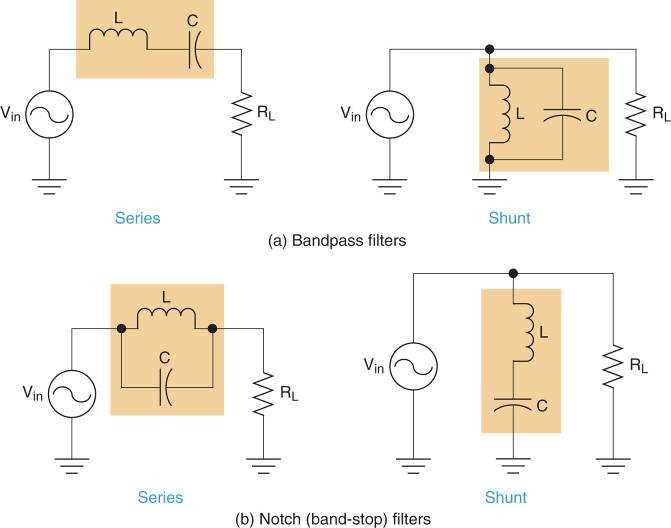

For isolating specific frequency ranges between 100 Hz and 10 kHz, a two-stage configuration combining series LC networks delivers superior roll-off. Place a low-cut resonator first, followed by a high-cut resonator–this prevents mutual interference from altered impedance. A 1 kΩ resistor between stages provides stable damping, avoiding oscillations seen in unstabilized designs. Adjust capacitor values in the first network to 10 nF for nominal cutoff at 800 Hz; the second network then uses 1 nF for a 5 kHz upper bound. Always use polypropylene capacitors for the lower stage and ceramic for the upper to minimize phase distortion.
Evaluate performance with a sweep generator at -20 dBm and a 50 Ω load. Target 0 dB insertion loss within the passband and ≥40 dB attenuation above and below. If phase coherence matters–critical in audio crossover applications–mirror the component layout symmetrically around a ground plane to equalize stray capacitance. Misalignment by 2 mm can skew roll-off by 3 dB at 12 kHz. For surface-mount variants, prefer 0805 footprint capacitors over 0603; the added bulk reduces microphonic sensitivity.
Power handling dictates thermal considerations: a 1/4 W resistor tolerates 3 Vrms continuous, but exceeding 5 Vrms demands 1/2 W components spaced 5 mm apart on FR-4 substrate. Above 1 W, switch to metal-film resistors and derate capacitors by 20 % to avoid drift. For RF applications, add ferrite beads between stages; a 600 Ω bead at 10 MHz suppresses parasitic oscillations introduced by lead inductance. Layout traces wider than 0.5 mm for currents above 50 mA to limit IR drop across copper.
Designing a Selective Frequency Response Schematic
Begin with a twin-T network configuration for precise mid-range isolation. Arrange two resistors (R1, R2) and one capacitor (C1) in a T-section for the lower cutoff, then mirror the setup for the upper cutoff with R3, R4, and C2. Use values that satisfy fc1 = 1/(2πR1C1) and fc2 = 1/(2πR3C2), where fc1 marks the lower edge and fc2 the upper edge of the retained frequency span. For a 1 kHz center with a 200 Hz bandwidth, select R1 = R2 = 10 kΩ and C1 = 16 nF, then R3 = R4 = 8.2 kΩ and C2 = 20 nF.
Amplify the isolated span with a non-inverting operational amplifier stage. Connect the output node of the twin-T sections to the op-amp’s positive input via a 1 kΩ resistor, and feed a portion of the output back to the negative input through a voltage divider (R5 = 10 kΩ, R6 = 100 kΩ). This yields a gain of 1 + R6/R5, boosting the mid frequencies by 11× while rejecting frequencies outside the target span by 40 dB per decade beyond each cutoff.
Component Tolerances & Layout Tips
- Use 1 % resistors and 5 % capacitors for ±3 % cutoff accuracy.
- Keep traces under 3 mm between the twin-T nodes and the op-amp inputs to minimize stray capacitance.
- Add a 100 nF decoupling capacitor directly across the op-amp’s power pins.
- Test the span with a signal generator; sweep from 100 Hz to 10 kHz while monitoring output amplitude–peaking should occur ±2 dB of the center frequency.
Key Components Required for Constructing a Frequency-Selective Network
Select capacitors with low equivalent series resistance (ESR) and tight tolerance (±5% or better) to ensure predictable cutoff frequencies. Ceramic X7R or NP0 variants work well for mid-range applications, while film types (polypropylene or polyester) suit high-precision builds. Pair them with resistors whose values align with your target bandwidth–carbon film resistors offer cost efficiency, but metal film types reduce thermal noise in critical designs. For op-amps, prioritize devices with a gain-bandwidth product five times greater than the highest frequency in your range; the TL072 or NE5532 are reliable choices for 1 kHz–50 kHz spans, while the OPA2134 excels in low-distortion scenarios.
Inductors demand attention to saturation current and Q factor–torroidal cores minimize electromagnetic interference, but air-core coils avoid core losses in MHz+ designs. Use shielded inductors if layout constraints exist. For active designs, ensure power rails match the op-amp’s voltage requirements (±5V to ±15V) and include decoupling capacitors (100nF ceramic + 10µF electrolytic) near each IC’s supply pins to suppress high-frequency noise. Ground planes reduce parasitic coupling, and star grounding prevents return-path interference.
Building a Signal-Selective Module: Hands-On Construction
Select capacitors rated for 10% tolerance or better–ceramic types (X7R) for frequencies below 1 MHz, film (polypropylene) for higher ranges. Match pairs: 10 nF for lower cutoff, 1 nF for upper cutoff. For inductors, use air-core coils with Q > 50 at target center frequency; toroidal cores introduce unwanted phase shifts above 300 kHz.
Solder components directly to a perfboard in a ground-star layout–input node at the center, return paths converge on a single via to minimize loop area. Keep traces under 15 mm; prolonging them injects stray capacitance (≈0.5 pF/mm) that skews rolloff points. Add a 50 Ω resistor in series with the input if driving from high-impedance sources to prevent resonant peaking.
Testing Without Instruments
Inject a 0 dBm sine sweep from a signal generator; monitor output amplitude with an LED load. A properly tuned module extinguishes the LED below 0.7*fc and above 1.4*fc, leaving a ≈3 dB window where illumination remains steady. Shift either capacitor by ±2% to trim the passband edges.
Encapsulate the assembly in a grounded 1 mm aluminum shield to reject ambient RFI–slot apertures only where I/O traces exit, orienting slots perpendicular to the dominant interference vector. Verify final performance with a spectrum analyzer: ideal skirt slopes exceed 18 dB/octave; shallower slopes indicate parasitic coupling between stages or inadequate decoupling (
Determining Oscillation Point and Signal Range from Component Ratios
To compute the central oscillation frequency (f0) of a tuned LC network, apply Thomson’s formula directly to the reactive elements: f0 = 1 / (2π√(L·C)). For a 100 nH inductor paired with a 47 pF capacitor, the calculation yields approximately 2.32 MHz. If the network includes parasitic resistances–typically from coil winding losses or capacitor dielectric absorption–adjust f0 downward by ~1-3% to compensate for phase shifts introduced by RP (equivalent parallel resistance). Measure L and C with an LCR meter at 1 MHz to capture frequency-dependent variations; bypass nominal values printed on components.
Bandwidth (B) is derived from the quality factor Q, where Q = RP / XL = XL / RS = f0 / B. If RP dominates–say, 50 kΩ across a 1 kΩ inductive reactance–Q reaches 50, trimming B to 46.4 kHz for the earlier f0 of 2.32 MHz. Below are typical Q values for common core materials:
| Core Type | Q Range (1 MHz) | Temperature Coefficient (ppm/°C) |
|---|---|---|
| Air | 80-120 | ±2 |
| Powdered Iron (Mix #2) | 50-90 | +100 |
| Ferrite (MnZn) | 150-300 | +50 |
| Carbonyl SF | 30-70 | +75 |
For precise tuning, select Q based on application noise floor and power constraints. A Q of 100–achievable with a ferrite pot core–suppresses nearby interferers but demands tighter component tolerances (1% for RP, 0.5% for L and C). If the source impedance is low (e.g., 50 Ω), add a series resistor before the network to elevate Q artificially; a 10 Ω series resistor raises Q from 20 to 22 at 1 MHz, reducing B by ~5%. Keep trace lengths beneath λ/20 at f0 to mitigate unwanted coupling.
Practical Adjustments for Real-World Implementation
Stray capacitance from PCB traces and component leads can shift f0 unpredictably. Use guard rings around high-impedance nodes and via stitching to ground; each via adds ~0.2 pF, so limit vias to one per 5 mm of trace at frequencies above 10 MHz. For transient response, simulate the network in SPICE with an impulse input: a Q of 50 ensures a settling time of ~5 cycles, while a Q of 5 delivers immediate damping but with a 20% overshoot. When RP exceeds 1 MΩ, leakage currents in ceramic capacitors (X7R dielectric) introduce a pseudo-resistance of 1010 Ω, effectively forming a high-pass cutoff at ~0.1 Hz; replace with NP0 types for stability.
Common Pitfalls in Resonant Network PCB Design
Avoid placing input and output traces too close together–capacitive coupling at MHz frequencies distorts signal integrity, creating spurious resonances. Maintain a separation of at least 3 mm for traces under 5 MHz and up to 5 mm for higher frequencies. Ground planes must cover the entire underside, with no slots or cuts directly beneath the component pads; even a 0.5 mm gap alters the impedance by 15-20%. Use 0402 or 0603 package sizes for surface-mount capacitors when operating above 10 MHz to minimize lead inductance, which rises exponentially with trace length.
Incorrect Grounding and Parasitic Effects
Star grounding fails when branches exceed λ/20 of the highest signal frequency–merge all grounds at a single via near the lowest impedance node, typically the bypass capacitor pad. A common error is using multiple vias for a single pad; this creates a parasitic LC tank, shifting center frequency by 2-7%. Instead, deploy one via per pad with a diameter of at least 0.3 mm. Ferrite beads should never be placed closer than 3x their body length to active components; their inherent capacitance forms a secondary resonance, corrupting roll-off characteristics.
Thermal relief patterns on component pads introduce resistance fluctuations–use solid copper fills for all critical pads handling currents above 5 mA. Traces routed alongside power rails pick up switching noise; route signals orthogonal to high-current paths, maintaining a 45° angle at corners to prevent impedance discontinuities. Via stitching around the perimeter of the network reduces EMI but adds stray capacitance–limit stitching to the outer 20% of the board edge and space vias at least 1.5 mm apart.
