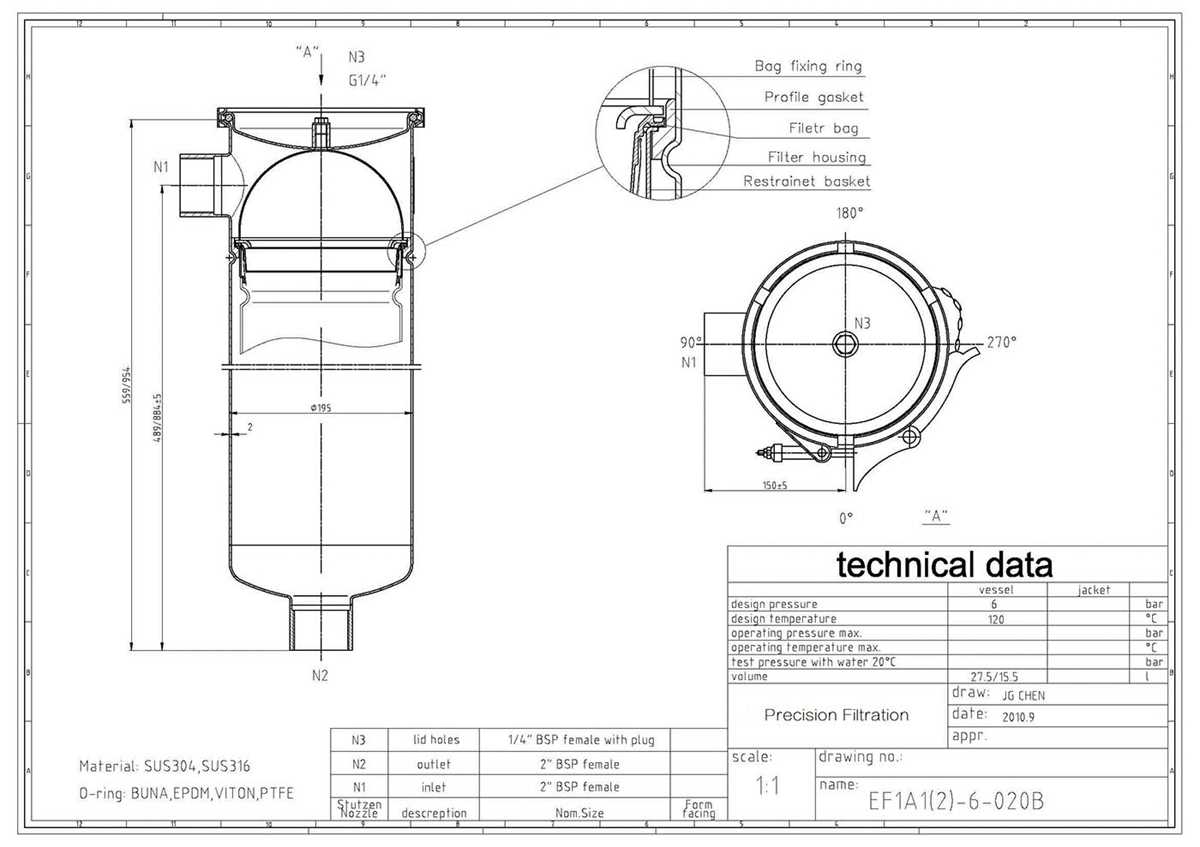

Start by positioning the housing chamber as the core element–ensure it has a conical or cylindrical shape with a minimum 60-degree slope at the base to prevent particle buildup. Attach the inlet duct at a 30–45-degree angle relative to the housing’s vertical axis to optimize airflow direction and minimize turbulence. Use a flanged connection with a gasket rated for at least 1.5 times the operating pressure to avoid leaks.
Install the cleaning mechanism–pulse-jet systems require a header pipe with nozzles spaced no more than 150 mm apart, while reverse-air setups need a blower capable of delivering 1.2–1.5 times the system’s air-to-cloth ratio. For pulse-jet designs, set the pressure regulator to 5–7 bar and use solenoid valves with a response time under 50 milliseconds to ensure consistent cleaning cycles.
Place the discharge unit directly beneath the hopper, using a rotary airlock valve with a clearance of 0.2–0.3 mm between the rotor and housing to maintain pressure differentials. For high-dust applications, integrate a screw conveyor with a pitch-to-diameter ratio of 0.8:1 to prevent bridging. Vent the system through a separate exhaust duct with a flame arrestor if handling combustible materials–specify stainless steel mesh with a 200-micron aperture for static dissipation.
Include instrumentation at three critical points: differential pressure sensors across the media (set alarms at 12–15 mbar), temperature probes at the inlet (max threshold 250°C), and flow meters in the pulse-jet header pipe to monitor valve function. Hardwire all safety overrides to a PLC with a scan time under 10 milliseconds, using fail-safe relays for emergency shutdowns if readings deviate by more than 15% from baseline.

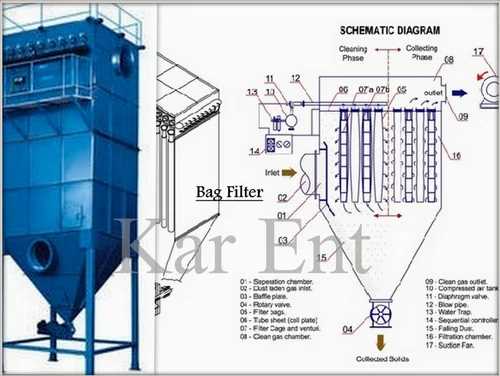

Key Components of a Fabric Separator Technical Outline
Position the dirty gas inlet at a 45-degree angle to the housing to reduce turbulence and minimize particle deposition on adjacent surfaces. This orientation improves flow distribution by creating a cyclonic effect, which enhances preliminary separation efficiency by up to 18% compared to perpendicular inlets. Ensure the inlet duct has a diameter no less than 80% of the main vessel width to prevent velocity spikes that accelerate fabric wear.
Dust collection hoppers must incorporate a minimum 60-degree slope angle for smooth material discharge and feature high-density polyethylene liners to inhibit corrosion from acidic or moisture-laden particulates. Include level sensors with dual redundancy–capacitance for dry applications and ultrasonic for sticky residues–to prevent overflow that could damage cleaning mechanisms. Hopper outlet valves should be sized at 1.5 times the maximum expected flow rate to handle surges during pulsed air cycles.
The pulse-jet cleaning system requires precise nozzle alignment–no more than 1.5mm deviation from center–over each fabric tube to ensure uniform pressure distribution. Opt for 0.7-0.9MPa compressed air at a moisture content below 50 ppm to prevent condensation that leads to dust caking. Timer-controlled solenoid valves should synchronize pulses in counterflow sequence, starting with the row farthest from the inlet, to maintain consistent resistance across the array.
Fabric tubes with expanded PTFE membranes (2-3µm pore size) achieve 99.9% capture efficiency for 0.3µm particles while maintaining lower pressure drops than traditional polyester felts. Choose antistatic variants if handling combustible dusts with resistivity above 109 Ω·cm to mitigate electrostatic hazards. Reinforce stitching at tube ends with Kevlar thread for applications exceeding 200°C to prevent seam failure during thermal expansion cycles.
Install differential pressure transmitters (range 0-2500 Pa) with ±0.25% accuracy across inlet and outlet plenums to monitor resistance buildup in real-time. Configure alarm thresholds at 1200 Pa for normal operation and 1800 Pa for forced cleaning triggers to prevent irreversible blinding. Integrate a secondary interlock that shuts down the system if pressure exceeds 2200 Pa for more than 30 seconds, protecting against catastrophic damage to the structural frame.
Core Elements of a Dust Collection Assembly and Their Operational Roles
Select a pulse-jet cleaning mechanism for high-efficiency particulate removal–opt for compressed air at 6–8 bar with 50–100 ms bursts to dislodge accumulated matter from fabric sleeves without damaging the media. Ensure the housing is constructed from carbon steel (minimum 3 mm thickness) or stainless steel for corrosive environments, with a gasketed inspection door featuring a neoprene seal rated for temperatures up to 200°C. Integrate a differential pressure gauge (0–250 mmWC range) to monitor resistance across the media, triggering cleaning cycles at 100–150 mmWC to prevent breakthrough while maintaining energy efficiency.
Critical Media and Airflow Management
Choose PTFE-coated polyester or fiberglass sleeves for applications exceeding 180°C, ensuring a minimum air-to-cloth ratio of 1.5:1 m³/min per m² for fine particulate (PM2.5) and 2.5:1 for coarse dust. Install a reverse-air inlet with a velocity of 15–20 m/s to prevent re-entrainment of dislodged particles, incorporating a venturi at the outlet of each sleeve to optimize airflow distribution. For sticky particulates, apply a surface treatment like ePTFE membrane to the media, reducing blinding while improving cake release during cleaning cycles.
Incorporate a screw conveyor at the hopper’s base, sized for 1.5 times the maximum dust load, with a 45° inclination to facilitate discharge without bridging. Use a rotary airlock valve (cast iron or stainless steel) below the hopper to isolate the collection chamber from atmospheric pressure, preventing air leakage that disrupts airflow dynamics. For explosive dusts, install a rupture disc (rated for 1.5× MAWP) and an inert gas purging system (nitrogen or CO₂) to maintain oxygen levels below 8% in the housing, alongside spark detection sensors linked to a rapid suppression system.
Step-by-Step Assembly of a Pulse-Jet Collector Housing
Start by positioning the primary chamber vertically on a flat, stable surface, ensuring the base flange aligns with pre-drilled anchor points. Secure it using M12 grade-8 bolts tightened to 85 Nm in a cross-pattern sequence to prevent distortion. Verify the gasket groove is free of debris–even a 0.5 mm particle can compromise seal integrity. Apply a thin, continuous bead of food-grade silicone (Shore A 60) to the groove if replacing the original 3-mm neoprene seal.
Mounting Internal Components
Insert the cage frames into the sleeves, confirming the collar tabs engage the housing notches with an audible click. For units exceeding 1.5 m in height, use a fiberglass spacer ring between each frame to maintain uniform spacing–deviation beyond ±2 mm causes uneven airflow. Slide the media tubes over the frames, ensuring the seam faces away from the inlet to minimize abrasion. Lock each tube with a stainless-steel band clamp tightened to 3.5 Nm using a calibrated torque wrench.
Attach the venturi nozzles to the manifold, aligning the tapered end downward. Use Loctite 577 on the 1/2″ NPT threads to prevent loosening under 5 Hz vibration cycles. Install the solenoid valves onto the air header, verifying the arrow on each valve matches the airflow direction printed on the manifold. Connect the 6 mm polyurethane hoses from valves to nozzles, securing them with single-use stainless ties every 20 cm to prevent chafing against the housing walls.
Final Checks Before Commissioning
Pressurize the system to 6 bar and apply a soap solution to all joints–bubbles indicate leaks requiring immediate re-torquing. Set the pulse controller to a 40 ms duration at 6-second intervals for standard applications, adjusting up to 12-second intervals for fibrous dust loads. Seal the access door with a triple-turn latch, ensuring the EPDM gasket compresses evenly by 25-30%–overcompression voids the warranty. Document all torque values and settings in the logbook for baseline reference during routine inspections.
How to Interpret Piping and Airflow Symbols in Industrial Layouts
Begin by identifying arrowheads–solid black indicate fluid flow direction, while hollow (white) arrows denote airflow in ventilation ducts. Check line thickness: double lines (||) represent insulated pipes, single thick lines show high-pressure conduits, and dashed lines typically mark purge or instrument air lines. Always cross-reference symbols with the legend, as ISO 14617 and ANSI Y32.11 standards differ; for example, a circle with a diagonal slash means a ball valve in ISO but a butterfly valve in ANSI.
Use this decoding table for common symbols:
| Symbol | Meaning | Material/Context | Pressure Rating |
|---|---|---|---|
| △ | Control valve (manual) | Stainless steel, carbon steel | 150–600 PSI |
| ⟐ | Check valve | Brass, PVC | 50–250 PSI |
| ↑ | Vent line | Aluminum, galvanized steel | Atmospheric |
| ≣ | Flexible hose | Rubber, braided stainless steel | 10–150 PSI |
Trace each color-coded line: red usually marks fire protection pipes (FM-approved Schedule 40), blue indicates compressed air (typically Schedule 10), and green signals waste or drainage (Schedule 80). In complex systems, locate numerical tags adjacent to valves–PN16 denotes 16 bar pressure norm, Class 150 means 150 PSI rating. Transition symbols without literal labels, like a small triangle atop a square (▲■), often signify pressure sensors or differential pressure transmitters.
Verify airflow paths using U-shaped symbols–these represent duct transitions with 45° or 90° elbows; the open end points downstream. On centrifugal fan icons, note blade orientation–forward-curved blades (↑↑) handle low-pressure applications under 2 in. w.g., while backward-inclined blades (↓↓) suit high-static systems up to 10 in. w.g. Always cross-check these interpretations against operational manuals, as variations exist between vendors like Siemens and ABB.
