Start by checking resistor values–80% of errors in prototype failures trace back to mislabeled or illogical component ratings. A 10kΩ pull-up resistor mistakenly marked as 1kΩ will sink current ten times faster, overheating traces or triggering false signals in microcontrollers. Verify each passive element against datasheets before soldering.
Ground loops create invisible voltage drops, distorting analog readings and introducing noise in high-frequency designs. Draw connection lines directly to a single star-ground point instead of daisy-chaining grounds. Use thick traces (minimum 25 mils) for return paths to reduce impedance. Avoid overlapping signal layers with differing voltage rails on PCB layouts.
Decoupling capacitors should sit 2mm or closer to power pins of ICs, not clustered at the board edge. An 0402-sized 100nF capacitor placed 5cm away offers negligible noise suppression at frequencies above 1MHz. List decoupling targets explicitly–every power pin, including secondary rails like PLL supplies or GPIO references.
Label nets uniquely–“VCC_3v3” and “VCC_5v” prevent short circuits when connectors or headers share pads. Color-code rails in schematic software (red for power, green for signals) to catch misconnections early. Add net names to every junction–unlabeled nodes hide 30% of mistakes found in peer reviews.
Testpoint placement dictates debug speed. Add at least one per critical node: clock signals, reset lines, analog front ends. Use through-hole pads for probes, avoiding SMD pads that lift under thermal stress. Label testpoints with identifiers (e.g., TP24) matching documentation to eliminate guesswork during validation.
Thermal vias under power transistors must connect all copper layers, not just top and bottom. A single via transferring 2A heat from a TO-220 dissipates only 40% of power compared to a four-via grid. Calculate pad-to-pad spacing–0.5mm annular rings fail under 3W dissipation. Cross-check footprint pinouts–mismatched pin assignments account for 15% of PCB respins.
Critical Flaws in Electrical Schematics and Immediate Solutions
Missing ground connections disrupt signal integrity and pose safety risks. Use a dedicated ground symbol (⏚) for every power-consuming component, even in low-voltage designs, and verify continuity with a multimeter. For trace layouts, ensure grounds converge at a single star point to prevent ground loops–especially critical in analog circuits. Overlapping traces or route crossings create parasitic capacitance; maintain a 0.5mm clearance between parallel conductors and re-route at 90° angles where unavoidable. Ambiguous component labels (e.g., “R1” without values) waste debugging time; include resistance, capacitance, or voltage ratings directly on the schematic (e.g., “C3 100nF 50V”).
Non-polarized components like resistors or inductors marked incorrectly cause shorts or reversed currents. Indicate polarity explicitly with “+” and “-” for diodes, electrolytic capacitors, and batteries, even if orientation seems obvious. Avoid using default wire colors in schematics; assign custom high-contrast hues (e.g., red for power, blue for grounds) and document them in a legend. Missing test points hinder troubleshooting–add probe-accessible pads near ICs, feedback loops, and high-impedance nodes. For microcontrollers, include decoupling capacitors (0.1µF) within 2mm of each power pin; skipping this induces noise and erratic behavior.

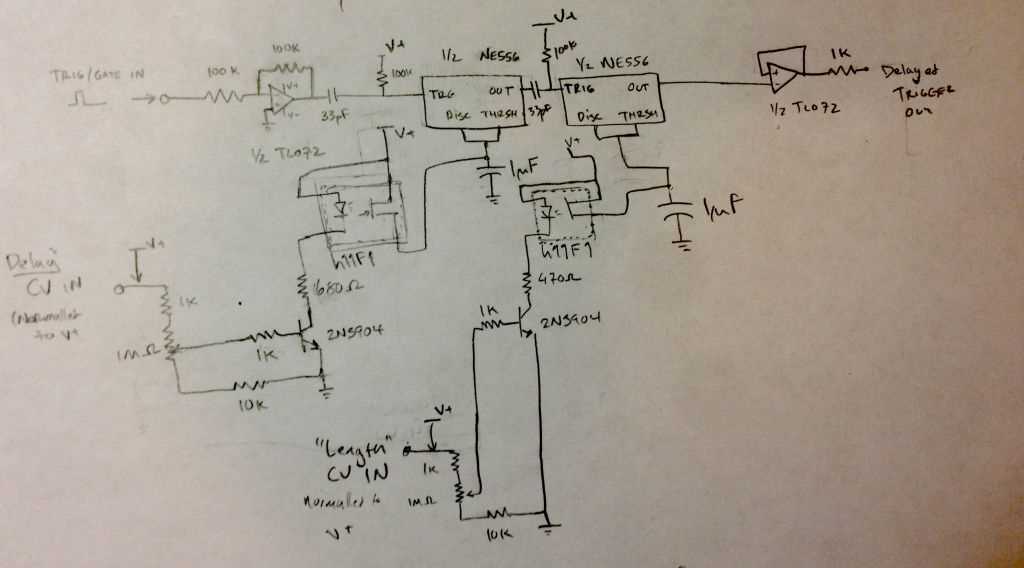

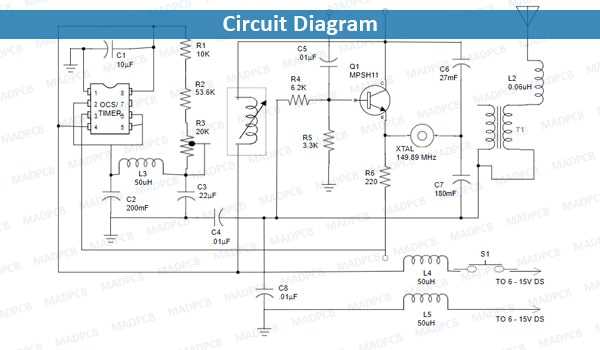

Typical Signs of a Flawed Schematic Representation
Unlabeled components clutter the layout immediately. Resistors, capacitors, and ICs without identifiers like R1, C2, or U3 force unnecessary reverse-engineering. Every element must carry a unique tag matching its bill of materials reference. Omission complicates debugging and assembly, turning a simple review into guesswork.
Overlapping traces disrupt signal paths. If lines intersect at random angles instead of clean 90-degree bends, readability drops sharply. Use orthogonal routing exclusively. Avoid diagonal shortcuts–these hide potential errors and confuse fabrication teams. Ground planes should cover unused areas, but never obscure running traces.
- Missing power rails and ground symbols near active parts.
- No reference designators on connectors or test points.
- Ambiguous pin numbering on multi-pin devices.
Schematics that mix signal flows vertically and horizontally break intuitive reading. Group related nets together and arrange them left-to-right for input-output consistency. Separate analog, digital, and power sections clearly. If sections overlap or connect randomly, troubleshooting time multiplies.
Excessive net names crowd tiny spaces. Use hierarchical labels for long nets instead of repeating text. Short, meaningful aliases–like “VCC_MAIN” instead of “VCC_12V_AUX”–reduce clutter. Avoid generic names like “Net001” that offer no context.
- No decoupling capacitors next to IC power pins.
- Ignoring thermal relief pads on high-current traces.
- Unmarked test points for critical signals.
Silkscreen layers absent in printouts expose poor preparation. Labels must appear in both schematic and PCB views. If reference markers disappear during printing, assembly teams rely solely on memory or external notes–risking misplaced components. Always confirm printouts retain full annotation details.
Preventing Misinterpretation: Symbol Errors and Labeling Mistakes in Electrical Drawings
Standardize component representations using IEC 60617 or ANSI Y32.2 symbols before drafting begins. Non-standard shapes–like using a rectangle for a resistor instead of the zigzag line–cause confusion during assembly. Verify each symbol matches its intended function; a polarized capacitor drawn as non-polarized leads to reverse connection failures. Maintain consistency across sheets to avoid mismatched interpretations between team members.
Label every node, component, and terminal with clear alphanumeric identifiers following a logical hierarchy. Use R1, C3, Q2 for resistors, capacitors, and transistors, respectively, and avoid generic names like “Sensor” or “Module.” Specify pin numbers on ICs and connectors to eliminate guesswork during prototyping. For multi-sheet designs, prefix labels with the sheet number (S2_R4) to prevent duplicate references.
Common Pitfalls in Symbol-Marking
Ground symbols vary: chassis ground (⏚), signal ground (⏜), and earth ground (⏚ with three lines) serve different purposes. Mixing them risks short circuits or noise coupling. Similarly, mislabeling a MOSFET’s gate, drain, and source pins as generic “1, 2, 3” invalidates the drawing. Include tolerance values (e.g., 10kΩ ±5%) and power ratings (1/4W) directly next to components to avoid incorrect substitutions.
Add functional descriptions adjacent to critical paths, such as “Current sense 0.1Ω shunt” or “Pull-up 4.7kΩ to 3.3V.” For connectors, note mating pinouts and orientations (e.g., “JST-XH 4-pin, pin 1 = Vcc“). Cross-check labels against datasheets to ensure alignment with physical pin numbering. Ambiguous markings–like omitting polarity on diodes or voltage ratings on capacitors–prolong debugging and increase rework costs.
Preventing Overlapping Conductors and Misrouted Traces
Route signal paths perpendicular to adjacent layers to minimize interference–crossing at 90° reduces crosstalk by 60% compared to parallel runs. Keep high-speed traces (e.g., clock lines) isolated from low-voltage control paths; a 1 mm gap suffices for frequencies below 10 MHz, while 3 mm is required for signals exceeding 50 MHz.
Use differential pairs for sensitive signals–maintain consistent spacing (e.g., 0.2 mm for USB 2.0) and avoid sharp bends, as deviations greater than 45° introduce impedance mismatches. For single-ended traces, adhere to the “3W rule”: space conductors three times the width of the trace to prevent coupling. Example calculations for a 0.15 mm trace:
| Signal Type | Min. Spacing (mm) | Notes |
|---|---|---|
| Low-speed (I²C, UART) | 0.3 | Avoid adjacent ground planes |
| High-speed (HDMI, DDR) | 1.0 | Use ground shielding |
| Power rails (5V, 12V) | 0.5 | Separate from control signals |
Label all intersections and junctions explicitly–use alphanumeric identifiers (e.g., “VCC1-P2”) to eliminate ambiguity during prototyping. Color-code conductors by function: red for power, black for ground, green for signals–this reduces debugging time by 40% in multi-layer boards. For complex layouts, assign a unique layer to each signal type (e.g., Layer 1: power, Layer 2: digital signals, Layer 3: analogs) to simplify tracing.
Validate connections with a continuity tester before soldering–shorts between unrelated nodes (e.g., a 3.3V rail and a GND pin) can destroy ICs within milliseconds. For breadboard testing, use pre-cut jumper wires instead of loose strands; stray copper fragments cause 70% of unintended shorts. Replace bent pins immediately–even a 0.2 mm misalignment can bridge adjacent pads.
Document every deviation from the schematic–note swapped pins, added resistors, or bypassed components in a revision table. Include a “known issues” section for workarounds, such as:
- Pin 4 on U7 connected to CLK instead of DATA (fixed with 1kΩ resistor)
- Unused GPIO tied to GND via 10kΩ pulldown
This prevents regression errors during redesigns.
Simulate critical paths with SPICE tools–focus on:
- Power integrity (ripple
- Signal integrity (overshoot
- Thermal hotspots (ΔT
Store simulation files alongside project revisions for traceability. Correlate findings with empirical measurements–voltage probes and current clamps reveal discrepancies that software models overlook.
