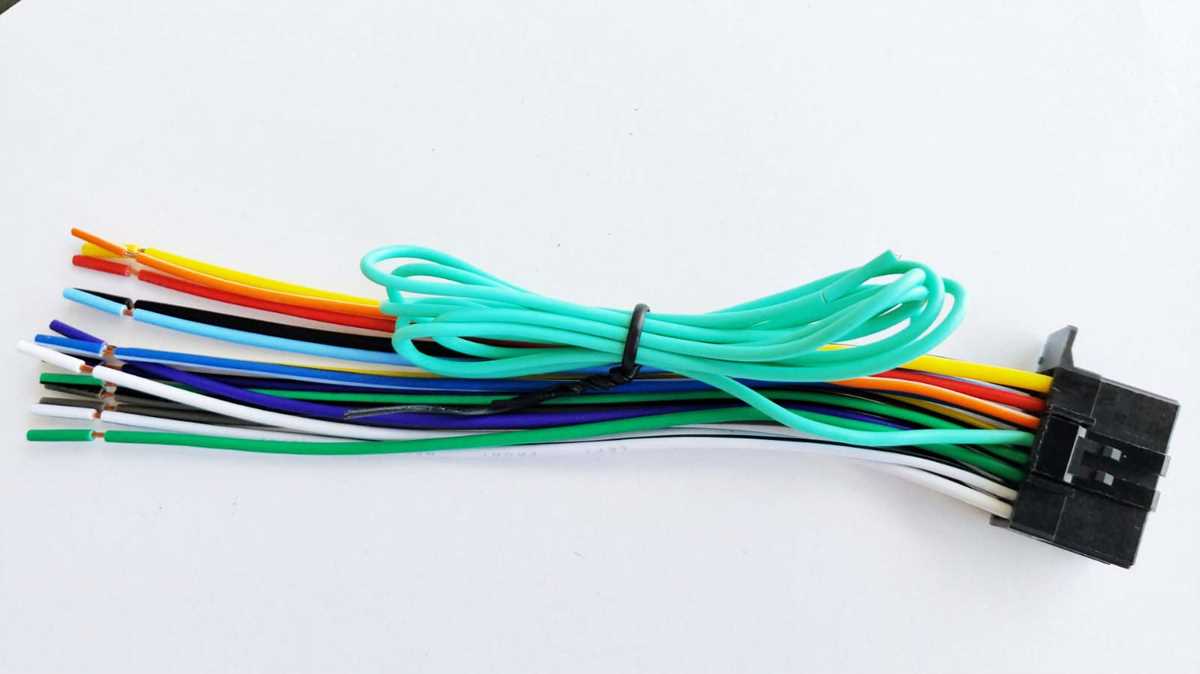

Start by locating the 16-pin harness at the back of the device–this is the primary interface for power, speakers, and accessory inputs. Match the yellow wire (constant 12V) from the vehicle’s harness to the corresponding pin, ensuring it connects to a fused power source capable of handling at least 15A. The red wire (switched 12V) must link to the ignition circuit to enable standby mode and prevent battery drain. Verify these connections with a multimeter before proceeding–incorrect wiring risks permanent damage to the system’s internal circuitry.
For speaker outputs, follow the standard color coding:
- Front right (+): gray
- Front right (-): gray/black stripe
- Front left (+): white
- Front left (-): white/black stripe
- Rear right (+): purple
- Rear right (-): purple/black stripe
- Rear left (+): green
- Rear left (-): green/black stripe
Strip no more than 5mm of insulation from each wire to avoid short circuits. Secure connections with solder or high-quality crimp connectors–twisting wires alone is insufficient for long-term reliability.
Grounding requires the black wire to attach directly to the vehicle’s chassis using a M6 or larger bolt. Sand away any paint or corrosion at the connection point to ensure a clean, conductive surface. For parking brake and reverse signal integration, connect the light blue/white wire to the parking brake switch and the pink wire to the reverse light circuit–this enables full functionality of video playback and rearview camera activation.
If the system fails to power on, check for blown fuses (typically 10-20A on both the device and vehicle side). For no sound, confirm all speaker wires are correctly paired with their negative counterparts–crossing polarity will mute the audio. Refer to the unit’s service manual for pinout specifics if using an adapter harness, as third-party models may alter standard wire assignments.
AVH-280BT Connection Schema: Hands-On Installation Tips
Start by identifying the vehicle’s harness colors against the head unit’s pinout: the Pioneer harness uses purple/white for rear left (+), purple for rear left (-), green/white for rear right (+), and green for rear right (-). Mismatched wiring risks weak audio or speaker damage. Verify the ground wire (black) connects to a bare metal point–scratch paint if needed to ensure solid contact. For power, the yellow constant 12V wire must link to the battery fuse box via a 20A fuse, while red ignition-switched 12V ties to the accessory circuit. Skipping the fuse invites fire hazards.
Install an external amplifier? Use the blue/white remote turn-on wire, which outputs 12V when the unit powers up. Splice this into the amp’s remote input–no current here means the amp stays off. For steering wheel controls, match the adapter’s wiring (usually blue/yellow) to the vehicle’s data bus; incorrect pairing disables functions. Parking brake and reverse signals (light green and pink, respectively) require direct taps to the OEM harness. Incorrect connections may trigger error codes or disable camera input.
- Label all wires before cutting to avoid confusion.
- Use solder and heat shrink for permanent joints; crimp connectors work for testing.
- Set the unit’s dimmer wire (orange) to “Vehicle” in settings if your dash has auto-dimming.
- Avoid routing power wires near RCA cables to prevent interference.
- Test each connection with a multimeter before securing panels.
Matching Wire Colors and Terminals for Head Unit Model AVH-X280BT Integration
Begin by locating the yellow wire on the vehicle’s harness–this must connect to the car’s 12V constant power source, typically found at the fuse box near the battery. Use a multimeter set to DC voltage to verify it maintains 12V even when the ignition is off. Avoid tapping into switched sources like accessory or ignition wires, as these will prevent the unit from retaining memory or resuming after shutdown.
Pair the red ignition wire with a switched 12V source controlled by the key. Common attachment points include the fuse box (using an add-a-circuit) or the ignition switch’s ACC terminal. Confirm voltage drops to 0V when the key is removed; incorrect connections will drain the battery or prevent the stereo from powering on. Never combine yellow and red; doing so disrupts the unit’s timer and theft-alert functions.
Ground the black wire directly to a bare metal chassis point, avoiding painted surfaces or thin bolts. Scrape off rust or coating until shiny metal is exposed, then secure it with a star washer to ensure a low-resistance path. Poor grounding causes noise interference, turn-on pops, or erratic behavior like screen flickering. For best results, keep the ground wire under 30 cm long and route it away from other cables.
Speaker outputs require precision matching:
- Front left: Gray (+) and gray/black (-)
- Front right: White (+) and white/black (-)
- Rear left: Green (+) and green/black (-)
- Rear right: Purple (+) and purple/black (-)
Reverse polarity distorts audio; test each pair with a 1.5V AA battery before finalizing connections. The remote turn-on (blue/white) must link to the amplifier’s remote input to prevent thumping noises during startup. If no external amp exists, cap this wire with a 3.5A fuse to avoid shorts.
For steering wheel controls, splice the pink data wire into the vehicle’s CAN bus or SWI harness. Verify compatibility using the unit’s manual, as incorrect pairing may disable buttons or trigger error codes. Use a non-crimp splice connector to avoid signal degradation; bare wire twists or electrical tape degrade over time, causing intermittent failures.
Dim the display by connecting the orange illumination wire to the vehicle’s dash light circuit. This wire typically carries 12V only when headlights are on; confirm with a test light before attaching. Some cars require an inline 470Ω resistor to prevent over-brightness during night driving. Avoid connecting to the brake light circuit, as voltage spikes will damage the unit’s lighting controller.
After securing all connections, wrap each joint in adhesive-lined heat shrink tubing, not electrical tape. Route cables away from moving parts, sharp edges, and hot exhaust components. Power on the system and check:
- Unit powers off and on with ignition
- Clock retains time after shutdown
- Audio levels are balanced across all speakers
- Steering wheel buttons register correctly
- Screen dims when headlights activate
If issues persist, disconnect the battery for 10 minutes to reset the unit’s internal fuse before re-testing.
Step-by-Step Power and Ground Wire Connection for Pioneer Head Unit
Locate the ignition-controlled yellow wire (14 AWG minimum) and connect it directly to the vehicle’s fused ignition circuit–never splice into accessory wires or unfused circuits. Use a 15-amp ATO fuse within 18 inches of the battery terminal to prevent voltage drop or fire hazards. Strip 5/16″ of insulation, crimp with a closed-barrel connector, and solder for vibration resistance. For ground, attach the black wire (also 14 AWG) to a bare metal chassis point near the unit’s mounting location–sand paint to bare metal if needed–using a 10-mm ring terminal secured with a stainless-steel bolt.
Test connections with a multimeter before finalizing; ignition voltage should read 12–14.5V, and ground should show 0.1Ω or less. Avoid common ground loops by keeping signal grounds separate from high-current paths. If popping occurs during audio playback, relocate the ground to a different chassis point or add a 0.1μF capacitor between power and ground at the head unit’s terminals.
Preventing Audio Distortion When Linking Speakers to Your Pioneer System
Strip no more than 6mm of insulation from speaker cables using precision wire strippers–excess exposed copper increases resistance and risks短路. Twist strands tightly before insertion to prevent loose strands from contacting adjacent terminals; even a single stray filament can degrade signal clarity. Secure connections by tightening terminal screws firmly but without excessive force–overtightening warps metal contacts, while loose connections cause intermittent dropouts.
Recommended Cable Gauges and Terminal Compatibility
| Speaker Power (Watts RMS) | Optimal Cable Gauge (AWG) | Terminal Type |
|---|---|---|
| 15–30 | 18–20 | Spring-loaded clamp |
| 30–60 | 16–18 | Screw-down post |
| 60–100 | 14–16 | Bare wire (tinned) |
Match polarity meticulously–positive (red or striped) to positive, negative (black or plain) to negative. Inverting polarity reverses phase, canceling bass frequencies and creating a hollow soundstage. Verify connections with a multimeter set to continuity mode before powering on; a beep confirms correct pairing, while silence indicates a reversal or break. For aftermarket amplifiers, use crimp connectors with heat-shrink tubing to eliminate corrosion risks from exposed wire.
Connecting Parking Brake and Vehicle Speed Inputs for Safe Media Display
Connect the parking brake switch wire to a reliable grounding point only when the vehicle is stationary. Use a 12V relay triggered by the parking brake circuit to ensure stable signal detection. Solder all joints and insulate them with heat-shrink tubing to prevent corrosion or short circuits. Verify the switch activates properly by testing with a multimeter–voltage should drop to 0V when engaged. False triggers can disable safety features, leading to display malfunctions.
Locate the vehicle’s speed pulse output, typically found in the instrument cluster or behind the speedometer. If direct access isn’t available, splice into the VSS (Vehicle Speed Sensor) wire, ensuring compatibility with the head unit’s pulse-per-mile requirements. Many models require a frequency range of 2,000–20,000 pulses per mile; confirm this spec in the vehicle service manual. Use a dedicated signal conditioner if the output frequency mismatches the media system’s input expectations. Avoid tapping into multimedia system wires tied to other modules to prevent signal interference.
Route the speed signal wire through the dash harness, avoiding sharp edges or moving components. Secure it with zip ties every 12 inches to prevent damage from vibrations. The media system uses this signal to enforce video safety restrictions–incorrect wiring may either disable video playback entirely or fail to engage safety locks while driving. Test the setup by moving the vehicle forward at low speed while attempting to access video content; playback should automatically pause if the connection is correct.
For aftermarket installations, bypass the safety interlocks only for diagnostic purposes. Modify settings through the system’s service menu using the manufacturer’s specified sequence–failure to follow precise steps can void warranties or trigger system errors. Keep backup power connected during testing; sudden power loss can corrupt settings. Always recheck all connections after installation, as loose wires are a leading cause of intermittent failures in motion-based restrictions.
