Start by identifying the correct output type on your device–line-level RCA or 3.5mm jack. Most factory sound systems expect line-level signals (typically 1V RMS), while aftermarket units may accept higher voltages. Measure the output voltage with a multimeter; voltages above 2V can overload inputs, causing distortion. If your source outputs 4V or more (e.g., some tablets or smartphones), insert a passive volume attenuator (two resistors in a voltage divider configuration) to reduce the signal by 50-70%. Use 1kΩ and 470Ω resistors for a typical 2:1 reduction.
Use oxygen-free copper (OFC) cables with foil shielding to prevent interference from alternators, ignition systems, or Bluetooth modules. Avoid untwisted pairs–twist cables at 4-6 turns per inch to cancel out electromagnetic noise. Ground the shield at one end only (preferably the head unit side) to prevent ground loops. If hum persists, inject a ground loop isolator (GLI) rated for at least 500mA; cheaper models clip high frequencies and degrade audio fidelity.
Check the pinout before soldering connectors. For 3.5mm plugs, the tip carries the left channel, the ring carries the right, and the sleeve is ground. Reversing polarity (e.g., connecting ground to ring) can damage amplifier inputs or cause mono playback. For RCA connectors, the center pin is signal, and the outer sleeve is ground. Solder joints should be insulated with heat-shrink tubing to prevent shorts from vibrations.
Verify impedance compatibility. Most car receivers have an input impedance of 10-50kΩ; connecting a low-impedance source (e.g., guitar pickups, some turntables) without proper matching distorts the signal. Use a buffer amplifier (e.g., a JFET preamp) to raise impedance if necessary. For balanced connections (XLR or TRS), use differential wiring: positive to pin 2 (XLR) or tip (TRS), negative to pin 3 or ring, and ground to pin 1 or sleeve.
Test connections with a weak signal first. Play a -18dBFS sine wave and gradually increase volume. If clipping occurs before 75% volume on the head unit, the signal level is too high–adjust attenuation or add a resistive pad. For digital sources (e.g., USB audio), ensure the converter supports the sample rate (44.1kHz/16-bit minimum) and delivers a clean clock signal to avoid jitter-induced artifacts.
Setting Up an Audio Connection Interface: Visual Guidance

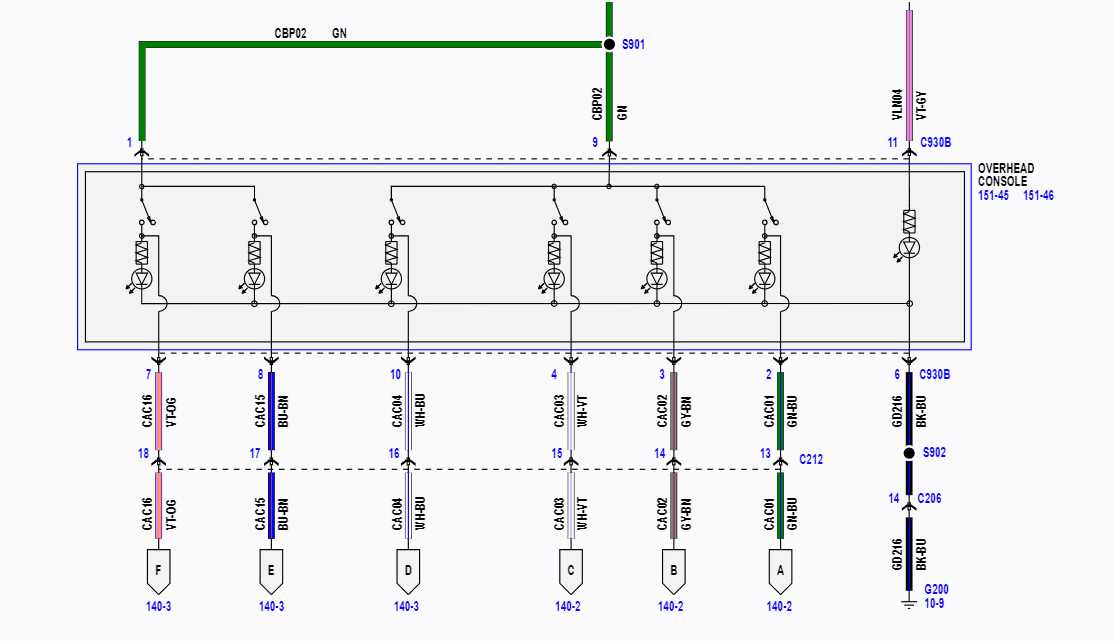

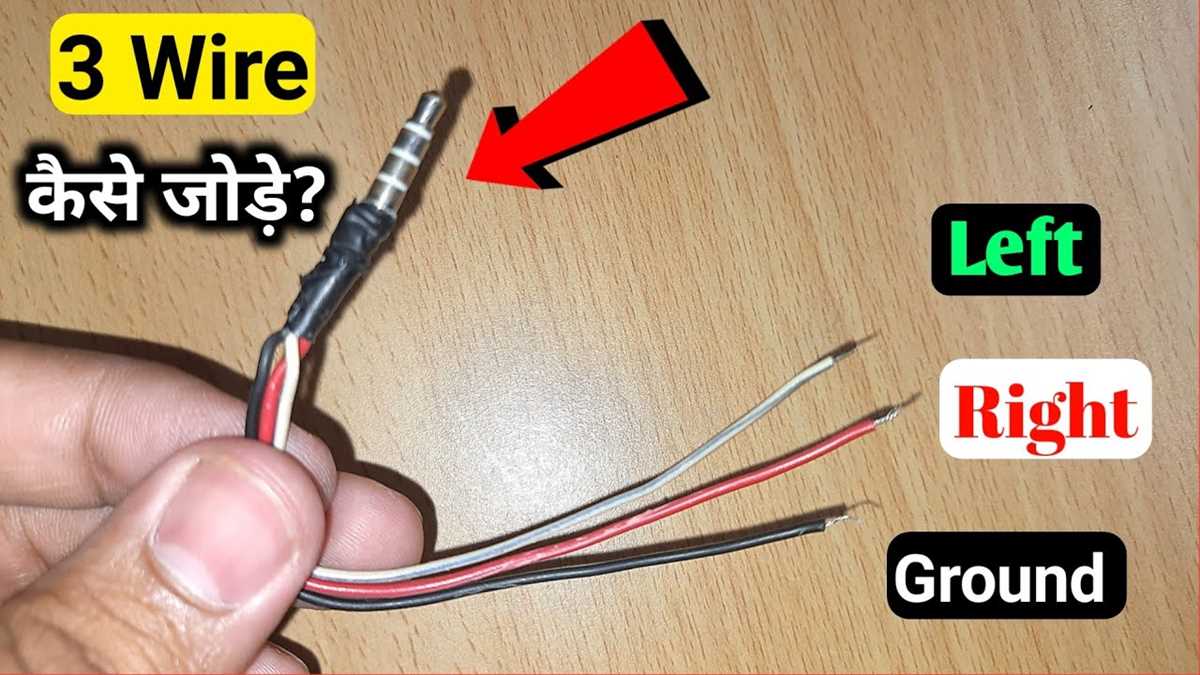

Begin by identifying the left, right, and ground channels on your 3.5mm connector–standard colors are white (left), red (right), and bare copper (ground). Mismatching these will invert stereo channels or introduce noise.
For car stereos, check the head unit’s manual for dedicated auxiliary input options. Some models require soldering a 3.5mm jack directly to the PCB at labeled pads (e.g., “AUX IN” or “LINE IN”). If unsure, trace the paths from the unit’s preamp stage to locate the input points–these often accept 1–2V RMS signals without attenuation.
Use shielded cable for runs longer than 1 meter to prevent signal degradation. Connect the shield to chassis ground at both ends, but avoid daisy-chaining grounds with other components to prevent ground loops. For home setups, prefer RCA interconnects–convert 3.5mm to RCA using an adapter if needed, ensuring impedance matches (typically 10kΩ for consumer equipment).
- Test each connection with a multimeter: continuity between channels should read near 0Ω, while signals should float at ~1.5V AC when playing audio.
- Avoid twisting power wires near audio cables–separate high-current paths by at least 10cm or route them perpendicularly.
- For portable devices, verify voltage compatibility; some smartphones require 3.3–5V on the mic line for detection (e.g., iPhones need a 1kΩ resistor between ground and mic).
If hum persists, insert a ground loop isolator inline–these use audio transformers to break DC paths while preserving signal fidelity. Capacitive coupling (0.1µF ceramic caps) can also block DC offset on lines prone to interference, but avoid capacitors on power-sensitive circuits like active preamps.
Troubleshooting Uncommon Issues
Symptoms like one muted channel or distortion at high volumes often point to incorrect resistance values. Measure the load impedance of your source and destination–most car stereos expect 1k–10kΩ, while powered speakers may demand 47kΩ. Amplifiers with balanced inputs (XLR/TRS) need phase-matched signals; reverse-polarity connections will cancel audio.
- If using a custom harness, terminate connectors with soldered connections–not crimped–to avoid oxidation over time.
- Label each wire at both ends with heat-shrink tubing to simplify future modifications.
- For microphones, use a 3.5mm TRRS connector (tip/ring/ring/sleeve) and refer to the pinout: sleeve = ground, ring1 = mic, tip = left, ring2 = right.
Locating Secondary Audio Connector Terminals in Your Vehicle Sound System
Begin by examining the rear of your head unit for a group of RCA jacks or small labeled pins marked LINE IN, AUDIO IN, CD IN, or EXT. These are typically color-coded red and white for right and left channels. If the terminals are present but unmarked, trace the wires to the main circuit board–secondary audio inputs usually connect to a dedicated preamp stage separate from FM/AM or internal media sources.
Check the owner’s manual or service documentation for a pinout schematic; manufacturers often label auxiliary ports with terms like “External Signal Input” or “Rear Output”. For aftermarket units, look for harness adapters with standard ISO connectors–auxiliary inputs may be grouped with power, ground, or speaker outputs but will lack direct speaker wire thickness. Measure voltage with a multimeter: legitimate input pins will show near-zero DC offset (under 0.1V), unlike power terminals which carry 12V.
If the head unit lacks visible jacks, inspect the internally routed harness for loose wires ending in female RCA plugs or 3.5mm mini-jacks tucked behind the dashboard. Some OEM systems integrate auxiliary input through proprietary connectors like Ford’s SYNC module port or Toyota’s MOST bus–these require specific breakout cables available from the automaker or third-party suppliers. Avoid tapping into speaker wires directly; this can overload the amplifier circuit and degrade audio quality.
For factory-installed premium sound systems (e.g., Bose, Harman Kardon), auxiliary input terminals may be hidden within amplifier modules under seats or behind kick panels. Locate the system’s amplifier first by following thick cables from the head unit–auxiliary inputs there will use thin coaxial cables or optical connectors if digital. If unsure, probe potential pins while playing a test tone: correct inputs will relay a clean signal with negligible interference.
When dealing with touchscreen or navigation units, auxiliary functionality might be software-controlled rather than hardware-accessible. Verify through the system menu for options like “Media Input” or “Audio Source Selection”–some automakers disable these inputs by default, requiring enabling via diagnostic software (e.g., Ford IDS, Toyota Techstream). For persistent issues, consult vehicle-specific forums where users often share exact pin assignments extracted from dealer schematics.
Step-by-Step Guide to Soldering Audio Cable Leads for Durability
Heat your soldering iron to 350-400°C (660-750°F) and tin the tip with a thin layer of solder to improve heat transfer. Strip 3-5mm of insulation from each conductor, twist the strands tightly, and apply flux to prevent oxidation. Hold the iron against the wire and pad simultaneously for 2-3 seconds before feeding solder–use 0.5-0.7mm diameter rosin-core solder for consistent joints. Keep the solder flow directed at the connection, not the iron tip, to avoid cold joints. Inspect each joint for a shiny, concave meniscus; dull or bulbous shapes indicate weak conductivity.
Insulating and Securing Joints
Slide 1.5mm-wide heat-shrink tubing over each soldered lead before joining multiple channels to prevent short circuits. Use transparent tubing for visual confirmation of coverage. Trim excess wire length to 1-2mm beyond the joint to reduce interference, then apply heat evenly with a heat gun at 120-150°C (250-300°F) until tubing conforms snugly. For ground wires, bundle conductors with a single layer of electrical tape before applying a final wrap of larger-diameter tubing to shield the entire assembly. Verify insulation resistance with a multimeter set to 20MΩ–readings below 1MΩ require rework.
Selecting Optimal Cable Specifications for Secondary Audio Connections
For most aftermarket speaker upgrades in vehicles, 16-gauge stranded copper conductor cables provide sufficient current capacity while balancing cost and flexibility. This thickness handles continuous loads up to 15 amperes–adequate for amplifiers rated under 200 watts RMS per channel at 4 ohms. Solid-core variants should be avoided due to brittleness and poor vibration resistance in automotive environments.
When powering high-output subwoofer drivers (500W+ at 2 ohms), upgrade to 12-gauge oxygen-free copper (OFC) wires. The reduced resistance (1.68 ohms per 1,000 feet) minimizes voltage drop over runs exceeding 12 feet, preserving low-frequency dynamics. For runs under 6 feet, 14-gauge remains viable, but verify amplifier current draw using Ohm’s Law: I = √(P/R), where I is current, P is power, and R is load impedance.
| Cable Thickness (AWG) | Max Continuous Current (A) | Suitable Amplifier Power (RMS @ 4Ω) | Typical Resistance (Ω/1k ft) |
|---|---|---|---|
| 18 | 10 | ≤ 100W | 6.51 |
| 16 | 15 | ≤ 200W | 4.09 |
| 14 | 20 | ≤ 300W | 2.58 |
| 12 | 30 | ≤ 500W | 1.62 |
| 10 | 40 | > 500W | 1.02 |
Tinned copper conductors resist corrosion in humid or high-temperature applications, such as engine bays or near exhaust components. Uncoated copper oxidizes over time, increasing resistance by up to 20% after 5 years in exposed installations. Silicone-jacketed cables endure temperatures from -50°C to 200°C, making them ideal for high-performance or tightly enclosed amplifier compartments.
For signal interconnects between source units and amplifiers, shielded twisted-pair (STP) cables prevent electromagnetic interference (EMI) from alternators or ignition systems. A foil shield with 90% coverage reduces noise by 40dB compared to unshielded variants. Avoid excessively thick insulation on signal paths–over 0.5mm jacket thickness can degrade high-frequency response above 10kHz.
Green/yellow ground paths must match or exceed the power cable thickness to prevent potential differences. A common mistake is using 18-gauge ground wires with 12-gauge power leads, creating a bottleneck. Grounding points should be bare metal, free of paint or coatings, and less than 18 inches from the amplifier’s chassis. Use star washers to penetrate surface oxidation on chassis connections.
Dual-layer nylon-braided cables resist abrasion from moving parts but add stiffness–pre-form bends before installation to avoid stress points. For marine installations, use marine-grade cables meeting UL 1426 standards, which include water-blocking compounds and UV-resistant jackets. Non-marine cables absorb water through microscopic pores, leading to short circuits within 12–18 months in saltwater environments.
Nickel-plated brass terminals prevent galvanic corrosion when connecting dissimilar metals, such as copper to aluminum amplifier outputs. Gold-plated connectors are unnecessary unless dealing with microvolt-level preamp signals in studio-grade head units. Crimp connectors should be soldered if subjected to vibration–uncrimped joints loosen under 5–10g of force, causing intermittent failures.
For hybrid systems combining analog and digital signals, separate conduits reduce crosstalk. HDMI-grade Category 2 cables (18 Gbps bandwidth) handle 4K video alongside audio but require ferrite cores at both ends to suppress RF emissions. Balanced XLR interconnects reject noise better than RCA for runs over 20 feet, though they require differential-input amplifiers.
