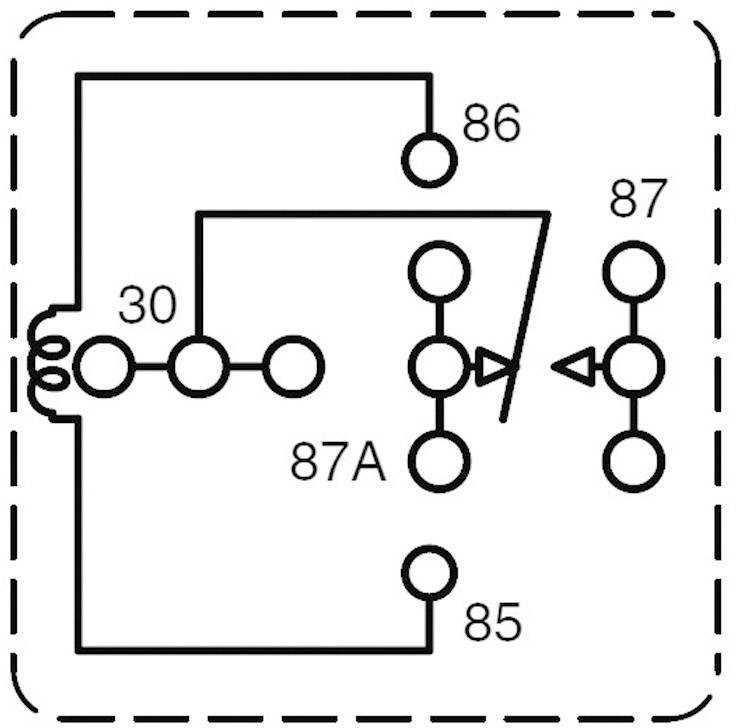

Start by identifying the coil resistance on the control side–most 12V variants range between 60 and 120 ohms. Values outside this band signal either a shorted winding or an open circuit, requiring immediate replacement. Pin arrangements follow a near-universal standard: terminals 85 and 86 manage the control coil, while 30 (common), 87 (normally open), and 87a (normally closed) handle the load path. Deviation from this layout is rare, but always cross-reference with the manufacturer’s data sheet.
Measure before energizing: apply a 12V direct source across pins 85 and 86 and listen for an audible click–absence indicates a faulty unit. Proceed to probe the load contacts with a multimeter set to continuity mode. Between 30 and 87, closed contacts should show 0 ohms; between 30 and 87a, infinite resistance confirms proper disconnection. Any other reading suggests contact pitting or carbon buildup, mandating cleaning with contact cleaner or replacement.
Wire gauge selection hinges on anticipated current draw. A 30A switching element demands at least 14 AWG copper conductor, while 40A ratings necessitate 12 AWG minimum. Undersizing leads to voltage drop under load, which can exceed 0.5V–triggering erratic behavior in fuel pumps, headlights, or cooling fans. Always fuse the supply side within 7 inches of the battery to prevent fire hazards.
Solder vs. crimp: solder joints offer superior conductivity but risk cold joints under vibration; crimped terminals resist mechanical stress better. Use heat-shrink tubing over crimps to seal against moisture and corrosion. When soldering, avoid rosin-core flux residue–clean with isopropyl alcohol to prevent dendritic growth.
Testing under real-world conditions involves simulating inductive loads. Connect a 12V incandescent bulb (21W) or a motor with similar inrush characteristics. Monitor voltage drop across contacts during energization–tolerable loss remains under 0.3V. Any spike above this threshold indicates internal resistance, necessitating replacement. For high-current applications (e.g., starter solenoids), employ a dedicated flyback diode (1N4007) across the coil to suppress voltage transients.
Understanding Vehicle Switching Unit Wiring Layouts
Start by identifying the coil pins–typically marked 85 and 86–on your control circuit layout. Apply a multimeter to verify voltage between these points; expect 12V when energized. Failure here often traces to faulty connections or blown fuses in the triggering pathway.
Examine the load circuit terminals–usually 30 (common) and 87 (normally open). Ensure the switching mechanism engages fully; a weak click or intermittent actuation suggests corrosion or worn contacts. Clean terminals with a contact cleaner rather than abrasives, which can damage plating.
- Terminal 30 always carries the supply voltage, even when inactive.
- Terminal 87a (if present) is the normally closed contact and disconnects when energized.
- Terminal 87 bridges to 30 only when the coil receives power.
Use a diode across the coil–cathode to positive–to suppress voltage spikes when deactivating. Without suppression, inductive kickback can damage sensitive control modules or trigger erroneous dashboard warnings. Test the diode with a simple continuity check before installation.
For high-current applications, such as auxiliary lighting or cooling fans, match wire gauge to expected load: 12 AWG for up to 20A, 10 AWG for 30A, and 8 AWG for 40A+ continuous draw. Undersized wiring creates heat buildup and fire hazards.
- Disconnect the battery before probing or modifying circuits.
- Label wires during disassembly to avoid misalignment during reassembly.
- Solder and heat-shrink connections–crimps alone can loosen over time.
Common failure points include corroded relay sockets, loose terminal screws, and oxidation on contact surfaces. Replace the socket if melted plastic or deformed metal is visible–indicators of overheating. For sealed units, cut open the housing to inspect internal damage if intermittent faults persist.
When troubleshooting, swap an identical known-good unit into the suspect position. If symptoms disappear, the original was defective. If issues remain, the fault lies elsewhere in the pathway–check the fuse, switch, load grounding, and wiring harness integrity with a load tester.
How to Interpret a Vehicle Switching Unit Wiring Blueprint
Locate the pinout legend on the component’s casing or technical datasheet–typically marked with numbers 85, 86, 30, and 87. Pin 85 connects to the control trigger, often a switch or module, while 86 grounds the coil circuit; miswiring here prevents activation. Pin 30 acts as the common input, receiving power from the battery or fuse, and 87 delivers output to the load–fans, lights, or pumps–when energized. Cross-reference these assignments with the color codes in the blueprint: red usually denotes 12V constant, yellow or green for switched outputs, and black or brown for ground. Verify continuity with a multimeter before connection to avoid short circuits or unintended current paths.
Common Configuration Variations
| Pin Arrangement | Typical Application | Key Indicator |
|---|---|---|
| SPST (85-86 coil, 30-87 contacts) | Headlight circuits | Diode across coil pins |
| SPDT (87a as normally closed) | Fuel pump priming | Current draw test at startup |
| Multi-pin (additional 87b) | Dual cooling fans | Separate output wires |
Ensure the load’s wattage does not exceed the unit’s rated capacity–check the stamp on the housing (e.g., 30A/14VDC). For high-current devices like starter motors, use a unit with built-in suppression diodes to protect the control circuit from voltage spikes. If the wiring blueprint includes a resistor symbol near the coil, note its value (usually 100-200 ohms) for proper triggering module compatibility. Trace each wire from the unit to its destination, confirming no splices or corrosion disrupt the path; oxidized terminals can drop voltage below the required activation threshold.
Key Components and Symbols in Car Switching Circuit Blueprints
Always start by identifying the coil–marked as a rectangle or curved line in ISO standards–since it dictates the control path’s behavior. Coils in 12V circuits typically draw 80–120 mA, so cross-reference this with the fuse rating upstream to prevent voltage drops. If the coil resistance isn’t labeled, measure it with a multimeter; a value below 50Ω suggests a high-current variant requiring a dedicated driver transistor.
Contact Configurations and Their Labels
SPST, SPDT, DPST, and DPDT contacts are the most common, each serving distinct load-handling roles. SPST (single-pole, single-throw) handles simple on/off tasks like horn circuits, while SPDT (single-pole, double-throw) switches between two outputs–critical for cooling fan modes. DPST (dual-pole) variants manage dual loads independently, such as headlights with separate low/high beams. Check the diagram for “NC” (normally closed) and “NO” (normally open) labels–mixing these up risks shorting power to grounded components.
Load contacts must match the current rating: 20A for basic lighting, 30–40A for motors (window regulators, compressors), and up to 70A for starter circuits. Look for arc suppression symbols–often a diode or resistor across the coil–to protect against voltage spikes. Omitting this in high-inductive loads (fuel pumps, solenoids) shortens contact life, causing pitting and eventual failure.
Pin numbering varies by manufacturer: Bosch uses 85/86 for coil and 30/87 for contacts, while Tyco/Potter & Brumfield labels differ. Always verify against the datasheet–confusing 87 and 87a (SPDT variants) can route power unintentionally. For PCB-mounted units, note thermal pads; some designs require thermal grease to handle 5W+ dissipation.
Auxiliary Elements Often Overlooked
Flyback diodes (marked as a triangle against a line) must face the correct polarity; reverse installation renders them useless. In circuits with microcontrollers, add a snubber (RC network, typically 0.1µF + 100Ω) to suppress noise that could trigger false activations. For high-side switching, confirm the control module outputs 12V (not 5V logic)–optocouplers may be needed to bridge the voltage gap.
Test points should be labeled if used in diagnostic blueprints; common examples include “S” for signal input and “L” for load output. In multiplexed systems, shunt resistors (marked as zigzag lines) monitor current flow–calculate voltage drop (usually 50–100mV) to avoid tripping alarms. Always cross-check symbols with the legend if color-coding exists: red typically denotes power, blue for ground, and yellow for switched outputs.
Constructing a Switching Unit Circuit: A Practical Walkthrough
Select a control module rated for 12V operation with a coil resistance between 60Ω and 150Ω to match common vehicle voltage systems. Verify the contact configuration–SPDT or DPDT–based on load requirements; a 30A current capacity suits most auxiliary lighting setups.
Gather components: a 12V DC power source, load (e.g., halogen bulb or motor), momentary pushbutton, flyback diode (1N4007), and connecting wires (22-18 AWG). Ensure the diode’s cathode aligns with the positive terminal of the coil to suppress voltage spikes during deactivation.
Trace the electromechanical illustration: the coil pins typically occupy one side (e.g., 85 and 86), while commutation contacts span the opposite edge (e.g., 30, 87, and 87a). Confirm pin assignments with a multimeter in continuity mode before soldering or crimping connections.
Route the ground wire directly to the chassis or negative battery post for minimal resistance. Avoid grounding through threaded connections prone to corrosion; use a dedicated terminal with star washers for secure contact.
Wire the control side first: connect the pushbutton between the battery positive and coil terminal (86), then link the remaining coil terminal (85) to ground. Test continuity by pressing the button–the coil should audibly engage, indicating proper activation.
Attach the load circuit: bridge the common contact (30) to the battery positive via a fuse (20-30A). Connect the normally open contact (87) to the load’s positive terminal, leaving the normally closed contact (87a) unused unless bypass functionality is required.
Verify all solder joints or crimps for cold connections–a faulty link may intermittently drop voltage under load. Deburr wire ends to prevent short circuits, and insulate exposed conductors with heat-shrink tubing or electrical tape rated for 600V.
Power the system and observe: the load should activate upon button press. If inconsistent, measure voltage at the coil during activation (expect ~12V); a drop below 10V suggests insufficient current or corroded terminals. Replace the component if contacts exhibit pitting or resistance exceeds 0.5Ω.
