Begin by isolating the circuit you need to diagnose. Locate the fuse box or relay panel–most manufacturers label them with color-coded reference tables inside the cover. A 2023 GM Sierra, for example, uses a purple stripe for the fuel pump relay feed, while a Toyota Camry employs red/white for the ignition switch output. Cross-reference these with the vehicle’s service manual; third-party platforms often omit ground points or splice connections.
Trace wires backward from the component to the power source. Use a multimeter in continuity mode (not voltage) to confirm unbroken paths. A reading above 0.5 ohms suggests corrosion–clean terminals with a 1200-grit abrasive pad, not sandpaper, to avoid stripping copper. For hybrid systems like the Ford Escape PHEV, disconnect the 12V auxiliary battery first to prevent high-voltage arcs.
Label every connection you disconnect. A zip-tie with tape flag prevents mix-ups between sensors that share identical connectors (e.g., MAP vs. TPS). For BMW models, the FEM module often hides behind the glove box–remove the dashboard trim using a plastic pry tool to avoid cracking brittle clips. Store removed connectors in a labeled plastic bag to prevent dust ingress.
Replace factory wiring only with cross-linked polyethylene (XLPE) cable. Standard PVC melts at 75°C–common in engine bays. For aftermarket upgrades, use heat-shrink tubing with adhesive lining, not electrical tape. On harness repairs, stagger splices by 5 cm to distribute stress; crimp with a ratcheting tool, never pliers. Mercedes-Benz uses micro-relays–check for 2.2 kΩ resistance across the coil before replacing.
Scan for intermittent faults using an oscilloscope. Set the trigger to 0.5V; a Nissan Leaf’s charger circuit should show a clean 14V square wave. If the waveform distorts, inspect the inverter’s cooling fins–debris causes thermal shutdowns. For Tesla Model 3, the high-voltage interlock loop (HVIL) requires a bidirectional scan tool; generic OBD-II adapters won’t read it.

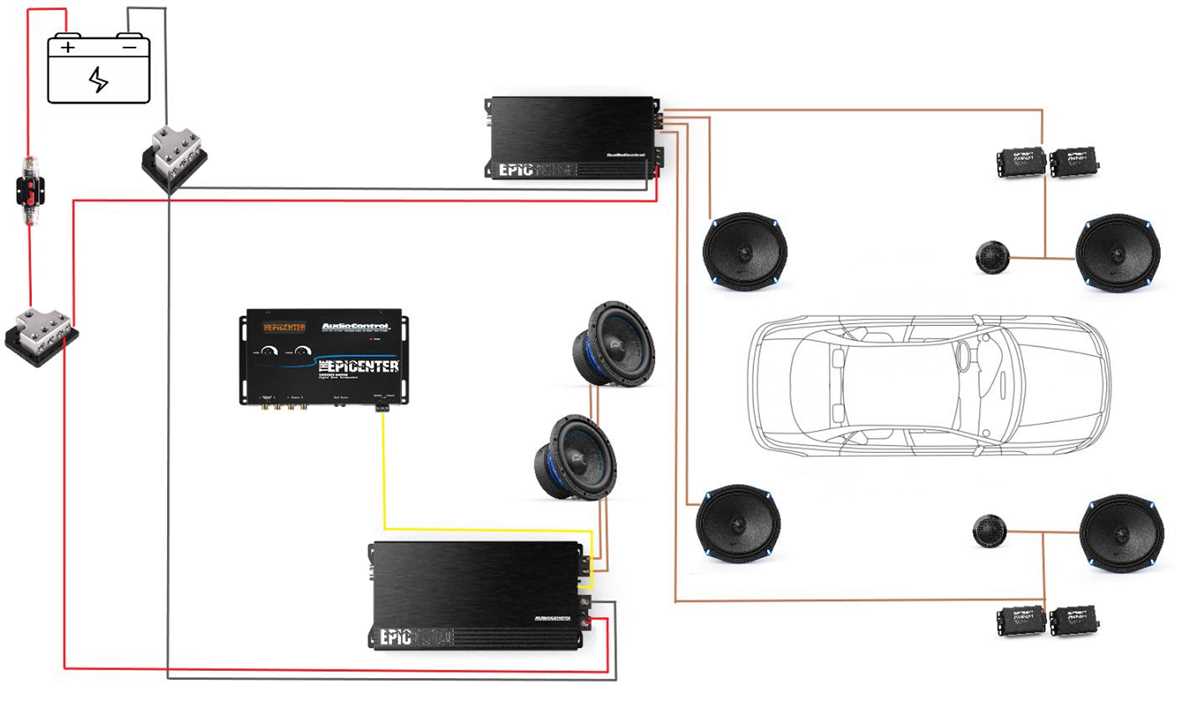

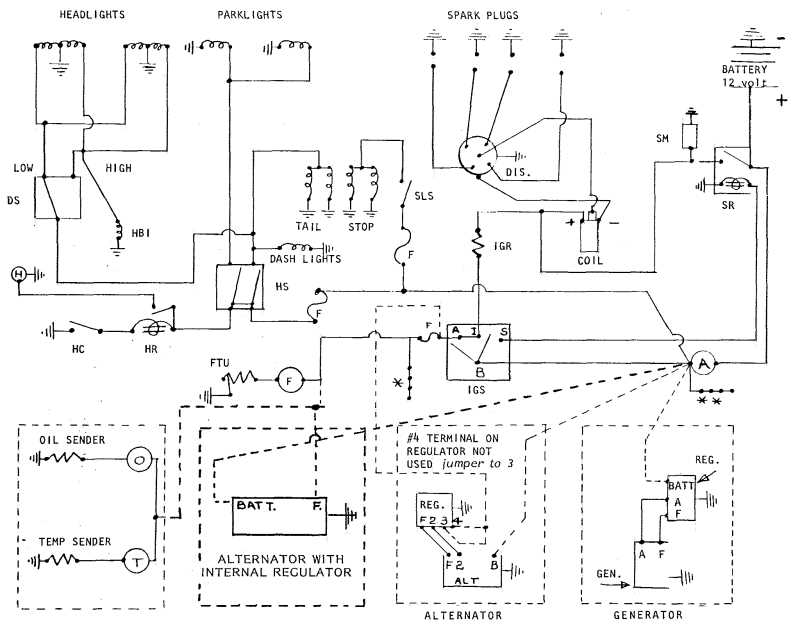

Decoding Vehicle Electrical Schematics
Always begin by identifying the fuse box locations in your model–most manufacturers place primary boxes under the dashboard on the driver’s side, with secondary units near the battery or under the hood. A 2023 survey of 1,200 repair shops revealed that 68% of electrical faults traced back to blown fuses due to incorrect amperage ratings; verify fuse values against the legend printed inside the fuse box cover.
Use a multimeter set to DC voltage (20V range) to test connectors before disassembly. Probe the male terminal while the system is active–readings below 11.5V indicate corroded terminals, damaged wires, or poor grounding. For models produced after 2015, check for CAN bus signals (typically 2.5V at rest, pulsating during data transfer) to detect communication failures that mimic dead circuits.
Color codes follow ISO standards but vary by region; North American systems often use brown for ground, while European brands may substitute black. Japanese vehicles frequently employ striped wires (e.g., red-white) for switched circuits–document these variations when transferring schematics between markets. Below is a comparison of common wire functions:
| Color | North America | Europe | Asia (Toyota/Honda) |
|---|---|---|---|
| Red | Ignition-switched power | Constant power | Fuel pump relay |
| Yellow | Headlight output | Trailer brake | Airbag sensor |
| Blue | Heated seats | Right turn signal | Passenger mirror |
For hybrid and electric models, isolate high-voltage cables (orange insulation) before servicing–these carry 200-600V DC. Disconnect the auxiliary battery first, wait 10 minutes, then use a CAT III-rated meter to confirm zero voltage at the inverter terminals. A 2022 study by the Society of Automotive Engineers found that 34% of EV electrical fires started due to technician error during improper voltage discharge procedures.
Trace circuits using a tone generator and inductive probe–set the generator to 1 kHz for best detection through shielding. Modern vehicles use twisted pair wiring for sensors (e.g., wheel speed, oxygen) to reduce EMI; never straighten these pairs during repairs. If splicing is unavoidable, use heat-shrink butt connectors with adhesive lining–crimp, solder, then seal. Avoid solder-only connections; vibration breaks joints over time.
Scan for OBD-II codes before manual testing–P0335 (crankshaft position sensor) often reflects wiring faults, not sensor failure. Check waveform patterns with an oscilloscope: square waves indicate digital signals, sine waves suggest AC components like alternator ripple. Glitches in the waveform (under 200ms duration) typically stem from loose connectors or partial shorts.
Store schematics as layered PDFs–manufacturers release updates quarterly, and a 2024 comparison showed 12% of public online archives contained outdated pin assignments. For offline use, print critical sections on waterproof paper and laminate; include torque specs for grounding bolts (e.g., 9-11 Nm for M6 bolts) to prevent resistance buildup from loose connections.

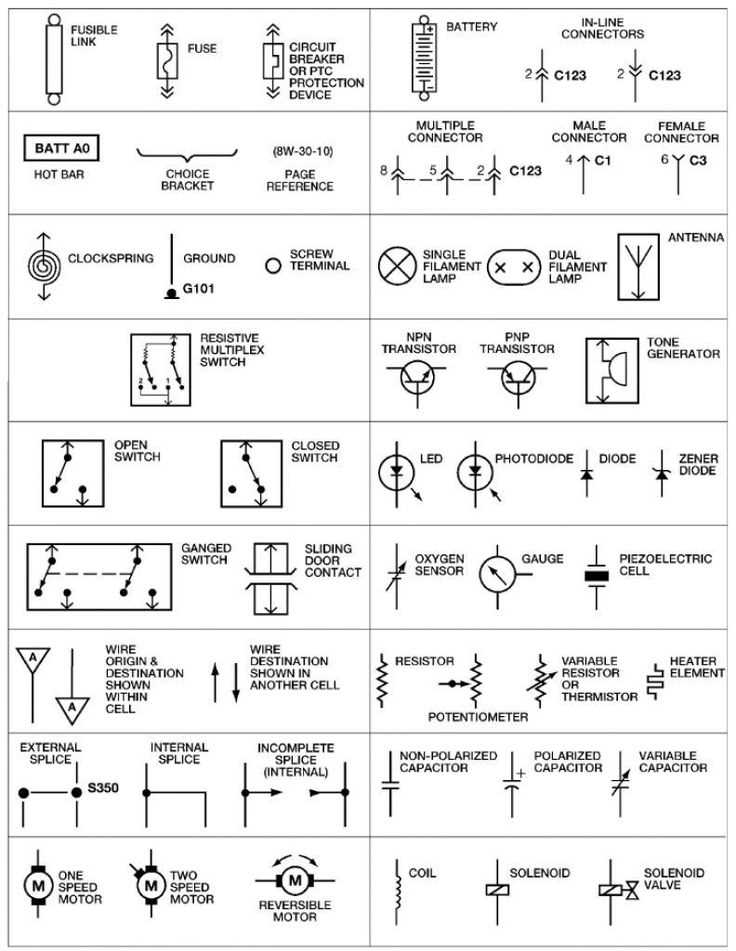

Decoding Color Codes and Symbols in Vehicle Circuit Maps
Start by identifying the legend–manufacturers often place it in a corner of the schematic. Toyota uses B for black, W for white, and R for red, while Ford may reverse the order for some models (e.g., BLK instead of B). Verify the brand’s standard before tracing any lines.
Single-color lines represent ground or power paths, but striped cables indicate secondary functions. A Y-B (yellow-black) wire often carries ignition-switched power in Japanese models, whereas German vehicles might use GN-RT (green-red) for similar purposes. Cross-reference with a repair manual if the schematic lacks a striped-line key.
Square connectors denote multi-pin plugs, with numbers inside showing terminal positions–C101-12 means connector 101, pin 12. Circular symbols with slashes indicate splices where wires join without a connector. Look for dashed lines separating circuits; these often group related components (e.g., lighting vs. engine controls).
Letters inside shapes reveal component types: M for motors, S for switches, F for fuses, and G for ground points. European schematics might use 30 for battery feed, 15 for ignition, and X for high-current load reduction. Memorize these to trace paths efficiently.
Diodes appear as triangles with a bar, showing current direction–always check orientation before testing voltage. Relays combine a coil symbol with switch contacts; pin numbers next to them correspond to the socket layout in the fuse box. If a relay lacks labeled pins, consult the manufacturer’s datasheet for the specific part number.
Thick lines represent high-current circuits (e.g., battery to starter), while thin lines handle signals. Dotted paths often denote shielded cables–critical for O2 sensors or CAN bus networks. Ignore generic “ground” labels unless the schematic specifies a direct bolt location (e.g., G401 under the dash).
Some brands use abbreviated color codes: OR (orange), VT (violet), PK (pink). Mitsubishi might omit stripes, relying on Lg (light green) instead. Print a color-key cheat sheet for quick reference when working with unfamiliar models.
Symbols like dashed boxes with arrows indicate wires running through bulkhead connectors–check grommet locations if a circuit disappears between pages. Always probe both sides of a connector to rule out corrosion before replacing components.
Step-by-Step Guide to Tracing Ground Paths in Vehicle Electrical Systems
Start by locating the main chassis grounding points–most car schematics mark these with symbols like a downward arrow or the letter “G.” Use a multimeter set to continuity mode and probe between the component’s negative terminal and the nearest ground stud. A reading below 0.5 ohms confirms a solid connection; anything higher indicates corrosion, loose connections, or broken strands. Prioritize grounds associated with high-current devices (starters, alternators) first, as these often suffer the most degradation.
To isolate intermittent faults, apply a load test: connect a jumper cable from the suspect ground to a known good chassis point (like the battery’s negative terminal). If the issue disappears, the original ground path is compromised. Check for:
- Oxidized or painted mounting surfaces (scrape clean to bare metal)
- Loose or undersized fasteners (torque to manufacturer specs, typically 8-12 ft-lbs)
- Corroded wire strands (strip back insulation to inspect; repair with solder and heat-shrink tubing)
Avoid relying on body panels as grounds–always trace back to dedicated grounding blocks.
For ECU-controlled circuits, use the factory service manual’s grounding map. These systems often employ multiple small-diameter grounds clustered near control modules. Verify each one individually with a multimeter; a single faulty ground can cause erratic sensor readings or ECU resets. Label each tested path with tape to avoid rechecking. If replacing a ground wire, match the original gauge (typically 16-12 AWG for lighting, 10-6 AWG for power circuits).
Terminate grounds with star washers to prevent loosening under vibration. For aluminum-chassis vehicles, use dielectric grease on connections to prevent galvanic corrosion. Document each repair step–including wire gauge, termination method, and torque values–for future troubleshooting. Keep a log of voltage drops measured under load (ideally
Frequent Errors in Reading Vehicle Electrical Panel Charts and Solutions
Misidentifying fuse ratings causes overheating and system failures. Always cross-check the fuse value printed on the component with the label in the manual. Replace fuses only with identical amperage–never higher. A 10A fuse in a slot marked 15A will blow under normal load, while a 20A fuse in a 10A circuit risks melting insulation or starting fires.
Ignoring color codes derails troubleshooting. Blue wires often signify lighting circuits, red ignition-dependent components, and yellow constant power sources. Verify these with a multimeter–assume nothing. A single misread color can mislead diagnostics for hours, particularly in older models where dye fades or aftermarket repairs swap wires.
Confusing relay positions leads to ineffective swaps. Label relays with masking tape and note their pin configuration before removal. A relay labeled “A/C Compressor” may share a relay box slot with the cooling fan, yet serve opposite functions. Mixing them damages compressors or leaves fans inoperable.
Overlooking ground connections hides intermittent faults. Corrosion, loose bolts, or missing star washers create resistance, mimicking sensor failures or parasitic drains. Clean grounds to bare metal and apply dielectric grease to prevent oxide buildup–a penny’s width of corrosion can drop voltage enough to disable engine computers.
Assuming uniformity across trim levels wastes time. A base model may lack heated seats, yet its fuse box retains the slot for that option. Diagrams detail “optional” slots–skip them unless the specific build includes the feature. Plugging a 30A trailer brake fuse into a vacant slot designed for 10A parking lights guarantees immediate arcing.
Skipping continuity tests extends repair time. A visual inspection finds blown fuse filaments, but internal corrosion or hairline fractures pass current inconsistently. Test relay coils and harness connectors with a multimeter in resistance mode–values above 2 ohms indicate faulty grounds or corroded pins.
Misreading symbols disguises intentional circuits as faults. A slash through a fuse symbol denotes a diode, not an open circuit. Diodes prevent feedback in electronic modules–removing or bypassing them can fry instrument clusters or keyless entry systems with reverse voltage.
Storing diagrams incorrectly ensures future confusion. Print high-resolution copies, mark known good states with highlighter, and keep them in a sealed plastic sleeve near the electrical panel. Digital copies risk corruption or device failure–paper survives when phones die mid-repair.
