Start by identifying the power source for your instrument panel. Most setups require a 12V ignition feed–connect it directly to the fuse box using a blade fuse tap rated at 10A or less. Avoid splicing into high-draw circuits like headlights or cooling fans, as voltage drops can distort readings.
Grounding is critical. Use a dedicated 10-gauge wire bolted to the chassis or engine block, not body panels, to prevent signal interference. For tachometer signals, splice into the ignition coil’s negative terminal or use a dedicated ECU output if available. Verify the signal type–distributor-less systems often need a 5V square wave input.
For vehicle velocity sensors, locate the transmission’s VSS output. Typically a two-wire connector (signal and ground), it may require an adapter if the pulses-per-mile ratio doesn’t match your gauge’s calibration. Test with a multimeter: 4-8 pulses per revolution are common for mechanical sensors, while Hall-effect types output a steady 3.3V-5V square wave.
Illumination wiring should tap into the dash light circuit. Use a 12V dimmer-compatible feed to retain brightness control. For warning lights (oil pressure, temperature), connect to their respective ECU outputs or sender units. Oil pressure switches often ground the circuit when active–check your gauge’s documentation for polarity requirements.
Double-check all connections with a wiring schematic specific to your model. Use crimp connectors and heat shrink tubing to prevent corrosion. Avoid solder-only joints on vibration-prone areas like the firewall or steering column.
Installing High-Performance Gauge Circuits
Connect the signal source directly to the instrument’s dedicated input terminal–pin 3 for mechanical pulse sensors or pin 5 for Hall-effect transducers–using shielded 18 AWG wire to prevent EMI interference from ignition systems or alternators. Ground the shield at the chassis near the gauge cluster, not at the sensor, to avoid ground loops. For tachometer outputs feeding auxiliary devices, splice in a 470-ohm resistor to stabilize voltage drops during high-RPM conditions.
Voltage Regulator Bypass for Precision
Eliminate factory voltage stabilizers by wiring the gauge’s power lead (pin 1) straight to a switched 12V source fused at 5A. This ensures consistent readings regardless of battery fluctuations. If the vehicle has an aftermarket ECU, tap into its 5V reference circuit instead–use a 1N4007 diode to prevent backfeed. For diesel applications, add a 1000μF capacitor between power and ground to smooth cranking dips.
Test continuity between the sensor and gauge with an ohmmeter before finalizing connections; resistance should not exceed 2 ohms. Polarity matters–reversing the signal lead will render the digital readout inoperable. For adjustable shift lights, program thresholds via the gauge’s menu (hold the trip reset for 3 seconds) and confirm proper function by revving the engine to each setpoint in neutral.
Understanding Critical Circuit Paths in Precision Gauges

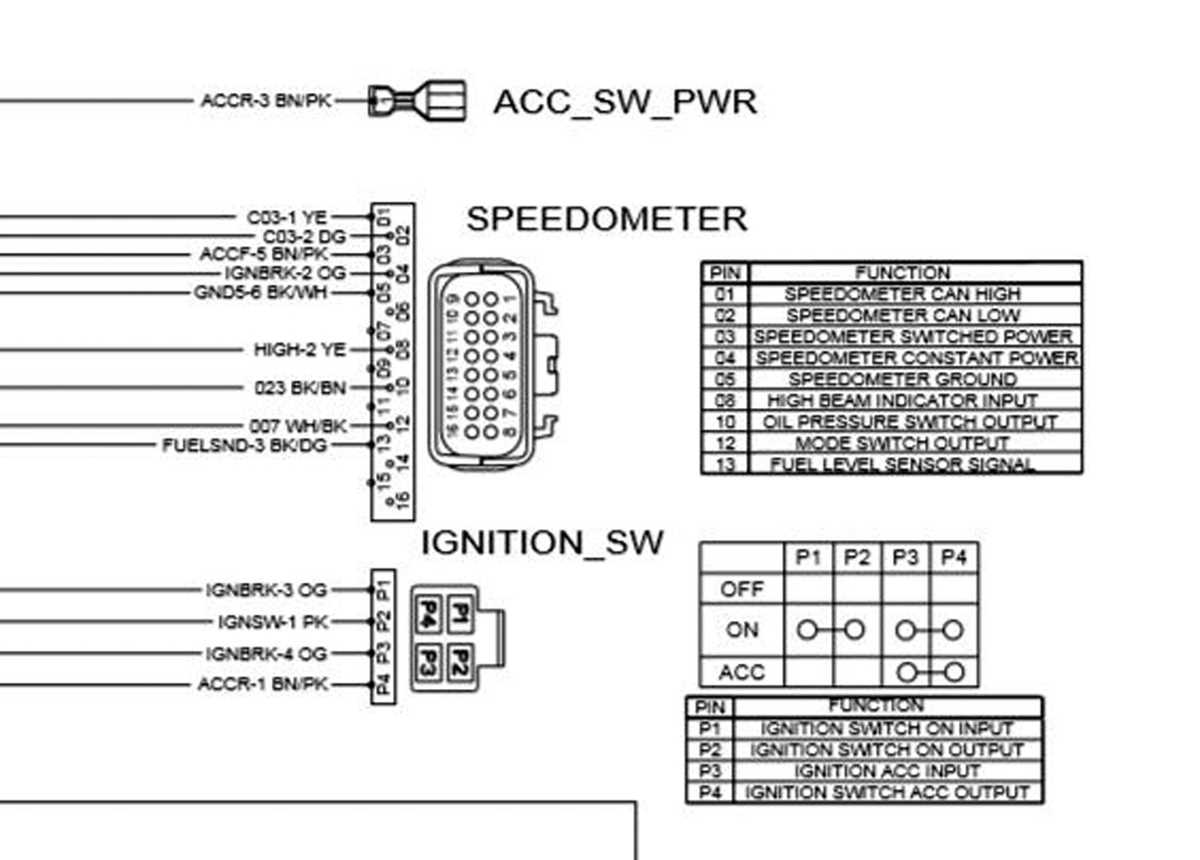

Locate the power input line–typically a 12V wire with a red or orange jacket–feeding the instrument cluster. Verify voltage stability with a multimeter at the harness connector under load; deviations above 0.3V suggest corroded terminals or undersized ground paths requiring immediate attention. Cross-reference the color codes with the manufacturer’s service guide to avoid misidentifying signal returns, especially on older vehicles where factory markings may fade.
Trace the vehicle speed sensor feed, often a twisted pair with white, gray, or purple stripes, back to its ECM or transmission output. Measure frequency response (Hz) at the gauge input pin during a test drive to confirm pulse integrity; expect 2,000–5,000 pulses per mile for most magnetic reluctors. If readings flatline, inspect the sensor’s air gap or reluctor ring teeth for wear–even a 0.5mm deviation disrupts calibration.
Ground circuits demand direct chassis attachment without intermediate splices; daisy-chaining through multiple components introduces noise. Use a dedicated star-point for all meter panel returns, preferably within 10cm of the gauge housing, and verify continuity with an ohmmeter (

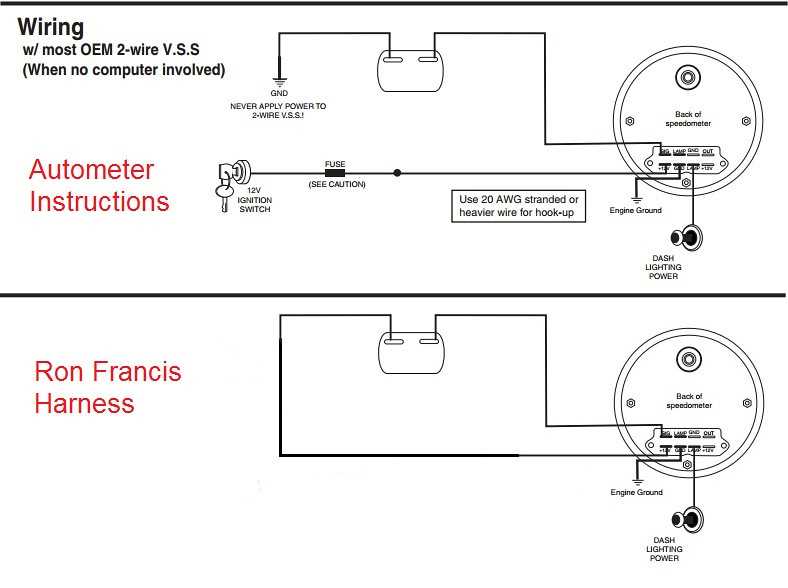

Step-by-Step Guide to Connecting Vehicle Speed Sensor Signal
Locate the vehicle speed sensor (VSS) output on your instrument cluster harness–typically a single wire labeled “VSS,” “SPD,” or “Vehicle Speed.” Use a multimeter to verify the signal type: most modern systems output a 0-5V square wave or 12V pulsed signal. Check the frequency range at highway speeds (e.g., 2,000–10,000 Hz for most OEM setups) to confirm compatibility with aftermarket gauges.
Connect the VSS wire to the input terminal of your electronic display using a soldered joint or high-quality crimp connector to prevent signal interference. For analog-to-digital converters (ADCs), ensure the wire gauge matches the harness (18–22 AWG for signal wires). Avoid splicing into power or ground lines–use a dedicated pin on the connector block if available.

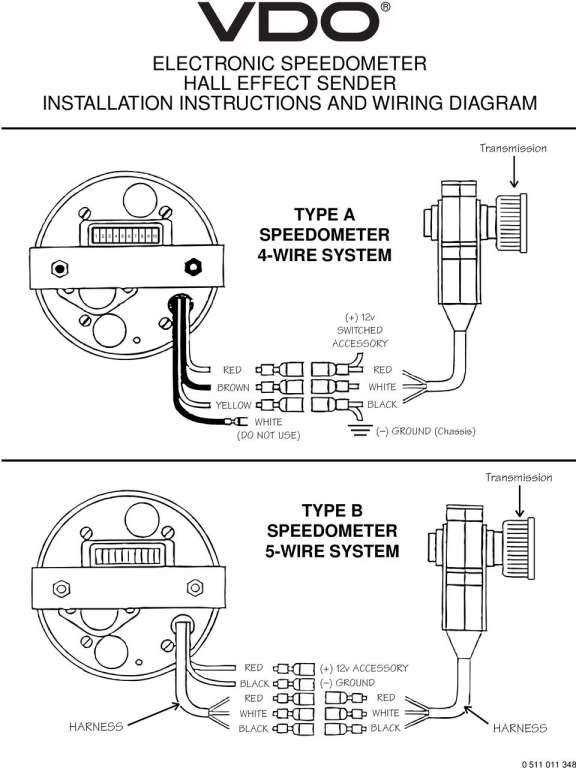

- For Hall-effect sensors: Wire directly to the gauge’s pulse input (no pull-up resistor needed).
- For reluctor-style sensors: Add a 1kΩ pull-up resistor between the VSS line and +12V (if signal is weak).
- For CAN bus vehicles: Tap into the high-speed bus (HS-CAN) using a compatible interface module (e.g., OBD-II splitter).
Test the connection with the engine off and ignition on. Rotate a wheel manually or use a diagnostic tool to simulate speed pulses. Monitor the gauge for response–full-scale deflection should occur at approximately 80–120 mph (adjust via calibration settings if necessary). If no response, check for reversed polarity, short circuits, or improper grounding.
Secure all connections with heat-shrink tubing or dielectric grease to prevent corrosion. Route wires away from high-current components (alternators, ignition coils) and fasten them with zip ties every 6–8 inches. Verify signal integrity under load by driving at steady speeds (e.g., 30, 50, 70 mph)–erratic readings indicate noise interference, requiring shielded cable or braided ground straps.
Fixing Signal Gaps in Gauge Circuits
If the needle jumps erratically or drops to zero, test the sensor’s output with a multimeter. Set the meter to AC volts (for most vehicles) and probe the signal wire while spinning the transmission’s reluctor wheel by hand. A steady sine wave of 0.5–3V, increasing with RPM, confirms a functional signal. No reading? Check the connector pins for corrosion–clean with electrical contact cleaner and reconnect. For vans or trucks with longer harnesses, a missing ground near the instrument cluster often causes voltage drops; run a dedicated 12AWG wire from the gauge’s negative terminal to the chassis.
Verify the following if readings fluctuate:
- Inspect the reluctor wheel teeth for damage or debris–ensure a 0.5–1.0mm air gap.
- Swap the signal wire with a known-good 18AWG shielded cable if interference persists (common with ignition coils).
- Test the cluster’s input by bypassing the harness–connect the sensor directly to the gauge with temporary leads.
- For ECU-controlled systems, scan for error codes (P0500–P0503) before assuming hardware failure.
Resolving Power Supply Problems
Dim or flickering displays point to voltage instability. Probe the positive feed at the back of the unit with the key on–expect 12V (±0.5V). Less than 11.5V? Trace the fuse panel; a 10A fuse should blow only during a dead short, not under normal operation. Replace with a ceramic fuse if using blade-style. For aftermarket setups, wire the feed directly to the battery via a relay if parasitic draws exist. Avoid splicing into factory audio or lighting circuits, as their regulators introduce noise.
Common culprits:
- Weak alternator output–charging voltage below 13.8V at 2000 RPM.
- Loose battery terminals–clean with a wire brush, torque to 6–8 Nm.
- In-line connectors–solder and heat-shrink all splices, especially in high-vibration areas.
- Voltage regulators–if the cluster uses an internal stabilizer, bypass it with a 5-pin relay for direct power.
Grounding Requirements and Best Practices for Accurate Gauge Performance
Use a dedicated return path for signal circuits–never share the ground with high-current components like starters, fuel pumps, or cooling fans. A single corroded or undersized ground connection can introduce voltage drops of 0.3V or more, skewing readings by as much as 10% at highway speeds. Route signal grounds directly to the battery negative terminal or a verified chassis grounding point with a resistance below 0.1 ohms.
For aftermarket instrumentation, employ a star-ground configuration with separate 10-12 AWG conductors for each gauge cluster. Twist signal wires with their corresponding ground leads at a rate of 6-8 turns per foot to minimize electromagnetic interference. Avoid daisy-chaining grounds; each device should terminate independently within 18 inches of its power source to prevent ground loops.
Verify ground integrity using a digital multimeter in continuity mode. Measure between the gauge housing and the battery negative post–readings above 0.2 ohms indicate corrosion, loose connections, or insufficient conductor gauge. Clean grounding surfaces with a wire brush and apply dielectric grease to prevent oxidation on aluminum or steel mounting points.
Grounding Points and Material Compatibility
| Surface Material | Preparation Method | Min. Fastener Torque (in-lb) | Recommended Coating |
|---|---|---|---|
| Mild Steel | Remove paint with 80-grit sandpaper | 20-25 | Zinc-rich primer |
| Aluminum | Use stainless steel star washer | 15-20 | No-ox or silver anti-seize |
| Stainless Steel | Clean with acetone | 25-30 | Dielectric grease |
| Fiberglass | Embedded brass or copper plate | N/A | Conductive epoxy |
Ensure all ground connections use copper conductors–aluminum wires increase resistance by 61% for the same gauge. For vehicles with composite body panels, install a brass grounding bushing bonded to the subframe with a minimum 8 AWG jumper cable. Test ground paths after installation with a 5A load to confirm voltage stability.
Signal Stability and Environmental Factors
Locate ground references away from ignition systems, alternators, and electric motors–these components emit high-frequency noise that can induce ghost readings. For pulsed output devices, add a 0.1μF ceramic capacitor between the signal wire and ground within 2 inches of the sender unit to filter transients. Verify capacitor polarity if using polarized types.
In high-vibration environments, use crimped ring terminals with shrink tubing instead of quick-disconnects–vibration can loosen connections, causing intermittent faults. Secure ground wires every 12 inches with nylon ties to prevent chafing against sharp edges. For underwater applications, submerge connection points in potting compound or marine-grade heat shrink.
Isolate analog and digital instruments by separating their ground planes–digital circuits switching at high frequencies can corrupt analog signals. Maintain a minimum 2-inch separation between analog ground wires and digital/power grounds. For CAN bus systems, implement a 120Ω termination resistor at each end of the bus and verify signal integrity with an oscilloscope for clean trapezoidal waveforms.
Seasonal temperature swings cause expansion and contraction, loosening connections over time. Re-torque grounding fasteners every 6 months in temperate climates, and quarterly in extreme environments. Store spare ground wires in sealed bags with silica gel packets to prevent moisture absorption, which increases resistance by up to 1000x in copper conductors.
