Connect the tachometer output directly to the indicator terminal marked RPM Input–use at least 18 AWG copper wire for signal integrity, especially in high-vibration environments. Route the wire away from ignition coils and alternator leads to prevent voltage spikes from corrupting the pulse stream. Solder all connections and cover with heat-shrink tubing, avoiding butt connectors which can introduce resistance.
Identify the vehicle’s ECU tachometer reference wire–typically a solid green or striped purple lead–then splice it using a crimped T-tap connector rated for 20A. Verify signal amplitude with an oscilloscope; peak voltage should match the gauge’s operating range (usually 5-12V). If readings fluctuate, add a 10kΩ pull-up resistor between the signal wire and a stable 12V source to clean up noise.
Install a dedicated ground wire from the indicator housing to the engine block or chassis ground, never relying on the mounting hardware alone. Use separate paths for power and ground to eliminate ground loops. Test continuity with a multimeter before final tightening; resistance should read
Calibrate the device by adjusting the threshold dial clockwise in 0.5V increments until activation occurs at the desired engine speed–confirm consistency by revving the engine three times at 2,500 RPM. Secure all wiring with adhesive-lined clamps spaced every 15 cm to prevent abrasion from sharp edges. Label each lead at both ends with heat-resistant identifiers for future diagnostics.

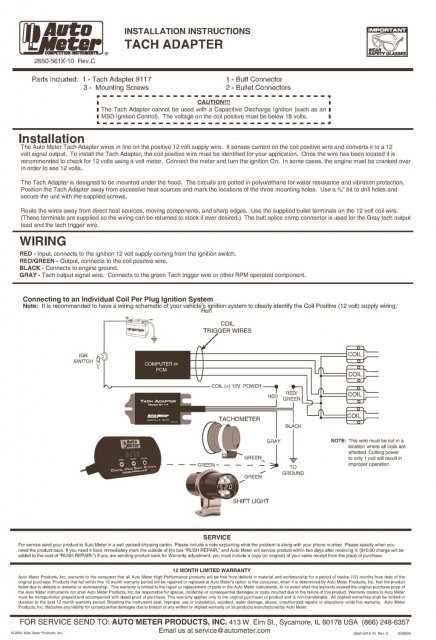

Installing Performance Indicator Systems: Step-by-Step Connection
Begin by identifying the tachometer signal source–typically a wire outputting 0-12V pulses from the ignition coil or ECU. Splice this wire using a T-connector to maintain original functionality while diverting the signal to your alert unit.
Most aftermarket rpm monitors require a ground connection for stable operation. Locate a nearby chassis ground point–avoid painted or coated surfaces–and secure a ring terminal using a self-tapping screw or bolt. Verify continuity with a multimeter before proceeding.
Signal Conditioning
- For high-energy ignition systems (e.g., CDI), install an inline resistor (470-1kΩ) to protect the indicator’s circuitry from voltage spikes.
- Magnetic triggers (common in older distributors) often need an additional signal amplifier. Use a dedicated adapter module if the unit doesn’t illuminate below 3,000 RPM.
- LED-based gauges may require polarity-specific wiring. Double-check the manual for orientation–reversing +/- will cause erratic operation.
Route cables away from high-temperature components (exhaust manifolds, turbo housings) and moving parts (driveshafts, suspension). Use split loom tubing or adhesive clips every 6-8 inches to prevent chafing. Secure excess length with zip ties to avoid vibration-induced failures.
Testing and Calibration
- Power the vehicle’s electrical system (ignition ON, engine OFF). The unit should remain dark–if not, recheck ground and signal connections.
- Start the engine and observe the response at varying speeds. Most units trigger at 5,000-8,000 RPM, but adjust thresholds via onboard buttons or external potentiometer.
- For multi-stage alerts, program progressive activation points (e.g., 6,500 RPM: single flash; 7,200 RPM: strobe) using the manufacturer’s software if applicable.
Finalize the setup by soldering all connections and applying heat-shrink tubing for weather resistance. Reinstall interior trim panels carefully–pinched wires behind dash components are a common failure point. Validate operation during a test drive, ensuring the alert engages predictably under load.

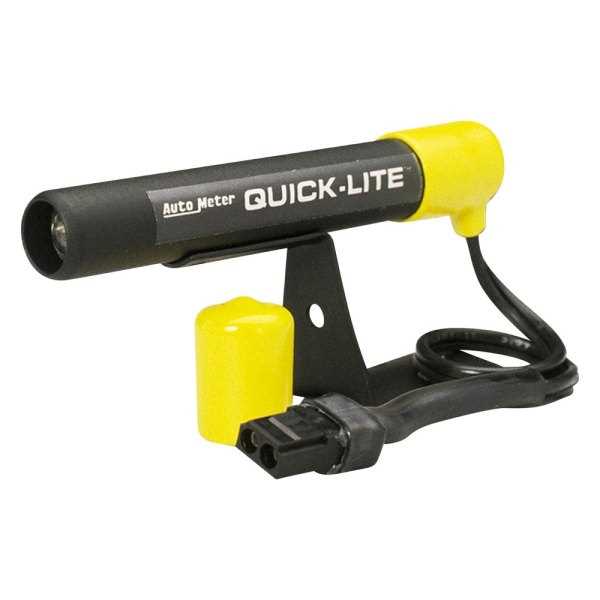

Selecting the Ideal RPM Indicator for Your Car
Start with a unit that matches your engine’s redline range. Models like the Defi Advance BF cover up to 12,000 RPM, while Sparco Pro Shift maxes out at 9,000 RPM. For turbocharged applications, ensure the device’s refresh rate can track rapid spikes–at least 50 ms response time is critical.
Assess the display type based on visibility needs. LED bars offer instant recognition but lack precision; single-color LEDs suit drag racing, while multi-stage RGB variants work better for circuit driving. For low-glare environments, opt for units with adjustable brightness–some high-end models include ambient light sensors.
Check mounting compatibility. Flush-mount designs integrate well with OEM clusters, but pod-based setups require clear windshield space. Avoid units with bulky housings–they obstruct forward vision and attract regulatory scrutiny in professional racing series.
Verify compatibility with your ECU’s signal protocol. Standalone tach output pulses (5V square wave) are standard, but some OEM systems use variable reluctance or Hall-effect signals. A mismatch here leads to erratic readings; adaptors like the Dakota Digital SGI-5 resolve most signal conflicts.
Prioritize durability for forced-induction engines. Look for vibration-resistant assemblies and sealed connectors–IP67 rating is minimum for track use. Avoid plastic bezels; anodized aluminum cases last longer under heat soak and G-forces.
Programmable features add versatility. Seek units with adjustable threshold stages–three or more levels allow tailored alerts for street, track, and launch modes. Overlay capabilities (via auxiliary ports) enable data logging alongside other sensors if telemetry integration is needed.
Power draw matters for auxiliary setups. Low-current models (200 mA) risk voltage drops on long runs. Hardwired installations are safer than plug-and-play cigarette lighter adapters, which can disconnect under heavy acceleration.
Evaluate aftermarket support before purchase. Brands like Electromotive and Bovie offer firmware updates; others rely on dealer networks. Warranties should cover both electrical failure and software glitches–avoid units with “no fault” clauses for race use.
Step-by-Step Connections for RPM Sensor Integration

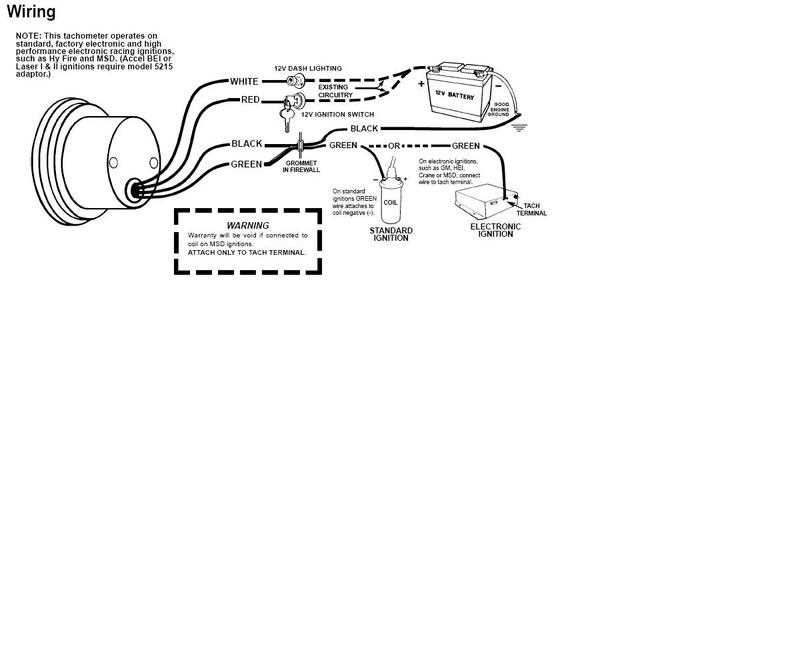

Locate the ignition coil’s negative terminal–this is the primary signal source for most analog rev counters. Use a multimeter to verify a pulsing voltage between 2–12V when the engine runs. Solder a dedicated lead to this point, ensuring the connection is heat-shrunk to prevent shorts. Route this wire away from moving parts and high-temperature zones, securing it with zip ties every 15–20 cm to avoid chafing.
- ECU-derived signal (OBD-II): For late-model engines, splice into the tach output wire from the ECU–consult the vehicle’s service manual for the correct pin (typically labeled “TACH” or “RPM”). Use a T-tap connector for a non-destructive link, or solder and seal if permanent installation is required.
- Hall-effect sensor (distributor): If the engine uses a distributor with a Hall sensor, tap into the signal wire (often a three-wire connector) and confirm polarity with an oscilloscope. Incorrect polarity will cause erratic readings.
- CDI ignition systems: Connect to the CDI’s RPM output, usually a thin wire with a consistent pulse train. Verify with scope traces–CDI signals often have higher voltage spikes requiring an inline resistor (1K–10KΩ) to protect the gauge.
Avoid grounding the input wire to the engine block unless specified by the gauge manufacturer. Use a dedicated ground point near the instrument cluster or battery to prevent voltage drop issues. Test functionality by starting the engine and observing smooth needle movement through the RPM range. If readings flutter, add a 0.1μF capacitor between the signal wire and ground to filter electrical noise.
Power Supply Setup: Ignition-Switched vs Battery-Sourced Voltage
Connect the device to ignition-switched power if minimizing parasitic drain is critical. This source cuts voltage when the engine shuts off, preventing gradual battery depletion–ideal for vehicles parked frequently. A 15A fused circuit direct from the ignition switch ensures reliability, but verify the wire gauge supports the device’s current draw; 18AWG suffices for most analog indicators, while 16AWG is required for high-load digital gauges drawing over 200mA.
Battery-sourced voltage maintains constant power, essential for memory retention in electronic displays or data-logging modules. However, this requires an inline fuse (typically 5A–10A) near the battery terminal to prevent short circuits. Use corrosion-resistant connections and heat-shrink tubing for outdoor or high-vibration applications. Avoid tapping the main battery cable for large devices; instead, splice into an existing fused circuit, like the windshield wiper or radio harness, to distribute load.
Voltage Drop and Signal Integrity
Ignition-switched lines can introduce voltage sag during cranking–measure with a multimeter at the device’s input terminal; drops below 11.5V may cause erratic behavior. To counteract this, add a 1000μF capacitor across the power leads, or use a relay triggered by the ignition switch, powered directly from the battery. For battery-sourced setups, wire a diode-isolated circuit (1N4001 or Schottky) to prevent backfeed into accessory circuits during engine start.
Ground selection impacts performance equally. For ignition-switched configurations, splice into a chassis ground near the instrument cluster (avoid sharing with high-current accessories like starters). Battery-sourced grounds should terminate within 18 inches of the battery’s negative terminal, using 14AWG or thicker wire. Test ground continuity with a load application (e.g., headlights on); resistance above 0.1Ω necessitates a dedicated ground strap.
Thermal and Environmental Considerations
Enclose all connections in waterproof convoluted tubing if routing through engine bays or undercarriages. Battery-sourced circuits near heat sources (exhaust manifolds, turbochargers) require high-temperature silicone wire (rated 125°C+) instead of standard PVC. Ignition-switched wires in such zones benefit from braided shielding or rerouting via firewall grommets to mitigate interference from ignition coils or ECUs. Label both power and ground wires at termination points with heat-resistant tags for future diagnostics.
