Start by identifying the main power supply path in your appliance’s wiring layout. Locate the 10A or 16A fuse–its position determines whether it interrupts AC input before or after the power switch. Most European models integrate this fuse directly on the PCB, while older designs place it externally near the cord entry point. Verify the fuse rating matches the motor’s current draw (typically 3-5A for standard 700-1000 RPM units) to prevent overheating.
Trace the neutral line next: it branches into three critical circuits. The first branch feeds the door lock solenoid (6-12VDC after rectification), which engages within 2-3 seconds of cycle initiation. The second powers the main motor via a triac or relay–check for a 220-ohm resistor in series to limit inrush current. The third supplies the control module (usually 5VDC after a step-down transformer). Measure voltage at the module’s input pin–deviation below 4.8V indicates a failing transformer or corroded contacts.
Examine the water-level sensor circuit. Pressure switches connect to a 5-7mm diameter tube leading to the drum’s air chamber. Test continuity between the switch terminals (NO/NC) at varying water levels: no change beyond 30mm height suggests a cracked tube or faulty switch. Replace the entire assembly if resistance exceeds 20Ω at the switch’s sensitivity pin.
The heater circuit includes a 1.5-2kW element and a 90-100°C thermostat. Bypass the thermostat temporarily to test the element–voltage should drop across its 25-30Ω resistance. If not, inspect the element’s grounding braid for oxidation or broken strands. For models with turbo dryers, an additional 800W heating coil operates in parallel; verify its isolation from the main drum via a separate thermal fuse.
Motor control relies on Hall-effect sensors or tachometers. Locate the sensor’s 3-pin connector: missing pulses at 200-300Hz during spin cycles confirm sensor failure. Inverter-driven models modify frequency via a 3-phase IGBT module–probe its gate drivers (typical signal: 12VDC square wave). Failed IGBTs often leak current; test with an oscilloscope for irregular waveforms at 60-500μs pulse widths.
Understanding the Electrical Blueprint of a Modern Clothes Processor
Begin by identifying the primary power inlet–typically a three-pin connector rated for 10A to 16A–before examining any other segment. The inlet links directly to the main control module, which governs timing, load detection, and motor operations. Ensure the inlet wiring adheres to local electrical standards; mismatched voltage can damage the rotary actuator or heating coil.
The motor circuit splits into two branches: one for agitation (usually a bidirectional capacitor-start induction setup) and another for spin extraction (high-torque series-wound). Check the centrifugal switch: if it fails, the spin cycle stalls. Replace the capacitor if capacitance drops below 90% of rated value–symptoms include slow start or humming without rotation.
Water level sensors rely on pressure-switch tubes filled with air; blockages in these tubes cause overfilling or incomplete cycles. Clean the tubes annually with compressed nitrogen–never water–to prevent mineral buildup. Verify the switch contacts for corrosion; even slight oxidation disrupts signal accuracy.
Heating elements require a dedicated relay and thermal fuse. Measure resistance across the heating coil terminals–values should range between 20Ω and 50Ω depending on model. If resistance reads infinite, the fuse or coil has failed; isolate the element before replacement to avoid short-circuiting the control board.
- Program selector: Rotary encoders or push buttons interface with the microcontroller via debounced signals to prevent false triggers. Test continuity on each switch–intermittent contact causes erratic cycle progression.
- Drain pump: Impeller-type pumps draw 0.3A to 0.8A during operation; higher current indicates a jammed impeller or blocked filter. Check impeller clearance: debris larger than 2mm must be removed.
- Door interlock: A bi-metallic strip or electromagnetic latch secures the door during operation. If the door refuses to open post-cycle, bypass the interlock temporarily for manual release–but address the root cause (faulty latch or control signal) immediately.
Transformers step down mains voltage to 12V or 5V for the logic board. Inspect windings for burns or discoloration; a 10% voltage drop across secondary windings confirms degradation. Always disconnect power before probing–live circuits can deliver lethal shocks despite low secondary voltages.
Grounding pathways must terminate unambiguously–no daisy-chaining. Loose or corroded ground connections manifest as erratic behavior, including unintended door openings or sudden cycle halts. Use a multimeter to verify zero ohms between the chassis and ground pin; more than 0.5Ω necessitates cleaning or re-cramping connectors.
- Isolate each sub-circuit before testing:
- Disconnect the motor, heater, and pump sequentially while observing current draw.
- Sudden current spikes indicate internal shorts–trace with an oscilloscope to locate fault lines.
- Document measured values against manufacturer specs for repeat troubleshooting.
- Repair or replace components only if deviations exceed 15% of nominal ratings.
Core Elements of Appliance Control Systems
Prioritize the main control board–it orchestrates cycles by processing sensor inputs and executing motor commands. Replace it only with OEM-approved units to prevent voltage mismatches, which can damage actuators. For models with brushless motors, verify the inverter’s IGBT modules; failed components often show overheating marks near the heatsink. Locate the door lock mechanism (typically a wax motor or solenoid) and test continuity with a multimeter–open circuits here halt operations.
- Pressure switch: Calibrate it annually by blowing into the tube–incorrect readings cause overfilling. Clean the air chamber to remove detergent buildup.
- Thermal cutoffs: Check resistance values against service manuals (e.g., 4.7kΩ for 90°C switches). Tripped cutoffs require reset via manufacturer tools, not manual bypass.
- Triacs/relays: Inspect for pitting on contacts; arcing indicates imminent failure. Snubber circuits across coil terminals reduce transient spikes.
- Drain pumps: Measure winding resistance (120–200Ω typical) and confirm impeller rotation isn’t obstructed. Replace pumps if noise exceeds 55 dB during spin cycles.
Use a logic probe to trace signals from the timer module to the water inlet valve–stuck outputs can leave garments soaked. For direct-drive systems, lubricate the stator ring every 500 cycles to prevent bearing wear. Always disconnect the main capacitor before testing–residual charge can exceed 300V even after power-off. Keep a service manual schematic for component numbering; third-party diagrams often mislabel terminals.

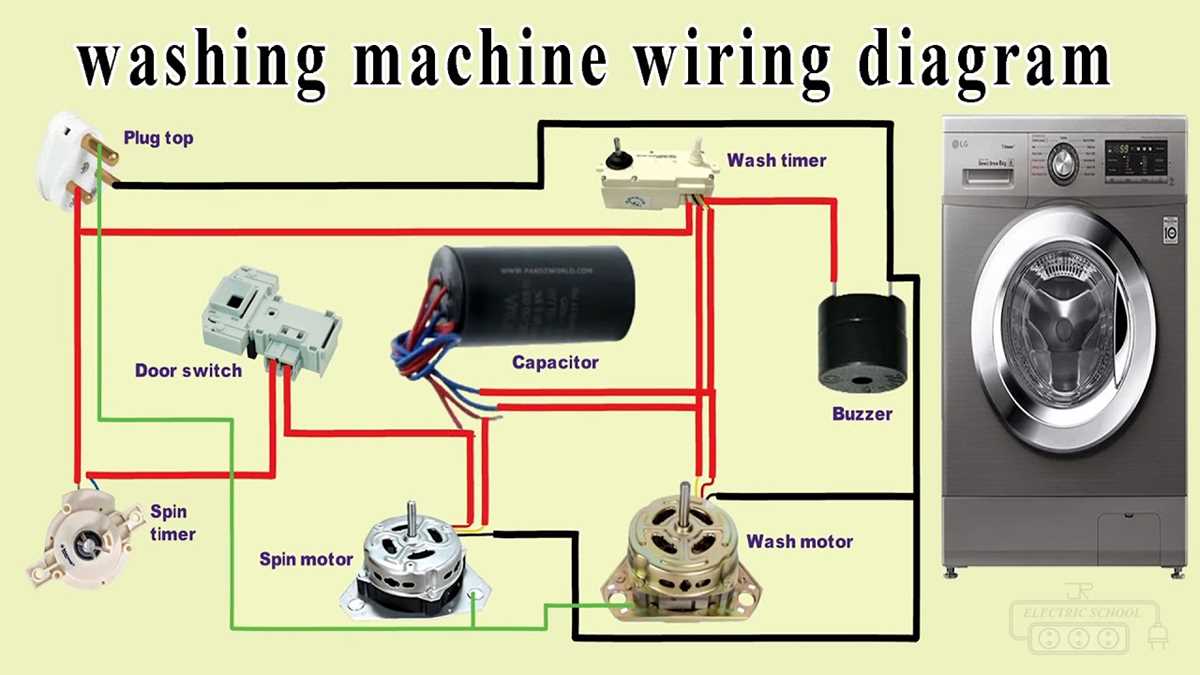

Step-by-Step Wiring Connections in a Household Laundry Appliance
Begin by securing the power inlet to the main terminal block, ensuring wires match the color-coded slots: brown for live, blue for neutral, and green/yellow for earth. Use a 16A fuse or circuit breaker between the inlet and the block to prevent overloads. Verify connections with a multimeter–live voltage should read 220-240V against neutral, while earth must show zero resistance to the chassis.
Attach the motor’s stator windings to the control module via thick-gauge cables (minimum 1.5mm²) to handle peak currents up to 10A. Connect the start capacitor (typically 8-15µF) in series with the auxiliary winding, observing polarity where applicable. Label each wire with heat-shrink tubing to avoid confusion during maintenance–mix-ups here can fry the module or cause erratic drum rotation.
Route the door lock switch’s wiring through the pressure sensor before linking it to the electronic timer. Bypass connections here must be avoided: a faulty lock can halt the entire cycle mid-operation. Test continuity on the drain pump’s float switch and ensure its wiring runs alongside–but not touching–the water inlet valve’s solenoid (24V AC) to prevent interference. Keep all runs neat, using cable ties every 10cm to prevent vibration-induced wear.
How the Drive System and Time-Control Unit Synchronize for Laundry Phases
Set the control board’s output voltage to match the motor’s rated specifications. Mistimed voltage spikes–above 10% of the nominal 220V AC–can damage rotor windings during spin acceleration. Capacitors in series with start windings must have a tolerance within ±5%; anything beyond risks phase imbalance, leading to overheating. Before wiring, verify the timer’s relay contacts handle at least 15A at 250V–cheaper alternatives weld shut under load.
The timer’s microcontroller sends pulsed signals to the motor’s relay at 12V DC, switching between wash, rinse, and extraction modes. Each pulse duration corresponds to a predefined cycle: 30 seconds for agitation, 90 seconds for rinsing, and 180 seconds for high-speed spinning. If the timer skips a pulse, the system defaults to idle–check for corroded PCB traces near the relay driver IC, where oxidation disrupts 5V logic levels.
| Laundry Phase | Motor RPM | Timer Signal Duration | Current Draw (A) |
|---|---|---|---|
| Agitation | 50-60 | 30-45 sec | 2.5-3.2 |
| Rinse | 70-80 | 60-90 sec | 3.0-4.0 |
| Spin | 1200-1400 | 2-5 min | 8.0-12.0 |
During spin mode, the timer momentarily cuts power to the motor at 0.1-second intervals to trigger the centrifugal brake, reducing tub vibration. If braking fails, inspect the relay’s snubber circuit–a faulty RC network (100Ω, 0.1µF) causes arcing, eroding contacts. Replace relays annually in high-humidity environments, as coil resistance drifts over time, delaying response by 100-200ms–enough to misalign the tub’s balance.
For dual-speed motors, the timer alternates between low- and high-voltage taps on the start winding. A 110V tap paired with a 22µF capacitor drives slow cycles; switching to 220V with 47µF enables high-speed extraction. If cycles stall, measure capacitance–dried-out electrolytics lose 30% capacity by year five, dragging RPMs below usable thresholds. Use a scope to confirm timer output waveshape; jagged edges indicate failing TRIACs on the control board.
Temperature sensors embedded in motor housings feed real-time data to the timer, which adjusts cycle time dynamically. A 5°C rise above ambient triggers a 10% extension in rinse duration to compensate for detergent residue buildup. If the sensor reads open-circuit (infinite resistance), the timer reverts to default times–bypass with a 10kΩ thermistor in parallel, but recalibrate the control firmware to avoid false triggers.
End-of-cycle diagnostics run when the timer detects zero current for 3 seconds. It then flips a bistable relay to power down peripheral systems (valves, pumps). A stuck relay drains standby current (typically 0.2A), overloading the PSU’s linear regulator–replace the relay if coil voltage exceeds 5V after deactivation. For manual override, solder a momentary SPST switch across the timer’s reset pin to ground, forcing a hard reboot of the logic board.
