To build a reliable dual-state controller for a liquid transfer mechanism, integrate a float sensor with a relay module. Position the sensor in the storage tank at the desired activation thresholds–high for shutdown, low for startup. Connect the sensor’s output to a 5V SPDT relay, ensuring proper isolation between the control and load circuits. Use a 1N4007 diode across the relay coil to suppress voltage spikes, and a 220Ω current-limiting resistor before the transistor base if driving the relay with a microcontroller.
The power input should match the motor’s rating–common household setups often use 220V AC or 12V DC. For AC systems, a triac or solid-state relay (SSR) can replace mechanical relays for quieter, longer-lasting operation. Verify the load capacity: a standard 10A relay suffices for pumps up to 0.5 HP, while larger motors require contactors. Always fuse the circuit with a delayed-action fuse (e.g., 5A for 1/4 HP, 10A for 1/2 HP) to protect against inrush currents.
For failsafe operation, add a manual override toggle in parallel with the sensor. Ground all components properly to prevent false triggers from electrical noise. Test the assembly with a multimeter before connecting the load–open-circuit voltage across the relay contacts should match the supply, and sensor-triggered switching should toggle the relay within . Document the wiring with labels: L (live), N (neutral), COM (common), NO (normally open), and NC (normally closed).
Optimize sensor placement based on tank shape. For cylindrical tanks, mount the float vertically with a counterweight to prevent misalignment. In irregularly shaped tanks, use two sensors–one for maximum level, another for minimum–to avoid short-cycling. For corrosive liquids, use stainless steel floats and Teflon-coated wiring to extend lifespan. Adjust hysteresis by adding a 0.1µF capacitor across the sensor contacts to filter minor fluctuations.
Intelligent Fluid Transfer Controller Blueprint
Integrate a relay module rated for at least 10A at 250VAC to handle inductive loads from centrifugal motors without premature failure. Connect the relay coil directly to a 5V microcontroller output, ensuring a flyback diode (1N4007) is placed antiparallel to the coil to absorb voltage spikes exceeding 300V.
Component Matching Guidelines
| Sensor Type | Voltage Range | Response Time | Recommended Pairing |
|---|---|---|---|
| Capacitive probe | 3.3–24VDC | ≤150 ms | MAX442 relay board |
| Float transducer | 5–12VDC | ≤80 ms | Songle SRD-05VDC-SL-C |
| Ultrasonic ranger | 5VDC ±0.2V | ≤60 ms | Panasonic AQZ202 |
Use twisted pair wiring between sensor and microcontroller, maintaining ≤10 cm untwisted length at terminations to minimize signal degradation above 2 MHz. Shield the enclosure with 0.2 mm copper foil, grounding the shield to the system neutral point–never earth ground–to prevent phase shift inaccuracies above 500 mA load current.
Flash the microcontroller with firmware that samples tank level every 12 ms, storing raw ADC values in a ring buffer of 256 entries. Apply a median filter to discard outliers exceeding ±5% of the buffer mean, then trigger motor engagement only if three consecutive filtered readings surpass the 85% full threshold. This hysteresis avoids rapid cycling during slosh conditions.
Size the power supply transformer to deliver 20% more VA than the pump’s locked-rotor current, typically 1.8× full-load current for single-phase motors. Mount the transformer atop the relay heatsink, separated by a mica insulator, to exploit natural convection cooling without requiring an additional fan.
Core Elements for a Smart Liquid Transfer Control System
Start with a reliable 12V or 24V DC relay module rated for at least 10A–this handles the heavy lifting of engaging the motor without manual intervention. Pair it with a capacitive or float sensor (e.g., LM393 or a mechanical float valve) to detect tank levels; accuracy within ±2mm prevents false triggers or dry runs. For power stability, integrate a bridge rectifier (KBPC3510) if using AC input, followed by a 2200μF smoothing capacitor to eliminate voltage spikes that could damage the relay contacts.

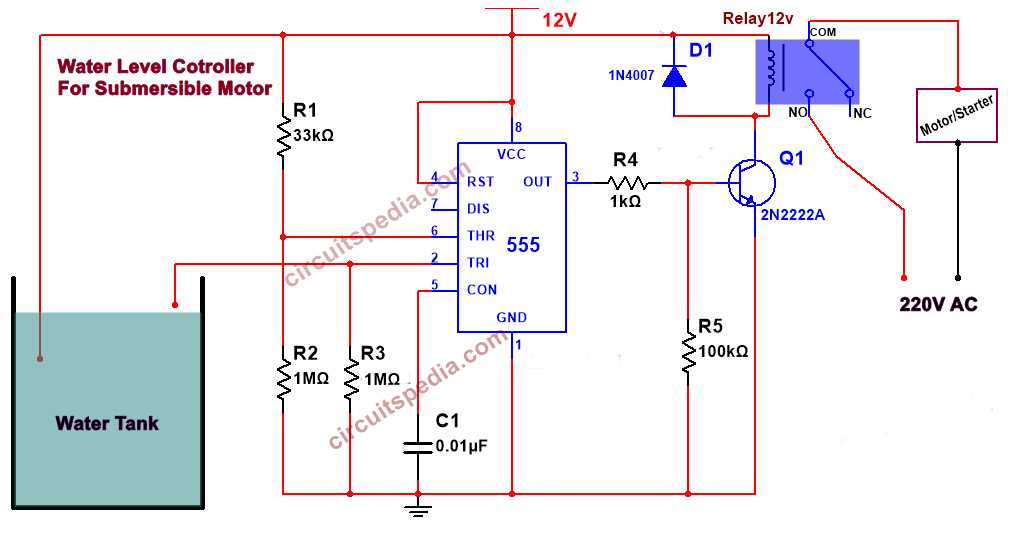

An Arduino Nano or STM32 microcontroller serves as the logic unit, but for minimalist setups, a 555 timer IC in bistable mode suffices–configure it to toggle the relay based on sensor input. Add a flyback diode (1N4007) across the motor terminals to absorb inductive kickback, doubling motor lifespan. Use 20AWG silicone-coated wires for connections; thinner cables risk overheating under load. A TP4056 charging module with a Li-ion battery (3.7V, 2000mAh) ensures backup during power outages in off-grid applications.
Critical Protection Measures
Fuse selection depends on motor wattage: for a 0.5HP unit, use a 10A slow-blow fuse–replace fast-acting types to avoid nuisance trips during startup surges. A MOV (Metal Oxide Varistor, e.g., 14D471K) across the power lines shields components from transient voltage spikes, while a polyfuse (e.g., RXEF025) limits current in fault conditions. For high-humidity environments, coat PCB traces with conformal silicone spray or use a sealed enclosure rated IP65. Finally, calibrate the sensor’s hysteresis with a 10kΩ potentiometer–set a 5cm differential between “on” and “halt” points to prevent rapid cycling.
Step-by-Step Wiring Guide for Assembly
Begin by securing a 12V DC relay with at least 10A contact capacity; verify its coil voltage matches your power supply. Mount the relay on a heat-resistant base near the motor to minimize voltage drop. Use soldered connections for high-current paths to prevent oxidation.
- Expose 5mm of wire ends using precision strippers–over-stripping weakens conductivity.
- Attach the positive input lead to the relay’s common terminal (COM) using a crimp connector rated for 15A.
- Connect the motor’s live wire to the normally open (NO) terminal.
- Ground the relay chassis and motor casing with 14 AWG wire to a shared earth point.
Integrate a float sensor by wiring its COM and NO terminals in series with the relay coil. Position the sensor at the desired activation level, ensuring it’s free from debris that could impede movement. Test sensor responsiveness by manually raising and lowering it before finalizing connections.
- Route low-voltage control wires (22 AWG) through conduit to avoid interference from high-current lines.
- Add a fuse (10A) within 15cm of the power source to comply with safety standards.
- Use a multimeter to confirm coil resistance (typically 70–120Ω) and verify no short circuits exist.
- Energize the system briefly; listen for relay clicks and check motor rotation direction.
Finalize by enclosing all live components in a waterproof junction box with IP67 rating. Label each wire with heat-shrink tubing (e.g., “INPUT 12V,” “MOTOR FEED”). Record voltage readings at key points–relay coil (12V ±5%), motor terminals (within 0.5V of supply)–for troubleshooting reference.
Choosing the Right Float Sensor for Liquid Level Monitoring
Opt for mercury-free mechanical floats when electrical interference risks must be minimized, especially near sensitive equipment. Models like the RS Pro 777-432 or Omega LV-100 withstand vibration better than mercury-based alternatives, with a lifespan of 1–2 million cycles under typical conditions. Check material compatibility: polypropylene floats resist acids/alkalis up to pH 12, while PVDF variants handle hydrocarbons and solvents.
For non-contact detection, ultrasonic sensors (e.g., Siemens Milltronics HydroRanger 200) eliminate moving parts but require unobstructed surfaces–foam or turbulence can skew readings by ±3mm. Radar types (e.g., Vega Vegapuls 64) penetrate dust and steam, accurate to ±1mm even at 20m distance, making them ideal for high-temperature tanks. Infrared optical sensors (e.g., Keyence FU-380) detect levels in clear liquids but fail with opaque or colored media.
Current Consumption and Voltage Ratings
Match the sensor’s load capacity to your relay’s specifications:
- Low-power floats (≤250VAC/10A) suffice for 1HP centrifugal devices–examples include Madison M400 (3A resistive) or TE Connectivity Klixon (15A inductive).
- Heavy-duty units (e.g., Gems Sensors FS-10792 rated 250VAC/20A) prevent arcing when controlling 2HP+ submerged or jet systems.
- DC options like Cynergy3 LLE10000 (12–24VDC) reduce wiring complexity in solar-powered setups, though they necessitate MOSFET drivers for inductive loads.
Environmental Resistance Specifications
Submersible floats must meet IP68 standards for continuous underwater operation. The Nason CM28-2 handles depths up to 15m and temperatures from -40°C to 125°C, whereas silicone-jacketed cables degrade above 85°C. For corrosive environments, 316 stainless steel floats (e.g., Ametek AP1900) resist chlorides and sulfides but add weight–factor this into mounting designs. Explosion-proof models (e.g., FW Murphy EFV-1) carry Class I, Division 1 certifications but require conduit sealing.
Tethered floats deliver precise activation points (±5mm) in narrow vessels, whereas pivoting arms (e.g., Barksdale ULS-H) suit wider reservoirs with a ±1° hysteresis. Horizontal configurations like the SOR TLS-1 minimize tank wall clearance needs but require rigid mounting to prevent false triggers from sloshing. For viscous liquids (>1000 cP), select large-displacement floats (e.g., George Fischer Signet 2550) with buoyancy exceeding 120g to overcome drag.
Calibration accuracy drops in turbulent conditions–adjustable sensitivity floats like the Finder 40.31.9.024.0040 allow on-site tuning via a threaded coupler. For multi-point control, rod-guided floats (e.g., Gic MINI-R) stack vertically without tangling, though they mandate straight tank walls. Wire-guided options, while cheaper, risk fouling on debris–install stainless steel strainers (2mm mesh) upstream to extend service intervals.
Fail-safe redundancy pairs a normally-open float (closing on rising level) with a normally-closed type (opening on falling level). The ABB EQ-3 series integrates both contacts in one housing, reducing wiring by 40% compared to discrete units. For extreme conditions, magnetic reed switches (e.g., OKI OR43150) outlast mechanical contacts 10x but need shielding from external magnets–magnetic pumps within 30cm can cause erratic toggling.
Cost-to-performance ratios vary widely: polyethylene floats start at $12 but last PTFE-coated units (e.g., WIKA LS-10) exceed $200 but retain accuracy after 500k cycles. Prioritize suppliers offering sample units for pilot testing–liquid viscosity, specific gravity (SG), and ambient temperature deviate broadly from published specs in real-world applications.
