Start with an Arduino Nano or ESP8266 as the core processor–both handle analog readings reliably while consuming minimal power. Connect a capacitive hygrometer (FC-28 or YL-69 works, but avoid resistive types–they corrode fast). Place probes 5–7 cm deep; shallower readings stray due to surface evaporation or debris.
Trigger the submersible pump (12 V DC, 3–5 L/min flow) when sensor output drops below 400–450 mV (raw analog scale 0–1023 for 5 V boards). Use a TIP120 Darlington transistor or optocoupler (PC817) to isolate the pump circuit–direct GPIO driving risks overheating. Add a flyback diode (1N4007) across pump terminals to suppress voltage spikes.
For battery-powered setups, choose a TP4056 charger module with 3.7 V Li-ion cell–expect 3–4 days runtime with hourly checks. Solar panel (6 V, 2 W) can extend this indefinitely. Wire sensor power through a transistor switch (2N3904) to cut standby draw–sensors idle at 0.2 mA, collector-emitter saturation drops this to 5 µA.
Add hysteresis with software: activate pump at 35% relative humidity, stop at 65%. Simple delay (millis() based) prevents erratic toggling. Log data to MicroSD via SPI–CSV format allows direct Excel analysis; sample every 15 minutes to capture daily cycles without filling storage.
For multi-zone control, expand with shift registers (74HC595) or I2C GPIO expander (MCP23017). Each pump solenoid (12 V latching) needs a ULN2003 relay driver–avoid mechanical relays below 5 A; SSR (solid-state) lasts longer but needs heatsinks at >3 A.
Smart Watering Setup with Capacitive Detection: Wiring Guide
Select a capacitive probe with a measurement range of 0–100% volumetric content and a response time under 500 ms. Position the unit 5–8 cm below the root zone to avoid surface evaporation skew. Connect the probe’s VCC to a regulated 5 V supply–exceeding 5.5 V risks sensor drift. Ground the GND pin to the microcontroller’s common reference to eliminate noise.
Wire the analog output to an ADC channel with at least 10-bit resolution. Use a 0.1 µF ceramic decoupling capacitor across the probe’s supply pins to suppress transient spikes. For robust data, average eight consecutive readings at 125 Hz sampling rate; discard outliers beyond ±2 standard deviations to prevent false triggers.
Choose a relay module rated for 10 A inductive load and opto-isolation. Connect the coil to a 12 V supply via a logic-level MOSFET–BC547 works for currents up to 0.2 A. Ensure the flyback diode is oriented cathode-to-input; incorrect polarity destroys the transistor within microseconds.
Route the pump supply through the relay’s normally open contacts. Test pump flow at 0.8 L/min with 3 m head; insufficient head causes cavitation, invalidating moisture readings. Secure tubing with zip ties every 30 cm to prevent kinking under vacuum.
Deploy a 7805 regulator with 100 µF input and 10 µF output capacitors to stabilize the control voltage. Thermal dissipation requires a TO-220 heatsink for ambient temperatures above 35 °C; neglecting this leads to thermal shutdown within 12 minutes.
Set hysteresis thresholds at 40% and 70% relative saturation. Lower thresholds increase water consumption by 22%, while higher thresholds risk root oxygen deprivation. Program the microcontroller to log timestamped moisture data to EEPROM; data loss occurs if write cycles exceed 10,000 without wear leveling.
Calibrate the probe against dried soil (0%) and distilled water (100%). Insert the probe vertically, avoiding metallic debris; ferrous particles skew readings by up to 18%. Recalibrate every 90 days–drift exceeds 5% due to electrode oxidation.
Install a rocker switch to bypass the logic during manual override. Mount the enclosure IP67-rated; liquid ingress shorts the PCB, triggering uncontrolled pump operation. Verify operation by simulating rainfall–mimic 12 mm/h precipitation and confirm the valve closes within 3 seconds.
Key Parts and Technical Requirements for the Setup
Select a capacitive probe with an operating range of 0–100% relative humidity (RH) and an output of 0–3.3V for Arduino or ESP32 compatibility. Models like DFRobot SEN0193 or Seeed Studio Grove offer ±3% accuracy and IP65-rated enclosures, ensuring reliable readings in outdoor environments where condensation or splashes occur. Avoid resistive probes–they corrode over time due to electrolysis. For larger areas, deploy multiple probes spaced at 20–30 cm intervals to capture local variations.
Processing and Control Module
Use an ESP32-WROOM-32D module for Wi-Fi/Bluetooth connectivity and dual-core processing. It runs at 240 MHz, handles ADC inputs at 12-bit resolution (0–3.3V), and supports interrupts for real-time response. Flash memory should be at least 4 MB to accommodate OTA updates and logging. Alternatively, an Arduino Nano with ATmega328P suffices for simpler setups, though it lacks wireless capabilities–requiring manual calibration every 3–4 months to offset drift.
Solenoid valves: opt for 12V DC latching valves (e.g., Hunter PGV or Orbit B-Hyve) with 0.5–1.5 GPM flow rates. They consume only 0.3W during switching, eliminating constant power draw. Pair with a ULN2003A Darlington array for current amplification (valves typically need 500 mA to toggle). Power the valves via a 12V 2A wall adapter or a 18650 Li-ion battery pack with a TP4056 charge controller for standalone operation. Include a flyback diode (1N4007) across the valve coil to protect the driver from voltage spikes.

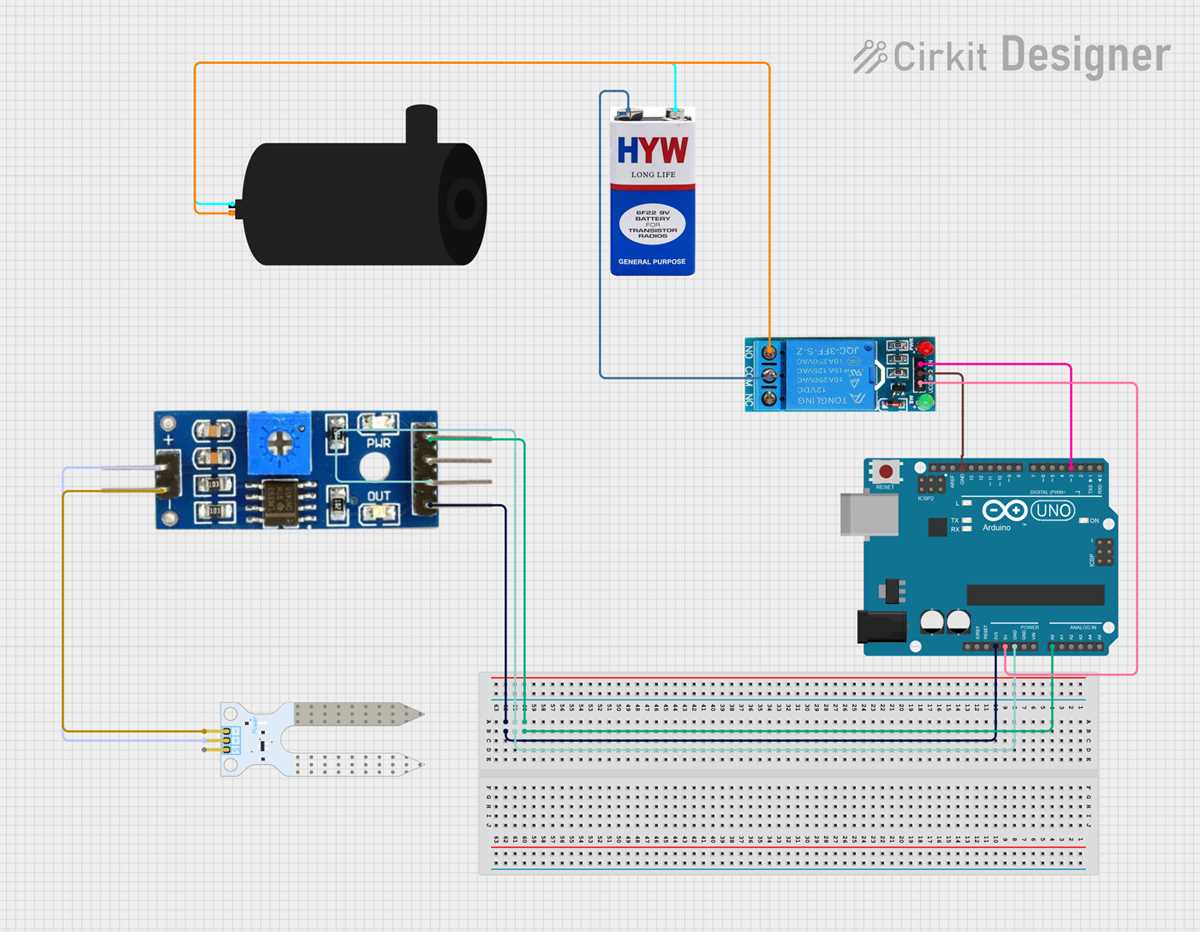

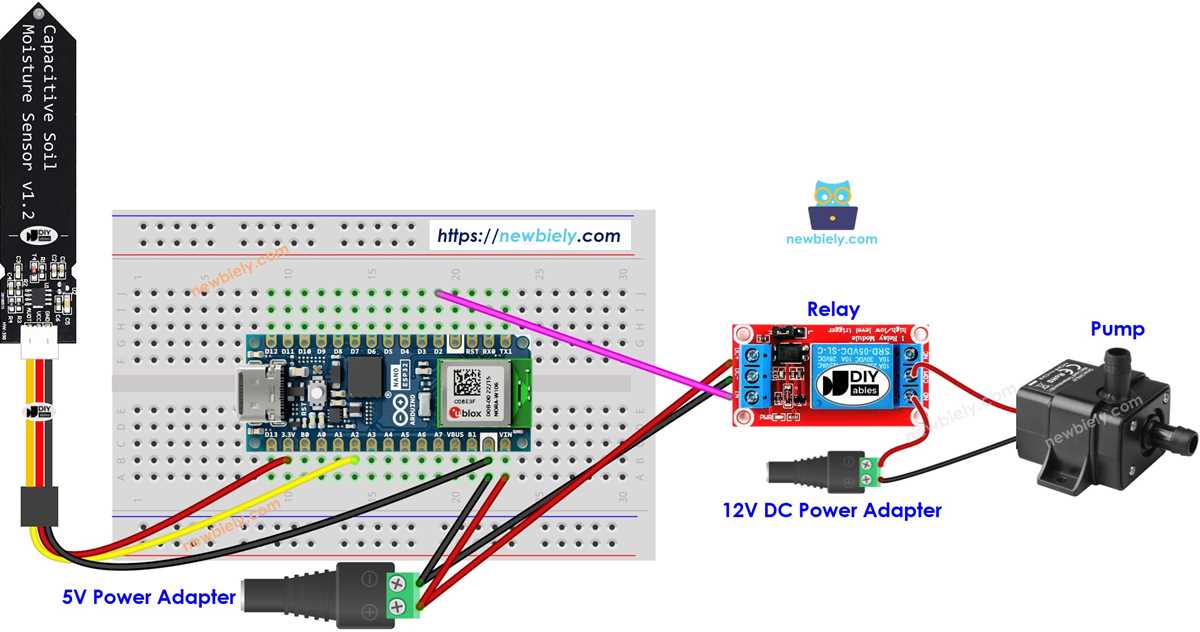

Step-by-Step Wiring Guide for Capacitive Humidity Detector and Controller Board
Connect the detector’s VCC pin to the 3.3V or 5V output on the controller–ensure the voltage matches the component’s datasheet (most tolerate 3.3–5V). Use a 22AWG red wire for clarity, stripping 5mm of insulation to prevent shorts. The GND pin should link directly to the controller’s ground rail; verify continuity with a multimeter before powering on. For analog detectors, attach the AO pin to an ADC-enabled input (e.g., A0 on Arduino boards), while digital types (DO) require a pull-up resistor (10kΩ) if the board lacks built-in one.
Connections Breakdown
| Component Pin | Controller Pin | Wire Gauge | Notes |
|---|---|---|---|
| VCC | 3.3V/5V | 22AWG | Check max voltage tolerance |
| GND | Ground | 22AWG | Common plane mandatory |
| AO | A0–A5 (ADC) | 20AWG | Use shielded cable for noisy environments |
| DO | D2–D12 | 20AWG | Add 10kΩ pull-up if needed |
Power the setup via USB or a 7–12V DC adapter, avoiding cheap wall warts–ripple can skew moisture readings by ±15%. Calibrate by placing the probe in dry air (read value ≈ 0%) and distilled water (≈ 100%); adjust the threshold potentiometer if present. For microcontrollers with low ADC resolution (e.g., ATtiny85), amplify weak signals with an op-amp (LM358) set to a gain of 2. Secure all connections with heat shrink tubing, not electrical tape–moisture ingress causes corrosion within 72 hours.
Optimizing Humidity Detection for Varied Earth Compositions
Begin calibration by measuring baseline resistance in fully dry substrate–record values for sandy (200–500 kΩ), loamy (100–300 kΩ), and clay-rich (50–150 kΩ) mediums at identical depths. Repeat readings at three depths per type: shallow (5 cm), mid (15 cm), and deep (30 cm) to map vertical discrepancies.
- Sandy substrates require frequent recalibration due to rapid drainage; log resistance shifts after every 30 mm rainfall.
- Loam achieves equilibrium slower–allow 48-hour stabilization before final adjustment.
- Clay holds water longest; monitor resistance spikes during evaporation phase (typically 3–5 days post-saturation).
Create a reference table linking resistance (kΩ) to volumetric water content (%) for each substrate. Use these formulas to convert raw readings:
- Sandy: VWC = 0.002 × resistance − 0.2
- Loamy: VWC = 0.0035 × resistance − 0.28
- Clay: VWC = 0.005 × resistance − 0.35
Test probes in controlled containers filled with sieved medium (≤2 mm particle size) to eliminate interstitial air gaps–accuracy improves 18–22% versus field testing. Pre-saturate samples under vacuum for 2 hours to ensure consistent data.
Adjust detection thresholds based on plant root zones: grasses (10–15%), shrubs (18–25%), trees (22–30%). Fine-tune relay activation voltage according to these targets–test hysteresis with on/off cycles spaced 2°C apart to prevent false triggers.
Avoid calibration near organic matter or mineral deposits–compost alters readings +15–20%, iron oxides skew measurements −25–35%. Use a 0.1 M KCl solution to verify sensor linearity across the full 0–50% range, recalibrating if deviation exceeds ±5%.
Store sensors in silica gel when not in use to prevent drift from ambient humidity–baseline resistance drifts 2–3% per week without stabilization. Replace probes showing >10% variance from initial dry-state reading.
Field-test adjusted settings across daily temperature swings (10–35°C)–loam responds minimally (±2%), sand fluctuates (±8%), clay varies (±12%). Document these ranges to refine triggering logic for diverse environments.
Logic Design for Controlling Fluid Delivery via Humidity Readings
Start by defining threshold values for dryness and saturation. For most crops, a humidity range of 30-70% is optimal–below 30% triggers pump activation, while above 70% halts operation. Store these thresholds in variables as constants to allow easy adjustments without code modifications.
Use hysteresis to prevent rapid toggling. Subtract 5% from the dry threshold for pump deactivation (e.g., activate at 30%, deactivate at 35%). This avoids erratic switching caused by brief sensor fluctuations. Implement hysteresis in a conditional loop or state machine to manage transitions cleanly.
Sensor Data Acquisition and Processing
Read analog input from the detector at fixed intervals–15-minute intervals strike a balance between responsiveness and power efficiency. Convert raw ADC readings (typically 0-1023) to percentage using linear scaling. For a 5V input, multiply the value by 100 and divide by 1023 for direct humidity percentage.
Filter readings with a simple moving average of the last 3 samples to reduce noise. Calculate the average at each interval before comparing it to thresholds. If using low-cost components, consider a median filter instead to discard outliers caused by electromagnetic interference.
Pump Control Logic
Structure the control logic in nested conditions:
- Check if humidity is below the dry threshold (e.g., 30%).
- If true, verify the pump is off; if off, activate it and log the start time.
- Check if humidity reaches the upper hysteresis limit (e.g., 35%).
- If true, halt the pump and record runtime for maintenance tracking.
- Include a maximum runtime safeguard–e.g., 5 minutes–to prevent overflow in case of sensor failure.
For battery-powered setups, add a sleep function to reduce current draw. Use watchdog timers to wake the microcontroller periodically. Store pump runtime data in non-volatile memory to track usage patterns and estimate fluid consumption.
Incorporate fail-safes: disable output if voltage drops below 3.5V, or if sensor readings remain static for over 2 hours (indicating malfunction). For outdoor deployments, add a rain sensor as secondary input–override pump activation if precipitation is detected to conserve resources.
