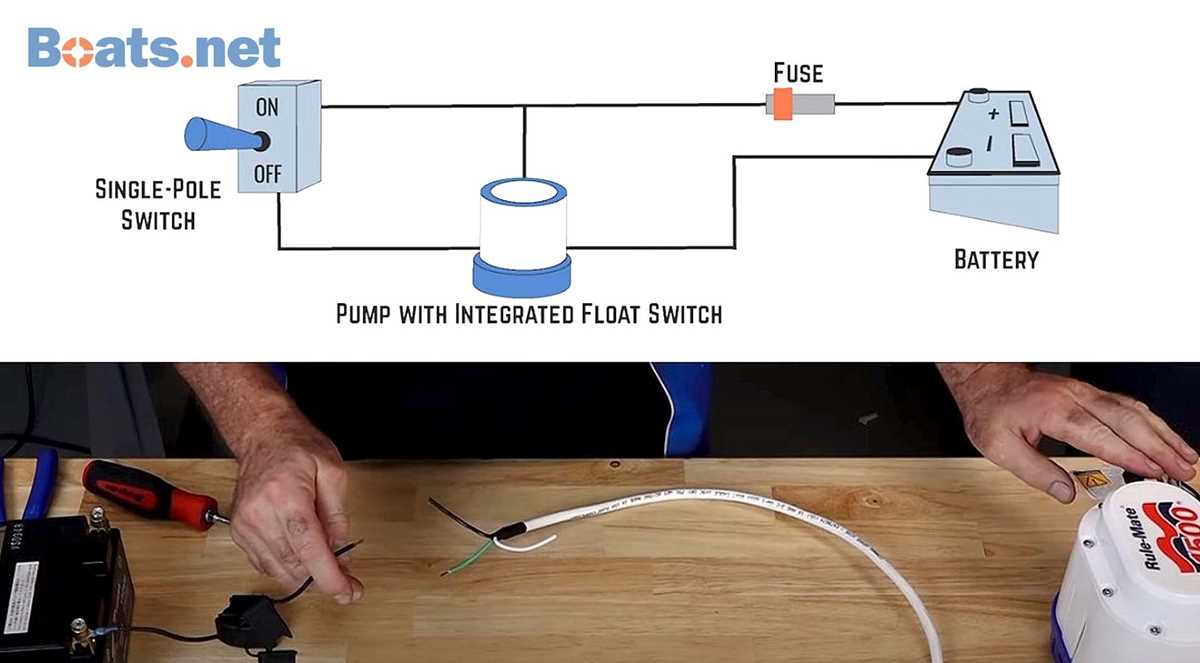

Start by connecting the positive lead of your 12V power source directly to the common terminal of a heavy-duty SPST switch. Use at least 12-gauge marine-grade tinned copper wire to minimize voltage drop over distances exceeding three meters. Ensure the switch is rated for at least 20A, preferably with a sealed housing to prevent corrosion in damp environments.
The switched power output should feed into the input terminal of the float mechanism’s control unit. Confirm the unit supports pulse-width modulation or latching relay logic if dealing with high-water scenarios requiring rapid cycling. For standard installations, a single-pole, normally-open float switch suffices–mount it no higher than 15 mm above the keel to avoid false triggers from residual moisture.
From the float switch’s load terminal, route the signal back to the trigger input of a sealed relay. Choose a relay with coil voltage matching your system (12V/24V) and contacts rated for 30A inductive load. Insert a 20A fuse within 18 cm of the battery’s positive terminal to protect against short circuits. Bypass this fuse only if the relay’s internal protection meets ISO 10133 standards for marine applications.
For multi-stage setups, daisy-chain float switches with 20 cm vertical separation between units. Each switch should engage at progressively higher water levels, feeding into a priority encoder circuit or microcontroller configured to activate the primary unit first. Avoid parallel float switches unless each has its own relay–shared circuits risk undercurrent failures during simultaneous triggering.
Ground the entire assembly via a 6-gauge wire bonded to the vessel’s bonding system or engine block, never to the fuel tank or isolated deck hardware. Verify all connections with a megohmmeter (set to 500V) to ensure resistance exceeds 500 MΩ when dry. Label wires at both ends using heat-shrink tubing with inscribed identifiers (e.g., “FLOAT-hi,” “RELAY-coil”).
For periodic testing, install a momentary push-to-test switch in parallel with the float circuit. Press it to simulate activation–confirm the unit powers on within 200 ms and shuts off cleanly when released. If using a solid-state relay, add a flyback diode (1N4007) across the coil terminals to suppress voltage spikes exceeding 150V.
How to Safely Install a Marine Water Removal System

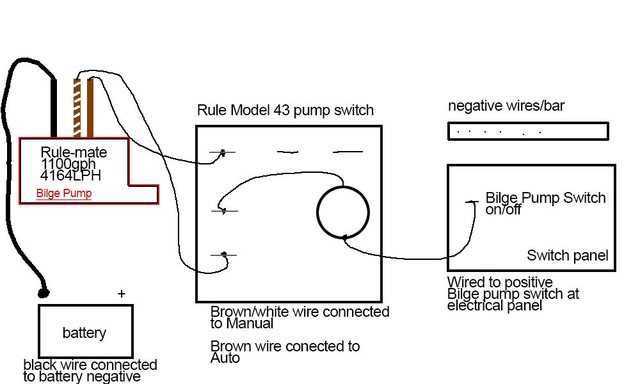

Start by selecting a 12V DC submersible pump rated for at least 1,100 GPH–this handles typical hull collection rates in vessels under 30 feet. Ensure the model has an integrated float trigger to prevent dry operation, which drastically reduces motor burnout risks. Avoid units lacking reverse polarity protection; a single miswired connection can destroy internal circuitry, leaving compartments vulnerable to flooding.
Route power directly from the main battery bank using tinned marine-grade 10 AWG cable. Corrosion-resistant terminals prevent voltage drops in damp conditions–crimp connectors won’t suffice; solder and heat-shrink each joint. Include a 15-amp fuse within 7 inches of the battery positive terminal, following ABYC E-11 standards, to isolate faults before they escalate to fire hazards. Never splice into existing navigation or lighting circuits; shared wires create failure points during critical operations.

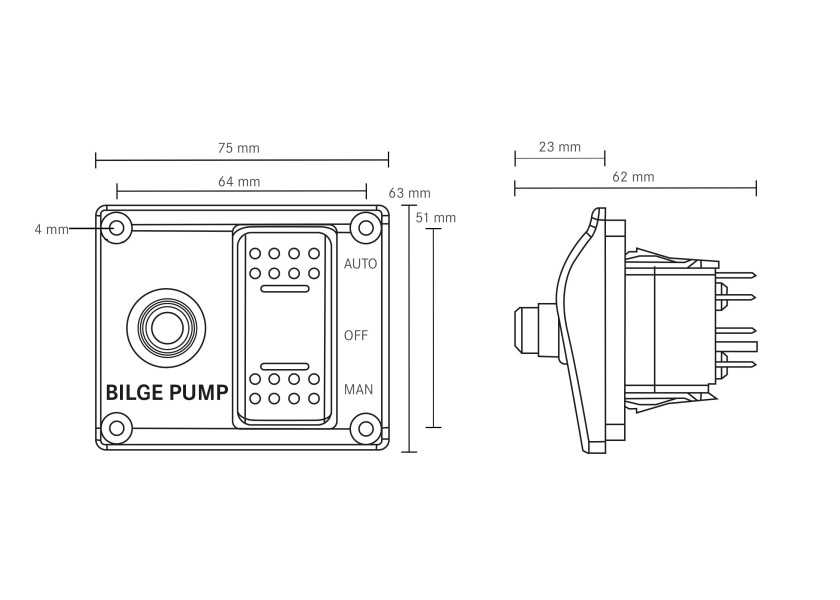

Install the activation module above the highest expected waterline but within 10 feet of the sump. Float switches positioned too low risk delayed response, while excessive vertical clearance invites false triggers from vessel motion. Add a manual override switch near the helm, clearly labeled, to bypass automatic cycling during maintenance. Use a double-pole circuit breaker as a disconnect–single-pole variants can leave live wires exposed when servicing.
Ground the negative lead to the engine block or bonded hull structure, never to a single zinc anode. Dissimilar metals accelerate galvanic corrosion, compromising grounding integrity over time. Test continuity with a multimeter before sealing compartments; readings below 0.2 ohms indicate reliable grounding. Seal all cable penetrations through bulkheads with epoxy-filled strain reliefs–standard grommets crack under vibration, admitting moisture that corrodes connections.
Position the outflow hose above the waterline to prevent backflow siphoning at rest. Secure it with nylon straps every 18 inches to prevent chafing against rough surfaces or moving equipment. Use smooth-bore hose with a minimum 1¼-inch ID; corrugated variants trap debris and reduce flow efficiency. Route the discharge away from engine intakes, thru-hulls, and crew pathways–abrupt surges can dislodge unsecured gear or create slip hazards.
Label every component at both ends: “FLOOD CONTROL – 12V DC” stenciled directly onto cables and switches prevents accidental disconnections during unrelated repairs. Include the installation date on a waterproof tag near the battery connection; most motors require replacement after 3–5 years regardless of usage. Document voltage readings under load (typically 11.8–12.6V) during sea trials for baseline reference.
Add a secondary high-water alarm independent of the primary system. Install a pressure-sensitive switch ½ inch above the automatic trigger level; wire it to a separate audible buzzer and visual strobe at the helm. This redundancy catches failures before water reaches bilge-mounted electronics or storage compartments. Test the alarm monthly by temporarily raising the float–silence indicates corroded contacts or severed wiring needing immediate attention.
Review the entire circuit under real conditions before finalizing compartments. Simulate flooding by filling the sump with a garden hose while monitoring current draw–expect 4–7 amps during operation. Listen for unusual noise (grinding or humming) suggesting trapped debris or improper impeller alignment. Seal the lid on the installation logbook with clear silicone; store it in a dry, accessible location for future technicians or inspectors.
Core Hardware for Marine Water Extraction System Setup
Begin with a submersible DC motor rated for at least 1100 GPH for vessels under 30 feet, ensuring it includes a built-in float switch with a 1/2-inch outlet diameter to prevent clogging. Pair it with a 30-amp fuse holder and tinned copper wire–minimum 10 AWG–for the positive lead, reducing voltage drop over distances exceeding 15 feet. Install a dedicated 20-amp circuit breaker between the power source and motor to isolate faults without tripping the main panel.
Essential Peripherals and Safety Measures
Mount a non-corrosive check valve (e.g., Marelon or bronze) within 12 inches of the motor’s outflow to block backflow during shutoff, critical for preventing siphoning at high bilges. Include a manual override switch–rated for marine environments–near the helm, wired in parallel to the float switch to allow forced activation when debris obstructs sensor operation. Verify all connections with a multimeter set to 20-volt DC range before sealing terminals with adhesive-lined heat shrink tubing (minimum 3:1 shrink ratio) to prevent saltwater ingress.
Integrate a high-water alarm–separate from the primary extraction system–with a piezoelectric buzzer and LED indicator, powered by a 9-volt battery to ensure operation during main system failure. Secure all wiring along bulkheads using stainless steel P-clips spaced every 18 inches, avoiding sharp bends to preserve conductor integrity over time.

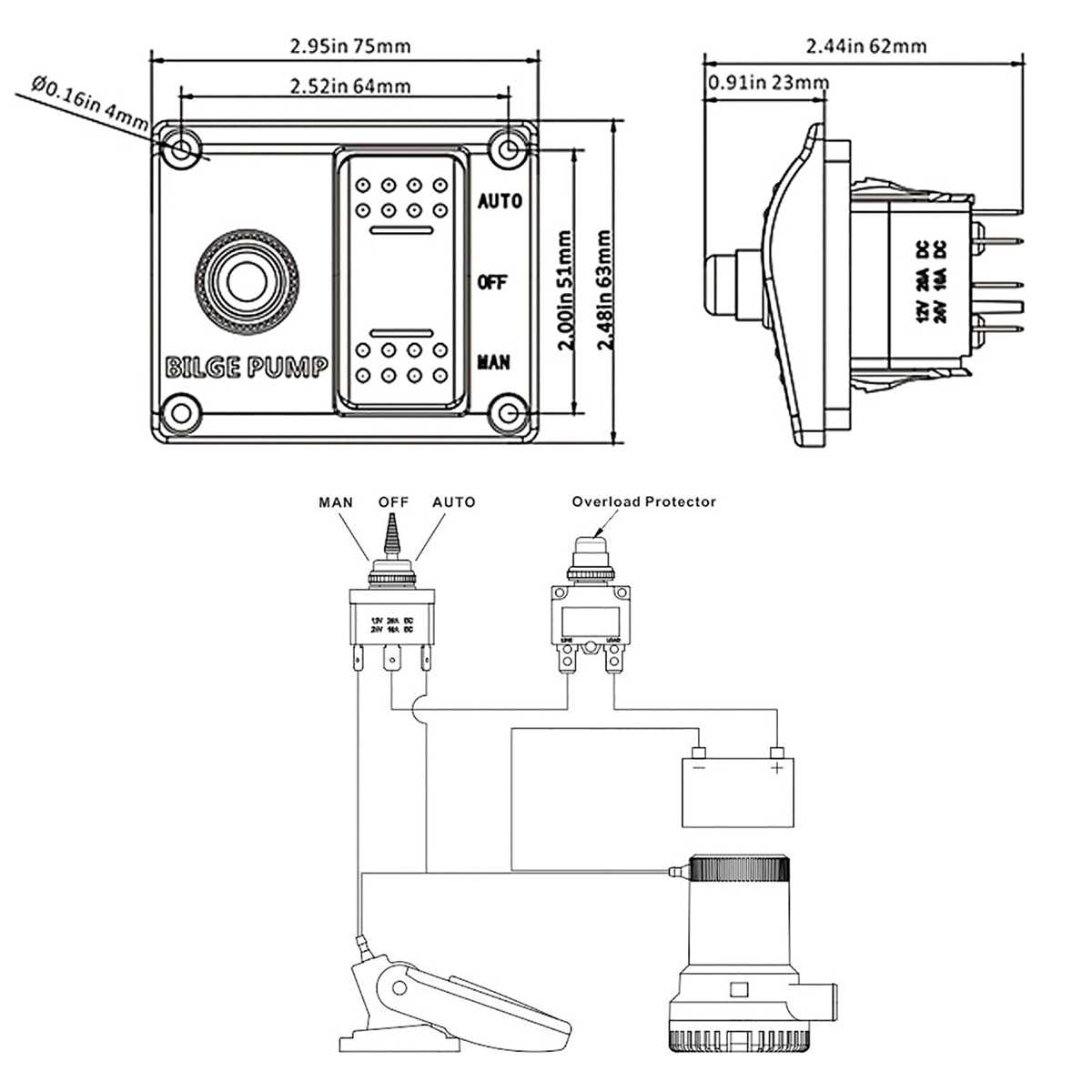

Step-by-Step Connection Guide for 12V Marine Drainage Systems

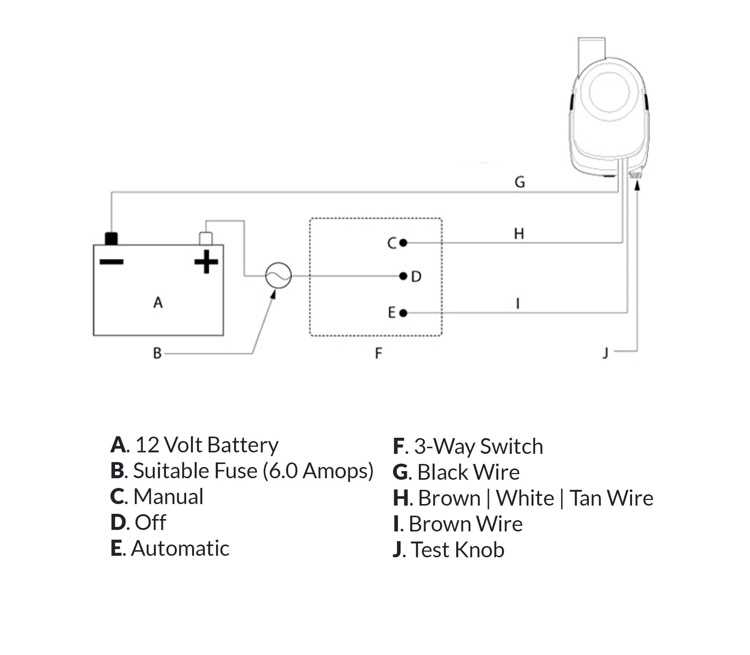

Start by selecting a fuse rated 1.5 times the continuous current draw of your device, typically 5–7 amps for most 12V units. Position the fuse holder within 7 inches of the battery’s positive terminal to prevent overheating or short-circuit risks. Use tinned copper wire–minimum 16 AWG for runs under 10 feet, 14 AWG for longer distances–to reduce voltage drop and corrosion.
Connect the red cable directly to the battery’s positive post, securing it with a ring terminal crimped and heat-shrunk for moisture resistance. Route the wire through a watertight gland if passing through bulkheads, ensuring no sharp edges contact the insulation. Avoid routing near moving parts or exhaust manifolds, where temperatures exceed 140°F (60°C).
Integrating the Control Module
Mount the switching relay in a dry, ventilated location–inside a sealed electrical box or above the waterline–using stainless steel screws to prevent galvanic corrosion. Wire the relay’s coil terminals (pins 85 and 86) to the float switch, observing polarity if the switch is non-mechanical. Connect pin 87 to the drainage unit’s positive input, and pin 30 to the fused battery lead.
For manual override, install a momentary pushbutton switch in parallel with the float switch, using 18 AWG wire for minimal current draw. Test the circuit with a multimeter set to continuity mode before energizing; confirm the relay clicks when the float rises, and measure 12V across the drainage device’s terminals with the switch activated. Drop test the float in a bucket of water to verify response time–ideal activation occurs within 1–2 seconds.
Finalizing Ground and Environmental Safeguards
Attach the black ground wire to the engine block or a dedicated grounding bus, avoiding painted surfaces for reliable conductivity. Use star washers or threaded holes tapped into bare metal to prevent loosening from vibration. Apply dielectric grease to all terminals after tightening to a torque of 8–10 in-lbs, protecting against oxidation and saltwater intrusion.
Seal all splices with adhesive-lined heat shrink tubing, overlapping joints by at least 0.5 inches. Secure wire runs with nylon-backed cable clamps every 18 inches, allowing slight slack to accommodate hull flex. Label both ends of each wire with heat-shrink tags–”SWR ACT” for the float switch wire, “MAN OVRD” for the pushbutton–to simplify future troubleshooting. Perform a final polarity check at the drainage device before submersion; reversed polarity risks immediate failure of the impeller or motor windings.
