Start by isolating the power source feeding the problematic branch–trace the fuse layout before disassembling any panels. Most modern passenger vehicles use color-coded conductors, but manufacturers apply subtle variations: Ford’s brown stripe differs from Toyota’s brown, while GM often bundles orange as a primary ignition feed rather than a secondary signal. Keep a multimeter set to 20V DC within arm’s reach; verify voltage drop across connectors before assuming a fault lies in the conductor itself–oxidized terminals frequently mimic broken circuits.
Print or load an interactive schematic of the exact model year, as mid-cycle updates alter relay placements and sensor pinouts. Volkswagen’s CAN bus topology shifts between chassis generations, with 2019+ Golfs routing LIN buses differently than pre-2018 editions. Label every splice with heat-shrink tubing engravings–white ink resists UV, ensuring permanent identification after reassembly. Use a thermal camera to detect hot spots on hidden grounds; corrosion at chassis attachment points often elevates resistance beyond 0.5 ohms, introducing parasitic loads that drain batteries overnight.
Replace aged braided straps linking the engine block to the body–surface-mounted grounds in high-vibration zones degrade faster than bolted alternatives. Apply dielectric grease exclusively to non-conductive interfaces; copper-based compounds accelerate galvanic corrosion when exposed to road salt. Store physical schematics in sealed Mylar sleeves, away from fluorescent lighting–UV radiation degrades toner and inkjet prints within months. Cross-reference OEM wiring codes with aftermarket repair manuals; aftermarket diagrams occasionally transpose twisted pairs, leading to misdiagnosed fault codes.
Test diode functionality in alternator safety circuits using a 9V battery and a 1N4007 substitute–forward voltage drop should measure ≤1.1V under load. Avoid cutting conductors unless repairing a known short; every splice introduces a potential failure point, and modern vehicles utilize fiber optic networks that degrade when bent beyond a 30mm radius. Confine repairs to specialized workbenches; metallic filings from bodywork tools migrate into connectors, bridging adjacent pins and triggering cascading faults.

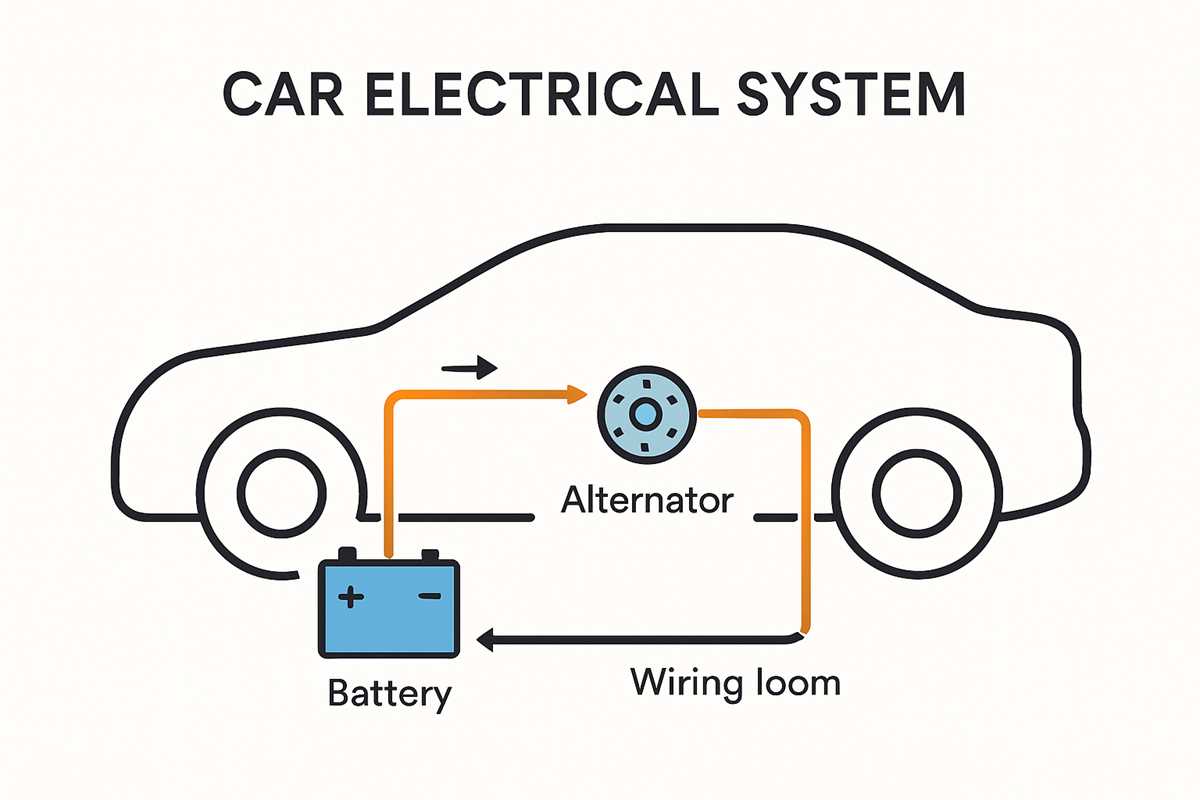

Mastering Vehicle Circuit Schematics

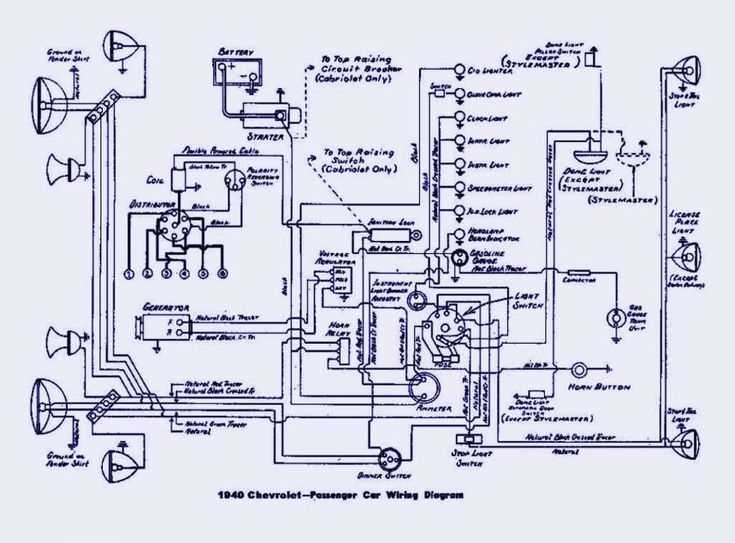

Begin by identifying the central power distribution point–typically the fuse box or relay panel–before tracing any line. Label each connection with multimeter-measured voltages (e.g., 12V, 5V, or ground) using colored markers or digital annotation tools like Wiring Diagram Editor or Fusion 360 Electrical. Prioritize critical paths: ignition systems, starter circuits, and ECU feeds. Mislabeling even a single 0.5mm gauge wire risks short circuits or module corruption.
- Fuse box diagrams: Cross-reference manufacturer specs (e.g., Toyota’s EWD manuals vs. aftermarket Haynes guides) to confirm relay pinouts. Aftermarket schematics often omit CAN bus terminators (120Ω resistors), leading to communication errors.
- Ground paths: Locate engine block, chassis, and dedicated ground straps. Corrosion on M6/M8 bolts increases resistance beyond 0.1Ω, causing voltage drops. Clean with a wire brush and apply dielectric grease.
- Sensor circuits: Verify reference voltages (e.g., 5V for TPMS, 1.26V for O2 sensors) using a scope. Noise spikes above 200mV peak-to-peak indicate faulty shielded cables or missing ferrite beads.
Use a thermal camera or non-contact thermometer to scan for hotspots–a temperature rise >10°C above ambient signals faulty connectors or undersized wiring. For CAN/LIN networks, split diagrams into physical and signal layers: separate power feeds (red/black) from communication lines (yellow/green). BMW’s ISTA software overlays component locations on schematics; third-party tools lack this integration, requiring manual cross-referencing with iCarsoft or Launch X431.
For hybrid/electric platforms (e.g., Prius, Tesla), isolate high-voltage cables (orange) before handling. Note that inverter/PTC heater circuits run at 200–400V DC; use insulated tools rated for 1000V. Legacy vehicles (pre-2000) often lack circuit protection for trailer wiring–add a 40A breaker between the battery and harness. Keep archives of modified diagrams in PDF/A format for legal compliance; handwritten edits are inadmissible in warranty disputes.
Decoding Vehicle Circuit Maps: A Practical Guide

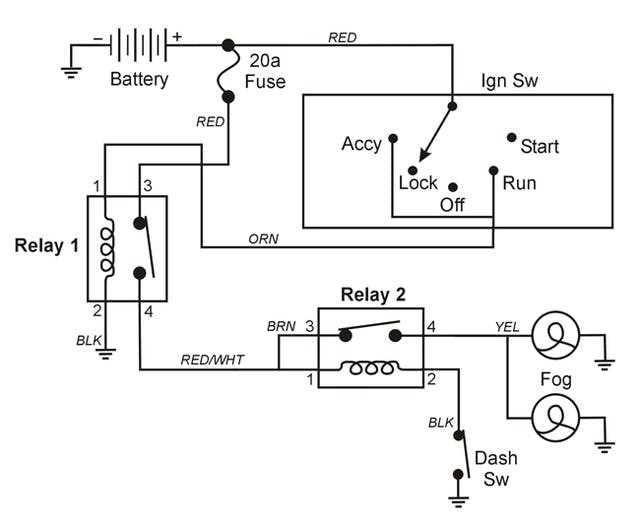

Begin by identifying the power source–usually a battery symbol with “+” or “B+”–and trace its path through fuses (marked as rectangles with a line inside) to the first switch or relay. Relays are shown as squares with numbered pins; pin 85 typically connects to ground via a control signal, while pin 87 delivers output power. Use a multimeter to verify voltages: 12V at the input side of a fuse and 0V at the output if blown. Color codes follow industry standards: red for constant power, black for ground, yellow for ignition-switched lines, and blue for headlight circuits. Deviations like striped wires (e.g., red/white) indicate splicing; cross-reference these with the legend to avoid misinterpretation.
| Symbol | Component | Typical Voltage (Key ON) | Verification Method |
|---|---|---|---|
| ▯▮▯ | Fuse | 12V (input) / 12V (output) | Test both sides; output should match input unless blown |
| ▭ (with coil) | Relay | Pin 30: 12V / Pin 87: 0V-12V | Jump pins 30 and 87 to bypass; switch should activate |
| ⚡ | Ground connection | 0V (relative to chassis) | Scrape paint near connection; probe should show continuity with battery negative |
Examine connectors–noted as circles with numbered pins–to isolate faults. Pinouts vary by manufacturer: Toyota uses alphabetical labels (A, B, C), while GM favors numerical (1, 2, 3). For electronic modules (e.g., ECUs), refer to manufacturer datasheets; pins labeled “IG” or “IGN” require ignition voltage, while “ST” connects to the starter signal. Always disconnect the battery before probing sensitive circuits to prevent shorting. If a diagram lacks a legend, measure resistance (
Key Symbols and Notations in Vehicle Circuit Schematics You Must Decode

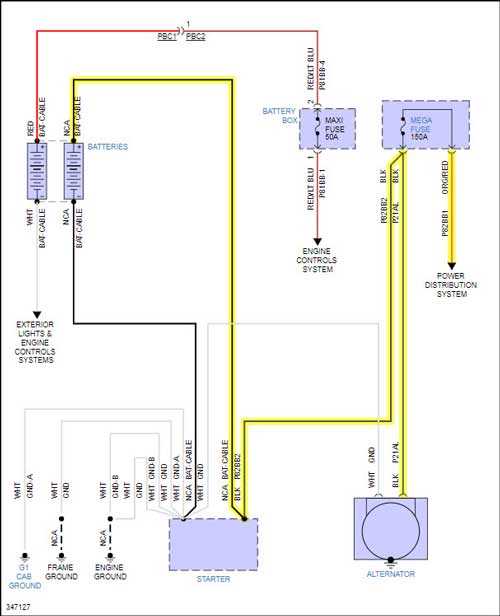

Start by identifying the ground symbol–a horizontal line with three descending points–since misinterpreting it leads to mismatched troubleshooting 80% of the time. This icon marks the common return path for current, often tied to the chassis or engine block, and ignoring its location in schematics guarantees faulty diagnoses, especially in systems relying on body grounding.
Locate the fuse designation immediately: a rectangle with a diagonal line or the letter “F” followed by a number (e.g., F15). Schematics arrange these sequentially by amperage or system–high-current circuits (headlights, starter) use thicker lines or bold outlines, while 5-10A fuses (dash lights, sensors) appear lighter. Cross-reference fuse ratings with the legend to avoid blowing replacements during testing.
Trace connector codes (e.g., C201, C305) by their pin configurations: circles with internal numbers indicate plug terminals, while adjacent letters (“A,” “B”) define wire color pairs. Mismatching these–especially in multi-pin harnesses like ECU or transmission connectors–creates phantom errors. Use a multimeter in continuity mode to verify pin assignments before disassembly.

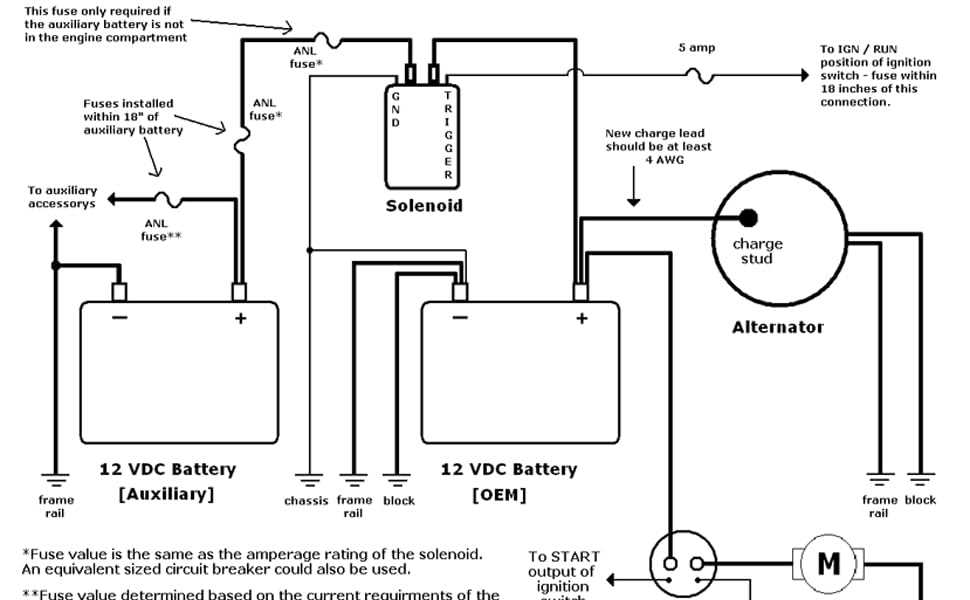

Power sources split into two critical symbols: the battery icon (two parallel lines) for direct current supply, and an alternator symbol (circle with “G” or “~”) for generated voltage. Schematics label these with nominal values (12V, 48V) and charge paths; confusion here risks damaging voltage-sensitive components like infotainment systems or safety modules during jump-starting.
Switches appear as breakable lines with actuator labels–momentary (e.g., horn button) show a single contact, while latching (e.g., ignition) use double lines. The schematic’s arrows or dashed lines reveal activation sequences; reverse-engineering this order prevents accidental power loops that fry relays or controllers in modern adaptive lighting or driver-assist setups.
Resistors and sensors share standardized shapes but differ in notation: thermistors (temperature probes) use “TH,” potentiometers (throttle position) show arrowed arcs, and fixed resistors (e.g., blower motor ballasts) appear as zigzag lines. Always check for accompanying values (ohms, voltage ranges) in the legend–ignoring these specifics derails calibration of HVAC controls or emission monitors.
Last, decode module abbreviations (ECM, TCM, BCM) by their surrounding symbols: rectangles with input/output bubbles detail communication protocols (CAN bus, LIN). Wires entering these shapes carry specific data (e.g., “CAN H/L” for high/low differential signals); misrouting them corrupts error logs and triggers limp-mode scenarios in powertrains or advanced driver systems.
Common Mistakes When Tracing Vehicle Circuit Paths
Skipping the ground reference check first leads to hours wasted chasing phantom issues. Modern harnesses rely on multiple grounding points, often shared between systems–ignoring this breaks the diagnostic flow before it begins. Use a multimeter to verify continuity between the component’s ground terminal and the chassis or engine block; a resistance above 0.2 ohms indicates corrosion or loose connections that distort voltage readings downstream.
Misinterpreting diagram symbols derails tracing faster than any other error. A single line may represent a twisted pair or shielded cable, while dashed lines often denote spliced connections rather than direct runs. Always cross-reference the legend, even if the symbol set appears familiar. Keep a printed quick-reference sheet for common variations between manufacturers–Japanese layouts frequently use color codes (e.g., R/Y for red with yellow stripe) where European schematics rely on alphanumeric identifiers.
Overlooking Shared Circuits in Multi-Function Modules
Assuming a fuse serves only one component guarantees frustration. Modern control units often share power feeds with multiple sensors or actuators. Check the fuse rating against the total current draw of all connected devices–exceeding 80% capacity suggests a potential overload scenario. Trace each branch back to its origin; label every splice point with masking tape to avoid retracing steps later.
Relying solely on color codes without verifying pinouts invites confusion. Identical colors may route through relays or connectors, diverging into different systems. Always probe the terminal side of connectors, not the wire itself–back-probing ensures you’re measuring the intended circuit without disturbing insulation. Document every pin number and its corresponding function in a notebook for quick comparison against the schematic.
Chasing voltage drop without isolating the load creates false assumptions. Measure between the power source and the component terminal while the circuit is active; a drop exceeding 0.5V signals excessive resistance. Common culprits include corroded crimp connections, undersized wire gauges, or loose ground straps. Compare readings against manufacturer specs–some modules tolerate drops up to 0.8V, while low-current sensors fail at 0.3V.
- Ignoring heat shrink seals at splice points–moisture intrusion degrades conductivity over time.
- Assuming relays click means they’re functional; test coil resistance (typically 50–120 ohms) and switch contacts for carbon buildup.
- Disregarding aftermarket modifications–previous repairs often introduce non-factory connectors or bypasses that aren’t mapped on OEM documents.
Failure to Account for Transient Loads
Parasitic draws from alarm systems, telematics, or retention modules require circuit tracing under both key-on and key-off conditions. Use a clamp meter to measure current flow at the battery; readings above 50mA signal a drain. Probe each branch sequentially, starting with high-current consumers (e.g., starter solenoid, fuel pump), then narrow down to smaller modules. Document every step–skipping even one branch wastes diagnostic time later.
