Use a 1:1 isolation transformer with a frequency response from 20 Hz to 20 kHz and a primary/secondary impedance of 600 ohms for balanced connections. For unbalanced setups, select a transformer rated for 1k–10k ohms to match typical line-level sources. Ensure the core material is mu-metal or ferrite to minimize high-frequency loss and maintain phase integrity.
Mount the transformer in a shielded enclosure with three-terminal connections: input, output, and a dedicated return path. Connect the chassis of both input and output jacks to the enclosure’s ground, but do not bridge them together–this breaks the unwanted current path. Use Star Quad cable for wiring if the distance exceeds 1 meter to reduce induced hum.
For low-impedance microphones, add a series resistor of 10–47 ohms on the primary side to dampen resonances. Test the setup with a signal generator at 1 kHz, 1 V RMS; measure less than -80 dB of residual hum at the output. If noise persists, verify cable shielding continuity and isolate AC power sources–keep transformers at least 30 cm away from SMPS or fluorescent fixtures.
In high-current environments, replace solder connections with locking screw terminals rated for 5 A to prevent oxidation-induced failures. For transient protection, shunt each terminal to the enclosure with 100 pF ceramic capacitors. Final impedance balance should remain within ±1 dB across the operational spectrum to avoid signal degradation.
Building a Noise Suppression Interface for Signal Lines
For immediate interference elimination, install a 1:1 transformer between output and input stages–this rejects stray currents while preserving signal integrity. Use toroidal cores with a permeability of 10,000 or higher to minimize insertion loss below 1 kHz. Mount the unit in a shielded enclosure with grounded metal partitions separating input and output sections to prevent capacitive coupling.
Component selection determines performance margins:
- Core material: Mu-metal or nanocrystalline alloys reduce hysteresis losses to <0.01 dB at 20 Hz.
- Wire gauge: 24 AWG for balanced lines, 28 AWG for unbalanced–avoid enamel-coated wire due to increased capacitance.
- Shielding: Opt for twisted pair wiring with a 95% braid coverage foil shield; terminate the shield at one end only to prevent loop formation.
Alternative suppression methods include:
- A differential amplifier (THD <0.002%) followed by an RC low-pass filter (cutoff at 20 kHz).
- A ferrite bead choke (impedance >1,000 Ω at 1 MHz) placed in series with the earth return path.
- Opto-isolation (CTR >50%) for DC offset scenarios, though bandwidth caps at 100 kHz.
Solder joints must use flux with <0.1% free rosin to avoid leakage currents above -120 dB. Stray capacitance between windings should not exceed 15 pF–achieve this by interleaving windings across four sections of the core. Test for residual noise with a spectrum analyzer (span 20 Hz–200 kHz, RBW 1 Hz) and adjust winding spacing if peaks appear above -80 dB.
For transient protection, clamp the supply rails with TVS diodes rated for 6.8 V breakdown voltage and ≤1 ns response time. Distribute decoupling capacitors (10 µF X7R) every 10 cm along PCB traces–they must connect to the reference plane via vias with <0.5 nH inductance.
Final Validation Checklist
- Confirm transformer turns ratio within ±0.2% tolerance.
- Verify DC resistance of both windings ≤5 Ω.
- Measure common-mode rejection ratio >80 dB at 1 kHz.
- Inspect solder mask continuity–exposed traces >2 mm risk oxidation.
- Replace electrolytic capacitors after 2,000 hours; film types last 50,000+ hours.
Recognizing Interference Hum in Signal Chains

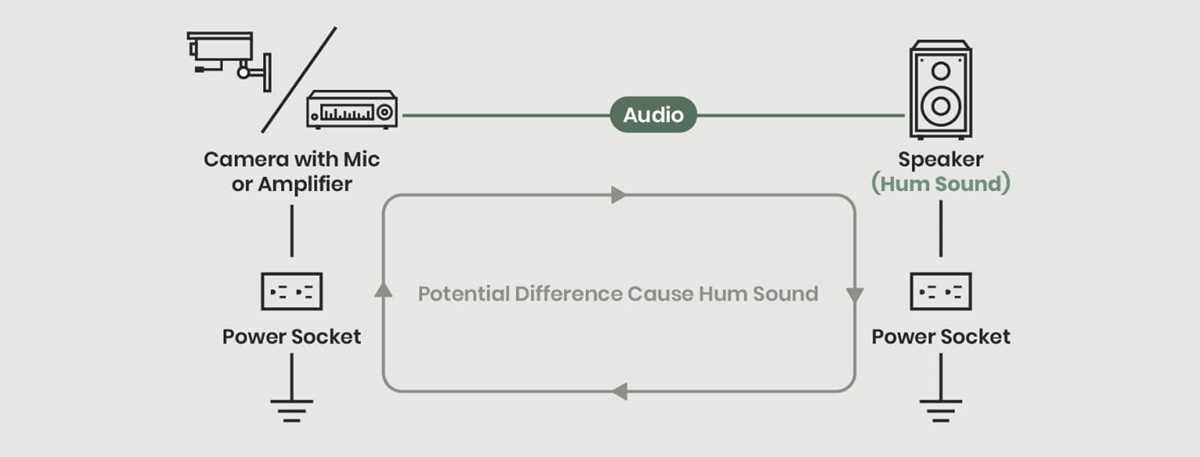

Connect equipment to a single power strip first. If a persistent low-frequency buzz vanishes when switching outlets, the issue stems from shared return paths between devices. Measure AC voltage between chassis of different components–readings above 50 mV indicate parasitic currents.
Use an isolated oscilloscope probe to inspect cables. A 50/60 Hz sinusoidal waveform superimposed on signal wires confirms stray coupling. Shielded twisted pairs reduce this by maintaining consistent impedance; replace damaged or improperly terminated shields immediately.
Disconnect all peripheral links except one output-input pair. If interference persists, the culprit lies within the device itself or its power supply. Linear regulators often introduce less noise than switching types–check PSU specifications for ripple rejection below 1 mV.
Play pink noise through the system at moderate gain. A clean hiss should dominate; any tonal whine suggests conductive contamination. Ferrite beads sized to the offending frequency (e.g., 1 MHz for digital noise) can attenuate high-frequency artifacts without signal loss.
Inspect solder joints and PCB traces under magnification. Corroded or poorly soldered connections create partial shorts, exacerbating parasitic noise. Tin-lead solder offers superior thermal cycling resistance compared to lead-free variants for long-term reliability.
Test with a 1 kΩ resistor across inputs and outputs. If interference decreases, impedance mismatch is a likely contributor. Balanced connections using XLR or TRS connectors should exhibit common-mode rejection ratios above 60 dB; verify with a dedicated line tester.
Constructing a Noise-Suppressing Signal Separator: Practical Walkthrough

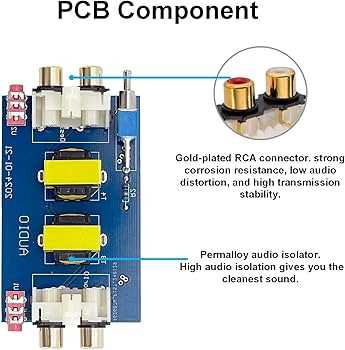

Select two 1:1 impedance ratio transformers with a frequency response spanning 20 Hz to 20 kHz. Toroidal cores minimize magnetic leakage; ensure primary and secondary windings are fully isolated (1 kV isolation minimum). Units should handle at least 1 W RMS without distortion.
Terminate input connectors (3.5 mm TRS or RCA) with shielded cable–braided copper jacket reduces RF interference. Strip 6 mm of insulation, twist strands tightly, and solder to transformer primary terminals. Avoid cold joints; use rosin-core solder (60/40 Sn-Pb).
Mount transformers in a grounded metal enclosure (aluminum 1.5 mm thick). Secure with non-conductive spacers (nylon standoffs) to prevent direct contact. Drill 3 mm vent holes if heat dissipation is needed, but orient toward an open area to block EMI.
Connect secondary terminals to output jacks using oxygen-free copper wire (22 AWG). Route wires perpendicular to magnetic fields inside the enclosure to avoid crosstalk. Keep leads under 5 cm to maintain signal integrity.
Test continuity with a multimeter: probe primary and secondary sides independently–no resistance should register across the isolation barrier. Verify impedance match: ±10% variance is acceptable if source and load impedances align (e.g., 500 Ω source to 500 Ω load).
Apply a 1 kHz sine wave at 0.5 V RMS using a signal generator. Monitor output on an oscilloscope: distortion (THD+N) should remain below 0.1%. Introduce a 100 mV 50/60 Hz hum – output amplitude must drop ≥40 dB.
Reinforce solder joints with heat-shrink tubing (polyolefin, 3:1 ratio). For unbalanced setups (e.g., RCA), ground the sleeve terminal to the enclosure via a 10 Ω resistor to prevent transient voltages. Seal unused jacks with conductive foam if environmental noise is a concern.
Label input/output jacks with laser-etched identifiers (e.g., “IN-TX1,” “OUT-TX1”) to prevent misconnection. Store transformers away from AC power lines–minimum 15 cm separation reduces inductive coupling.
Selecting an Optimal Coupling Device for Signal Separation
Prioritize a transformer with a bandwidth spanning from 20 Hz to 20 kHz for minimal phase distortion–avoid models with sharp high-frequency roll-off unless intentional attenuation is needed. Look for a primary-to-secondary impedance ratio close to 1:1 (e.g., 600Ω:600Ω) to match typical line-level sources, or adjust ratios to 10kΩ:10kΩ for preamplifier outputs. Toroidal cores outperform E-I laminations in stray field suppression, reducing crosstalk by up to 30 dB in high-density environments. Verify core material: 80% nickel alloys offer superior linearity below 1 kHz, while grain-oriented silicon steel excels above 5 kHz. Calculate insertion loss–target <0.5 dB at 1 kHz–and ensure the device handles at least 2 V RMS without saturation; test with a 20 Hz sine wave to confirm.
- Core size dictates power handling: 1.5 cm³ minimum for consumer gear, 3 cm³+ for professional setups
- Shielded enclosures reduce RF pickup–opt for Mumetal or epoxy-filled cases
- Avoid transformers with DC resistance >100Ω per winding; measure with a multimeter
- Dual-wound transformers simplify balanced designs–use center-tapped primaries for unbalanced inputs
- Test isolation: 1 kV AC for 1 minute between windings without breakdown
- Match signal levels: -10 dBV (consumer) vs +4 dBu (pro) requires turns ratio adjustments
- Thermal stability: verify <50 ppm/°C drift for 0–70°C operation
Soldering and Assembly Tips for DIY Signal Separation Modules
Use a temperature-controlled soldering iron set to 350°C (662°F) for lead-based solder and 375°C (707°F) for lead-free variants. Flux-core solder (0.5–0.8 mm diameter) reduces bridging between fine-pitch components. Apply heat for no longer than 3 seconds per joint to prevent pad detachment on fiberglass substrates.
Trim component leads to 2 mm before insertion to minimize stray capacitance. Keep a 0.8 mm gap between adjacent resistors or capacitors rated below 100 V to avoid corona discharge at high-impedance nodes. For axial parts, bend leads 90° at 3 mm from the body to maintain clearance.
Static-sensitive ICs and transformers should be handled on a wrist strap connected to a grounded mat. Work on a ceramic or anti-static surface; avoid silicone-backed mats as they retain charge. Store components in antistatic bags or conductive foam until assembly.
Component Placement and Thermal Relief
| Component Type | Pad Diameter (mm) | Drill Hole (mm) | Annular Ring (mm) |
|---|---|---|---|
| 0402 resistor | 0.8 | 0.35 | 0.22 |
| DO-214 diode | 1.5 | 0.8 | 0.35 |
| Radial transformer | 2.5 | 1.2 | 0.65 |
Orient electrolytic capacitors with the negative lead toward the solder pad marked with a minus sign or longer trace. For polymer types, match the vent slot direction to airflow if the enclosure allows convection.
Final Inspection Checklist
Inspect each joint through a 5x loupe for smooth, concave fillets–convex or grainy solder indicates cold joints. Test continuity with a multimeter in diode mode: 0.4–0.6 Ω resistance across low-value resistors (
Secure transformers and chokes with epoxy or nylon stand-offs to prevent microphonics. Avoid cyanoacrylate adhesives–they degrade copper traces over time. Mount terminals with stainless-steel screws; torque to 0.4 Nm (3.5 in-lb) to prevent loosening under vibration.
Label input and output leads with heat-shrink tubing or laser-printed polyester labels. Use UL-recognized wire: 22 AWG stranded for currents up to 3 A, 18 AWG for 5 A loads. Twist signal pairs at 10 turns per 10 cm to reduce inductive pickup.
