Use a 12-gauge, four-conductor cable for all connections between the motor and remote activator. This thickness ensures minimal voltage drop over a 15-foot run, which is common in most setups. Strip 0.25 inches of insulation from each wire end before inserting them into solderless terminals rated for 20 amps.
Connect the positive motor lead to the center terminal of a momentary double-pole switch. The ground return attaches to the outer terminal that corresponds with the neutral position. This prevents accidental activation while still allowing two-way operation–tension and release.
Install a 15-amp circuit breaker within 12 inches of the battery’s positive post. This interrupts power instantly if current exceeds safe levels, protecting both the wiring and the vehicle’s electrical system. For auxiliary lighting or other accessories, branch power from this breaker rather than tapping directly into the motor circuit.
Ignore generic color-coding; verify each wire’s function with a multimeter set to continuity mode. Factory labels may not match aftermarket parts. Ground the motor’s housing to the vehicle frame using an 8-gauge wire for reliable performance, especially in wet conditions.
Secure all connections with heat-shrink tubing and zip ties every 6 inches along the cable run. This prevents chafing against metal edges or suspension components, which can cause short circuits. Test the system with the vehicle’s engine off first; unexpected voltage spikes can damage the solenoid if not properly isolated.
For vehicles with electronic fuel injection or traction control, insert a 40-amp diode between the switching relay and the main power feed. This isolates voltage spikes during solenoid engagement, preventing interference with sensitive onboard electronics.

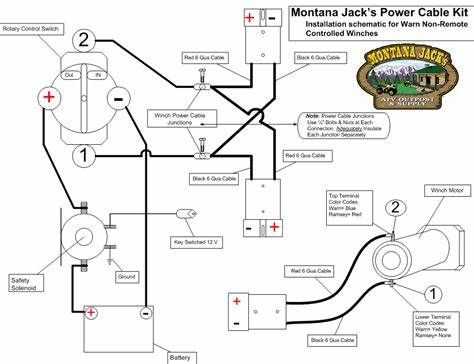

Electrical Hookup Guide for Off-Road Pulling Device Control
Begin by connecting the primary power feed directly to the battery’s positive terminal using a 4-gauge cable or thicker for units rated above 3,000 lbs. Secure the ground cable to a clean, unpainted chassis point within 12 inches to prevent voltage drop under load.
Use a waterproof rocker-style activator mounted on the handlebar or dashboard. Wire the activator’s common terminal to the solenoid’s trigger post, then split the remaining two terminals to the solenoid’s two directional posts–this permits both pull and release functions. Verify polarity matches the manufacturer’s schematic to avoid reversing motor rotation.
Install an inline fuse holder within 7 inches of the battery, selecting an amperage rating 10-15% above the device’s peak draw. For example, a 2,500 lb capacity unit drawing 150A at stall should use a 175A fuse. Keep all connections free of corrosion–apply dielectric grease to terminals before crimping.
- Route cables away from sharp edges or moving parts.
- Test solenoid activation with a multimeter before final assembly.
- Avoid daisy-chaining power sources to prevent overload.
- Label all wires at both ends for future troubleshooting.
For dual-control setups, add a second activator in parallel, ensuring each switch’s circuit incorporates a diode to prevent feedback. Polarized relays may be necessary if remote activation is required from multiple locations–consult the relay’s datasheet for pin assignments.
Locating the Correct Connector Terminals for Your Off-Road Vehicle Pulling Gear
First, identify the control panel model number stamped on the underside of the device–this determines which pinout reference chart applies. Most solenoid-driven mechanisms from aftermarket brands follow a standardized 5-pin layout (two for motor power, one ground, and two for activation circuits), but older or custom builds may deviate. Cross-reference the panel’s label with the manufacturer’s technical bulletin for exact pin assignments, as misalignment can result in reversed polarity or burnout.
Use a multimeter set to continuity mode to trace the path from each terminal to its corresponding function. Probe the terminals while cycling the activation lever to detect live circuits–motor power pins typically show 12V when engaged, while ground and control circuits will register zero resistance when the mechanism is idle. Label each terminal with masking tape and a marker (e.g., “Positive in,” “Remote trigger”) to avoid confusion during reassembly.
Handling Non-Standard or Proprietary Systems
If the vehicle’s auxiliary pulling system lacks visible labeling or uses a proprietary connector (e.g., circular 7-pin or Weatherpack plugs), consult the OEM service manual for a pinout diagram. For units integrated directly into the vehicle’s electrical harness, look for color-coded wires: red/striped for power, black for ground, and smaller gauge wires (often blue or green) for solenoid triggers. Note that some European models reverse the polarity conventions, requiring careful verification before connecting.
For custom setups, disassemble the solenoid housing to expose the internal terminals. The two largest studs connect to the motor, while the smaller screws link to the activation switch. Measure the stud diameters–most North American models use M6 or #10 threads, while Asian variants may use M5. Secure all connections with star washers to prevent vibration loosening, and apply dielectric grease to terminals exposed to moisture.
Step-by-Step Guide to Connecting Rocker Control Terminals
Identify the power source terminal first–this is typically marked with a battery symbol or a red indicator. Verify voltage with a multimeter to confirm it matches the device’s requirements, usually 12V for small utility setups. Mismatched voltage risks damaging components or causing unreliable operation.
Attach the positive lead from the power supply to the common terminal of the rocker activator, often labeled “COM” or left blank. Use crimp connectors or solder joints for secure, corrosion-resistant connections. Loose or exposed wires degrade performance and pose short-circuit hazards.
Connect the output terminal (marked “NO” for normally open) to the load–this completes the circuit only when the activator is engaged. For momentary operation, ensure the control returns to the off position after release. If latching function is needed, wire the alternate terminal (“NC”) instead.
Ground the system by linking the negative terminal to the chassis or a dedicated earth point. Avoid daisy-chaining grounds to prevent voltage drops. Use the shortest viable path to minimize interference. Test continuity with a probe before finalizing.
| Terminal Type | Function | Typical Wire Gauge |
|---|---|---|
| Common (COM) | Input from power source | 16-14 AWG |
| Normally Open (NO) | Activates when engaged | 18-16 AWG |
| Normally Closed (NC) | Maintains circuit until toggled | 18-16 AWG |
| Ground | Returns current to source | 14 AWG or thicker |
Insulate all connections with heat-shrink tubing or electrical tape to prevent moisture ingress. Route wires away from moving parts and heat sources–secure them with zip ties at 6-inch intervals. Label each conductor near both ends for future troubleshooting.
Test the assembly by toggling the activator while monitoring load behavior. If inconsistent operation occurs, recheck terminal assignments against manufacturer specifications. Voltage drops above 0.5V indicate poor contact or undersized wiring.
Preventing Errors in Power Pulling Device Setups
Use a multimeter to verify circuit integrity before finalizing connections. Voltage drops exceeding 0.5V across any terminal indicate corroded wires, undersized cables, or poor crimps. Test each segment under load–engage the pulling mechanism while measuring along the feed line. Replace any component not maintaining 90% of input voltage.
- Tinned copper lugs prevent oxidation; bare copper fails within 12–18 months in humid climates.
- Heat-shrink tubing with adhesive lining seals splices; standard tubing traps moisture, causing short circuits.
- Ground cables must match feed cable gauge; undersized grounds create resistance hotspots, melting insulation.
Route cables away from moving parts. Sharp edges on frames or suspension components fray insulation over time. Use conduit or loom where exposure is unavoidable–polyethylene sleeving withstands abrasion better than PVC. Secure with zip ties every 15 cm to prevent vibration-induced chafing.
Polarity reversal destroys solenoids instantly. Label cables at both ends during disassembly. Mark the positive terminal with red tape or a paint stroke before detaching. Apply a 15-second delay before resuming work after polarization tests to allow capacitors to discharge.
- Inspect relay contacts for pitting; replace if resistance exceeds 2 ohms.
- Avoid daisy-chaining relays; use a dedicated fused power source for each electrical accessory.
- Apply dielectric grease to terminals; it repels moisture and prevents corrosion without affecting conductivity.
- Test the thermal cutout function by simulating a stalled pull; overheating triggers at 125°C on properly calibrated units.
Essential Gear and Supplies for Safe Electrical Hookup Installation
Start with a multimeter rated for 600V AC/DC to verify circuit integrity before connecting any components. Cheap models lack accuracy–opt for Fluke 117 or Klein MM700 for reliable readings. Always test leads for continuity before use to avoid false negatives during troubleshooting.
Crimping tools must have a ratcheting mechanism to ensure uniform compression. Generic pliers crush connectors unevenly, leading to corrosion over time. Use Knipex 97 52 24 or similar precision tools with interchangeable dies for 16-10 AWG terminals.
Heat-shrink tubing should be adhesive-lined to seal out moisture. Polyolefin varieties melt at lower temperatures; select tubing with a 4:1 shrink ratio and a minimum 125°C rating. Pre-cut lengths of 2-3 inches prevent waste and ensure full coverage over splices.
Silicon-filled butt connectors resist vibration better than vinyl or nylon types. For off-road applications, choose tinned copper variants that withstand flexing without cracking. Match connector size to wire gauge–undersized crimps fail under load, oversized ones loosen.
Fuse holders must accommodate Class T or ANL-style fuses. Avoid glass fuses; their low interrupt rating (typically 35A) can’t handle inductive load spikes. Mount holders vertically to prevent heat buildup and use marine-grade epoxy to seal entry points.
Labeling wire runs with heat-resistant sleeves eliminates guesswork during future repairs. Use Brother PT-D600 or similar printers for 0.25″ wide adhesive-backed labels. Color-code branches with THHN wire: red for positive, black for ground, yellow for signals.
Store unused supplies in anti-static bags. Connector housings absorb moisture when exposed to humidity–keep them sealed with silica gel packets. A small parts organizer with clear bins allows quick inventory checks before starting work.
