Designing efficient power distribution in specialized computational devices begins with a low-noise switching regulator. For 16nm or smaller nodes, target a input voltage ripple below 20mV to prevent clock jitter in high-speed hash engines. Use a multi-phase buck converter with ceramic capacitors (10μF, X5R) placed within 5mm of the die to minimize parasitic inductance. Avoid electrolytic capacitors–their ESR degrades thermal performance under continuous 100A+ loads.
Thermal dissipation dictates long-term reliability. Incorporate direct copper bonding (DCB) substrates with at least 300W/mK thermal conductivity. For air-cooled setups, fan curves should maintain heatsink-to-ambient delta under 40°C at 120mm spacing. Liquid cooling requires a microchannel cold plate with 0.3mm fin spacing to handle 500W+ dissipation without hotspots. Sensor placement must be precise–embed NTC thermistors within 2mm of the core to avoid latency in thermal throttling.
Signal integrity hinges on controlled impedance traces. For DDR3/4 interfaces, route data lines at 50Ω single-ended or 100Ω differential impedance, matched to ±2%. Keep trace lengths under 12 inches and avoid 90° bends–use 45° chamfers to reduce reflections. Power planes should be separated by no less than 4 layers, with ground planes adjacent to high-speed signals to suppress crosstalk.

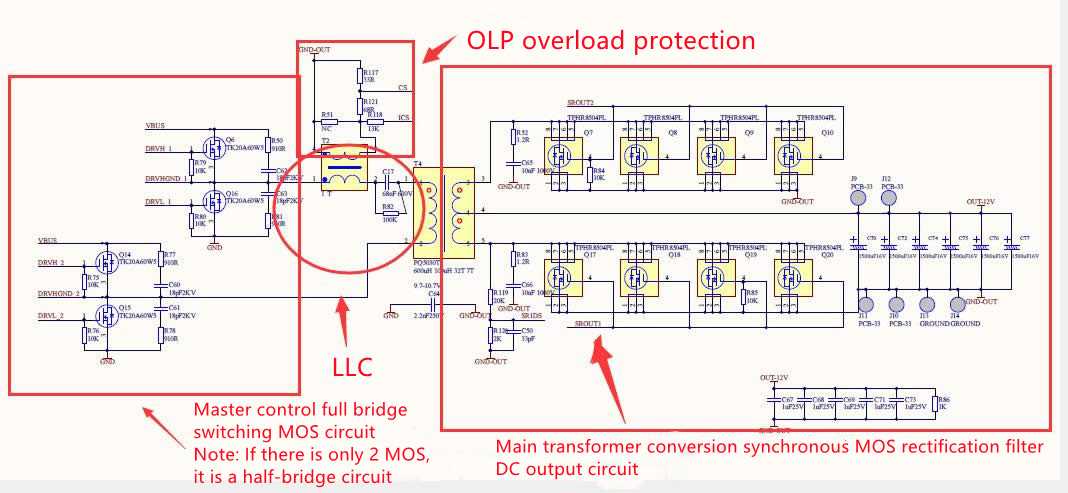

Gate drivers for MOSFET arrays demand isolated DC-DC converters with reinforced insulation ratings (>6kV). Opt for 2.5A driver ICs with sub-20ns propagation delay to prevent shoot-through in half-bridge configurations. Include active Miller clamping to safeguard against parasitic turn-on during switching transients. For redundancy, add overcurrent hysteresis with a 10μs response time cutoff.
Firmware-level safeguards are non-negotiable. Implement watchdog timers with hardware reset capability–software-only resets risk latch-up in critical failure modes. Hashboard designs must include voltage monitoring at each ASIC die to detect droop before cascading faults occur. Use I2C PMBus for telemetry, but back it with an independent one-time programmable (OTP) memory for fault logging when primary communication fails.
Understanding the Blueprint of Hashing Hardware
Start by identifying the power distribution network–most high-performance boards split input voltage into multiple rails (12V, 5V, 3.3V) using buck converters. Locate the enable pins on each regulator: these control power sequencing and must activate in strict order–core voltage first, then IO, then memory–to prevent latch-up or brownout events. Verify inductor values (typically 1-4.7 µH) and switching frequency (usually between 300 kHz and 1.2 MHz) on the schematic; deviations beyond ±10% indicate layout parasitics or poor component selection.
Trace the clock tree from the crystal oscillator (commonly 25 MHz) to the phase-locked loop (PLL) outputs. Each hashing core requires a dedicated clock lane, buffered by low-jitter LVDS repeaters (usually TI LMH0332 or Analog Devices HMC683). Measure propagation delay across the board–any skew exceeding 150 ps between lanes reduces efficiency by introducing metastability in the pipeline. Use an oscilloscope with 500 MHz bandwidth to verify jitter on the output pins; values above 10 ps RMS warrant re-routing or shielded traces.
Examine thermal sensing nodes: these typically connect to a 10-bit ADC (like the MAX11300) via a thermistor network. Place the thermistor within 2 mm of the main heat-generating die for accurate readings. Calibrate the sensor response curve (usually Steinhart-Hart coefficients) in firmware; a misconfigured curve falsely reports temperatures up to 15°C off, triggering unnecessary throttling. Ensure the reset supervisor (e.g., TPS3823) monitors both temperature and voltage–dual thresholds prevent false resets during transients.
- Decoupling strategy: each voltage rail requires bulk capacitance (10-100 µF X5R/X7R) near the die, plus high-frequency ceramics (0.1-1 µF) on every pin group.
- Trace impedance: differential pairs should maintain 100 Ω ±5 Ω–use a TDR to measure reflections.
- ESD protection: place TVS diodes (e.g., PESD5V0S1BA) on all external interfaces; verify clamping voltage below 8 V for 5 V rails.
Review the JTAG chain–each device must have a 20 kΩ pull-up on TDI/TDO and 10 kΩ pull-down on TMS/TRST. If debugging fails, probe the 1.8 V_VREF pin with a logic analyzer; floating levels cause silent scan-chain corruption. For SPI flash (commonly Winbond W25Q128), ensure the clock does not exceed 80 MHz–higher speeds induce read errors due to trace inductance. Program the flash with quadruple-speed mode disabled during initial bring-up to avoid timing violations.
Isolate the hashing engine’s data bus: it runs at 800 MHz DDR typically, requiring length-matched traces within 5 mm differential skew. Use controlled-impedance striplines (0.2 mm width, 0.1 mm spacing) for 2 oz copper pours; thinner traces increase IR drop. Verify timing margins with a double-data-rate analyzer–setup/hold times below 100 ps indicate inadequate termination. If packets fail checksum validation, check the CRC generator polynomial (often CRC-32C) and ensure all FIFOs operate in asynchronous mode to prevent metastability during domain crossing.
Key Components of a Dedicated Hashing Hardware Board Layout
Designate power delivery zones immediately adjacent to high-current components. Place bulk capacitors (tantalum or polymer, 100–470 µF) within 5 mm of each voltage regulator’s output pin to suppress transient spikes. Low-ESR ceramic MLCCs (0.1–10 µF) must sit directly under or next to the processor’s BGA pads, ensuring sub-10 ns response during load steps.
Route clock traces in a star topology from the source oscillator to each processing die. Maintain strict impedance control (typically 50 Ω ±5 %) with continuous ground return paths on the adjacent layer. Isolate clock nets using moats or guard traces, and limit via transitions to one per trace to prevent signal integrity degradation at frequencies above 1 GHz.
Thermal vias should measure 0.2–0.3 mm in diameter, spaced ≤1 mm apart beneath heat-generating logic. Fill vias with thermally conductive epoxy or capped copper to lower thermal resistance below 1 °C/W. Attach heatsinks with a phase-change interface or graphite sheet, clipping directly to the board’s mounting holes to bypass epoxy thermal barriers.
DDR4 or LPDDR4 traces must uphold length matching within 25 mils across byte lanes. Implement serpentine tuning on the board’s inner layers rather than outer to avoid EMI coupling. Terminate each bus with 33–51 Ω series resistors near the controller, and place decoupling caps (1 µF) every 6 mm along the traces.
Separate analog voltage references from digital switching domains by at least 2 mm. Use dedicated ground planes for PLL and crystal oscillators; connect these planes to the main ground at a single point to eliminate return loops. Bypass reference pins with 0.1 µF ceramics plus a 10 µF tantalum in parallel, positioned
Test points should be located on the perimeter, spaced 10 mm apart, and labeled with silkscreen identifiers matching firmware debug registers. Include JTAG and UART headers aligned to the edge, allowing probe attachment without surface-mount component interference. Program both logic and power rails for boundary scan compliance to expedite post-assembly validation.
Step-by-Step Guide to Decoding a Hashing Processor Blueprint
Locate the power distribution network first–it’s typically marked with thick traces or bold lines in red or orange. Verify voltage rails by checking labels like VDD, VCC, or CORE against the datasheet’s specified ranges (e.g., 0.8V–1.2V for modern nodes). Identify decoupling capacitors adjacent to these lines; their absence or incorrect placement is the most common source of instability.
Trace the clock tree next. Look for oscilator inputs (CLK_IN) and phase-locked loops (PLLs) represented by square symbols with labels like PLL_OUT. Cross-reference the frequency with the chip’s operational requirements–deviations as small as 5% can reduce throughput by 20%. Note any reset lines (RST_N) and ensure they connect to the correct logic level (active-low is standard).
Examine the I/O banks along the edges. High-speed differential pairs (e.g., TX+/TX–) are grouped in sets of two or four, often with impedance-controlled traces. Check for termination resistors–values like 50Ω or 100Ω should match the network’s characteristic impedance. Serial interfaces (I2C, SPI) usually occupy thinner traces with pull-up resistors; omit these, and communication fails silently.
Dissect the core computational blocks. Hashing engines appear as dense arrays of repeated cells–look for labels like SHA, AES, or ALU. Each cell’s connections to local memory (SRAM) or caches are critical; misrouted lines here cause data corruption. Probe power gating circuits–switches between VDD and VSS with control signals like PG_EN–to confirm they’re enabled during operation.
Confirm the thermal monitoring paths. Sensors (TEMP or TS) must connect to ADC inputs or dedicated pins; their placement near hotspots (e.g., PLLs) prevents throttling. Check for thermal vias–copper-filled holes under the die pad–these improve heat dissipation by 30% compared to blind vias. Overlooking them risks thermal runaway, especially in 7nm designs.
Inspect the test and debug infrastructure. Boundary scan (JTAG) pins (TDI, TDO) are often edge-placed; verify they’re not left floating. Debug UARTs (TXD, RXD) usually sit near GPIO banks–ensure they’re routed to accessible connectors. Internal scan chains (SCAN_IN, SCAN_OUT) are invisible but referenced in schematics as dashed lines; their integrity is non-negotiable for yield analysis.
Cross-verify every component against the bill of materials (BOM). Resistors, capacitors, and ferrite beads must match specified tolerances (±1% for precision networks). Mismatches–even in passive components–introduce noise, jitter, or voltage fluctuations. Use a multimeter to test connectivity post-assembly; continuity between corresponding pins on the blueprint and PCB is mandatory. Document discrepancies immediately–retroactive fixes double debug time.
