Connect power rails first–always. Place the 5V and GND lines at opposite edges of your breadboard to prevent accidental contact. Use red wires for VCC and black or blue for ground, marking them with labels if the setup grows beyond 10 components. For power-hungry peripherals like motors, split the supply: a dedicated 9V adapter for actuators and the board’s 5V regulator for sensors. Bypass capacitors (0.1µF ceramic) should sit within 2 mm of each IC’s power pins to suppress noise.
Signal paths demand attention: keep traces shorter than 15 cm to avoid voltage drops. High-speed signals (SPI, I2C) need ground returns directly under conductors–to prevent crosstalk, route clock lines perpendicular to data buses. Pull-up resistors (4.7kΩ) are non-negotiable for open-drain buses like I2C; skip them and risk bus lock-ups. For analog inputs, twist sensor wires around their own ground to shield against EMI.
Organize pins by function. Reserve digital pins 0-1 for serial communication–never load them with pushbuttons or LEDs. Analog inputs A0-A5 work best for low-noise sensors (LM35 thermistors, potentiometers). Use shift registers (74HC595) for outputs exceeding available GPIOs–chain them with 22Ω series resistors to dampen reflections on clock lines. Color-code jumpers: yellow for interrupts, green for outputs, purple for control signals.
Test each connection with a multimeter before powering up. Resistance below 1Ω confirms solid contact; infinite resistance means a broken link. Power on in stages: verify 5V rail first, then enable peripherals one by one to isolate faults. Logical errors often stem from overlooked ground loops–ensure every module shares a single common reference point.
Constructing Microcontroller Connection Schematics: Key Steps
Always connect power sources first–VCC to 5V or 3.3V pins and GND to the common ground rail. Use a multimeter to verify voltages before attaching components to prevent short circuits. For breadboard prototyping, split power rails into distinct segments for sensors and actuators to minimize noise interference.

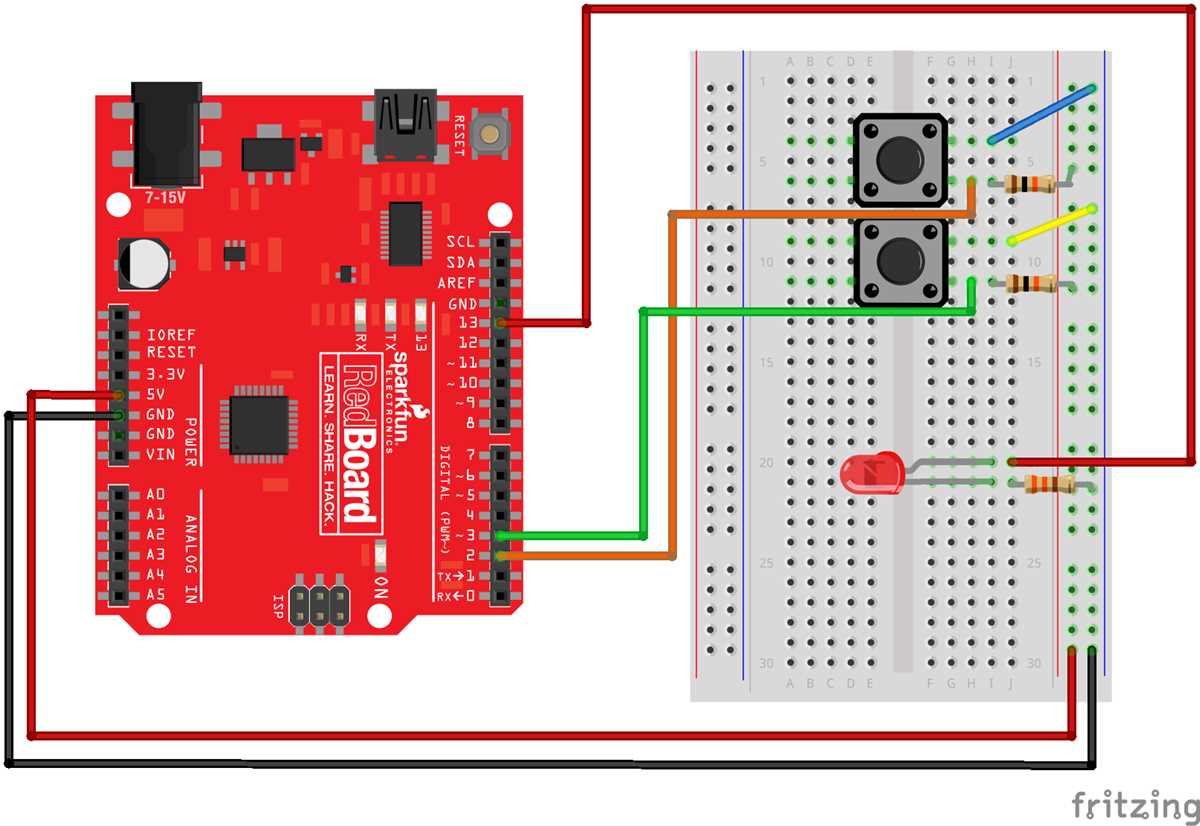

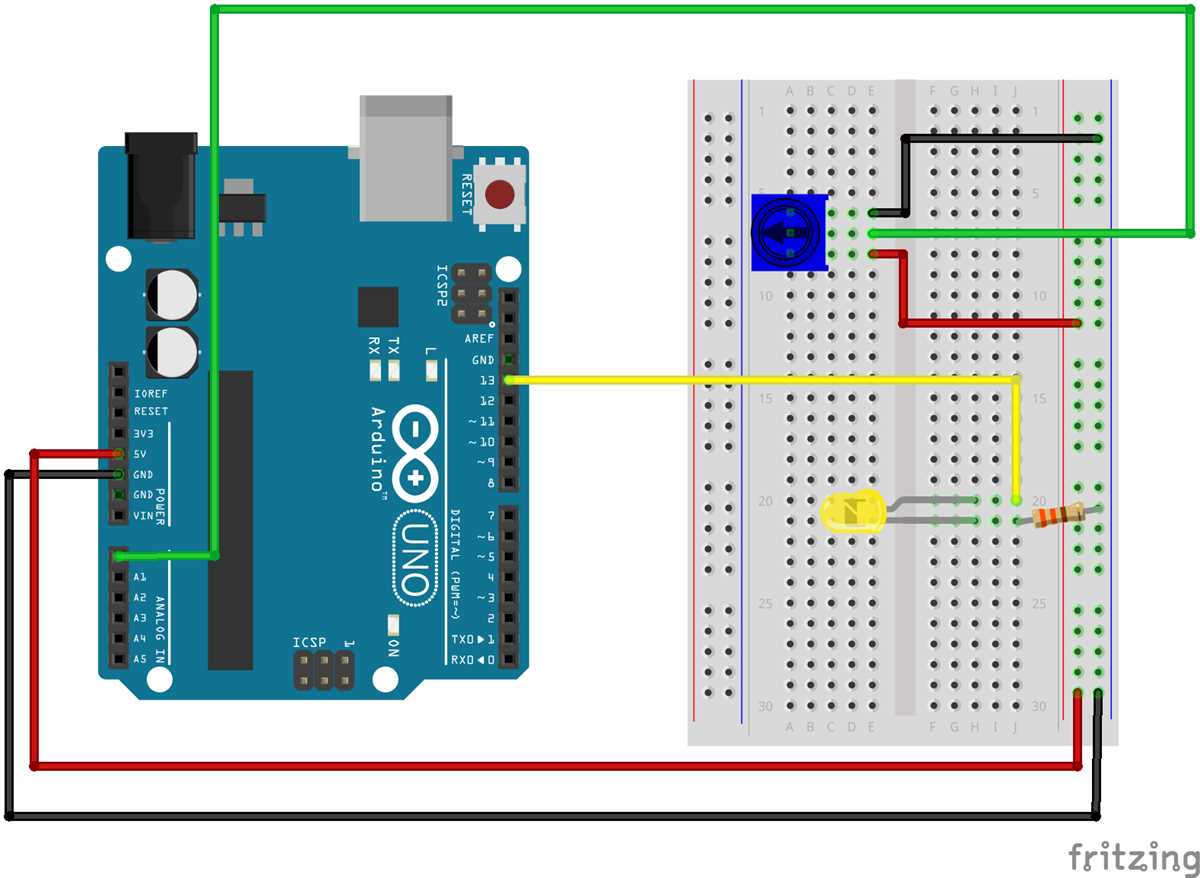

Label every connection point on paper or in software like Fritzing before assembly. Example: a temperature sensor (LM35) requires:
- Pin 1 (+5V)
- Pin 2 (Analog input A0)
- Pin 3 (GND)
Cross-reference datasheets for pin functions–manufacturers often assign different labels (e.g., OUT vs. SIG).
Use color-coded wires for clarity: red for power, black for ground, yellow for signals. For SPI devices (e.g., MAX7219 LED driver), observe strict sequencing: SCK (clock), MOSI (data in), MISO (data out), and SS (slave select). Misalignment causes data corruption.
Isolate analog and digital circuits with separate ground paths meeting only at the board’s reference point. For motor drivers (L298N), add flyback diodes (1N4007) across coils to protect against voltage spikes when switching inductive loads. Calculate resistor values using Ohm’s law: R = (Vsource - VLED) / ILED for LEDs (typical 20mA).
Test subcircuits incrementally. Begin with power delivery, then add I/O components (buttons, potentiometers), and finally communication modules (HC-05 Bluetooth). For I2C devices (e.g., MPU6050), ensure pull-up resistors (4.7kΩ) on SDA/SCL lines if default values (internal 10kΩ) prove unreliable. Log voltage drops at each stage to diagnose faults.
Document deviations from standard layouts. Example: a 4×4 keypad matrix reduces pin usage from 16 to 8 by scanning rows/columns sequentially. Note timing constraints–delays >10ms in scanning routines can cause missed inputs. For high-current applications (>500mA), bypass built-in voltage regulators with external modules (AMS1117).
Critical Elements for Your Microcontroller Schematic
Define power rails first. Label the 5V and 3.3V lines with their respective voltage regulators if using external supply. Add decoupling capacitors (10μF–100μF electrolytic + 0.1μF ceramic) adjacent to each IC or sensitive module. Ground planes should connect directly to the common reference point; avoid daisy-chaining grounds for analog sensors to prevent noise coupling.
Annotate every pin with its exact function, including pull-up resistors (4.7kΩ for I2C) and current-limiting resistors (220Ω for LEDs). Use distinct symbols for digital inputs, PWM outputs, and serial interfaces–cross-reference these with a pin mapping table if the board layout spans multiple sheets. Include transient voltage suppression diodes across relay coils or motors rated for at least 1.5× the operating voltage.
Color-code nets by signal type: red for power, blue for ground, green for digital signals, yellow for analog, and purple for high-frequency traces (SPI/clock lines). Add a legend entry for components like fuse holders (500mA–2A depending on load) and optocouplers (PC817 for 5kV isolation). Label the exact model number for every off-board module (e.g., HC-05 Bluetooth, MPU-6050 IMU).
Practical Integration Guide for Standard Microcontroller Components
Connect a DHT11 temperature and humidity module using three pins: VCC to a 5V power rail, GND to common ground, and data to a digital input (e.g., pin 2). Add a 10KΩ pull-up resistor between the data line and 5V to stabilize readings.
To interface an HC-SR04 ultrasonic rangefinder, link VCC and GND to power, then connect the trigger pin to a digital output (pin 9) and echo pin to a digital input (pin 10). Pulse the trigger for 10µs to initiate measurement and read the echo duration; divide by 58 to convert to centimeters.
Driving a 5V Relay Module Securely
Wire the relay coil’s IN pin to a digital output (pin 7). Power the module with an external 5V supply–never the board’s 5V pin–to avoid voltage sag. Connect COM to the load’s live wire, NO to the switched load, and NC for fail-safe configurations.
A MQ-2 gas sensor requires a 5V supply and ground. Attach the analog output to an ADC pin (A0). Allow 24 hours burn-in before calibration; measure clean air (baseline ~100) and defect concentrations empirically. Ventilate the circuit to prevent overheating.
For a servo motor, supply 5V via an external regulator if powering multiple devices. Connect the signal wire to a PWM-enabled pin (5 or 6), ground to common ground, and power to 5V. Avoid sudden position jumps to prevent overcurrent spikes.
Interfacing a 16×2 LCD with I2C Backpack
Attach the I2C module’s SDA to pin A4, SCL to A5, VCC to 5V, and GND. Load the LiquidCrystal_I2C library; initialize with address 0x27. Contrast adjustment via the onboard potentiometer avoids manual trimming in most cases.
An IR receiver (VS1838B) decodes remote signals when linked to a digital pin (3). Power via 3.3V, connect ground, and add a 100Ω series resistor to the signal line to suppress noise. Use the IRremote library; sample codes differ by remote manufacturer–test with raw decoding first.

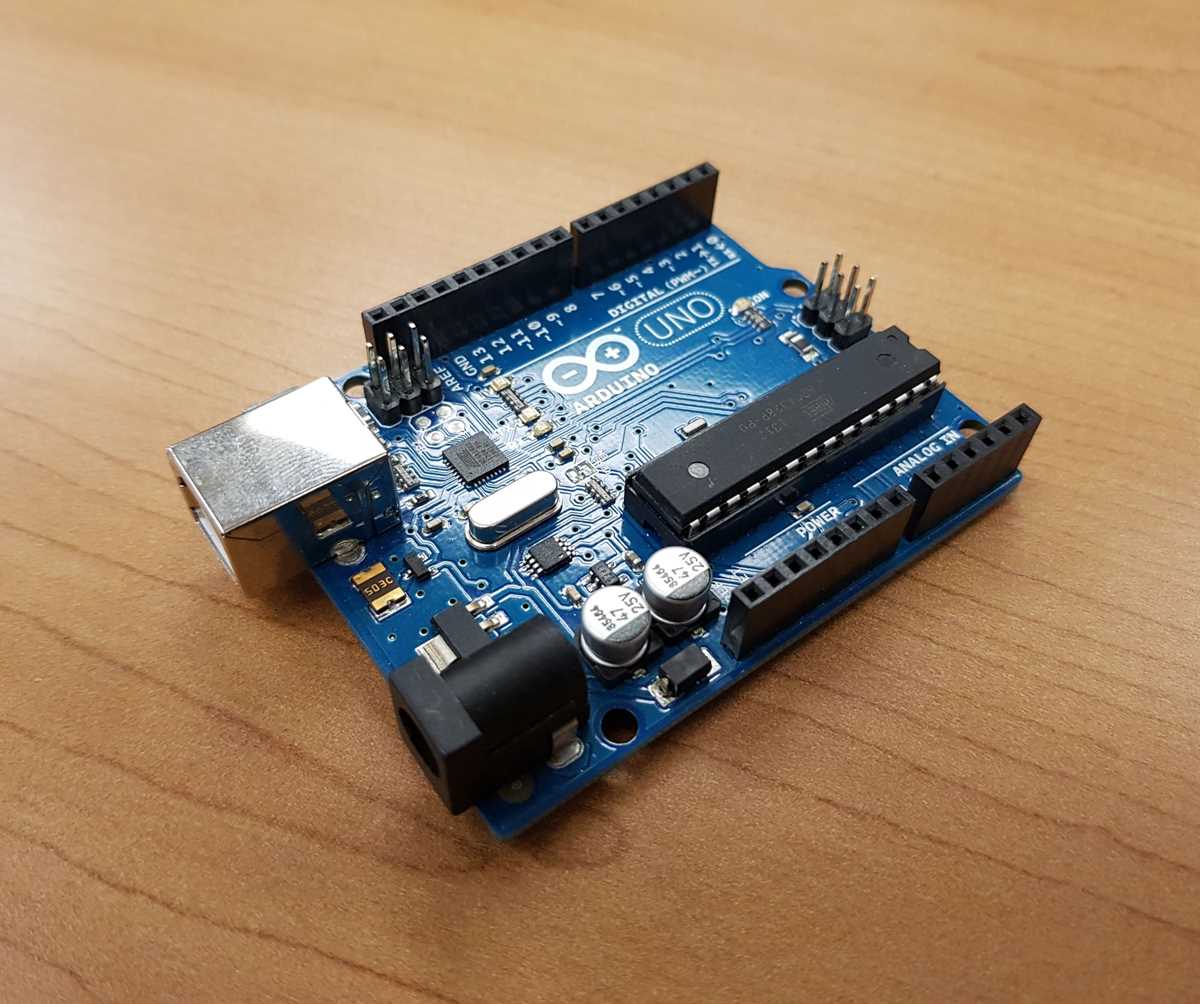

Understanding Microcontroller Board Pin Layouts
Begin by identifying the board’s power rails–look for labeled pins marked VCC (or 5V/3.3V), GND, and VIN. These dictate voltage supply and grounding: VCC delivers stable output for components, GND serves as the common return path, while VIN accepts unregulated input (typically 7-12V). Verify their positions on the silkscreen; miswiring here risks short circuits or permanent damage to the board’s regulator. Use a multimeter to confirm voltage levels before connecting external circuitry–never assume pin functions based on adjacent placement.
Locate digital and analog I/O pins next, distinguished by their numbering (D0-D13, A0-A5). Digital pins toggle between HIGH (5V) and LOW (0V) states, while analog pins read variable voltages (0-5V) via an ADC, returning 10-bit values (0-1023). Note special-purpose pins: PWM-capable ones (marked with ~) simulate analog output via pulse-width modulation, interrupt-enabled pins (D2, D3) trigger immediate responses, and serial communication lines (RX/TX, I2C, SPI) demand strict signal matching. Cross-reference the board’s datasheet–manufacturers often reassign pins across models (e.g., SDA/SCL moving from A4/A5 to dedicated pins in newer variants).
Trace power-intensive peripherals like motors or LEDs through dedicated pins (enable pins, current sinks). Avoid sourcing more than 20-40mA per pin (200mA total for all pins combined) to prevent overheating–exceeding limits necessitates transistors, relays, or H-bridges. For shared buses (e.g., I2C), use pull-up resistors (4.7kΩ) to stabilize signals, and separate noisy components (motors) from logic-level circuits with optocouplers. Always validate schematic assumptions with continuity tests–probing errant connections saves troubleshooting hours.
Diagnosing Common Circuit Errors in Microcontroller Setups
Check the continuity of each conductor with a multimeter before powering the board. A single broken strand in jumper cables–especially those with fine-stranded cores–can cause intermittent failures that defy detection during visual inspection. Set the meter to continuity mode, probe both ends of every connection, and reject any cable that registers above 0.5 ohms or produces inconsistent beeps.
Isolate power rails by disconnecting all peripheral modules and measuring voltage at the power pins. Many linear regulators deliver less than their rated output when overloaded or improperly decoupled; if you see 4.2V on a 5V rail, suspect insufficient capacitance or a shorted GPIO pin pulling the line down. Add a 47µF electrolytic capacitor between the power pin and ground, then retest.
| Fault Symptom | Common Cause | Verification Step |
|---|---|---|
| Module resets under load | Noisy power supply | Measure ripple at the module’s VIN with scope; >50mVpp indicates missing bulk capacitance |
| Sensor returns 0xFFFF | Missing pull-up resistor | Solder 4.7kΩ from I²C line to 3.3V |
| LED flickers dimly | Wrong current-limiting resistor | Calculate R = (Vsrc – Vled)/Iled; 220Ω typically suffices for 5V and 20mA |
Test signal integrity with an oscilloscope: probe any data line expected to carry square waves. A rise time longer than 1 µs per volt of logic level, or overshoot greater than 10% of VDD, suggests excessive capacitive loading or missing series termination. Insert a 22 Ω resistor in series with the offending line, adjacent to the transmitting pin.
Verify ground loops by lifting one end of every shared ground link and measuring loop voltage with a differential probe. A loop voltage exceeding 50 mV indicates currents large enough to shift logic thresholds; star-ground peripherals instead of daisy-chaining them. Use separate ground returns for analog sensors and high-power actuators.
Re-flow cold solder joints on headers: apply flux to each header pin, heat with a temperature-controlled iron set to 350 °C, and add fresh solder. Inspect joints under 10× magnification; a concave meniscus between pin and pad confirms proper wetting.
