To begin circuit analysis, isolate the primary voltage regulator–typically an NCP1117 or equivalent–positioned near the power input. This component stabilizes incoming voltage to 5V or 3.3V, depending on configuration. Verify its output with a multimeter before proceeding; fluctuations outside ±0.2V indicate potential failure of supporting capacitors (commonly 10µF and 47µF) or overloading.
Trace power distribution from the regulator to the central processing unit, usually an ATmega328P. Locate its power pins (VCC, AVCC, GND) and confirm continuity. The reset circuitry, including a 10kΩ pull-up resistor and a tactile switch, demands attention–incorrect values risk unintended resets during operation. Measure the reset line voltage; 5V indicates proper function, while deviations suggest faulty components or shorts.
Examine clock generation next. The external 16MHz crystal (paired with 22pF capacitors) drives the MCU. If signal integrity is suspect, validate the waveform with an oscilloscope–distorted sine waves hint at capacitor malfunction or crystal damage. USB interface chips (e.g., CH340 or ATmega16U2) require separate scrutiny; test their 5V and 3.3V rails independently to isolate communication failures.
Digital and analog I/O pins follow a standardized pinout but vary in tolerances. Validate each pin’s voltage range–most accept 0-5V, though some analog inputs may clip at 3.3V. Overcurrent protection relies on onboard polyfuses or discrete resistors (typically 1kΩ); bypassing these risks damaging the processor. For critical applications, add external transient voltage suppression diodes (e.g., 1N4007) to pins exposed to inductive loads.
Power sequencing matters: USB input (regulated to 5V) often takes priority, but external DC sources (7-12V) pass through a reverse-protection diode before reaching the regulator. Parallel operation requires diodes to prevent backfeed. Ground loops, common in breadboard setups, can be mitigated by connecting grounds at a single point near the regulator’s heat sink.
Understanding the Schematic of a Popular Microcontroller Platform

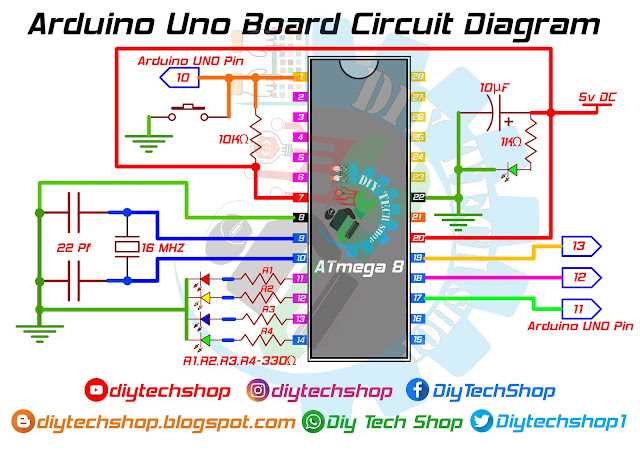

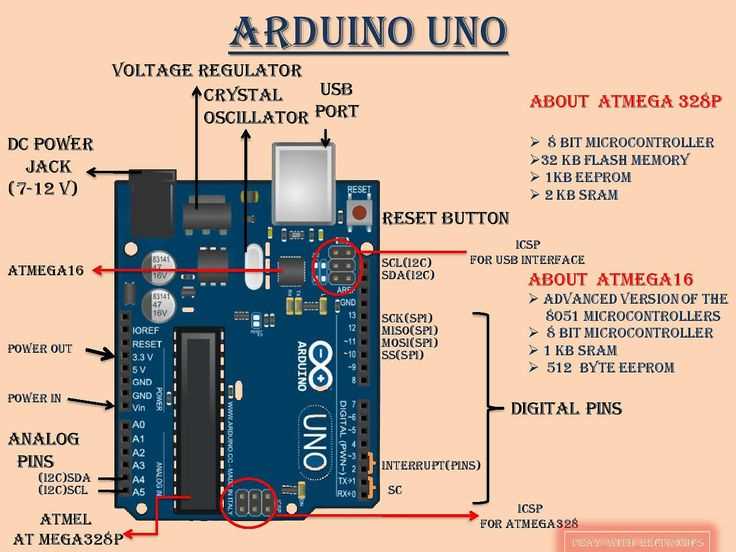

Begin by identifying the ATmega328P microcontroller at the core of the layout–this 8-bit AVR processor operates at 16 MHz and provides 32 KB of flash memory for program storage. Pin mapping defines functionality: digital pins 0–13 handle I/O, while analog inputs A0–A5 accept 10-bit resolution signals up to 5V. Verify the 16 MHz crystal oscillator between pins 9 and 10, paired with two 22 pF capacitors to ground for stable clock generation.

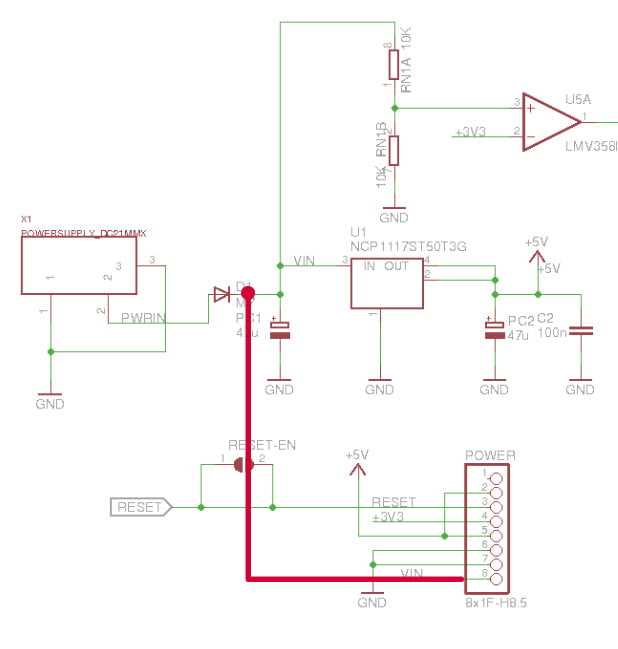

Examine the power regulation section where the input voltage (7–12V DC) passes through a reverse-polarity protection diode (1N4007) before reaching the NCP1117 5V linear regulator. This component ensures a steady 5V supply for the microcontroller and peripherals, with a 10 µF decoupling capacitor on both input and output sides to filter noise. A secondary 3.3V regulator (LP2985) serves low-power components, connected via a jumper for selective activation.
Trace the USB-to-serial interface using the ATmega16U2 (or CH340G on some variants), responsible for bridging USB communication to UART. This IC requires a separate 16 MHz crystal and 47 µF capacitors for proper operation, while a 1kΩ resistor on the reset line prevents spurious resets during USB enumeration. Check the DTR pin connection to the primary microcontroller’s reset–this enables auto-reset during programming.
Locate the reset circuitry, consisting of a 10 kΩ pull-up resistor on the reset pin (PC6) and a tactile switch to ground. This simple configuration holds the reset line high under normal operation, allowing manual reset when pressed. Ensure the adjacent 0.1 µF capacitor removes noise, preventing accidental resets from voltage spikes.
Inspect the LED indicators: a power LED (typically green) connected directly to 5V via a 470 Ω resistor, and an onboard user LED tied to digital pin 13 through a 220 Ω resistor. These serve as immediate visual feedback for power status and basic output testing. For deeper debugging, expose serial pins TX/RX via headers–useful for monitoring communication with external devices.
Review the analog reference circuitry, where a 0.1 µF capacitor between AREF and ground stabilizes the reference voltage for precise ADC measurements. If external analog reference is needed, an additional header exposes the AREF pin, but ensure no voltage exceeding 5V is applied to avoid damaging the microcontroller. For voltage division tasks, utilize the adjacent ground and 5V rails provided near the analog input pins.
Assemble a prototype verification setup by probing the schematic’s signal paths with a multimeter in continuity mode. Focus on identifying short circuits–particularly between adjacent I/O pins–and confirming proper power distribution before applying external loads. For long-term reliability, bypass capacitors (0.1 µF) near each power pin of the microcontroller are critical, though they may be omitted in minimal designs if not driving high-frequency peripherals.
Key Components and Their Connections in the Microcontroller Development Platform Schematic
Begin by identifying the ATmega328P microcontroller at the core of the reference design. Its pin configuration dictates signal routing for both digital and analog operations. Pins 1–28 handle GPIO, PWM, and communication protocols like I2C (A4/A5) and UART (D0/D1). Ensure decoupling capacitors (0.1µF) are placed between VCC (pin 7) and GND (pin 8) to stabilize power delivery–omitting these causes unpredictable resets or ADC errors.
Examine the power subsystem next. The platform supports 5V via USB (VUSB) or 7–12V via DC barrel jack (VIN). A Schottky diode (e.g., MBR1045) prevents backflow from VIN to VUSB. The NCP1117 5V regulator outputs 5V to the microcontroller; bypass its input/output with 10µF tantalum capacitors to suppress ripple. For 3.3V operation, a secondary LP2985-3.3 regulator powers peripherals–locate its enable pin (pin 3) and tie it high via a 10kΩ resistor for reliable activation.
Critical Interface Components
- 16MHz Crystal Oscillator: Connects to XTAL1/XLAT2 (pins 9/10) with two 22pF loading capacitors to GND. Deviations in capacitance (±1pF) affect clock stability; verify oscillation with a 10× probe to avoid signal harmonics.
- USB-to-Serial Bridge (ATmega16U2/CH340): Routes D+/D- (pins 25/26) through series resistors (27Ω) to the USB port. Check for proper ESD protection (e.g., TVS diodes) on these lines–failures cause enumeration failures.
- Reset Circuit: A 10kΩ pull-up resistor on RESET (pin 29) keeps the microcontroller active. Add a 0.1µF capacitor in parallel with a pushbutton to GND for manual reset. Incorrect values here cause intermittent boot loops.
Trace the analog input paths (pins 23–28) to the header pins. Each channel shares a common AREF (pin 21); decouple this pin with 0.1µF to GND if using external references. The MUX inside the microcontroller requires stable VCC for accurate readings–measure noise levels with an oscilloscope; peaks >50mV degrade ADC precision.
Verify LED indicators early. The power LED (green) should use a 1kΩ series resistor from VCC to avoid excessive current draw. The built-in LED (D13) connects via a 220Ω resistor to pin 19–calibrate this resistor if using high-efficiency LEDs to prevent overcurrent. For custom shields, confirm trace widths: 0.3mm for signal lines, 1mm for power rails to handle currents >300mA without vias overheating.
Step-by-Step Power Input Analysis for AVR Microcontroller Development Kit
Begin by identifying the input voltage range supported by the AVR-based microcontroller platform, which tolerates 7–12V via its barrel jack. Measure the unregulated DC supply at the VIN pin to confirm proper voltage delivery before proceeding to the on-chip voltage regulator. A multimeter reading below 6.5V suggests insufficient input, risking unstable operation.
Trace the power path from the external adapter to the linear regulator, typically an NCP1117 or AMS1117 variant, mounted near the power connector. These components reduce input voltage to a stable 5V with a dropout of ~1.3V, meaning the adapter must output at least 6.3V to ensure reliable regulation. Verify regulator output at the 5V pin with an oscilloscope for noise or ripple exceeding 100mV peak-to-peak.
Examine the reverse polarity protection diode (often a 1N4007) inline with the barrel jack. Its forward voltage drop (~0.7V) subtly lowers available voltage, so factor this into power budget calculations. For low-dropout requirements, consider bypassing the diode with a MOSFET-based ideal diode circuit if input regulation is critical.
Onboard Power Distribution
Follow the 5V rail to the micro-USB input where it merges with the regulated output. Confirm continuity between the USB 5V pin and the main rail, ensuring no high-impedance connections disrupt current flow. Tests should reveal less than 0.1Ω resistance between these points; higher values indicate cold solder joints or damaged traces.
Check the 3.3V rail derived from the 5V supply via a secondary regulator. Load conditions above 50mA may cause thermal throttling, evidenced by a drop in output voltage. Monitor the regulator’s thermal pad–excessive heat (>60°C) warrants a heatsink or switching to a buck converter module for better efficiency.
Inspect the reset circuit power, typically fed from the 5V rail through a 10kΩ pull-up resistor. Noise here can trigger inadvertent resets, so add a 0.1µF decoupling capacitor adjacent to the reset pin if instability occurs. For battery-powered designs, prioritize low quiescent current regulators (
