For precise prototyping, begin by mapping the I/O expansion layout of the ATmega2560-based development platform. The 54 digital pins include 15 PWM-capable outputs, while the 16 analog inputs provide 10-bit resolution. Power distribution requires attention–VCC and GND lines must support regulated 5V with stable ground referencing to prevent voltage fluctuations. Use decoupling capacitors (10μF near the power input, 0.1μF adjacent to each IC) to suppress noise in high-frequency applications.
Serial communication is critical: UART ports (Serial0–Serial3) operate at up to 115,200 baud, though higher speeds may demand hardware flow control for reliability. For SPI and I2C interfaces, consult the exact pin assignments–MOSI/MISO/SCK and SDA/SCL pairs have fixed locations (50–53 and 20–21, respectively). Reset functionality relies on the designated line (active-low), which should be pulled high via a 10kΩ resistor unless externally controlled.
Pin multiplexing impacts performance–avoid simultaneous high-current draws on adjacent channels to prevent interference. The default bootloader occupies memory addresses 0x0000–0x3FFF; flashing custom firmware requires bypassing this range or overwriting it with precise ISP tools like AVRDUDE. For power-sensitive designs, the onboard 5V regulator tolerates input voltages up to 12V, but excessive loads may trigger thermal shutdown. Distribute heavy loads across multiple GND ties to minimize ground bounce.
Schematic validation demands a layered approach: first, verify power rails and decoupling; next, confirm signal paths with a logic analyzer; finally, test load conditions under real-world constraints. Open-source reference designs (e.g., the official Eagle files) include pre-routed traces optimized for EMI reduction, but always cross-check against the datasheet for variant-specific deviations. For complex layouts, isolate analog and digital grounds at the PCB level, connecting them only at a single star point near the power source.
Practical Schematic Insights for the ATmega-Based Development Board

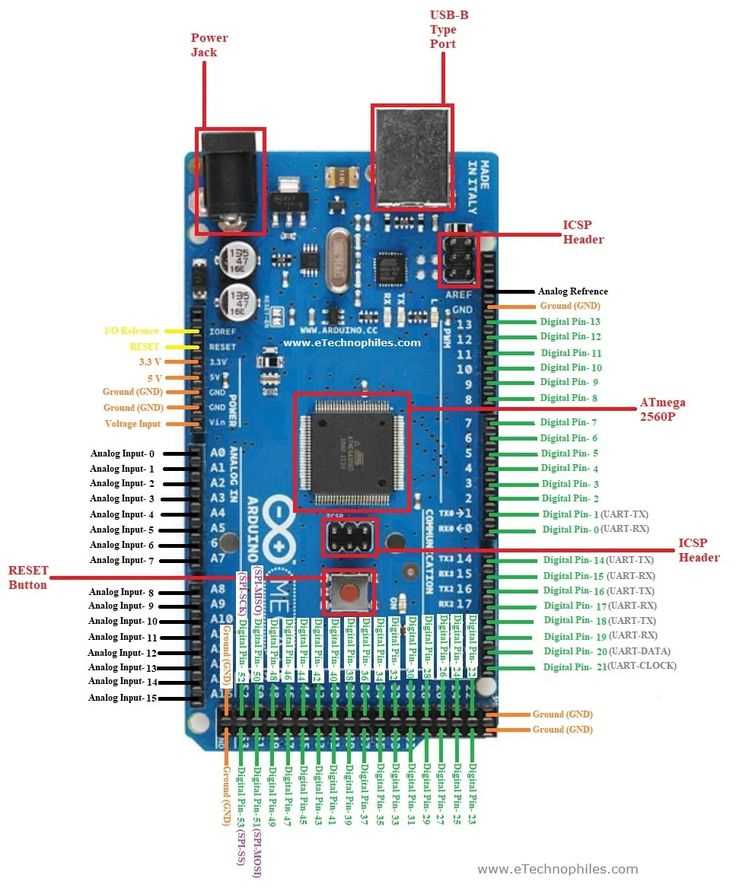

Begin by identifying the microcontroller core–an ATmega1280-compatible device–located centrally on the reference layout. Pin assignments for digital I/O lines 0 through 53 follow a sequential pattern, while analog inputs A0 to A15 occupy dedicated headers. Power rails (+5V, 3.3V, and ground) should be traced back to their voltage regulators, ensuring stable operation under load. Verify the reset circuitry; a 10kΩ pull-up resistor tied to VCC prevents spurious resets, while a tactile switch grounds the line when pressed.

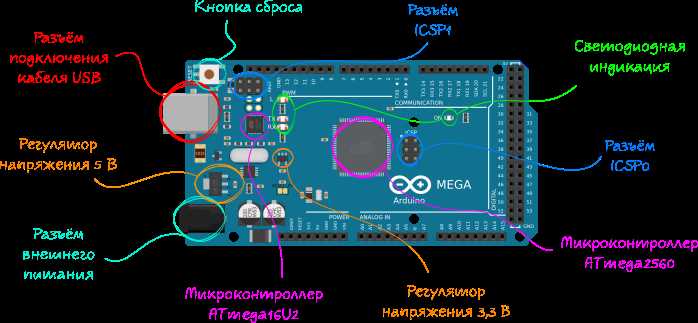

Examine the USB-to-serial bridge, typically an ATmega16U2 programmed as a CDC device. Its TX and RX lines connect directly to the main processor’s UART0, enabling serial communication without external adapters. Ensure the crystal oscillator–16 MHz for the primary MCU and 12 MHz for the bridge–has proper 22pF loading capacitors. For noise-sensitive applications, decouple each power pin with 0.1µF ceramic capacitors placed as close as possible to the IC feet.
Leverage the expanded I/O capabilities by cross-referencing port registers (PORTx, DDRx, PINx) with the pin mapping table in the datasheet. PWM-capable pins (marked with a tilde) default to 8-bit resolution but can be extended to 16-bit using timer registers. For high-current loads (e.g., servos or relays), offload power delivery to external drivers; the onboard traces handle 20mA per pin, 200mA total per port.
Debugging requires probing key nodes: the AREF pin for stable analog reference, the ICSP header for in-circuit programming, and power rails during startup. Use a logic analyzer on SPI lines (50–51–52–53) to confirm clock speeds below 4MHz when driving peripherals. If Ethernet or CAN modules are attached, isolate their ground planes to avoid ground loops–the reference design includes solder-jumpers for this purpose.
Solder a 1kΩ resistor between +5V and the RX line to mitigate EMI from long cable runs. For battery-powered projects, bypass the rectifier and connect a LiPo directly to the 5V rail via a Schottky diode (e.g., 1N5817), ensuring reverse-polarity protection. Always cross-check your schematic against the official Eagle files; discrepancies in silkscreen markings (e.g., digital pin 22 vs. actual port pin) are common in cloned variants.
Critical Hardware Elements in the ATmega2560 Development Board Blueprint
Focus first on the microcontroller unit (MCU): the ATmega2560. This 100-pin AVR processor operates at 16 MHz with 256 KB flash memory, 8 KB SRAM, and 4 KB EEPROM. Verify its power pins: VCC (5V), AVCC (analog supply), and GND. Ensure decoupling capacitors (typically 0.1 µF) are placed within 2 mm of the MCU’s power pins to suppress noise. The reset circuit–comprising a 10 kΩ pull-up resistor on the RESET pin and a 0.1 µF capacitor–must match the reference design to prevent erratic resets during operation. For precise timing, the 16 MHz crystal oscillator requires two 22 pF load capacitors connected to XTAL1 and XTAL2.
Peripheral Connections and Power Regulation
- USB Interface: The CH340G (or equivalent) USB-to-serial converter bridges the MCU’s UART (
TX0/RX0) to the USB port. Add a 1 kΩ resistor betweenDTRand the reset line for auto-reset during uploads. - Voltage Regulation: The board’s 5V output is derived from either USB (500 mA max) or an external 7–12V supply via the barrel jack. The NCP1117 (or LM1117) linear regulator drops input voltage to 5V, with a 22 µF input capacitor and 100 µF output capacitor for stability. Heatsinks are recommended for prolonged operation at >500 mA loads.
- Analog Reference: Tie the
AREFpin toAVCC(default) or an external source (0–5V) for ADC consistency. BypassAREFwith a 0.1 µF capacitor to ground. - Digital I/O Protection: Clamp diodes (e.g., BAT54) on all I/O pins prevent damage from overvoltage. Limit current to 20 mA per pin (40 mA absolute max) to avoid thermal stress.
Trace the schematic’s power rails: separate analog (AVCC) and digital (VCC) grounds to minimize noise, joined only at a single point near the MCU.
Decoding Pin Labels on Microcontroller Schematics
Locate the reference designators first–each pin on the board’s blueprint starts with a letter (e.g., PD0, PF7, PH4) followed by a number. The letter identifies the port group: *P* for digital ports (PD, PE, PH, etc.), *A* for analog inputs (PA, PF), *U* for power rails, and *J* for headers. For example, *PC7* maps to Port C, bit 7, while *AREF* is the analog reference pin. Verify labels against the datasheet’s pinout table to confirm functions like PWM (~), UART (RX/TX), or I²C (SCL/SDA).
Digital pins numbered consecutively (e.g., D22–D53) often span multiple port groups in the schematic. Use the silkscreen markings on the physical board as a cross-reference–for instance, *D22* corresponds to *PA0*, while *D23* is *PA1*. Analog inputs follow a separate naming convention (A0–A15), but their underlying labels (e.g., *PF0* for A0) are critical for direct register manipulation or timer interrupts. Check the power pins separately: *VCC* and *GND* may appear as *UVCC*, *AVCC*, or *UGND* depending on the regulator section.
Timer and interrupt pins carry suffixes like *T0*, *T1*, or *OCnx* (output compare) in schematics–these dictate hardware-specific behavior. For example, *PB7/OC0A* implies Pin B7 doubles as Timer0’s output compare channel A. SPI labels (*MOSI*, *MISO*, *SCK*) hide under alternative names (*PE5*, *PE6*, *PB1*) when configured via software. Always prioritize the port/pin combination over simplified labels, as the latter may vary between revisions.
Connecting External Power Supply to Your Development Board Safely
Use a regulated DC power source with an output voltage between 7V and 12V for optimal performance. The onboard voltage regulator tolerates up to 20V, but prolonged exposure above 12V increases heat dissipation, potentially damaging components. Verify the power supply’s current rating–aim for at least 1A for stable operation under load, especially if driving multiple peripherals like servos or high-brightness LEDs.
Connect the positive lead to the Vin pin or the barrel jack, and the negative lead to any GND pin. Avoid reverse polarity at all costs; even a brief reversal may fry the voltage regulator or microcontroller. If uncertain, use a multimeter to confirm the polarity before making connections. For extra protection, add a Schottky diode (e.g., 1N5822) in series to block reverse current.
Critical Voltage and Current Specifications
| Parameter | Minimum | Recommended | Maximum |
|---|---|---|---|
| Input Voltage (Vin) | 6V | 7V–12V | 20V (absolute, short-term) |
| Current Capacity | 500mA | 1A–2A | 3A (with heat sink) |
| Regulator Dropout | 1.1V | N/A | N/A |
When powering through the barrel jack, ensure the plug matches the 2.1mm center-positive standard. Cheap adapters often fail to meet this specification; test with a continuity tester if the label is unclear. If using a bench power supply, set current limiting to 1.5A to prevent damage during short circuits. For battery-powered setups, lithium-ion cells (3.7V nominal) require a boost converter to reach the required input range, while lead-acid or NiMH packs may connect directly if their voltage aligns with the 7V–12V window.
Ground loops pose a risk when connecting to external hardware sharing the same power source. To mitigate interference, use a single common ground point, preferably near the board’s ground plane. If noise persists (common with motors or relays), insert a 0.1μF ceramic capacitor between Vin and GND as close to the power input pins as possible. For high-current applications, bypass capacitors (10μF electrolytic + 0.1μF ceramic) should be placed adjacent to the load and the board’s power input.
Troubleshooting Power Issues
If the board fails to power on, check for voltage at Vin and 5V pins using a multimeter. A reading below 4.75V on the 5V rail suggests regulator failure–immediately disconnect power to avoid further damage. Overheating (regulator too hot to touch) indicates excessive load or input voltage; reduce either parameter or add external cooling (e.g., a small heatsink on the NCP1117 regulator). Swollen capacitors on the board signal improper voltage handling–replace them before continuing.
