Begin with the ATmega32U4-AU microcontroller, as its native USB 2.0 interface eliminates the need for an external USB-to-serial converter. Place the 16 MHz crystal directly between pins 24 (XTAL1) and 25 (XTAL2) with 22 pF load capacitors to ground–this bypasses the internal oscillator, ensuring stable timing. Skip ceramic resonators; they introduce jitter under USB communication loads.
Route the USB data lines (D+ and D-) from pins 4 (PD3) and 5 (PD2) through 22Ω series resistors before connecting to the USB connector. This matches the 90Ω differential impedance required by the USB standard and prevents signal reflections. Use 0.1μF decoupling capacitors on VCC, AVCC, and AREF (pins 44, 30, and 21 respectively) to stabilize power–place them as close to the pins as possible, ideally within 2 mm.
Implement a polyfuse (e.g., 500mA hold current) on the VUSB line to protect against short circuits. A Schottky diode (e.g., BAT54) between the +5V input and VUSB prevents backflow when powered via Vin; orient the cathode toward VUSB. For regulated voltage, pair an AMS1117-5.0 LDO with a 10μF input capacitor and a 22μF output capacitor, both low-ESR tantalum or ceramic.
Add a user-accessible reset button connected to the RESET pin (pin 29) via a 10kΩ pull-up resistor. Include a momentary push-button tied to GND for experimental inputs–debounce it in firmware with a 50ms delay. Expose unused GPIO pins (e.g., PD4-PD7, PB4-PB7) via 0.1″ headers, but avoid pulsing them during USB enumeration to prevent unexpected device resets.
For ICSP, break out SCK, MOSI, MISO, and RESET to a 6-pin header with 100nF decoupling on the programming lines. Avoid routing these traces parallel to the USB data lines–cross them at 90° if unavoidable–to minimize crosstalk. Verify the PCB layout with a continuity tester before powering on; accidental shorts on the USB lines can damage host controllers.
Understanding the ATmega32U4 Development Board Circuit Layout
To analyze the reference design of the ATmega32U4-based microcontroller board, locate the USB interface section–specifically the FDN340P P-channel MOSFET (Q1) paired with a 22Ω resistor (R7) and 1.5KΩ pull-up (R8). These components manage VBUS detection for proper USB enumeration. Bypassing this through direct connection risks damaging the MCU’s internal regulator or causing erratic power draw. For stable operation, ensure PCB traces between the ATmega32U4 (U1) and Micro-USB connector (J1) are ≤15mm wide with 1oz copper to minimize voltage drops during high-current scenarios like firmware updates.
Pay attention to the 16MHz crystal (Y1) with 22pF load capacitors (C3, C4)–values outside ±5% tolerance may cause unstable clock signals. The RESET circuit (R1, C1, and tactile switch SW1) requires a 10KΩ resistor and 100nF capacitor to prevent false triggers during power cycles. For ICSP headers, route MISO (PB3), MOSI (PB2), and SCK (PB1) away from PWM pins (PD3, PD5) to avoid signal interference, keeping trace impedance below 80Ω.
Power Distribution and Protection Components
Use a 500mA polyfuse (F1) between the USB VCC and board power rail–substituting with a lower-rated fuse may trigger premature cuts during peak loads (e.g., driving multiple servos). The onboard regulator (AP2112K, U2) requires a 10µF input capacitor (C2) and 1µF output capacitor (C5) for stable 3.3V output, with thermal vias under the component pad if hand-soldering. Decoupling capacitors (0.1µF ceramic, C6–C9) should be placed ≤2mm from each VCC/GND pin pair on the MCU to suppress high-frequency noise.
When modifying the design, isolate analog reference (AREF) with a 0.1µF capacitor (C12) to shield sensors from digital noise, and avoid routing digital signals under the MCU–especially underneath pins like PD2 (USB D+) to prevent crosstalk. For battery-powered variants, add a Schottky diode (SS14) on the VIN line to block reverse current from the USB port, ensuring the input voltage never exceeds 12V when using external supplies.
Key Components of the ATmega32U4-Based Development Board Circuit Layout
Start by isolating the microcontroller’s power pins: the VCC, AVCC, and GND must be connected with decoupling capacitors (0.1μF ceramic) placed as close as possible to minimize noise. Skip aggregating multiple power rails into a single trace–route VUSB and VBUS separately if USB functionality is required, ensuring diode protection (SS14 or similar) between the bus and MCU power input to prevent backflow.
Clock and Reset Circuits
Use a 16MHz crystal (with two 22pF loading capacitors) for the main oscillator–avoid RC networks unless timing precision is irrelevant. Add a 0.1μF cap across the RESET pin and ground to filter glitches, but omit pull-up resistors if relying on the internal 10kΩ variant. For external reset control, route a momentary switch to RESET with a 1kΩ series resistor to limit current during transitions.
- USB Interface: Dedicate traces for D+ and D– (USB differential pair) with 27Ω series resistors; keep impedance near 90Ω and avoid vias to reduce reflections. Include a 1.5kΩ pull-up resistor on D+ to signal device attachment.
- I/O Protection: Insert ESD diodes (e.g., PRTR5V0U2X) on all digital/analog pins exposed to external signals. Add TVS diodes (e.g., SMAJ5.0A) on power inputs if sourcing from unregulated supplies.
- Regulation: For linear regulators (NCP1117ST33T3G), place the input capacitor (10μF tantalum) and output capacitor (22μF ceramic) within 5mm of the IC’s pins; thermal vias under the pad improve dissipation.
Map the ATmega32U4’s power-on reset (POR) circuit last: a 10kΩ pull-up resistor on the HWB pin enables bootloader access, while a 4.7kΩ resistor on UDI assists USB enumeration. Test trace continuity with a multimeter before uploading firmware; discontinuities on SCK, MOSI, or MISO will corrupt programming.

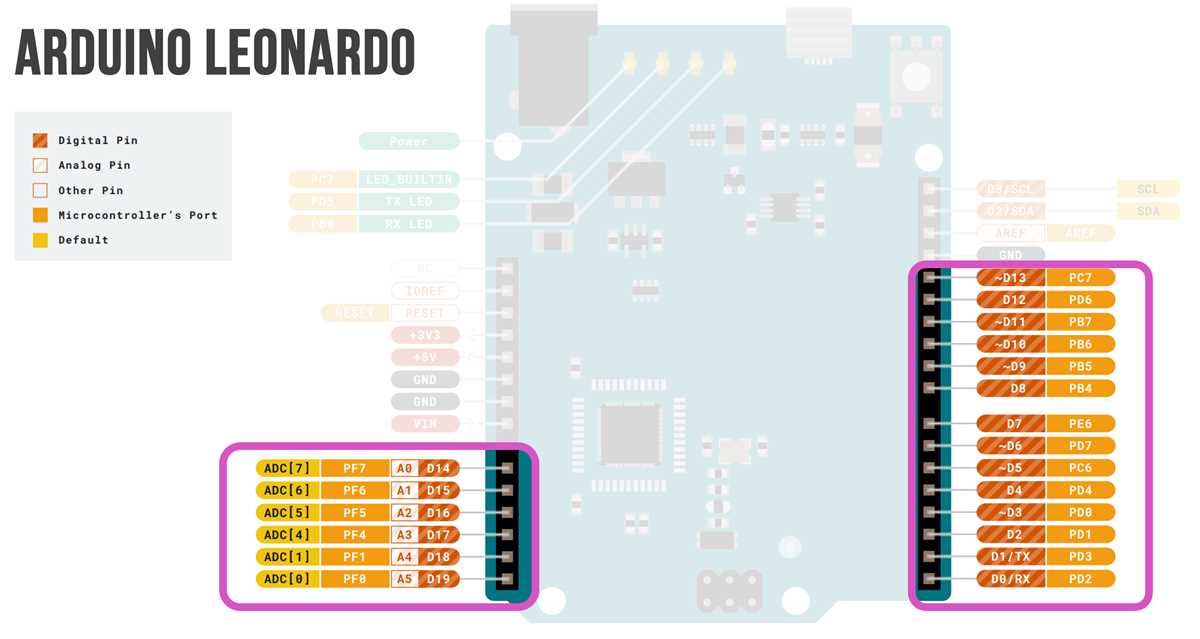

Pinout Configuration: ATmega32U4-Based Board vs. ATmega328P Differences
Use digital pins D3, D5, D6, D9, D10, D11 for PWM output on the ATmega32U4 board–these support analogWrite() with 8-bit resolution (0-255). The ATmega328P lacks native PWM on D4 and D13, while the 32U4 adds D13 as a valid PWM channel. Prioritize these pins for projects requiring variable signal generation.
Hardware serial ports differ significantly. The 32U4 includes Serial1 (TX/RX on D0/D1), freeing USB serial (CDC) for debugging without occupying UART. The 328P offers only one hardware serial (D0/D1), forcing software serial for multiple UART devices–risking performance drops at higher baud rates. Configure interrupts on D2/D3 (32U4) or D2/D3 (328P), but note the 328P’s external interrupt pins (INT0/INT1) are identical, while the 32U4 adds PCINT support on all digital pins.
| Feature | ATmega32U4 Board | ATmega328P Board |
|---|---|---|
| Analog Inputs | A0-A5, A6-A11 (12 total) | A0-A5 (6 total) |
| I²C Pins | D2 (SDA), D3 (SCL) | A4 (SDA), A5 (SCL) |
| SPI Pins | D14 (MISO), D15 (SCK), D16 (MOSI), D10 (SS) | D12 (MISO), D13 (SCK), D11 (MOSI), D10 (SS) |
Analog input capabilities expand on the 32U4 with A6-A11 (shared with digital pins D4-D9). The 328P limits to A0-A5. For ADC operations, set analogReference() to DEFAULT (5V), INTERNAL (2.56V on 328P, 2.56V/1.1V on 32U4), or EXTERNAL (AREF pin). Avoid using A6-A11 as digital outputs; inadvertently toggling them disrupts ADC readings.
Flash memory disparity impacts program storage. The 32U4 provides 32KB (4KB bootloader), while the 328P offers 32KB (0.5KB-2KB bootloader, model-dependent). Opt for PROGMEM storage for large datasets on 32U4 to prevent heap fragmentation–its integrated USB stack consumes ~4KB. The 328P lacks USB, but serial uploads occupy minimal space; prefer it for SRAM-constrained applications.
Interfacing with 3.3V logic requires caution. The 328P’s pins are 5V-tolerant but may damage 3.3V devices without level shifting. The 32U4’s D4 and D6 tolerate 3.3V safely; use these for direct connections to sensors (e.g., MPU6050). For I²C on both boards, pull-up resistors (4.7KΩ typical) must match the logic level–5V pulls fry 3.3V devices.
Selecting the correct board definition in the IDE alters pin behavior. The 32U4’s D13 integrates an LED and resistor, simplifying debugging, whereas the 328P’s D13 LED lacks a resistor–add one externally (220Ω-1KΩ). Timers diverge: 32U4 has three 8-bit (Timer0, Timer2, Timer4) and two 16-bit (Timer1, Timer3), enabling advanced PWM/frequency generation. The 328P offers two 8-bit (Timer0, Timer2) and one 16-bit (Timer1), limiting timer-based functions.
For power-sensitive designs, note quiescent current: 32U4 draws ~40mA (USB active), 328P ~30mA. Disable unused peripherals (power_adc_disable(), power_spi_disable()) to reduce current. The 32U4’s USB suspend mode cuts power to ~1mA, while the 328P lacks native USB, requiring external circuitry for low-power states. Always verify pin mappings against the datasheet–third-party clones may deviate from reference designs.
USB-to-Serial Interface and ATmega32U4 Integration
For direct USB communication without additional converters, ensure the ATmega32U4’s native USB module is wired to the board’s USB port via D- (PB4/PD2) and D+ (PB5/PD3) lines, pulled up with 22Ω resistors. Omit external UART-to-USB chips like CH340 or FTDI–the MCU’s built-in USB 2.0 full-speed interface handles enumeration, HID reports, and CDC-ACM serial emulation autonomously. Flash the bootloader with `avrdude` targeting `atmega32u4` using `-c avr109` to enable DFU mode during firmware uploads.
Power the MCU’s VCC pin via the USB bus (5V) or an external regulator, but decouple both AVCC and VCC with 0.1µF capacitors placed within 2mm of the pins. For low-noise analog operation, connect AREF to a clean 2.56V reference through a 10µF tantalum capacitor, and tie the internal voltage reference (1.1V) to PF0/ADC0 for precise ADC readings. Route USB traces as 90Ω differential pairs on the PCB, with a solid ground plane underneath to minimize EMI–keep traces shorter than 5cm to avoid signal degradation.
Use LUFA or ArduinoCore-avr libraries to implement CDC-ACM serial profiles, exposing `/dev/ttyACM*` (Linux) or `COMx` (Windows) ports automatically. Configure fuse bits with `lfuse=0xFF`, `hfuse=0xD8`, `efuse=0xCB` to enable Brown-out Detection at 2.7V and preserve EEPROM during chip erase. Debug USB enumeration issues by checking `dmesg` on Linux or Device Manager on Windows–error code 43 typically indicates missing descriptors or incorrect pull-up resistors.
