Begin by identifying power distribution requirements–this 32-bit ARM Cortex-M3 based development platform demands a regulated 3.3V input with a current capacity of at least 800mA. Bypass capacitors (0.1μF ceramic) must be placed adjacent to each VDD pin of the MCU, with an additional 10μF tantalum capacitor near the power entry point to suppress high-frequency noise. Use a low-dropout regulator (LDO) like the MIC29302WU if sourcing from a 5V USB or external supply, ensuring thermal dissipation for currents exceeding 500mA.
The crystal oscillator circuit requires a 12 MHz passive crystal (load capacitance 20pF) paired with two 22pF capacitors for stable clock generation. Avoid long traces; route the crystal connections directly to the MCU’s XIN/XOUT pins with minimal impedance. For USB operation, implement a 1.5kΩ pull-up resistor on the D+ line to signal full-speed device recognition–omitting this will prevent enumeration.
Signal integrity on I/O pins is critical: series resistors (22Ω–100Ω) should be added to high-speed outputs (e.g., SPI lines) to prevent ringing. Analog reference decoupling demands a dedicated 10μF capacitor on the AREF pin, isolated from digital ground via a star-point topology. For DMA-enabled operations, verify PCB trace impedance doesn’t exceed 50Ω on memory buses–failure here introduces data corruption during burst transfers.

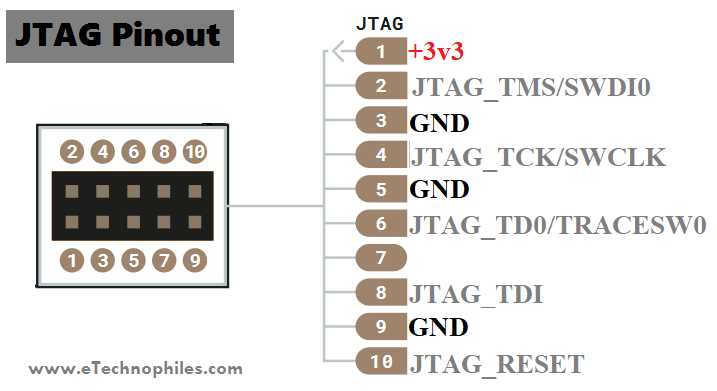

Debugging interfaces require strict adherence to JTAG/SWD standards. Use a 10-pin ARM-standard connector with 2.54mm pitch, ensuring VTref (3.3V) is properly sourced. For reset circuitry, a 10kΩ pull-up resistor on NRSTB prevents false triggers, while a 0.1μF capacitor filters noise. When interfacing with 5V logic (e.g., legacy sensors), insert level-shifting ICs like the TXB0104; simple resistor dividers introduce unacceptable signal degradation at frequencies above 1 MHz.
Power sequencing must prioritize the 3.3V rail before core voltage (1.8V) if using an external PMIC. Backfeed protection diodes (e.g., 1N5817) are non-negotiable–unplanned reverse current destroys the SAM3X. For battery-powered designs, the on-chip brown-out detector (BOD) must be configured via software fuse settings to trigger at 2.7V.
Building a Robust AVR-Based Development Board Schematic
Start by identifying the core MCU: the Atmel SAM3X8E microcontroller requires a minimum 8 MHz crystal oscillator with two 22 pF load capacitors for stable clock generation. Place these components within 1 cm of the MCU to minimize parasitic capacitance and ensure reliable oscillation.
Power distribution demands careful attention. The board operates on dual voltage rails: 5V for I/O and internal logic, and 3.3V for core operations. Implement a low-dropout regulator (LDO) like the MIC29302WU with a 10 µF input and output capacitor to maintain clean power delivery. Avoid connecting the USB VBUS directly to the 5V rail–instead, route it through a schottky diode (e.g., BAT54) to prevent backflow.
When routing decoupling capacitors, place 0.1 µF ceramics as close as possible to each power pin of the SAM3X8E, followed by a bulk 10 µF electrolytic or tantalum capacitor near the power entry point. This two-stage decoupling strategy suppresses high-frequency noise and voltage sags during transient loads. The USB interface requires separate 1.5 kΩ pull-up resistors on D+ and D− for proper enumeration.
Signal integrity on high-speed traces (e.g., SPI, I2C, UART) benefits from controlled impedance. Keep trace lengths under 7 cm for 48 MHz signals and route differential pairs with 100 Ω impedance, maintaining consistent spacing. The native port pins (PIO) tolerate 8 mA sink/source, but driving heavier loads necessitates external buffers or MOSFETs. For analog signals, separate grounds with a star topology to prevent digital noise coupling.
Reset circuitry should include a 10 kΩ pull-up resistor on the NRSTB pin and a 0.1 µF capacitor to ground for glitch filtering. The built-in brown-out detector requires no external components but can be augmented with a supervisor IC (e.g., TPS3823) for industrial-grade reliability. Debug interfaces like JTAG or SWD demand a 4-pin header with 1.27 mm pitch, connected via series resistors (22 Ω) to prevent signal reflection.
Protection measures are non-negotiable. ESD diodes (e.g., SP0503BAHT) on all exposed I/O pins clamp transient voltages to safe levels. Inputs vulnerable to overvoltage (e.g., GPIO, ADC) should incorporate current-limiting resistors (1 kΩ) and zener diodes (3.3V). The USB port requires polyfuses (e.g., MF-MSMF050X) on VBUS and a ferrite bead (600 Ω @ 100 MHz) on the data lines to suppress EMI.
For expansion and modularity, incorporate stacked headers following the 2.54 mm pitch standard. Break out the DMA-capable peripherals (e.g., USART1, CAN1, PWM) to dedicated connectors, ensuring signal traces are routed on the top layer with a continuous ground plane below. Use silkscreen to label all pins with their respective functions and voltage tolerances (e.g., “3.3V Max”) to prevent user errors. Validate the layout with a DRC check, focusing on minimum clearance (0.2 mm) and annular ring widths (0.3 mm).

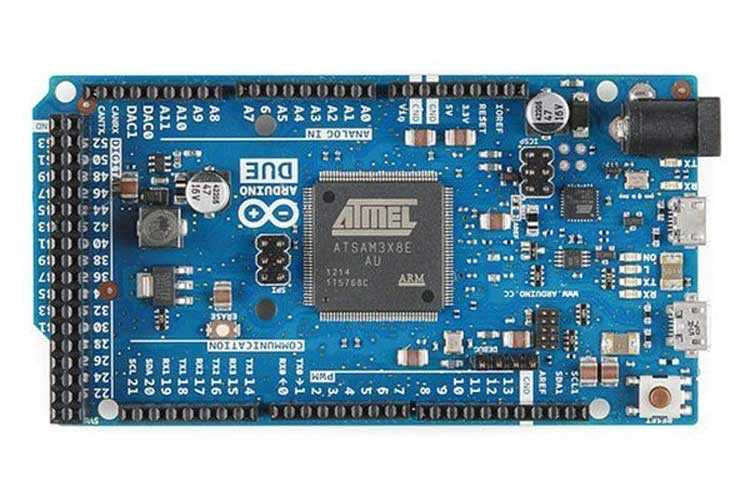

Key Components and Pinout Layout for the SAM3X8E Board

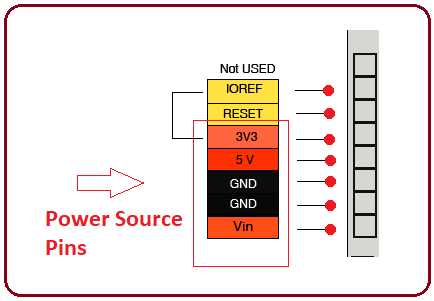

Prioritize power pins immediately when designing peripheral connections. The 3.3V and 5V rails supply distinct logic levels–mixing them risks damaging the microcontroller. Use the VIN pin exclusively for power inputs between 7–12V DC; voltages outside this range may trigger thermal shutdown or insufficient regulation. Place decoupling capacitors (10µF and 0.1µF) adjacent to power pins to suppress noise, particularly for analog sensors.
Digital I/O pins span 0–53, with pins 0–1 reserved for Serial (UART) communication–avoid heavy loads on these lines if using serial debugging. Pins 10, 11, 50–53 support SPI with hardware-controlled chip select (CS) lines. For precise timing, leverage Timer/Counter channels on pins 2–13, each mapped to TC0–TC5; mismatched clock settings on these pins may cause counter drift.
Analog Functionality and Specialized Pins
Twelve analog inputs (A0–A11) offer 12-bit resolution, but reference voltage defaults to 3.3V–exceeding this input will saturate readings. For stable measurements, enable the internal 3.3V reference via analogReference(INTERNAL) or use an external reference below 3.3V. Pins A8–A11 double as digital I/O when analog functions are disabled; re-enable analog mode before switching back to avoid unexpected behavior.
Pin 76 (DAC0) and pin 66 (DAC1) output 12-bit analog voltages up to 3.3V–calibrate offsets in software if precision matters. These pins share registers with analog inputs; concurrent use may introduce crosstalk. Pins 72–75 (CAN interface) require external transceivers for proper termination–connecting directly to CAN devices risks signal degradation.
Programming and Native Ports
The native USB port (Micro-USB) interfaces via the SAM-BA bootloader or CDC serial emulation. Program sketches here to avoid conflicts with the debugging port (Programming USB), which defaults to Serial for debugging. Switching ports mid-operation requires resetting the board; plan pin allocations accordingly to minimize disruptions.
Dedicated USB host pins (pins 88–91) support OTG peripherals but lack built-in power management–add a 500mA fuse to prevent overloads. The JTAG header (pins 92–95) enables advanced debugging with SAM-ICE or J-Link; misconfigured JTAG will lock the microcontroller, requiring a full erase cycle.
Pins 77–79 (GPIO) and 80–83 (USART1) handle high-current loads up to 15mA per pin, but total current must stay below 100mA across all pins. For long-duration signals, insert series resistors (220Ω) to limit slew rates and reduce EMI. Always verify pin states with a logic analyzer before full deployment–transient voltages during startup can trigger erratic behavior.
Step-by-Step Guide to Wiring Power Supply Connections
Use a regulated 7-12V DC source for stable operation. Linear or switching regulators work, but ensure minimal ripple–below 50mV peak-to-peak–if driving sensitive components. For high-current loads, match the regulator’s current rating with a 20% overhead (e.g., 1.2A for a 1A load).
Connect the positive lead to the input pin labeled VIN–avoid reverse polarity, as it damages internal protection diodes instantly. Ground the negative lead to the central pad marked GND. Verify continuity with a multimeter; resistance should read <0.5Ω.
Selecting the Right Components
For 5V outputs, prefer LM7805 or AMS1117-5.0 regulators. The LM7805 requires a minimum 2V headroom (7V input), while the AMS1117-5.0 needs at least 6.5V. Include a 10µF tantalum capacitor on both input and output sides to stabilize voltage under load fluctuations.
If using a 3.3V rail, opt for an LD1117V33 or RT9013-33PB. These regulators demand a 0.3V dropout margin. Place a 1µF ceramic capacitor within 1cm of the output pin to suppress high-frequency noise. Avoid aluminum electrolytics–they’re too slow for transient response.
Thermal and Protection Measures
Attach a heatsink to any regulator dissipating >0.5W. Calculate power dissipation: (Vin – Vout) × Iload. Example: (9V – 5V) × 0.5A = 2W. Use a TO-220 package with a 20°C/W heatsink for reliable cooling.
Add a 1N4007 diode in series with the input to block reverse current from capacitors during shutdown. For short-circuit protection, fuse the input line with a fast-blow fuse rated 1.5× the maximum expected current. Example: 1A load = 1.5A fuse.
Test load regulation before final assembly. Apply a 10% to 90% load step and measure output voltage with an oscilloscope. Spikes >5% of nominal voltage indicate insufficient capacitance or poor grounding.
Route high-current traces with 2oz copper or thicker. Keep power and ground traces wide–minimum 2.5mm per ampere. Separate analog and digital grounds, connecting them at a single star point near the power source to prevent ground loops.
