For reliable operation, connect the climate control unit’s transformer to a dedicated 24VAC power source with a minimum 40VA rating. Avoid shared circuits with high-demand devices like furnaces or thermostats to prevent voltage drops that disrupt performance. Use 18-gauge solid copper wire for all low-voltage connections, ensuring insulation meets UL standards for indoor applications. Label each wire at both ends–transformer output, control board, and solenoid–to simplify troubleshooting.
The control board terminal marked “HUM” requires a direct 24VAC input from the transformer’s secondary side. Ground the metal chassis using a separate 12-gauge green wire connected to the home’s grounding bus bar. Verify polarity with a multimeter before energizing: correct readings indicate 24-28VAC across the transformer’s secondary coil and 0 ohms between the chassis and ground. Reverse wiring risks damaging the solenoid’s coil or tripping a GFCI-protected circuit.

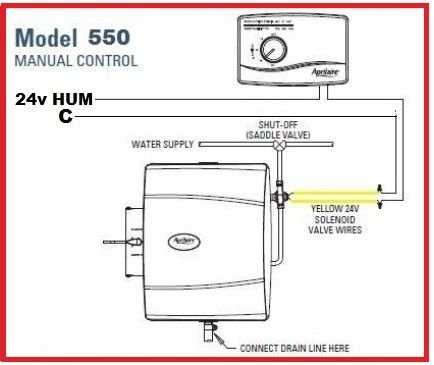

For automatic moisture regulation, wire the humidistat in series between the transformer’s hot lead and the control board’s “HUM” terminal. Set the humidistat’s dial to your desired relative humidity level–typically 30-40% for forced-air systems–and use a short jumper wire to bypass it for manual operation. If integrating with a smart thermostat, connect the climate device’s “R” and “C” terminals to the thermostat’s corresponding terminals, ensuring compatibility with Nest, Ecobee, or Honeywell models.
Seal splices with waterproof wire nuts rated for 105°C, then secure them inside an electrical junction box to comply with NEC Article 314. Avoid using staples or tape for cable support; instead, use plastic cable clamps every 4.5 feet along the run. Test the solenoid’s operation by energizing the system: a quiet click confirms proper activation. If the unit fails to engage, check for loose connections, incorrect voltage at the solenoid, or a blown fuse in the transformer.
For units installed downstream of an air handler, mount the climate device’s water panel at least 12 inches from the furnace’s heat exchanger to prevent premature evaporation. Connect the drain line to a condensate pump or floor drain using 1/2-inch PVC tubing, sloped at least 1/4 inch per foot to ensure proper drainage. If the system lacks a built-in overflow sensor, install a secondary float switch wired in series with the control board to cut power during flooding.
Connecting Your Automatic Moisture Control Unit Properly
Begin by locating the 24V transformer output wires on your furnace or air handler’s control board. These terminals are typically marked “R” (red) and “C” (common) or “24V COM.” Verify voltage with a multimeter–readings should range between 23-28V AC. Without this confirmation, attaching the device risks damaging sensitive internal components.
Identify the solenoid valve wires: one connects to the furnace’s “W” terminal for heat activation; the second attaches to the “G” terminal if fan-only operation is desired during cooling cycles. Miswiring here results in either continuous water flow or complete failure to engage. Check the manufacturer’s color-coding–red usually denotes power, black or blue marks the return path.
Install an inline fuse between the transformer’s “R” terminal and the solenoid’s power wire. A 3-amp fuse protects against short circuits while preserving the unit’s electronic controls. Position the fuse holder within 6 inches of the transformer to adhere to safety best practices.
| Wire Color | Terminal Connection | Purpose |
|---|---|---|
| Red | Furnace “R” or “24V” | Power input to solenoid |
| Black/Blue | “W” (heat) or “G” (fan) | Trigger during heating or fan cycles |
| Green | Chassis ground | Safety grounding |
| White | Transformer “C” or “COM” | Return path for solenoid circuit |
Secure all connections with crimp connectors and heat-shrink tubing. Avoid twist-and-tape methods–moisture ingress corrodes contacts over time, leading to intermittent operation. Label every wire at both ends using adhesive sleeves to simplify future troubleshooting.
Mount the humidity sensor adjacent to the return air duct, ensuring it remains unobstructed by insulation or ductwork. Misplaced sensors read ambient humidity inaccurately, causing erratic cycling. Calibrate the sensor after wiring by adjusting the dial until the displayed value matches a separate hygrometer’s reading within ±2%.
Test operation by setting the thermostat to “heat” mode. The solenoid should audibly click within 5 seconds. If no click occurs, recheck voltage at the solenoid terminals–absence indicates a broken circuit. Pour distilled water into the reservoir, observing water flow through the pad within 30 seconds. No flow suggests clogging or incorrect valve wiring.
Identifying Terminal Connections on the Device Control Board
Locate terminal R (24V power) and C (common) on the upper right side of the board–these supply activation current to the solenoid valve. Verify voltage between them using a multimeter set to AC; readings should stabilize between 22-28V when the heating system calls for moisture regulation. If voltage drops below 20V, inspect the transformer connections or replace the fuse (3A slow-blow) positioned adjacent to the terminals. Incorrect polarity here will prevent the unit from engaging.
Connect the solenoid’s red wire to terminal W (humidity call) and its white wire to C–this completes the circuit for moisture release. Ensure the white wire is securely fastened under the screw head without stray strands; frayed connections cause intermittent operation. Label wires before detachment during servicing to avoid misplacement, particularly in systems with multiple climate-control components sharing a common board.

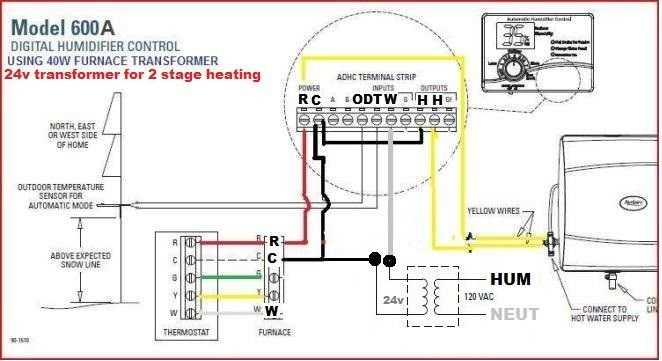

Step-by-Step Connection Guide: Mechanical vs. Digital Humidity Controls
Begin by disconnecting the power supply at the circuit breaker to prevent electrical hazards. For a mechanical regulator, locate the two low-voltage terminals–typically marked “R” (power) and “W” (humidifier call). Strip ¼ inch of insulation from the ends of 18-gauge thermostat wire, insert one lead into the “R” terminal and the other into “W,” then secure the screws tightly. Ensure the regulator’s scale is set between 35-45% relative moisture for optimal operation. Run the same 18-gauge wire from the “W” terminal to the moisture-release unit’s solenoid, attaching it to the marked “HUM” input.
For automated humidity sensors, follow these distinctions:
- Identify the four terminals: “Rc” (cooling power), “Rh” (heating power), “C” (common), and “W” (signal). Connect “Rh” and “Rc” together using a jumper wire if your climate-control system lacks separate power sources.
- Attach the “W” wire from the sensor to the “HUM” terminal on the moisture-release valve, then connect the “C” wire to the transformer’s corresponding terminal for a complete circuit.
- Program the sensor to maintain 30-50% relative moisture, adjusting the differential setting to 3% to prevent rapid cycling.
Verify all connections with a multimeter, testing for 24V AC across the “R” and “C” terminals before restoring power. Confirm the moisture-release unit activates within 90 seconds of a demand signal.
Common Errors in Power Supply Hookup for Model 500M Steam Vapor Generator
Reverse polarity in the 24V transformer leads ranks as the most frequent misstep during installation. Verify terminal markings–typically marked “R” and “C” or “COM”–before securing wires. Swapping them triggers immediate failure, overheating the circuit board within minutes. Test with a multimeter set to AC voltage; proper orientation yields ~26-28V across terminals. No voltage indicates either a faulty transformer or incorrect connections.
Skipping Voltage Verification Before Load Application
Applying power without confirming input voltage causes catastrophic damage to control electronics. Use a non-contact voltage tester to check the 120V supply line–glowing indicator confirms active current. Measure again at transformer terminals; deviations below 110V or above 125V stress components. Install a dedicated 15A breaker for the unit; sharing circuits with HVAC systems causes erratic operation due to voltage sags during startup.
Incorrectly sized wiring introduces resistance, reducing efficiency and risking overheating. Follow AWG 18 for runs under 50 feet; upgrade to AWG 16 for longer distances. Secure crimps with ratcheting tools–loose connections generate heat exceeding 140°F, degrading insulation over time. Route low-voltage wires at least 6 inches from high-voltage lines to prevent induced noise disrupting sensor readings.
Overlooking Ground Fault Protection Requirements
Omitting a ground wire violates NEC Article 424 for auxiliary heating devices. Connect the green/yellow wire to the furnace frame or service panel grounding bus–Never to a neutral bar. Measure ground continuity with an ohmmeter; values above 1Ω indicate corroded connections requiring immediate correction. Ground faults manifest as intermittent control lockouts or erratic solenoid behavior; address before regular operation to prevent board damage.
Connecting a Whole-Home Moisture Control Unit to Your Heating System Fan Circuit
Locate the furnace’s control board and identify the fan relay terminals–typically labeled “G” (fan) and “C” (common). Connect one lead from the moisture regulator’s solenoid to the “G” terminal, ensuring the wire gauge matches the system’s specifications (minimum 18 AWG for runs under 50 feet). The second lead attaches to a 24VAC source, ideally the “R” terminal on the board, to complete the circuit. Verify the furnace manual for alternative low-voltage access points if “R” is occupied.
Install a dedicated spade connector on the solenoid wires to prevent loosening under vibration. Use heat-shrink tubing over splices rather than electrical tape for long-term durability. If the furnace lacks a spare “R” terminal, tap into the transformer secondary side, but avoid overloading the circuit–most 40VA transformers support an additional 0.2A draw safely. Confirm total amperage pull with a multimeter before finalizing connections.
Safety Checks Before Powering On
Double-check all connections for exposed copper using a continuity tester. Isolate the furnace’s power switch and circuit breaker during installation to prevent accidental energization. Once wired, restore power and activate the fan-only mode via the thermostat. Listen for solenoid engagement (a distinct *click* within 2 seconds) and confirm airflow through the moisture unit’s distribution pad. No airflow suggests a reversed solenoid lead or an open circuit–recheck polarity immediately.
For variable-speed furnaces, override the fan speed to “on” during moisture control operation to maintain consistent airflow. Some control boards require jumpering the “G” terminal to “R” permanently; consult the furnace’s technical sheet for compatibility. If integrating with a smart thermostat, ensure the “G” wire terminations remain uninterrupted, as third-party devices may repurpose this signal.
Test under real conditions by running the system for 24 hours. Monitor pad saturation–dry media indicates insufficient water flow or a clogged water panel. Adjust the unit’s flow rate via the inline valve (target 1/4 GPM for 2,000 sq. ft. homes) while observing furnace filter pressure drop. If static pressure rises above 0.5″ WC, increase filter replacement frequency to prevent motor strain. Document baseline humidity levels post-installation to gauge seasonal adjustments.
