Start by selecting the right switching elements for your layout–bipolar junction units (BJTs) or field-effect structures (FETs) dictate performance limits before drawing connections. A 2N2222 NPN device handles up to 40V collector-emitter voltage, while a 2N3904 suits low-power amplification under 200mW dissipation. Keep trace impedance below 50Ω in high-frequency designs to prevent signal degradation.
Place decoupling capacitors (10μF ceramic) within 2mm of power pins to suppress voltage spikes. For linear regulators, pair the base drive resistor at 1kΩ–10kΩ depending on desired gain; lower values accelerate switching but increase power draw. Ground loops disrupt stability–use a star topology for all reference points.
Simulate thermal behavior early: TO-92 packages tolerate 35°C/W junction-to-ambient, exceeding this risks thermal runaway in continuous operation. For switching circuits, rise/fall times under 10ns require careful PCB layer stackup–dedicate a ground plane to minimize EMI.
Avoid daisy-chaining loads from a single output; distribute current paths to prevent localized overheating. Test transient response with a 1Hz–1MHz sweep–overshoot above 15% indicates insufficient snubber capacitance or improper biasing.
Designing Circuit Blueprints Using Bipolar Junction Elements
Begin by selecting the appropriate configuration for your needs–common-emitter, common-base, or common-collector–each offers distinct advantages. The common-emitter delivers high voltage amplification, ideal for signal boosting, while the common-collector (emitter follower) excels in impedance matching without voltage gain. For RF applications, prioritize the common-base layout due to its superior high-frequency stability.
Ensure proper biasing with a voltage divider network. Calculate resistor values using the formula:
R1 = (VCC - VB) / (IB + IC / hFE)R2 = VB / IB
Replace VB with the desired base voltage (typically 0.6–0.7V for silicon devices) and hFE with the specific transistor’s current gain from the datasheet. Avoid thermal runaway by keeping IC below the maximum rating.
Component Placement and Thermal Considerations
Position capacitors at the input and output to block DC offsets while allowing AC signals to pass. Use:
- 1–10 μF electrolytic capacitors for audio frequencies
- 10–100 nF ceramic capacitors for RF decoupling
Mount bypass capacitors as close as possible to the power supply pins to minimize noise. For high-power stages, attach a heat sink to the collector tab, ensuring the thermal resistance (θJA) aligns with the transistor’s datasheet specifications.
Grounding strategies differ by application. For low-noise designs, use a star-ground topology, connecting all ground returns to a single point near the power source. In mixed-signal circuits, segregate analog and digital grounds, linking them only at the power supply’s output.
Signal Integrity and Troubleshooting
Validate circuit behavior with an oscilloscope. Key measurements include:
- DC operating point: Measure
VCEto confirm it’s halfway betweenVCCand ground (e.g., 4.5V for a 9V supply). - Amplitude response: Input a 1 kHz sine wave; the output should mirror the input without clipping.
- Frequency response: Sweep from 20 Hz to 20 kHz; note roll-off points beyond the intended bandwidth.
If distortion occurs, reduce the input amplitude or adjust the bias current. For oscillation, add a small (10–100 Ω) resistor in series with the base or increase decoupling capacitor values.
Substitute generic BC547/BC557 transistors with specialized models for niche applications:
- 2N3904/2N3906: General-purpose, low-noise
- 2N2222/2N2907: Higher current handling (up to 800 mA)
- BF494: RF amplification up to 100 MHz
- TIP31C/TIP32C: Power stages (up to 3 A)
Verify pinouts–manufacturers often swap emitter and collector positions.
For switching circuits, minimize transition times by driving the base with a low-impedance source (e.g., an op-amp or another transistor). Add a flyback diode across inductive loads (e.g., relays) to protect against voltage spikes. Calculate the diode’s reverse voltage rating as:
VRRM ≥ 1.5 × VCC
Use Schottky diodes for faster recovery times.
Document your layout meticulously. Track:
- Node voltages at critical points (base, emitter, collector)
- Component tolerances (resistors ±1%, capacitors ±5%)
- Temperature drift effects (e.g.,
hFEvariation)
Annotate the blueprint with expected measurements–this simplifies debugging. For prototyping, use a breadboard with short leads to reduce parasitic capacitance; for production, design a PCB with proper copper pours for heat dissipation.
How to Choose the Optimal Semiconductor Device for Your Project
Begin by defining the load current and voltage requirements. For low-power applications under 500 mA, small-signal components like the 2N3904 or BC547 suffice. High-power scenarios exceeding 1 A demand switching devices such as the TIP31C or IRLZ44N, which offer lower saturation resistance. Verify the maximum collector-emitter voltage (VCEO) matches your supply, avoiding breakdown risks.
Match the switching speed to your application. Bipolar junction types (BJTs) with transition frequencies (fT) around 300 MHz suit audio amplifiers, while metal-oxide-semiconductor field-effect variants (MOSFETs) like the IRF540 with sub-50 ns response times excel in high-frequency converters. For precision analog circuits, prioritize low noise figures–devices like the SSM2212 offer 1.5 nV/√Hz noise density.
Evaluate thermal constraints. Power dissipation (PD) must align with your cooling solution. TO-220 packages handle 50 W with a heatsink, while SOT-23 devices max at 300 mW without one. Check thermal resistance (θJC)–lower values (e.g., 1.5°C/W) improve performance in compact designs. For high-ambient environments, select semiconductors rated above 150°C junction temperature.
Compatibility with Circuit Topology
Use Darlington pairs (e.g., TIP120) for high current gain but note their slower response due to cascaded stages. Logic-level MOSFETs (IRL series) simplify interfacing with 3.3 V microcontrollers, eliminating level-shifting needs. For bipolar designs, ensure base current remains within the device’s hFE range to avoid saturation distortions. Common-emitter configurations demand higher input impedance components than emitter-follower setups.
Verify package type and footprint constraints. Surface-mount devices (SOIC, DFN) reduce board space but require reflow soldering. Through-hole components (TO-92, TO-247) simplify prototyping but increase physical size. Check manufacturer datasheets for pinouts–some MOSFETs swap source and drain, complicating PCB layout. For high-voltage applications, opt for insulated-gate types with built-in diodes (e.g., STW4N150) to protect against inductive kickback.
Prioritize cost-to-performance trade-offs. General-purpose semiconductors like the MPSA42 offer 300 V capability at $0.20, while specialized RF devices (e.g., BFG541) cost over $5. For mass production, consult supplier stock levels–exotic components risk lead-time delays. Always cross-reference alternative part numbers to avoid single-source dependencies.
Creating a Bipolar Junction Symbol Layout in KiCad: A Precise Workflow
Launch KiCad’s Symbol Editor by selecting it from the main project manager or pressing Shift+E. Immediately set the grid to 50 mils for pin alignment–this prevents misplaced connections later. Right-click the canvas, choose Grid Settings, and verify the unit is in inches or millimeters depending on your preference. A mismatch here will cause pin spacing errors.
Begin with a NPN device by hitting N to add a new symbol. Name it BJT_NPN_GENERIC under Symbol Properties–avoid vendor-specific labels unless necessary. Draw the body using the Rectangle tool (R), keeping dimensions 200×150 mils. Center the rectangle at (0, 0) to ensure symmetry when mirrored in circuits.
| Pin | Number | Type | Orientation | Electrical Type |
|---|---|---|---|---|
| Emitter | 1 | Left | 90° | Output |
| Base | 2 | Top | 180° | Input |
| Collector | 3 | Right | 270° | Passive |
Place pins using P, ensuring the pin length is 100 mils for clarity. Snap each pin to the grid–Emitter at (-50, 0), Base at (0, 50), Collector at (50, 0). Set Electrical Types as listed in the table to enable ERC checks. Omit pin names on the symbol body; label them only in the pin properties to reduce clutter.
For PNP devices, duplicate BJT_NPN_GENERIC and rename it BJT_PNP_GENERIC. Invert the Electrical Type of the Emitter to Power Input and the Collector to Power Output. Keep the Base as Input. Use Ctrl+F to flip the symbol horizontally if the arrow direction awkwardly crosses the body.
Add an arrow to denote current flow using the Polyline tool (L). For NPN, draw a triangle from (-25, 0) to (-50, -10) and (-50, 10). For PNP, mirror the coordinates to (25, 0). Set the line width to 10 mils for visibility. Export the symbol to your personal library, not the project root, to reuse it across designs.
Verify the symbol by placing it in a test sheet. Use W to route short leads–Emitter to GND, Collector to VCC via a 1kΩ resistor, Base to a 10kΩ pull-down. Run the Electrical Rules Check (F8); KiCad should flag no errors if pin types are correctly assigned. Adjust the symbol’s Power Flag settings if warnings appear for floating pins.
Key BJT Operating Modes: CE, CB, and CC Breakdown
For low-power amplification circuits where phase inversion is acceptable, the common-emitter (CE) arrangement delivers the highest voltage gain among all configurations. Typical values range between 50–200, depending on the load and biasing. Bias the base with a resistor divider to stabilize the operating point, ensuring the collector current remains within 0.1–10 mA for small-signal transistors like the 2N3904. Keep the collector resistor between 1kΩ and 10kΩ to avoid saturation while maximizing dynamic range. Ground the emitter via a small capacitor (10–100 µF) to boost AC gain without affecting DC stability.
The common-base (CB) topology excels in high-frequency applications, offering unity current gain and exceptional bandwidth–ideal for RF stages. Connect the base to ground through a capacitor to decouple the input signal, while feeding the emitter from a low-impedance source. Ensure the collector load is light (50–500 Ω) to preserve bandwidth, as heavier loads compress frequency response. When designing VHF/UHF amplifiers, use a transistor like the BFR92P and keep lead lengths under 5 mm to minimize parasitic inductance.

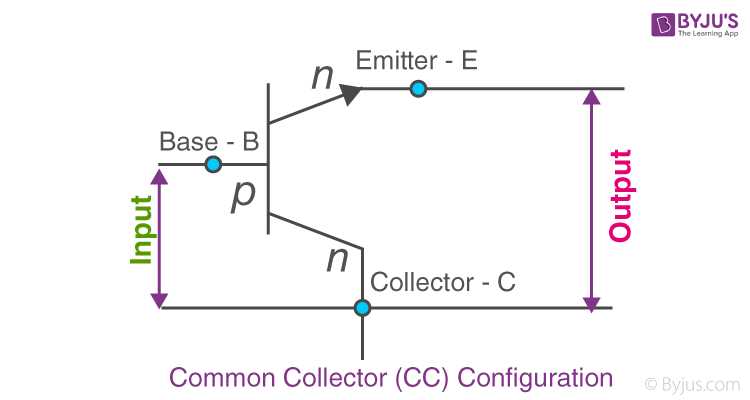

Use the common-collector (CC) setup–also called an emitter follower–when impedance matching is critical. This configuration provides near-unity voltage gain but steps up current, making it perfect for driving low-impedance loads. Bias the base with a resistor divider, then connect the emitter directly to the load via a coupling capacitor. For a 50 Ω load, select an emitter resistor of 100–500 Ω to balance power dissipation and linearity. Larger emitter resistors reduce distortion but increase power loss; compensate by choosing a transistor with a higher current rating (e.g., TIP31C for 1 A loads).
Select configurations based on trade-offs: CE for voltage gain, CB for frequency performance, and CC for current drive. Measure input and output impedances empirically–CE typically shows 1–10 kΩ input and 10–100 kΩ output, while CC flips this ratio. Always decouple power rails with 0.1 µF ceramic capacitors placed within 2 cm of the transistor’s supply pin to prevent oscillations. Verify operation by sweeping input signals from 10 Hz to 1 MHz; clipping or phase shifts indicate improper biasing.
