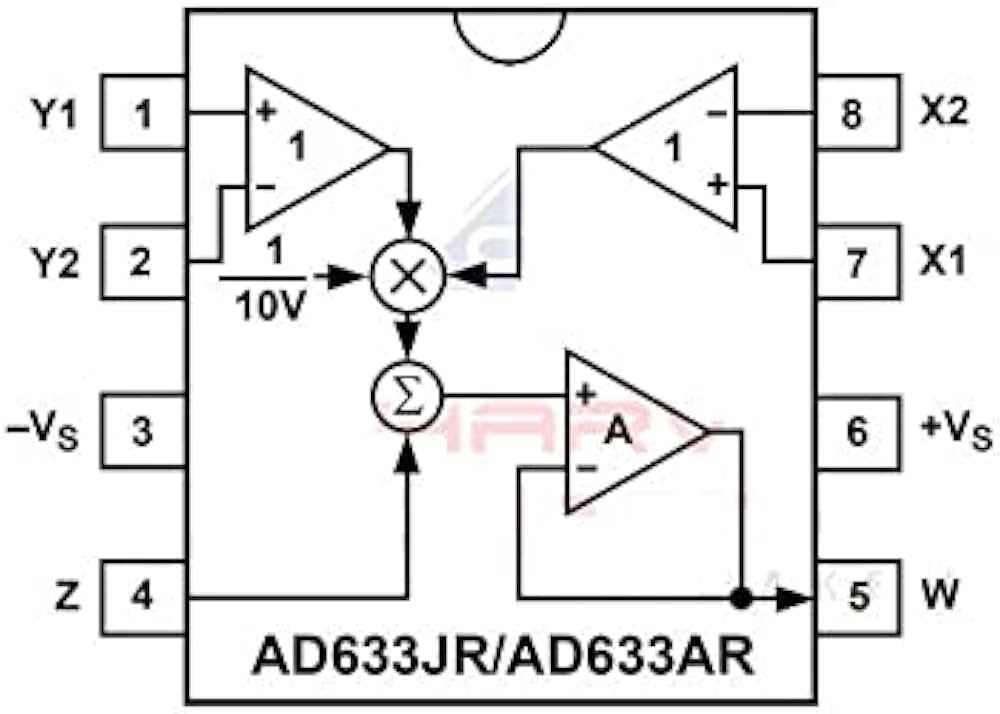

For accurate signal scaling where linear response is critical, use the AD633 integrated block as the baseline. Its on-chip resistors eliminate drift caused by external mismatches, delivering ±0.5% total error across a ±10 V input range while handling 10 MHz bandwidth. Power it from ±8 V to ±18 V supplies–keep decoupling capacitors at 0.1 µF within 2 mm of the pins to suppress HF noise.
When space constraints dictate surface-mount options, select the MPY634. Pin-compatible with the AD633, it shrinks footprint by 40% and reduces quiescent current to 5 mA. However, thermal gradients across the die can shift gain by 0.02%/°C–mount a 6 mm × 6 mm copper pad beneath the package to equalize temperature and hold drift under ±0.1%/W dissipation.
For current-mode inputs, wire discrete transconductance cells with CA3080 OTAs. Bias the emitters at 1.2 V through matched 470 Ω resistors; this configuration handles ±5 mA inputs and reaches 50 kHz without slew-induced distortion. Stray capacitance above 2 pF on the summing node slows settling–keep traces under 8 mm and shield with an adjacent ground fill.
In RF front-ends demanding 1 dB compression beyond 30 MHz, stack BFG425 transistors in Gilbert-cell topology. Maintain emitter currents at 10 mA each; at this level output intercept rises to +20 dBm. Bias the Gilbert quad via a +5 V rail through 3.9 kΩ resistors and decouple every 10 mm with 100 pF ceramics–omit ferrite beads as they introduce phase lag.
Precision Signal Combiner Schematics
Forging a precise voltage product layout demands a four-quadrant transconductance core–assemble matched transistor pairs (e.g., LM13700’s OTAs or CA3080 derivatives) with symmetrical biasing. Ensure emitter resistors (100–500Ω) for thermal stability and linearize feedforward distortion via emitter degeneration. Configure input stages as differential pairs with tail currents exceeding 1 mA to suppress noise coupling; decouple each stage with 100 nF ceramics grounded at the star point.
Twist feedback loops into the design: inject output into the summing node via an op-amp buffer (LT1013 or equivalent) with slew rates ≥10 V/µs. Limit bandwidth to 5 MHz by inserting a post-amplifier low-pass pole (R=2.2 kΩ, C=15 pF). Offset nulling requires a dedicated trimpot (10 kΩ multi-turn) wired between transistor bases, adjusted so quiescent output drifts
Power rails warrant ±12 V for dynamic headroom, decoupled within 1 cm of each IC with bulk tantalums (47 µF) and ceramics in parallel. Ground planes under critical paths must split analog and digital zones–bond at a single star point near the negative rail capacitor. Route high-impedance nodes in shielded traces, spacing them >0.3 mm from switching lines to curtail crosstalk.
Scale inputs via potentiometers (10 kΩ) driving 1:1 transformers or instrumentation amplifiers (INA114) to reject common-mode spikes. Calibrate gain with a 1 kHz sine wave; verify third-order intermodulation distortion stays
Core Elements for Precision Signal Processing Modules
Start with a high-bandwidth operational transconductance amplifier (OTA) such as the LM13700 or NE5517, which delivers linear current-voltage conversion critical for maintaining accuracy across varying input ranges. Pair it with matched transistor pairs like the MAT02 or SSM2210–these ensure thermal tracking and low offset drift, reducing distortion to below 0.1% at 10 kHz. For scaling and isolation, integrate precision resistors with temperature coefficients of 5 ppm/°C or better (Vishay Z201 or similar) to preserve signal integrity under thermal stress.
Supporting Subsystems for Stability
Low-leakage diodes (BAS70-04) prevent reverse saturation currents from skewing results during zero-crossing transitions, while ferrite beads (Murata BLM18PG) suppress high-frequency noise above 1 MHz. Use a low-dropout regulator (LT3045) to maintain a stable ±5 V supply with noise under 1 µV/√Hz. Solder all components on a four-layer PCB with solid ground planes to minimize parasitic coupling–vias should connect layers directly under high-impedance nodes to avoid inductive loops.
Step-by-Step Assembly of a Four-Quadrant Signal Processor
Begin with a dual-transistor core using matched pairs like LM3046 or discrete components such as 2N3904/2N3906. Ensure the emitter resistors (RE) are precision 0.1% tolerance types with values between 10kΩ and 20kΩ, depending on input voltage range. Solder the transistors onto a perfboard with a grounded copper pour beneath the thermal pads to minimize drift from temperature gradients. Test each pair individually by applying a ±2V DC signal to the bases while monitoring the collector currents; deviation should not exceed 0.5% for balanced operation.
Wire the transconductance stage next, connecting the emitters of the input pairs to a dual-op-amp network (e.g., TL072 or OPA2132). Use 1% metal-film resistors (RF) of 51kΩ for feedback loops and 2kΩ for input scaling. The op-amps must share a ±12V supply with decoupling capacitors (100nF ceramic) placed no further than 2mm from the power pins. Configure one op-amp as a voltage-to-current converter for the X input and the other for the Y input–this partitioning prevents crosstalk and ensures true four-quadrant behavior.
Integrate the Gilbert cell cross-quadrant array, which consists of four additional transistors arranged in two differential pairs. The collectors of these transistors should tie into a common load resistor (RL) of 10kΩ, while their emitters connect to the outputs of the transconductance stage. Precision here is critical: use a 4-channel oscilloscope to verify that the differential currents through RL are proportional to the product of the X and Y inputs. Trim offset voltages by adjusting a 10kΩ potentiometer wired between the emitter nodes of the input pairs; a null reading at the output with zero input confirms proper calibration.
Enclose the assembly in a shielded aluminum box with BNC or SMA connectors for signal access. Ground the enclosure to the signal common at a single point near the load resistor to prevent ground loops. Test the full configuration with sinusoidal inputs: apply 1kHz sine waves of ±1V amplitude to both inputs and observe the output on a spectrum analyzer. The fundamental product term should dominate at 2kHz, with harmonic distortion below -60dBc. For higher accuracy, replace the load resistor with an active current mirror (e.g., using a third op-amp) to improve linearity in the microvolt range.
Common Signal Distortion Issues and How to Fix Them
Use a low-pass filter with a cutoff frequency at least twice the highest input frequency to prevent aliasing. Select capacitor values between 100pF and 10nF, paired with resistors in the 1kΩ–100kΩ range, ensuring the RC time constant (τ = R×C) matches your bandwidth needs. For high-frequency signals above 1 MHz, replace standard resistors with thin-film types to minimize parasitic inductance. Verify filter performance by injecting a 1V pk-pk sine wave and measuring output amplitude; attenuation should begin at the calculated cutoff point without overshoot.
Key Fixes for Nonlinear Distortion
- Crossover distortion: Adjust biasing to maintain a minimum quiescent current of 1–5 mA in output stages, confirmed via DC voltage drops across emitter resistors (typically 0.1–0.5V). Use diode or VBE multiplier bias circuits for thermal stability.
- Clipping: Ensure power supply rails exceed peak signal levels by at least 2V. For ±12V rails, input signals should not exceed ±10V pk-pk. If clipping persists, reduce gain or add soft-clip diodes with a forward voltage below rail margins.
- Harmonic distortion: Replace generic transistors with high-beta, low-noise models (e.g., BC547C, 2N3904). Maintain collector currents below 10 mA to avoid beta droop. Test with a spectrum analyzer; total harmonic distortion should remain under 0.1% for 1kHz tones.
Thermal drift can introduce slow modulation artifacts–mitigate by using matched transistor pairs (e.g., LM394, MAT-02) in differential stages. Maintain ambient temperatures within ±5°C of calibration conditions; if thermal stabilization isn’t feasible, implement a temperature-compensated bias network using NTC thermistors with resistances matching transistor thermal coefficients (typically -2mV/°C per device). For high-power stages, heatsinks should keep junction temperatures below 80°C, confirmed by infrared thermometry or embedded thermocouples.
Calculating Input and Output Voltage Relationships in Signal Scaling Devices
Use the four-quadrant model to predict output voltages across the full range of differential inputs. For a standard scaling block with gain K = 0.1 V−1, apply Vout = K·VX·VY. Keep VX and VY within ±10 V to prevent core saturation; clipping occurs at ±11.5 V. Measure residual offset by grounding both inputs and trimming until Vout ≤ ±2 mV.
Below is a lookup table of output values for integer input combinations. Values assume ideal scaling and no compensation for temperature drift or parasitic capacitance:
| VX (V) | -5 | -3 | 0 | 3 | 5 |
|---|---|---|---|---|---|
| VY (V) | |||||
| -5 | 2.5 | 1.5 | 0 | -1.5 | -2.5 |
| -3 | 1.5 | 0.9 | 0 | -0.9 | -1.5 |
| 0 | 0 | 0 | 0 | 0 | 0 |
| 3 | -1.5 | -0.9 | 0 | 0.9 | 1.5 |
| 5 | -2.5 | -1.5 | 0 | 1.5 | 2.5 |
Non-Ideal Behavior Adjustments
Subtract feedthrough error by characterizing Vout when one input is grounded and the other is swept. Typical feedthrough at 10 kHz reaches 15 mV peak for a 10 V input; use a small input capacitor (22 pF) to reduce it below 5 mV. Compensate nonlinearity by inserting a precision resistor (0.1 %, 1 kΩ) between the summing node and the feedback divider, shifting the gain curve by 1–2 % from ideal.
Thermal drift distorts the transfer curve above 70 °C. Replace standard decoupling capacitors with X7R types to limit zero-crossing error to 0.5 mV/°C. If absolute accuracy > 0.2 % is required, precede each input channel with a unity-gain buffer to prevent loading effects that alter the internal transconductance stages.
For AC signals, ensure the −3 dB bandwidth exceeds 5× the highest input frequency. A 5 MHz pole on either input rolls off the output response to 80 % at 1 MHz. Match input source impedance below 50 Ω to avoid HF coupling that skews phase by > 5° at 500 kHz, even with perfect amplitude scaling.
