Start with a clear objective–define whether the visualization represents a power supply, signal flow, or logic network. Use standardized symbols: resistors as rectangles, capacitors as parallel lines, and transistors as three-legged shapes. Group related components spatially: keep input terminals on the left, outputs on the right, and power lines at the top. Label every element with concise identifiers–R1, C2, Q3–and include critical values (e.g., 10kΩ, 100nF) directly beside them.
Minimize crossing lines by arranging connections at 90-degree angles. If intersections are unavoidable, use a small arc on one of the wires to indicate a bridge without contact. Ground symbols should align vertically; avoid scattering them randomly. For integrated circuits, draw a rectangle with numbered pins matching the datasheet–misalignment here leads to debugging errors.
Add transient notes in small italicized text near dynamic elements: “PWM output (50% duty cycle)” or “Trigger on rising edge.” Use thicker lines for high-current paths (e.g., power rails) and thinner lines for signal traces. If the visualization includes microcontrollers, mark pins with their alternate functions (UART, SPI) in parentheses. Always validate against the physical layout–swap components on paper before soldering.
Export the final version as a vector file (SVG) for scalability. Include a revision number and date in the corner (e.g., “Rev 2 – 2024-05-15”) to track iterations. Share the file in formats compatible with CAD tools–Gerber for PCBs or KiCad for open-source projects.
Constructing a Practical Circuit Blueprint
Begin with a clear functional breakdown of the system’s core components. Assign distinct symbols for resistors (zigzag line), capacitors (parallel plates), transistors (arrowed junctions), and power sources (vertical lines). Label each element with precise values–e.g., R1: 220Ω, C1: 100μF, VCC: 5V–to eliminate ambiguity. Use industry-standard references like IEEE 315 or IEC 60617 to ensure compatibility across platforms. Avoid crossing signal lines; route connections at 90° angles where unavoidable, and use dots to indicate intentional junctions, not accidental overlaps.
Optimizing Signal Flow
Prioritize logical sequence: place input nodes on the left, processing elements centrally, and outputs on the right. For microcontroller-based systems, isolate analog and digital grounds with a star-point configuration to prevent noise coupling. Highlight critical paths–such as clock signals or power rails–with thicker traces (0.3mm min) and color-code high-voltage (>24V) lines in red. Include test points (TP1, TP2) near sensitive stages like oscillators or ADCs for diagnostics. Annotate signal directions with arrows if the flow isn’t intuitively left-to-right.
Embed metadata directly into the layout: add a revision block listing author, date, and version; note tolerance stack-ups for impedance-controlled traces (e.g., “50Ω ±10%”). Use hierarchical sheets for complex designs–break subcircuits (e.g., power regulation, sensor interfacing) into separate modules linked by net labels. Validate connectivity with a dry run: step through each net with a multimeter or simulation tool to confirm no orphaned pins or floating nodes exist.
For RF or high-speed designs, enforce strict rules: maintain consistent trace widths for controlled impedance, minimize stubs, and use curved traces (via splines) to reduce reflections. Document parasitic elements–e.g., lead inductance in through-hole components (0.5nH/mm)–and their impact on performance. If the layout software supports it, generate a netlist for PCB fabrication, ensuring layer assignments match the intended stack-up (e.g., signal-ground-power-signal for 4-layer boards).
Defining Core Components in a Technical Blueprint
Start by isolating power sources as the foundation. Label each voltage rail with its exact rating–no tolerances left unchecked. A 5V line should specify whether it’s regulated, switched, or derived from a buck converter. Include test points for critical rails to validate stability under load before proceeding. Skipping this step introduces fault risks downstream.
- AC inputs: Mark surge protection values (e.g., 470V varistors).
- DC rails: Note whether transient suppression (TVS diodes) exists.
- Ground planes: Separate analog and digital returns unless explicitly tied.
Group active elements by function. Microcontrollers, FPGAs, or ASICs demand dedicated subcircuits. List pin assignments for clock signals, reset lines, and boot modes–ambiguity here causes debugging nightmares. Use hierarchical blocks if the design exceeds 50 nets to maintain clarity.
Passive components follow strict placement rules. Capacitors must sit within 5mm of IC power pins; larger decoupling (10μF+) requires vias directly to the ground plane. Resistors serve as pull-ups/downs, current limiters, or terminators–specify values and tolerance (e.g., 0.1% for precision analog). Inductors need footprints matching their ripple current ratings.
Signal Flow Prioritization
Trace critical paths first. High-speed lanes (e.g., PCIe, DDR) mandate impedance control: calculate trace width for 50Ω single-ended or 100Ω differential. Document layer transitions–each via adds inductance. Low-speed signals (I2C, SPI) tolerate thinner traces but still need clear routing away from noise sources.
Avoid crossovers where possible. If unavoidable, place orthogonal on adjacent layers with a grounding shield layer between. Use net names instead of connector pins for clarity–”USB_D+” is more readable than “J3-2”. Terminate all unused pins to a defined state (e.g., tie to ground via 10kΩ).
Protection and Redundancy Layers
Fuses, thermal cutoffs, and ESD diodes belong at every external interface. Specify holding current for fuses (e.g., 500mA slow-blow) and breakdown voltage for TVS diodes (8V for USB). Include test pads for fault injection to verify protection circuits.
- Input clamping: Diodes to both rails for AC/DC inputs.
- Output overcurrent: Foldback circuits or current-limiting ICs.
- Watchdogs: Separate from primary reset lines.
Document component footprints precisely. A 0805 capacitor may not fit a 0603 pad despite similar outlines. Note orientation for polarized parts (e.g., tantalum caps, LEDs). Include silkscreen markers for polarity–misplacement here causes irreversible board damage during assembly.
Validate nets with DRC checks before finalizing. Unrouted nets, overlapping polygons, or clearance violations corrupt fabrication. Export netlists in both human-readable (IPC) and machine-readable (EDIF) formats. Store reference designators in a separate BOM table linking directly to component values and part numbers.
Step-by-Step Process for Drafting a Digital Circuit Blueprint
Begin by listing all components with their exact electrical ratings in a table before placing a single symbol. Include columns for: Part Number, Type (IC/Resistor/Capacitor), Value, Tolerance, Package, and Power Rating. Verify datasheets for hidden dependencies–some ICs demand decoupling capacitors within 10mm of power pins. Tools like KiCad’s “Symbol Editor” accelerate this step, but manual cross-checking prevents errors in high-frequency layouts where trace inductance (typically 1nH per mm) becomes critical.
Symbol Placement Rules for Clarity
Organize symbols in a logical signal flow: inputs on the left, outputs on the right, power rails at the top/bottom. Group related subcircuits (e.g., MCU + its oscillators) in 3x3cm blocks with 5mm spacing between blocks. Label all nets with <function>_<voltage_domain> (e.g., CLK_3V3) to avoid confusion. Use hierarchical sheets for designs exceeding 20 components–split by function (e.g., analog frontend, digital core) to maintain scalability.
| Component Class | Symbol Placement | Spacing Requirement |
|---|---|---|
| Microcontrollers | Center of block | 10mm from inductors |
| Switching Regulators | Edge of block | 20mm from sensitive analog |
| Decoupling Capacitors | Adjacent to IC pins | ≤2mm from VCC/GND |
Apply net classes early to enforce trace width rules. For 1oz copper, use 0.254mm traces for signal, 0.5mm for , 1.2mm for >500mA. Assign differential pairs (e.g., USB, LVDS) to a dedicated net class with 100Ω impedance–calculate this using a stackup calculator (e.g., Altium’s Impedance Planner) before routing. Tools like LTspice can pre-validate critical paths (e.g., RC filters, transmission lines) if SPICE models are available.
Post-Draft Validation Checks
Run design rule checks with these parameters: ERC: Disallow floating inputs; DRC: Minimum clearance 0.2mm; Silk-to-Copper clearance 0.3mm. Export a Bill of Materials in CSV format, appending a “Verification Status” column–manually mark components checked against datasheets. Generate gerber files with RS-274X format and validate them in a viewer (e.g., Gerbv) to catch hidden shorts. For multi-layer boards (4+ layers), review signal integrity with a TDR (Time-Domain Reflectometer) simulation if rise times exceed 3ns.

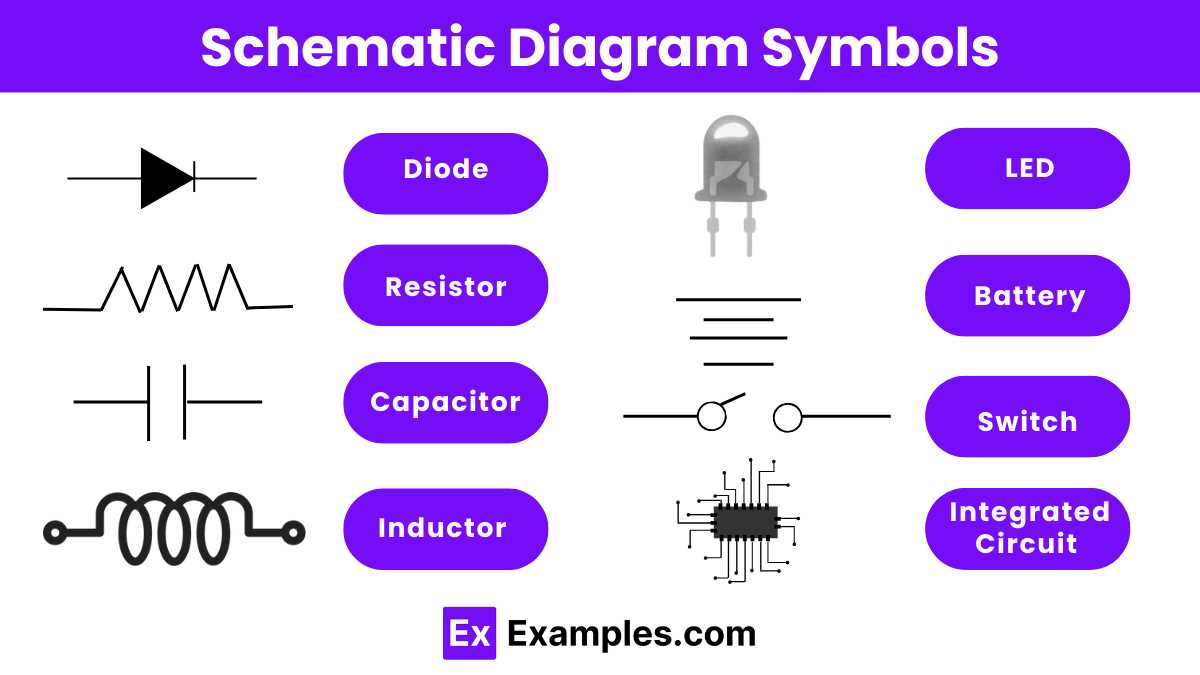

Key Symbols and Their Practical Applications
Start by memorizing resistor icons–zigzag lines or rectangular boxes–to instantly recognize current-limiting components in layouts. Resistance values (e.g., “10kΩ”) should align with voltage drop calculations to prevent overheating in power circuits. Use the ground symbol (a downward-pointing triangle or three parallel lines) as a reference point for all voltage measurements; misplaced grounds create phantom shorts that disrupt debugging.
Transistors (BJTs or MOSFETs) demand precise orientation: emitter/base/collector or source/gate/drain must match datasheet pinouts to avoid component burnout. Capacitor symbols (parallel lines) require verifying polarity–electrolytic types explode if reversed. For ICs, cross-reference footprint diagrams with soldering pads; a single misaligned pin voids functionality without visible damage.
Switches and diodes use arrow-based notation: diodes block reverse current, while switches toggle paths–test continuity with a multimeter before integration to confirm mechanical reliability. Inductors (coiled lines) need shielding in RF designs to prevent interference; even minor noise degrades signal fidelity in amplifiers or wireless modules.
