Use a shunt resistor rated for at least 1.2 times the maximum expected load. Ensure the resistor’s power dissipation matches the circuit’s current–overheating risks inaccurate readings. Mount the shunt close to the power source to minimize voltage drop and interference.
Wire the measurement device in series with the load, never in parallel. Attach the positive probe to the upstream side of the shunt and the negative probe to the downstream side. Reversing these connections flips the polarity, leading to erroneous negative values.
For DC circuits, confirm the instrument’s scale matches the shunt’s rating. A 50 mV shunt paired with a 0-100 A meter requires precise calibration–adjust internal potentiometers if readings drift. AC measurements demand true RMS-capable tools to handle distorted waveforms.
Verify connections with a multimeter set to millivolt mode before powering the circuit. A reading near zero indicates a broken link or incorrect probe placement. Secure all terminals with anti-vibration clamps to prevent loose contact over time.
Isolate the measurement path from high-voltage conductors. Separate low-voltage signal wires from power lines using twisted pairs or shielded cable to reduce noise. Ground shields only at one end to avoid ground loops.
Label shunt terminals and wires to avoid future misconfiguration. Document the setup–include shunt resistance, meter scale, and circuit specifics–for troubleshooting or modifications. Update records if replacing components to maintain consistency.
Connecting Current Measurement Devices in Circuits
Use a shunt resistor rated for at least 1.5 times the circuit’s maximum anticipated load to prevent overheating and ensure accurate readings. For a 10A system, select a 75mV shunt with a 0.0075Ω resistance–this maintains minimal voltage drop while providing precise scaling for the meter. Connect the shunt in series with the high-current path, placing the positive terminal on the supply side and the negative on the load end; reverse polarity distorts readings by up to 20%. Wire the meter’s leads directly to the shunt’s terminals using 14 AWG or thicker conductors for currents above 5A to avoid signal loss. For AC applications, pair the shunt with a rectifier bridge calibrated for the meter’s sensitivity curve to prevent waveform-related errors.
Test connections with a multimeter set to low-resistance mode before powering the circuit: verify shunt resistance matches datasheet values (±1%), and check for continuity between the meter and shunt. For systems exceeding 50A, integrate a current transformer with a turns ratio matching the meter’s range (e.g., 100:5 for a 0–100A display) to isolate high voltages and avoid damaging the gauge. Secure all joints with crimp terminals or solder to prevent oxidation-induced drift, and insulate with heat-shrink tubing if operating near conductive surfaces. For digital displays, confirm the sampling rate matches the circuit’s load fluctuations; a 10Hz rate suffices for steady-state applications, while 1kHz is required for transient response.
Connecting a Current Gauge in a Sequential Electrical Path
Ensure the power source is disconnected before handling any components to prevent short circuits or electric shock. Identify the segment of the circuit where you need to measure flow–this device must interrupt only that section, breaking the current’s path without altering circuit resistance beyond negligible leads.
Select a gauge rated for 20% above your circuit’s expected maximum current. For example, if your circuit typically draws 5A, use an instrument with a 6A or higher range. Gauges with lower ranges risk burnout, while overly high ranges reduce precision. Verify the instrument’s internal resistance (typically under 0.1Ω) to avoid voltage drops that skew readings.
Break the circuit at the chosen point by disconnecting one wire from its terminal. Strip 3–4mm of insulation from both the incoming and outgoing wires at the break. If the wires are thick (e.g., 12AWG), twist strands tightly to prevent loose connections. For multi-strand wires, use crimp connectors or solder to ensure solid contact.
| Circuit Type | Minimum Wire Gauge (AWG) | Recommended Instrument Range |
|---|---|---|
| Low-power (LED lighting) | 22–24 | 0–1A |
| Standard household (120V outlets) | 14–16 | 0–10A |
| High-current (motors, heaters) | 10–12 | 0–30A |

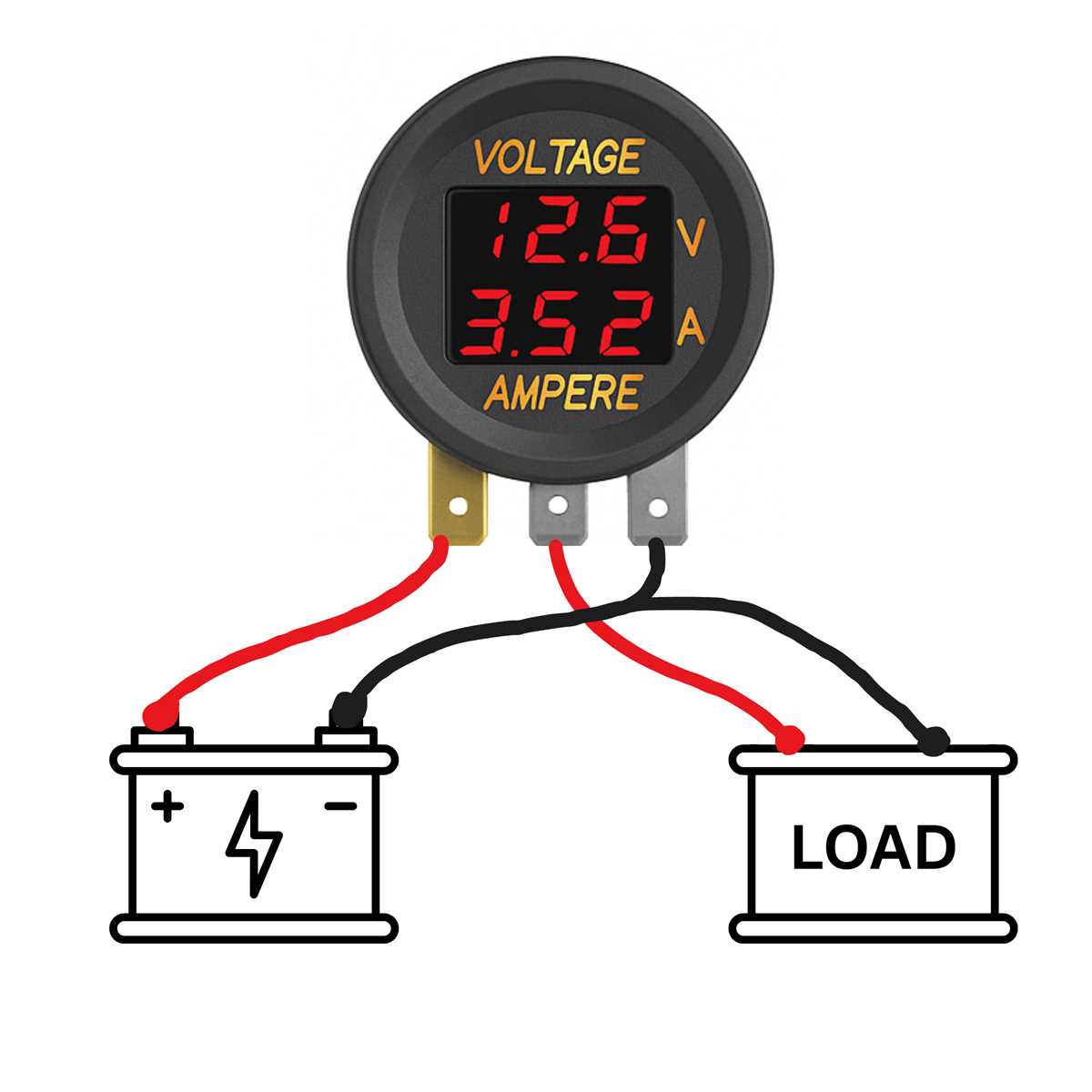

Attach the gauge’s input terminal (marked “+” or red) to the wire coming from the power source. Connect the output terminal (marked “-” or black) to the wire leading to the load. Tighten terminals securely–vibration or thermal cycling can loosen screws, causing intermittent contact. For panel-mounted gauges, slide wires through knockouts and secure with lock washers to prevent rotation.
Testing and Verification
Reconnect power and observe the gauge. A zero reading indicates an open circuit–check connections. If the needle pegs or digital display maxes out, immediately disconnect power: the gauge’s range is too low. Reconnect without the instrument to confirm normal operation before retrying with a higher-range model. For AC circuits, polarity doesn’t matter, but for DC, reversing leads flips the needle’s direction (or inverts digital displays).
Seal connections with electrical tape or heat shrink tubing to prevent shorting against adjacent wires. For permanent installations, secure wires with cable ties to prevent strain on terminals. Calibrate the gauge annually if used in critical applications; drift can occur due to magnetic interference or mechanical wear. Document the installation location and expected current range for future troubleshooting.
Essential Equipment and Supplies for Current Measurement Installation
Begin with a precision shunt resistor rated for your expected load range. For low-current applications (under 10A), a 100mV, 1% tolerance device suffices. Higher loads demand 75mV or 50mV variants with appropriate wattage ratings–calculate using P = I² × R to avoid overheating. Select models with soldered or screw terminals based on connection method.
Use a moving-coil gauge with a scale matching your shunt’s output voltage. Digital panel meters offer advantages for dynamic systems but require stabilized DC input (typically 5V–12V). Verify compatibility between gauge sensitivity (e.g., 0–100µA) and shunt specifications–mismatches distort readings. For analog meters, ensure the needle isn’t bent during handling.
Prepare copper wire sized according to current capacity: 18 AWG for ≤5A, 14 AWG for ≤15A, and 12 AWG for ≤20A. Stranded wire flexes better under vibration; solid core suits fixed installations. Insulation type matters–THHN for dry locations, XHHW for high-temperature or wet environments. Always account for voltage drop over long runs.
Secure connections with crimp terminals or solder. Ring terminals fit studs; spade terminals suit blade connectors. Use heat-shrink tubing for insulation–polyolefin shrinks at 135°C, while adhesive-lined versions seal moisture-prone joints. Avoid twist-on wire nuts–current loops demand mechanical stability.
Include a fuse or circuit breaker sized at 125% of maximum expected current. Slow-blow types tolerate transient surges; fast-acting variants protect sensitive gauges. Mount holders within 15cm of the shunt for accurate fault detection. For DC applications, confirm polarity before energizing to prevent reverse current damage.
Gather non-conductive mounting hardware: nylon screws, standoffs, and adhesive-backed panels. Steel brackets risk short circuits; fiberglass or phenolic composites provide dielectric strength. Double-check component spacing–air gaps ≤9.5mm may arc under transient voltages.
Test leads must terminate in insulated probes with 4mm banana plugs or alligator clips. Use multimeter probes for preliminary continuity checks, but switch to dedicated shunts for sustained readings. Store probes in insulated cases to prevent accidental shorts during transport.
Calibration standards vary: handheld calibrators output 4–20mA for process control, while decade resistors simulate precise loads. For field adjustments, a 0.1Ω precision resistor confirms gauge linearity. Document baseline readings before modifications to detect drift over time.
How to Connect a Mechanical Current Indicator: A Practical Walkthrough
Select a shunt resistor with a resistance value matching the meter’s full-scale deflection. For a 0-10 A panel meter calibrated at 50 mV, use a 5 mΩ shunt. Clip the shunt directly into the main positive conductor, ensuring minimal lead length to prevent voltage drops. Keep the shunt at least 30 cm away from magnetic interference sources like transformers or motors.
Strip 8 mm of insulation from each meter lead. Tin the ends with solder to prevent fraying. Secure one lead to the shunt’s input terminal and the other to the output terminal, using brass washers under the screws for reliable contact. Torque the screws to 1.5 Nm–over-tightening risks thread damage, under-tightening causes erratic readings.
- Polarity matters: reverse connections will drive the needle backward, potentially damaging the movement.
- Ground the meter’s metal case separately if the circuit lacks a ground reference.
- Avoid twisting meter leads around the shunt; this introduces stray inductance and skews measurements.
Verify the setup with a known current source. Use a regulated power supply set to 5 A and confirm the needle sits at the 50% mark. If it doesn’t, recalibrate by adjusting the meter’s internal trimmer potentiometer. For high-current applications (above 50 A), substitute the shunt with a Hall-effect sensor–shunts dissipate excessive heat at these levels.
